Description

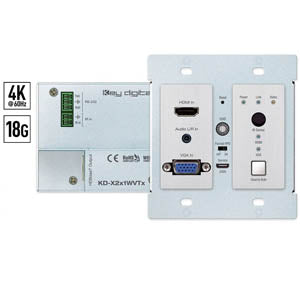

The 2x1 4K HDBaseT PoH Wall Plate Switcher from Key Digital is a transmitter that features HDMI and VGA inputs for presentation switching. This transmitter is designed to be controlled via an RJ45 LAN port and connected to receivers like the KD-X40MRx black box HDBaseT receiver and the KD-PS42 presentation switcher (available separately). It supports a resolution up to 4096 x 2160 at 60 Hz. A signal extension up to 131' is supported via 4K/UHD resolution and up to 230' via 1080p resolution. This unit is designed for installation in a standard US dual-gang box. A silver decora plate is included.
- Supports up to 4096 x 2160 or 3840 x 2160 at 24, 25, 30, and 60 Hz at 4:4:4 (signals up to 18 Gb/s bandwidth)
- Automatic selection of newly detected source and switching from newly disconnected source when enabled
- Fully licensed and compatible with HDCP 2.2
- HDR10 and Dolby Vision allow life-like images through a greater range of luminance levels
- Power over HDBaseT
- Full Buffer System manages TMDS re-clocking / signal re-generation, HDCP authentication to source and display, EDID Control handshake, and Hot Plug Detection Voltage
- EDID Management features internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
- Wall plate collects line-of-sight IR from remote without external IR wiring
- RS-232 bidirectional control to/from transmitter and receiver/presentation switch unit
- Unit control via USB for initial installation steps
- Lossless compressed digital audio including Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
