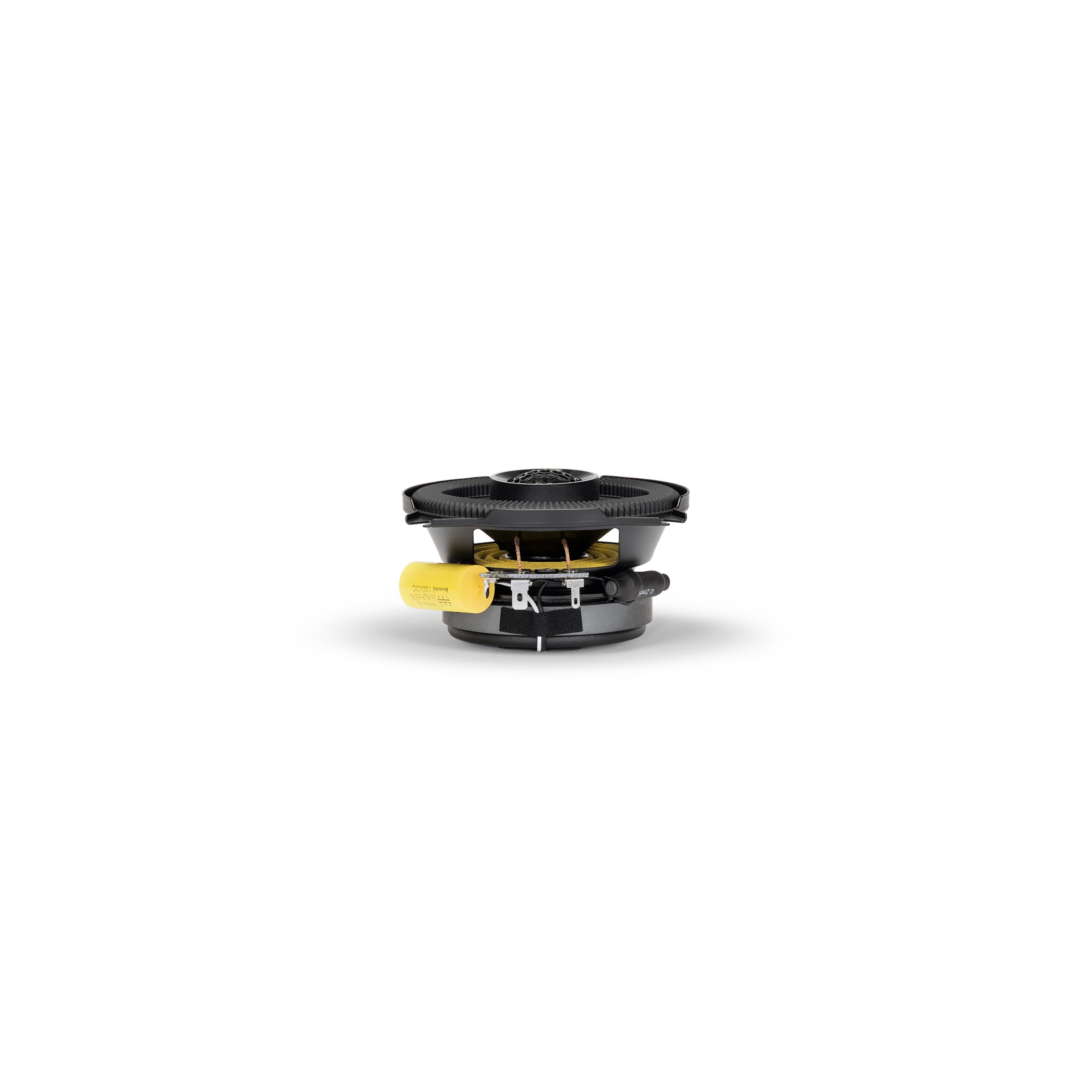

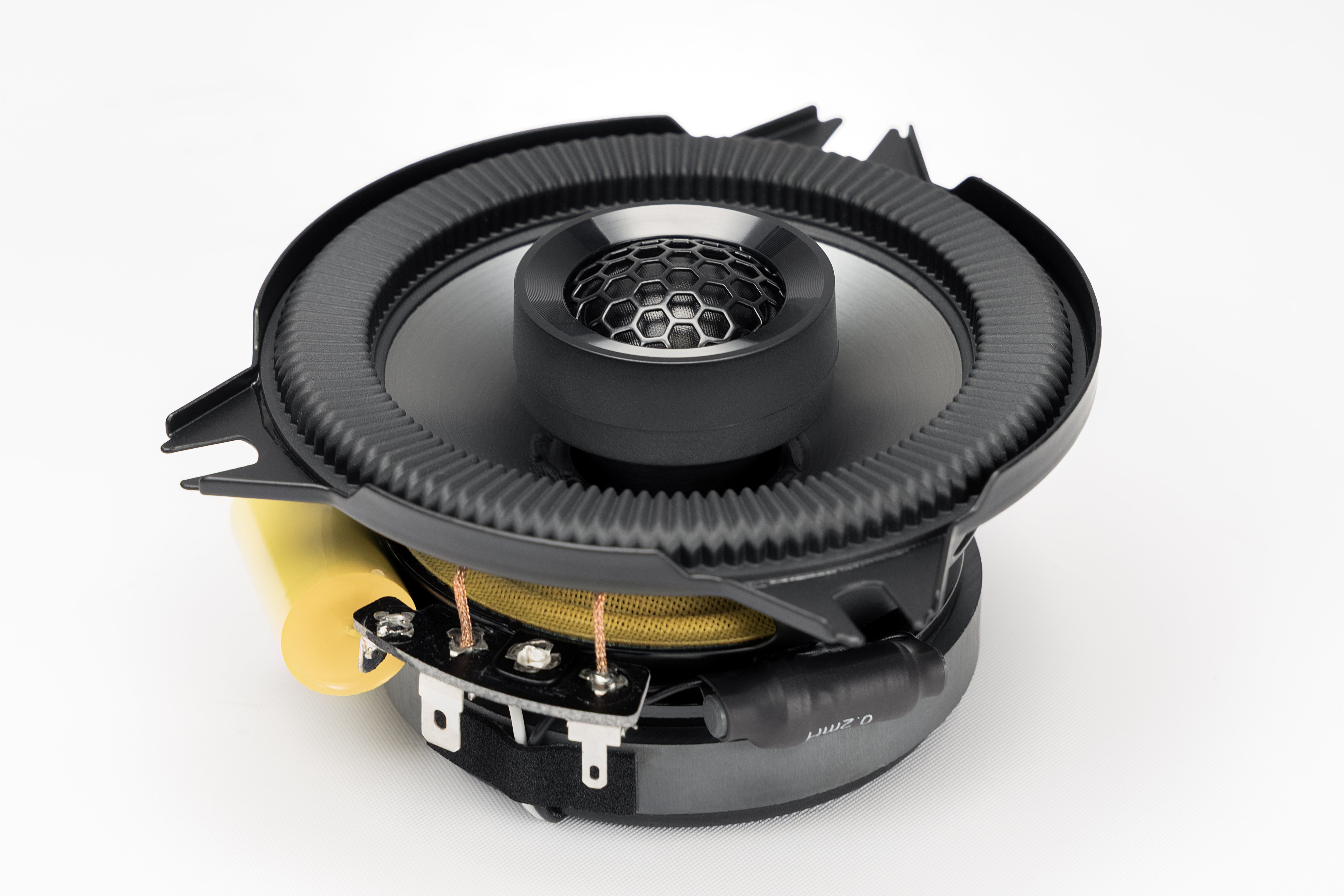

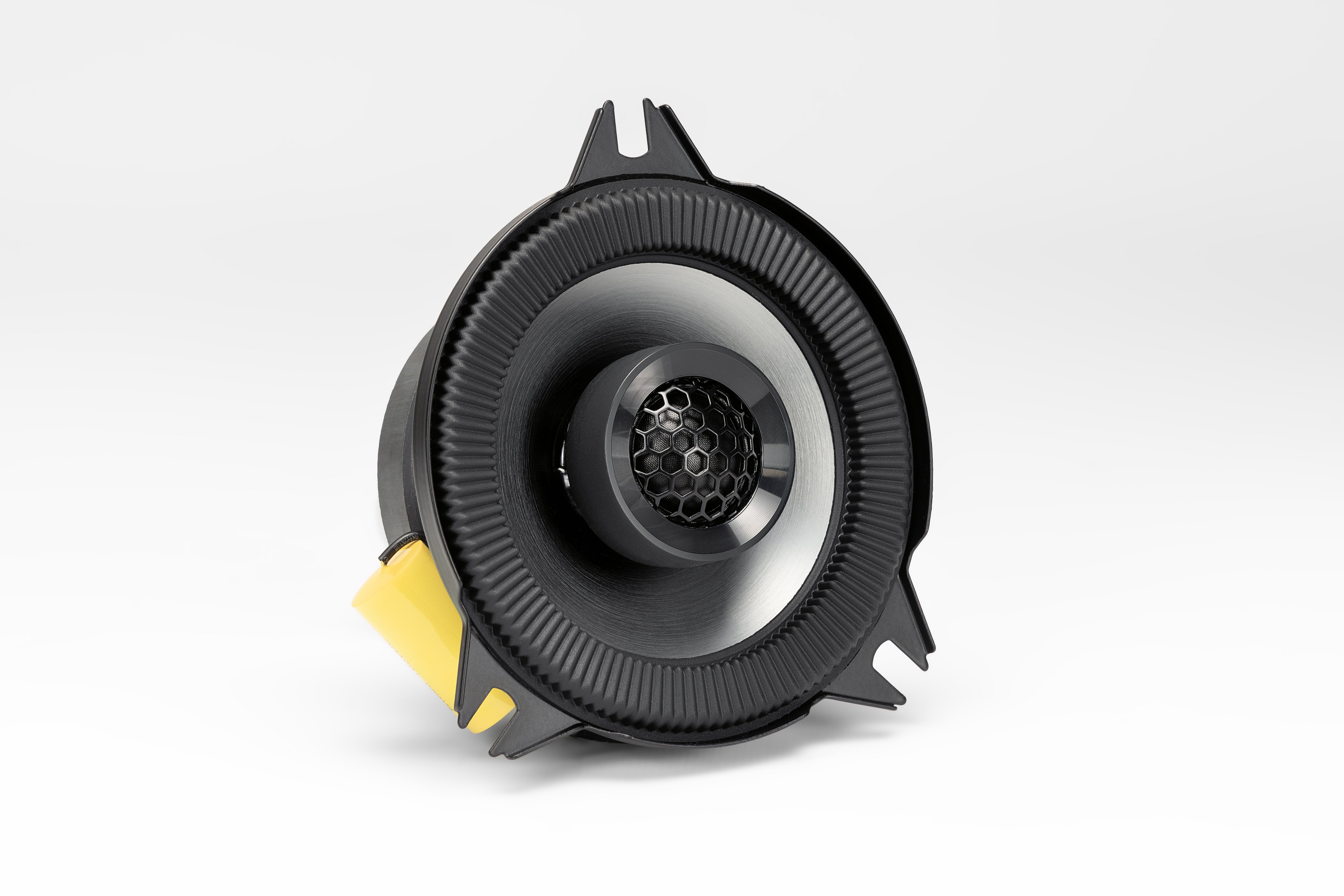

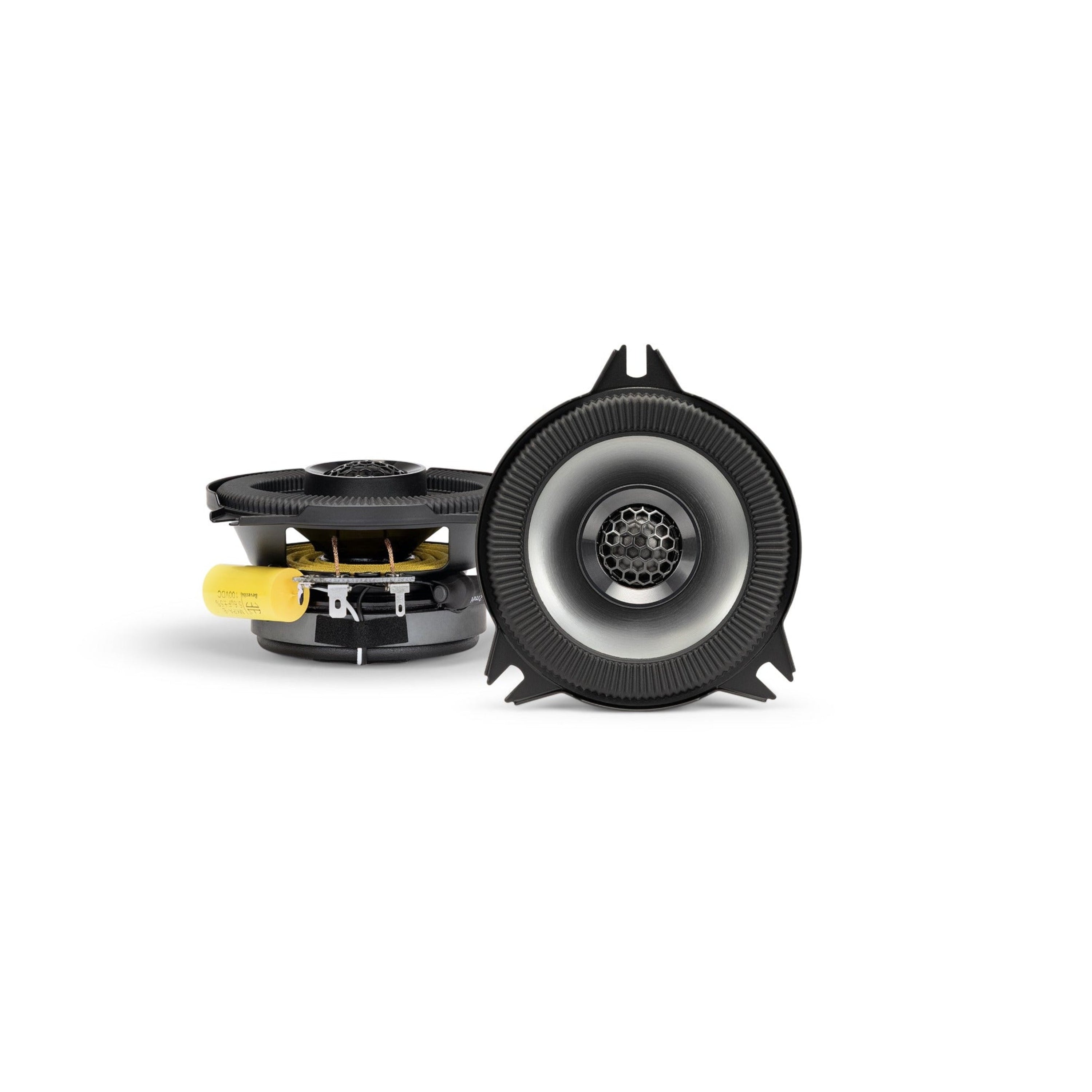

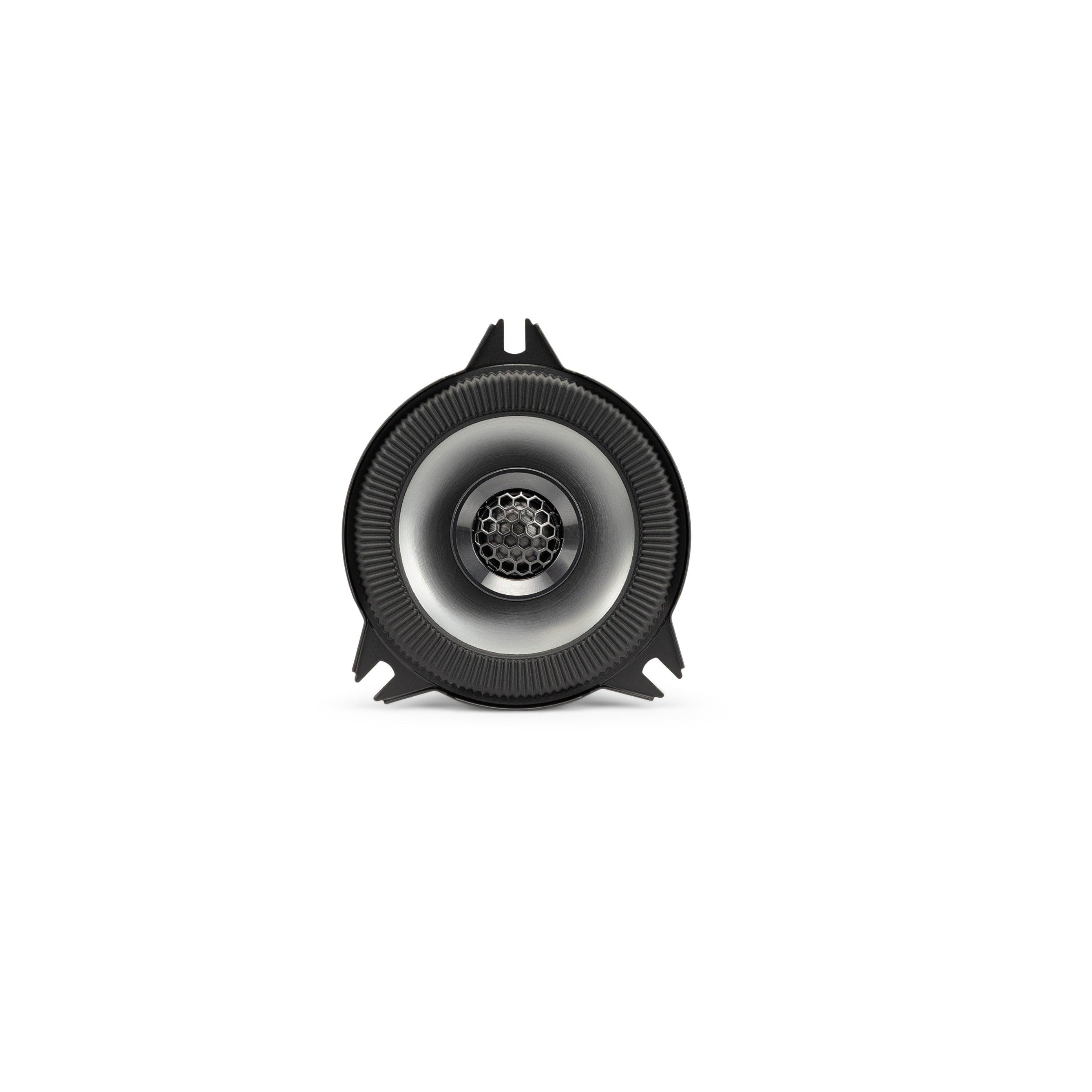

Alpine BRV-40 4" BassRev™ Speaker Set

Using proprietary software technology and a powerful digital sound processor, we pushed the envelope of what’s possible in a sound system, redefining how you experience your music on the road.

• H.E.D.G.E. Surround – The symmetrical shape, coupled with the High Excursion Design Gathered Edge, allows the speaker to operate more symmetrically and linearly for increased output and extended low frequency.
• Unique Design – The unique lapeled cone shape allows us to achieve high cone excursion for more motion and height when compared to a traditional speaker.
• OPTIM Sync Technology – Using a proprietary dynamic bass boost algorithm, we can extend the bass frequency on each speaker while staying within the safe operating limits. Each speaker features a pre-EQ to enhance the tonal balance during playback.

SYSTEM TECH SPECS
• Woofer Size: 4”
• Tweeter Size: 0.75”
• Maximum Peak Power: 120W
• Maximum RMS Power: 40W
• Frequency Response: Without BassRev 75 Hz – 20k Hz; With BassRev 67 Hz – 20k Hz
• Impedance: 4Ω
• Sensitivity: 84dB
• 30% SPL increase for increased loudness
• 25% X-Max increase for increased cone movement
• Mounting Depth: 45mm (1.77”)
