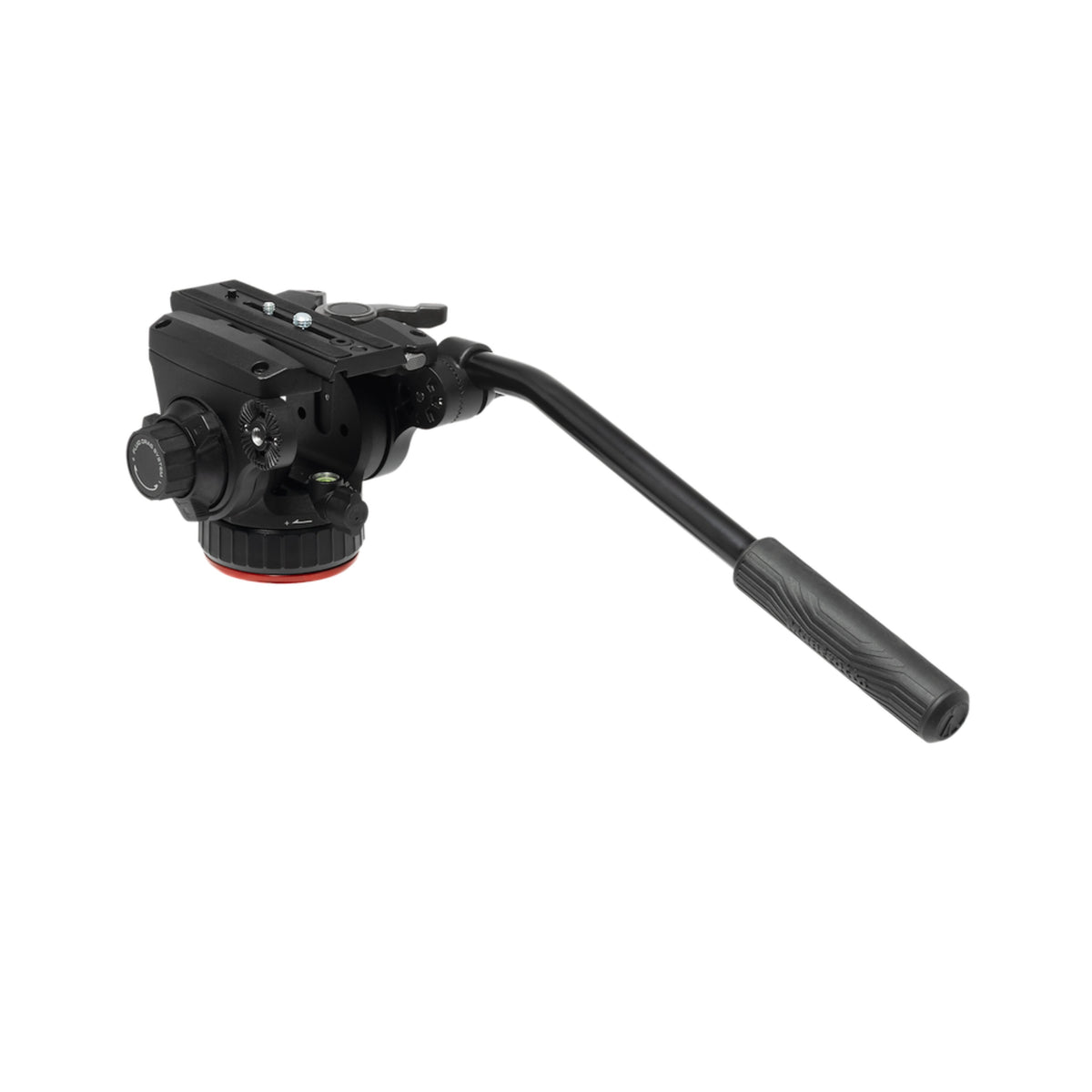

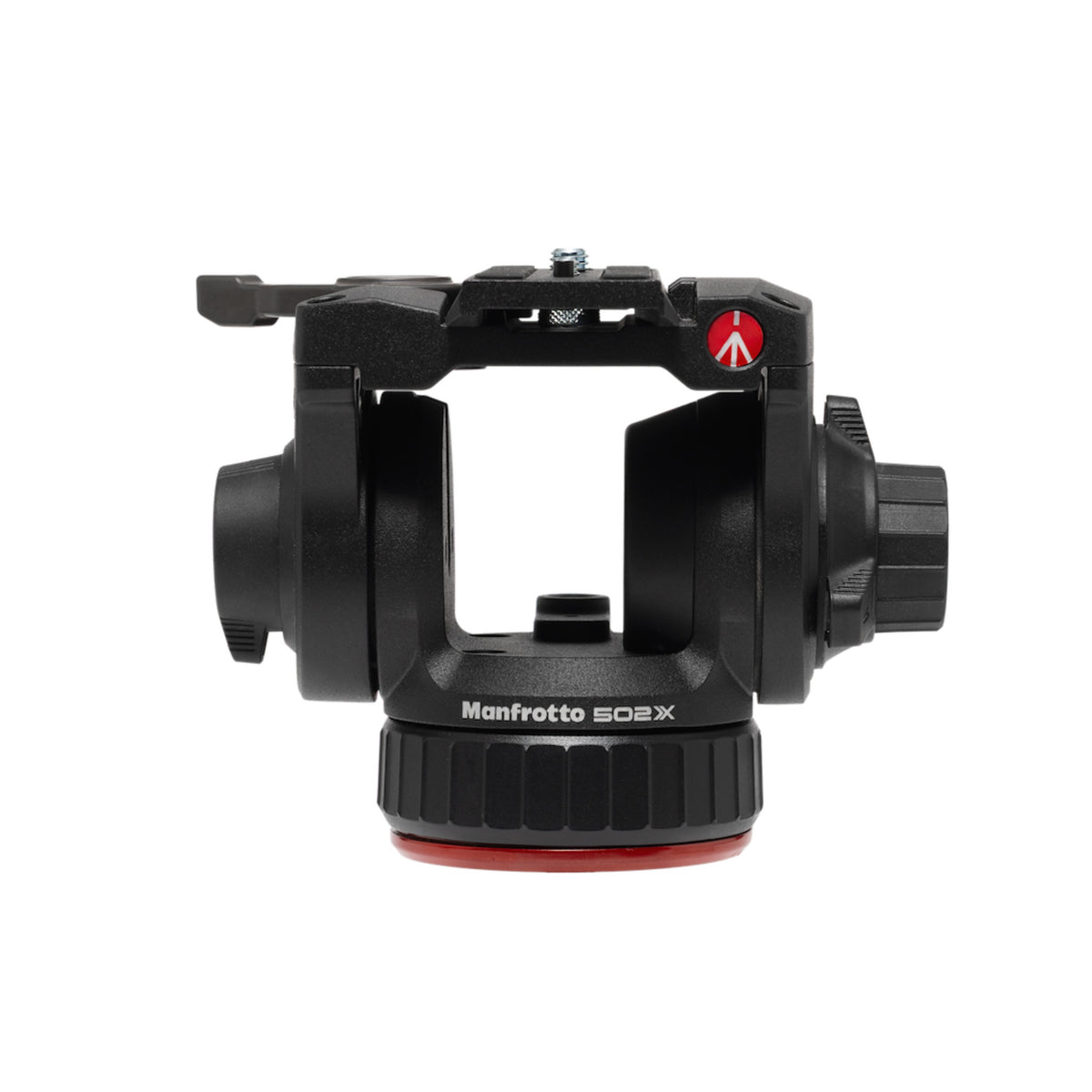

Manfrotto 502X Fluid Video Head

• Smooth pan and tilt with Variable Continuous Fluid Drag System
• Precise control thanks to counterbalance system
• 75mm base XCHANGE ready
• 3/8” easy link connectors for accessories, with anti-rotation
• Designed in Italy
• Highest protection. Backed by warranty

Precision fluid movement for professional video
The Manfrotto 502X Fluid Video Head is designed for professional videographers working with mirrorless cameras and compact camcorders.

Part of the Manfrotto Bridging Technology range, it combines precise control, smooth movement, and consistent stability in a compact, versatile design built for modern video production.

Smooth movement. Precise control

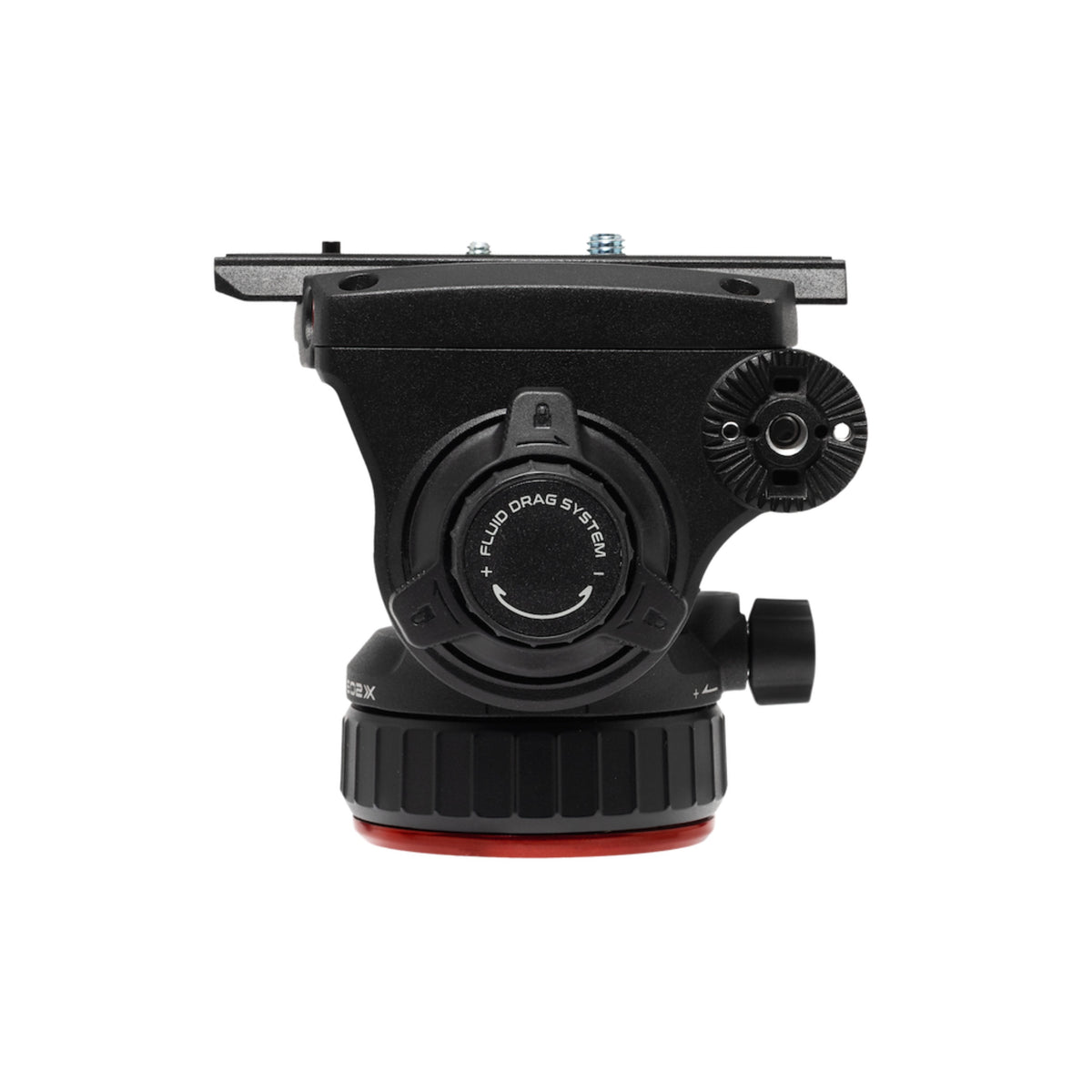

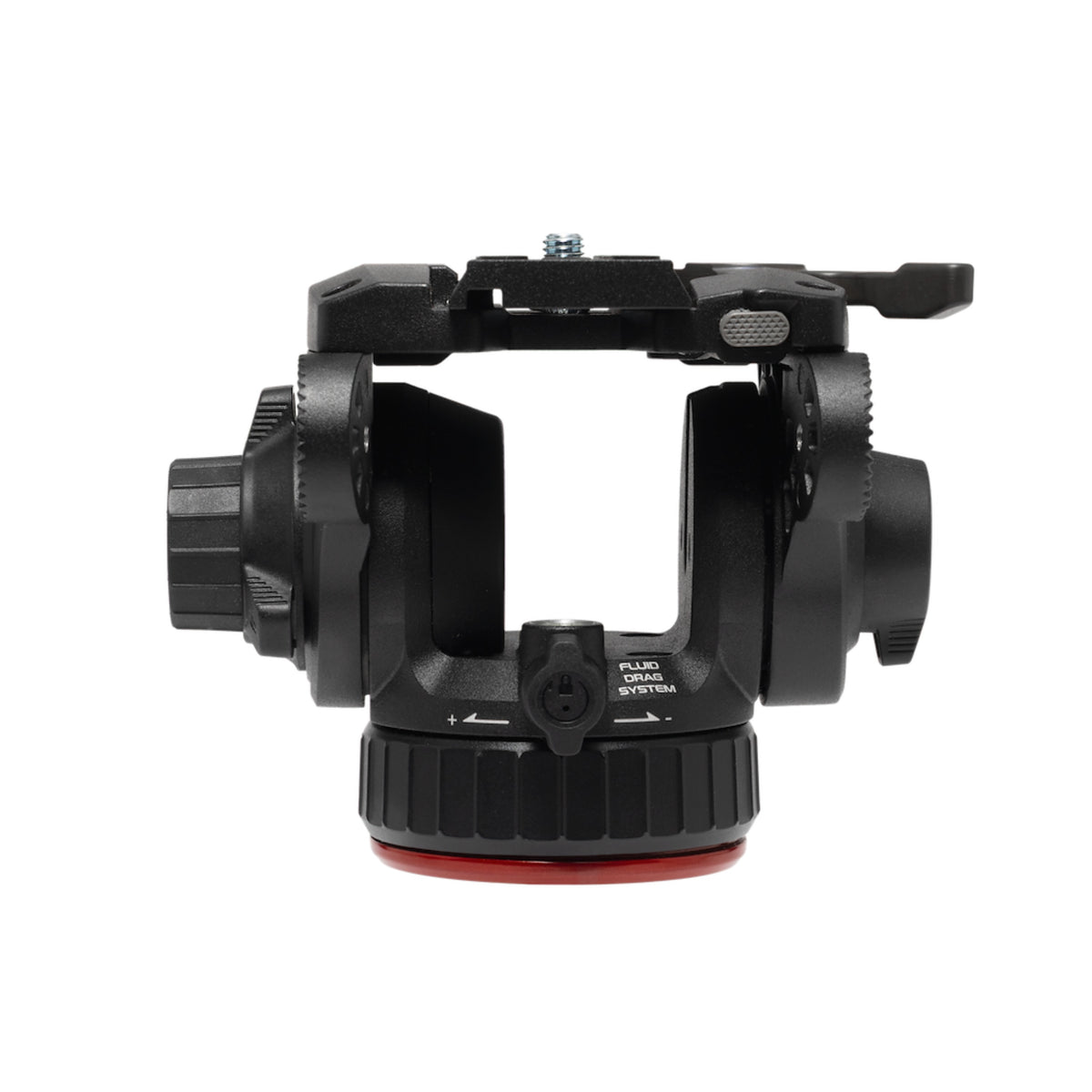

The Variable Continuous Fluid Drag System (FDS) on both pan and tilt delivers smooth, controlled movement for cinematic operation and accurate framing.

Whether following movement, performing slow pans, or adjusting composition during interviews, the 502X gives videographers precise control with consistent fluidity throughout every shot.

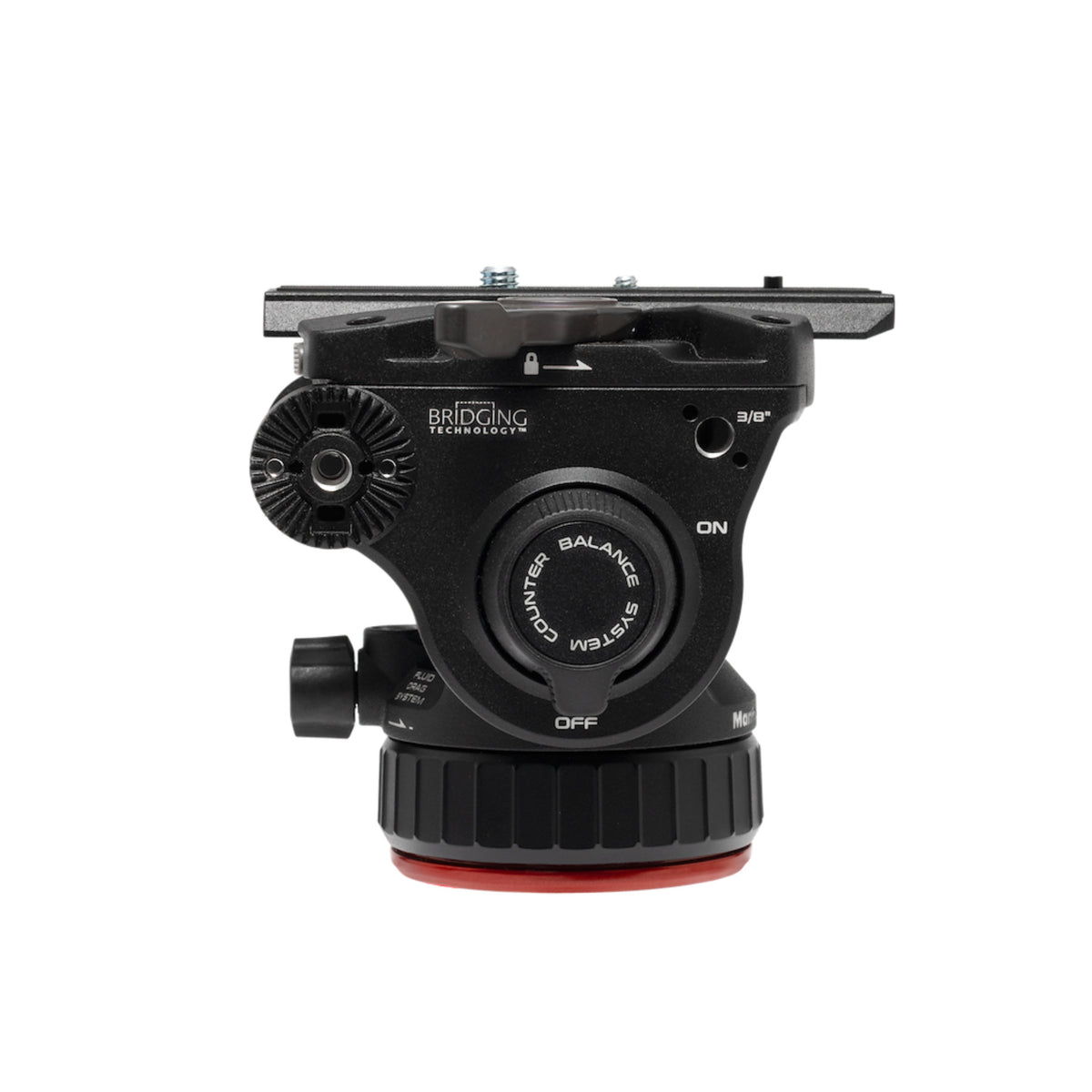

If greater camera control is needed the built-in Counterbalance System (CBS), optimized at 4.4 kg at 55 mm center of gravity, can be engaged and it helps keep camera setups balanced and controlled with reduced operator effort.

Fast setup with secure balancing

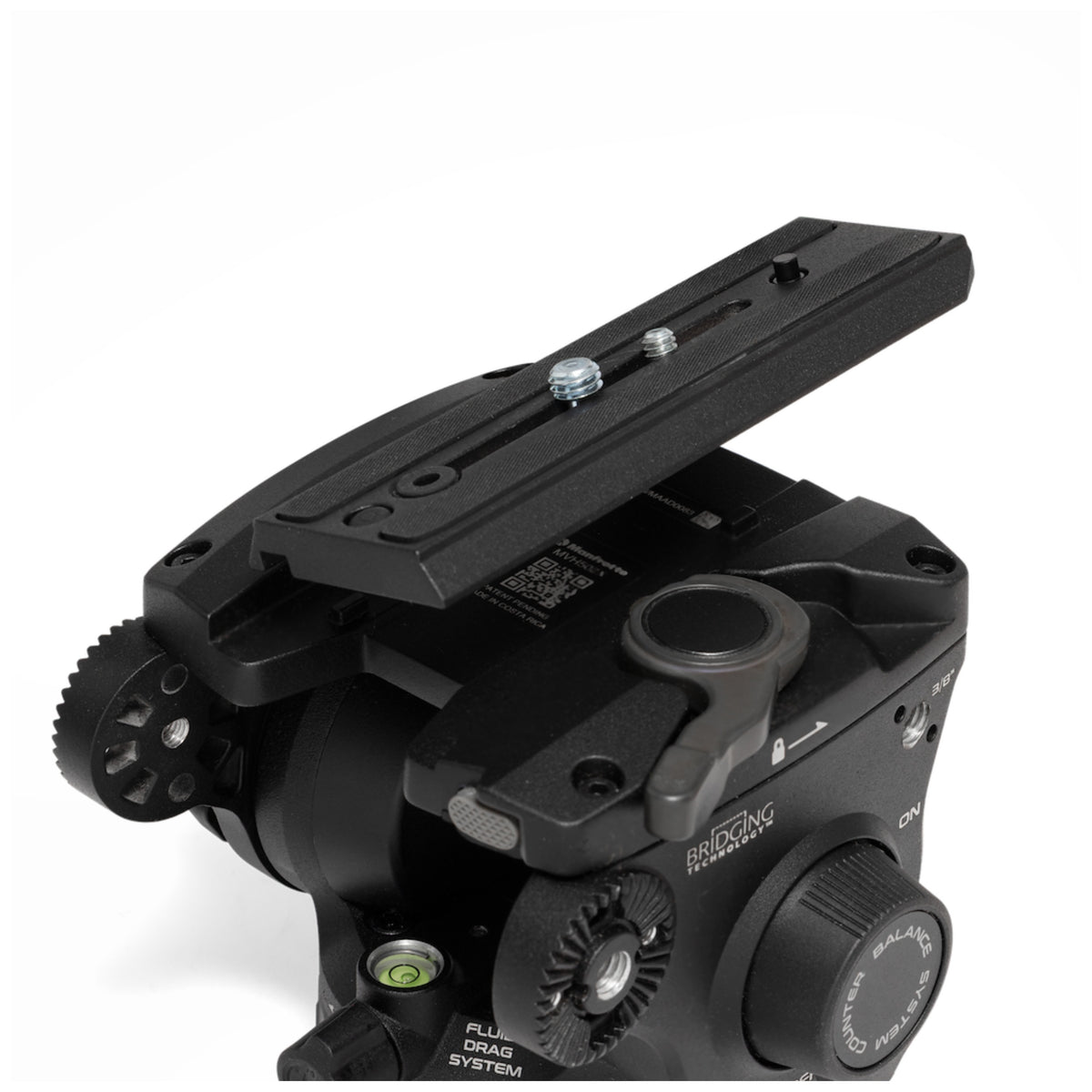

The 504PLONG-type sliding plate with side-lock top attachment enables fast top-loading and quick balance adjustment directly on the head.

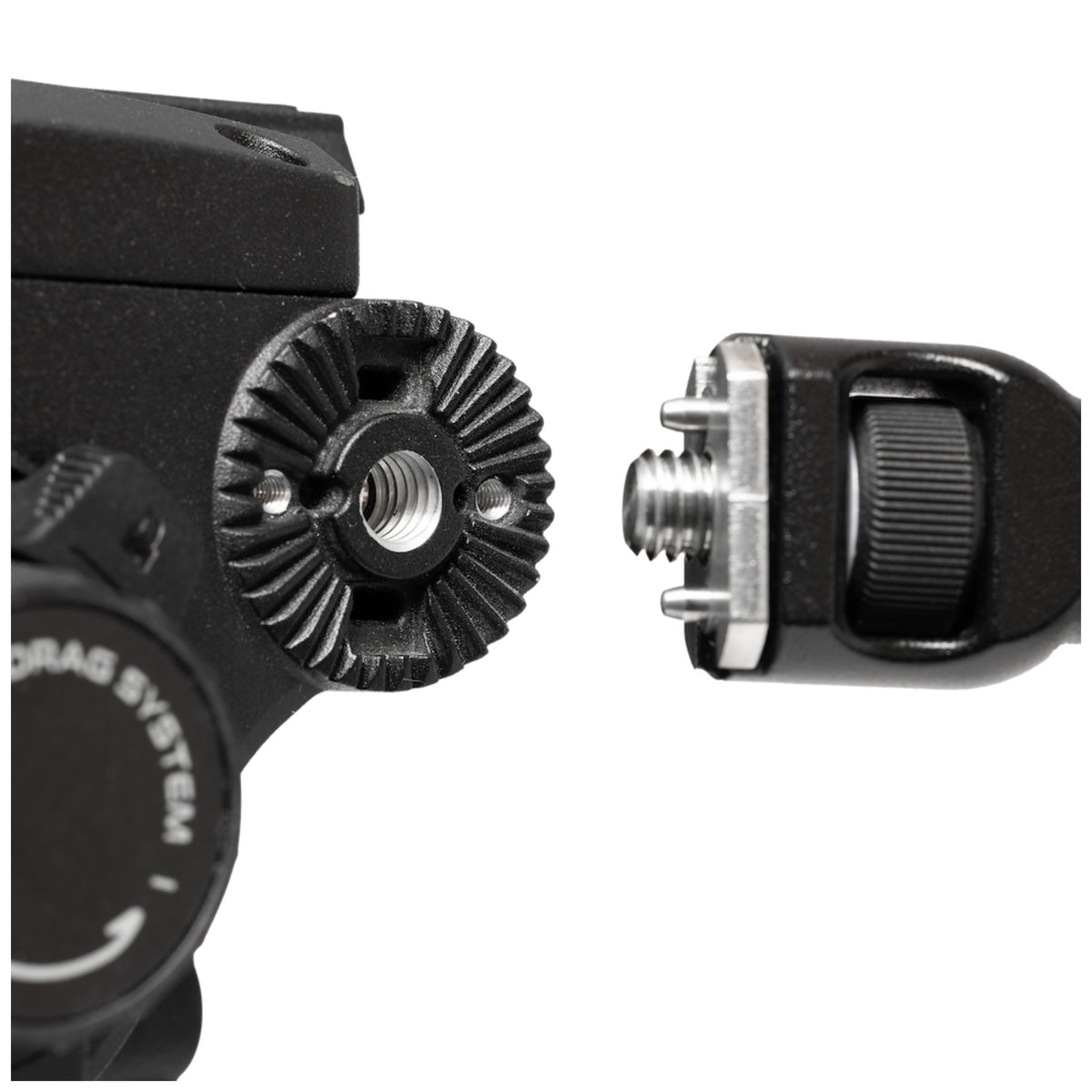

Independent pan and tilt locks allow precise control in any shooting position, while integrated 3/8'' Easy Link attachments make it simple to mount monitors, arms, or accessories securely.

Built to adapt

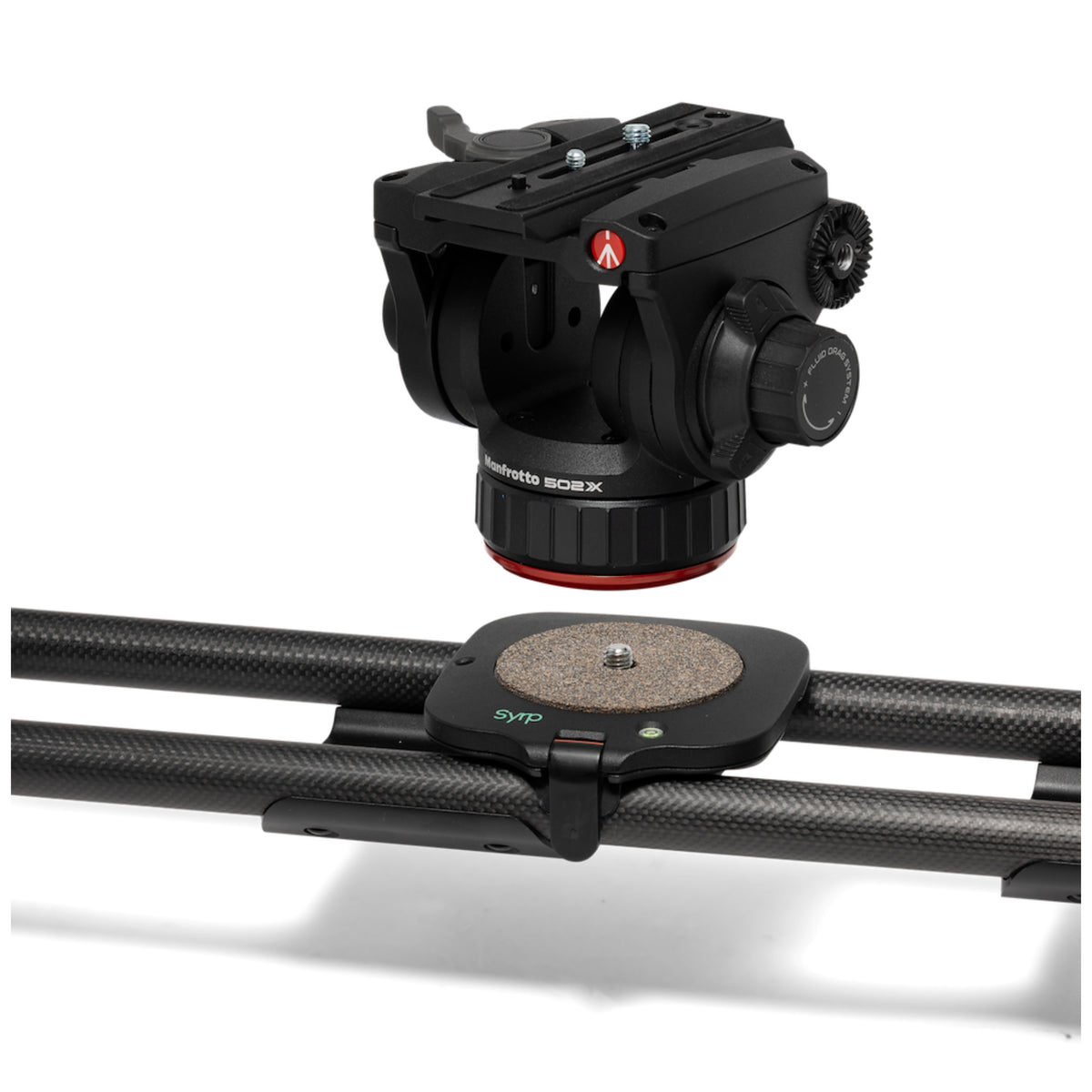

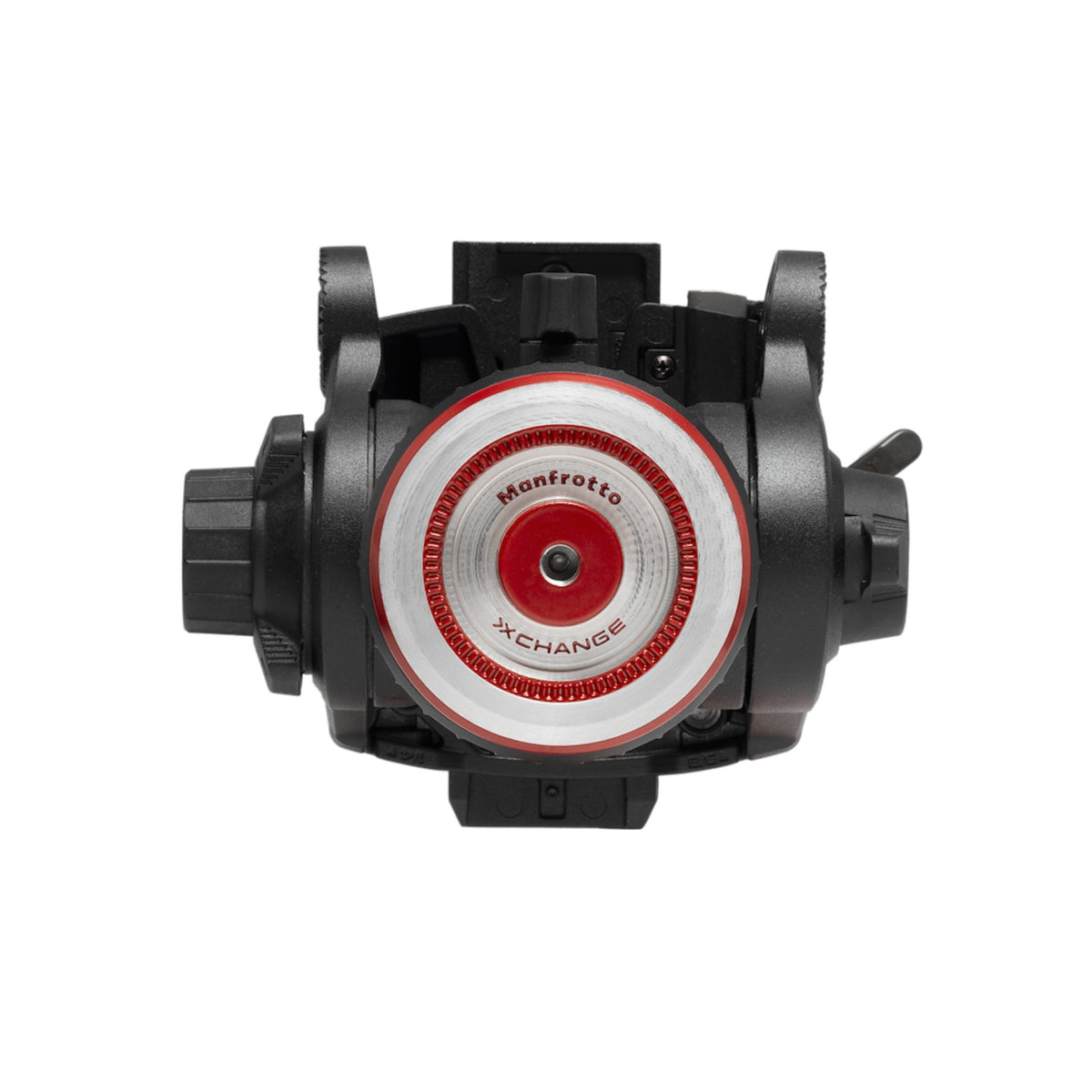

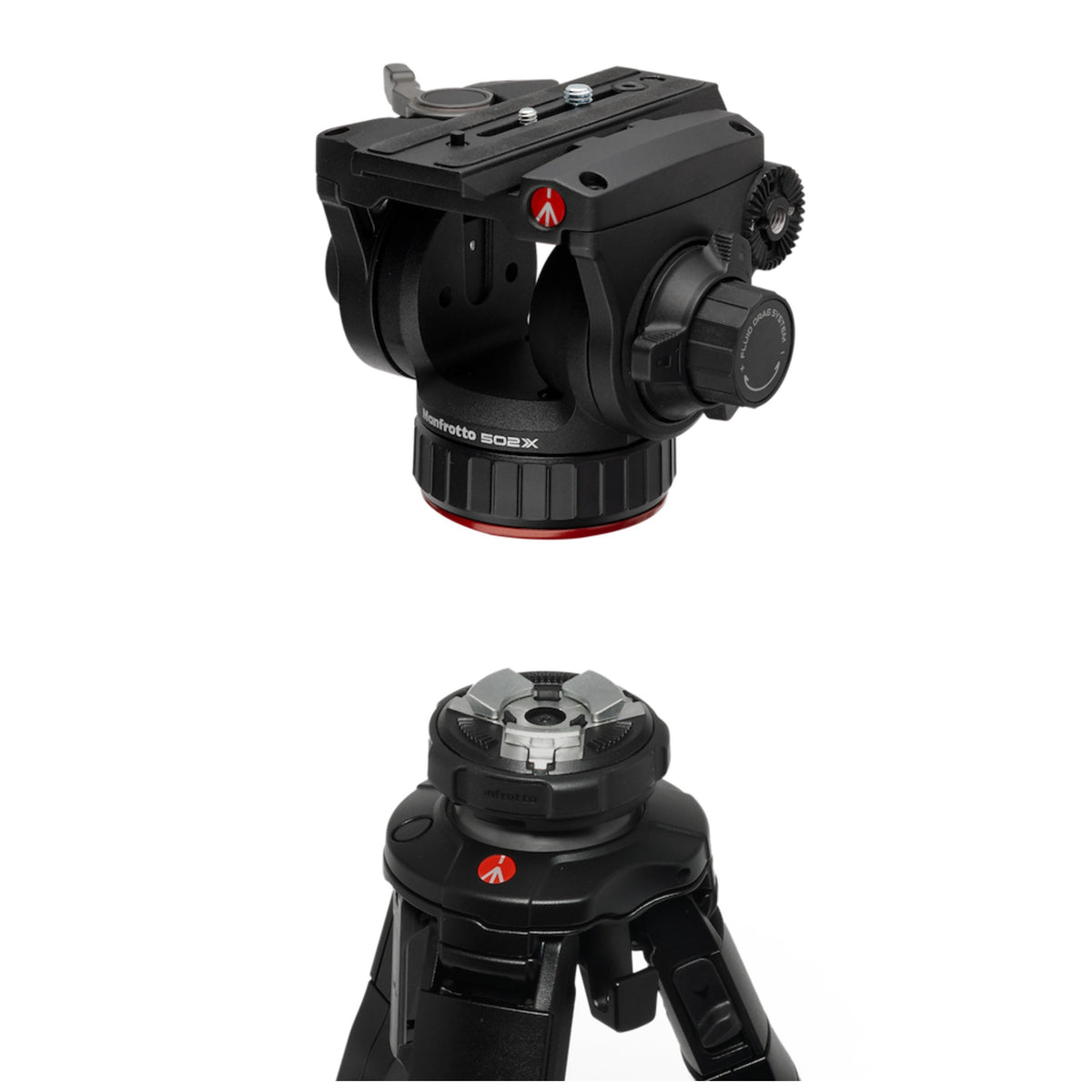

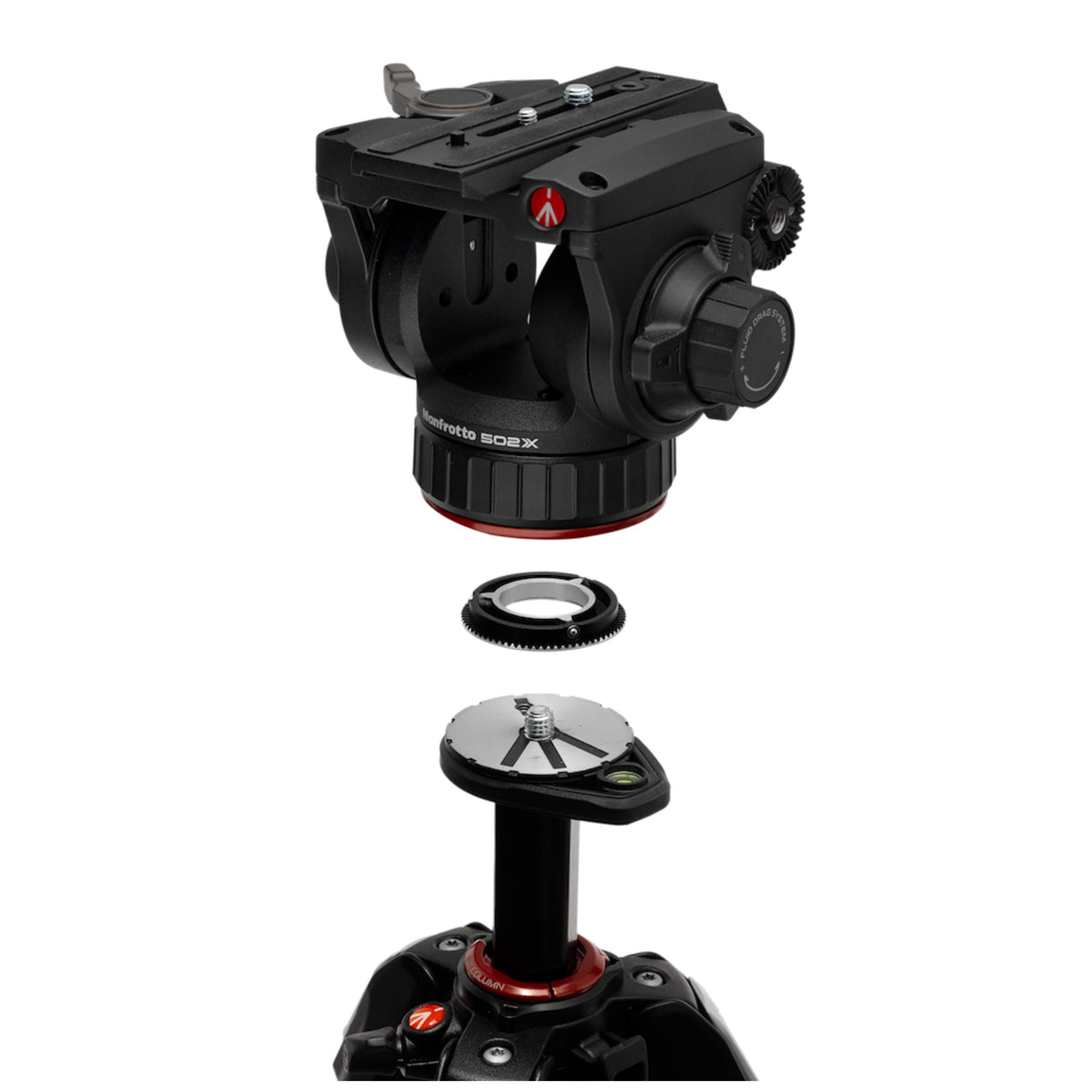

The 75 mm flat base with 3/8'' mounting allows the 502X to move easily between traditional tripods, sliders, dollies, and other support systems. Fully compatible with the Manfrotto XCHANGE quick release system, it enables fast equipment changes without interrupting the flow of production.

Designed for professional video production
With an 8 kg payload, adjustable fluid drag, and stable camera control, the 502X is built for professional video applications including commercial production, documentary work, interviews, branded content, and multi-camera shoots.

It delivers the precision, consistency, and reliability required for demanding professional workflows.

Specifications

Weight
1.72 kg

Safety Payload UNI/PdR 105:2021
8 kg

Counterbalance System
Variable Steps

Counterbalance Weight
0, 4.4 kg

Base Diameter
75 mm

Material
Aluminum, Plastic, Rubber

Bubble Spirit Level (No.)
1

Center of gravity
55 mm

Top Attachment
1/4” screw, 3/8” screw attachment type

Color
Black

Easy Link
No

Front Tilt
-70° / +90° tilt range

Ball Flat
Flat

Head Type
Video/Fluid Head

Maximum Working Temperature
60 °C

Minimum Working Temperature
-30 °C

Pan Bar Included
Yes

Pan Drag
Continuously adjustable from zero to max level

Panoramic Rotation
360°

Plate Type
504PLONG

Quick Release
Yes

Tilt Drag
Continuously adjustable from 0 to max level

Working Height
13.2 cm

Accessory Compatibility
MAONEQR-PLATE, MAONEQR, MAONEQR-ADPFB60
