Description

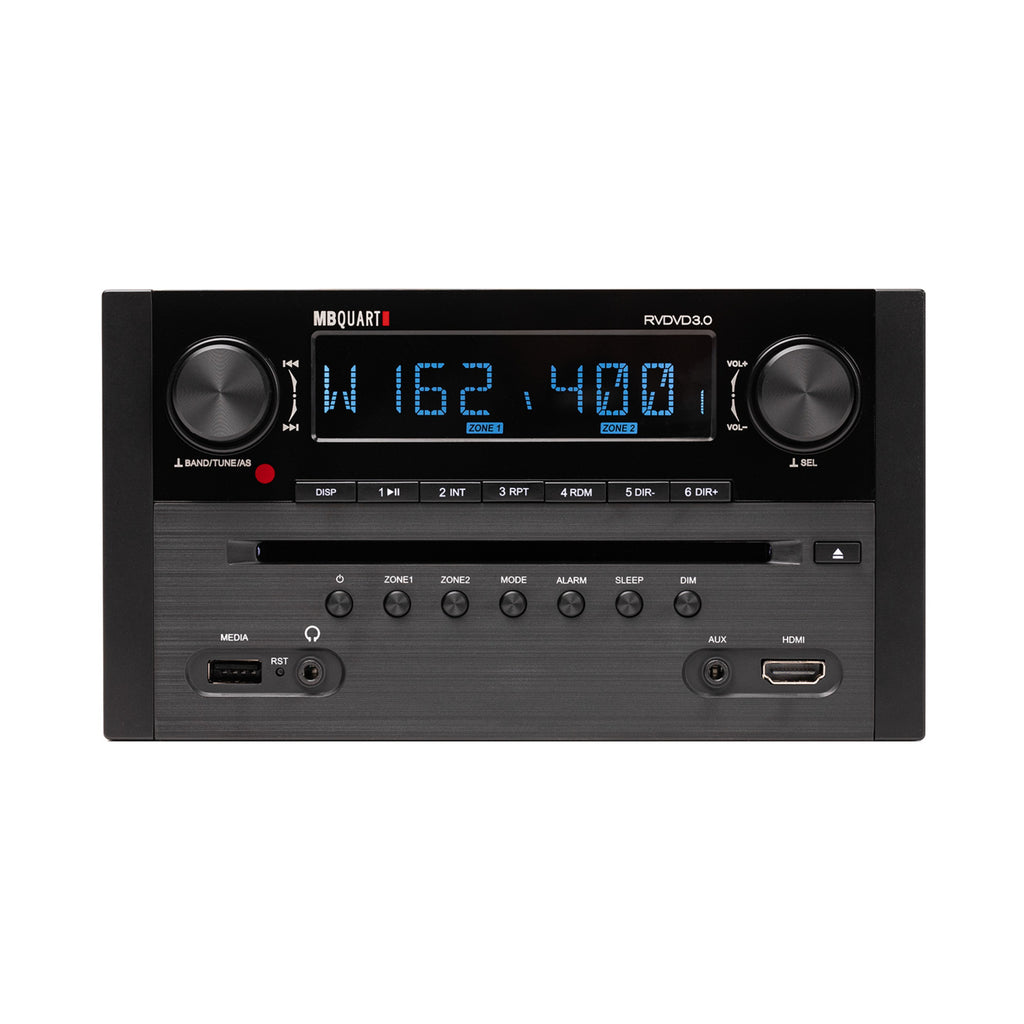

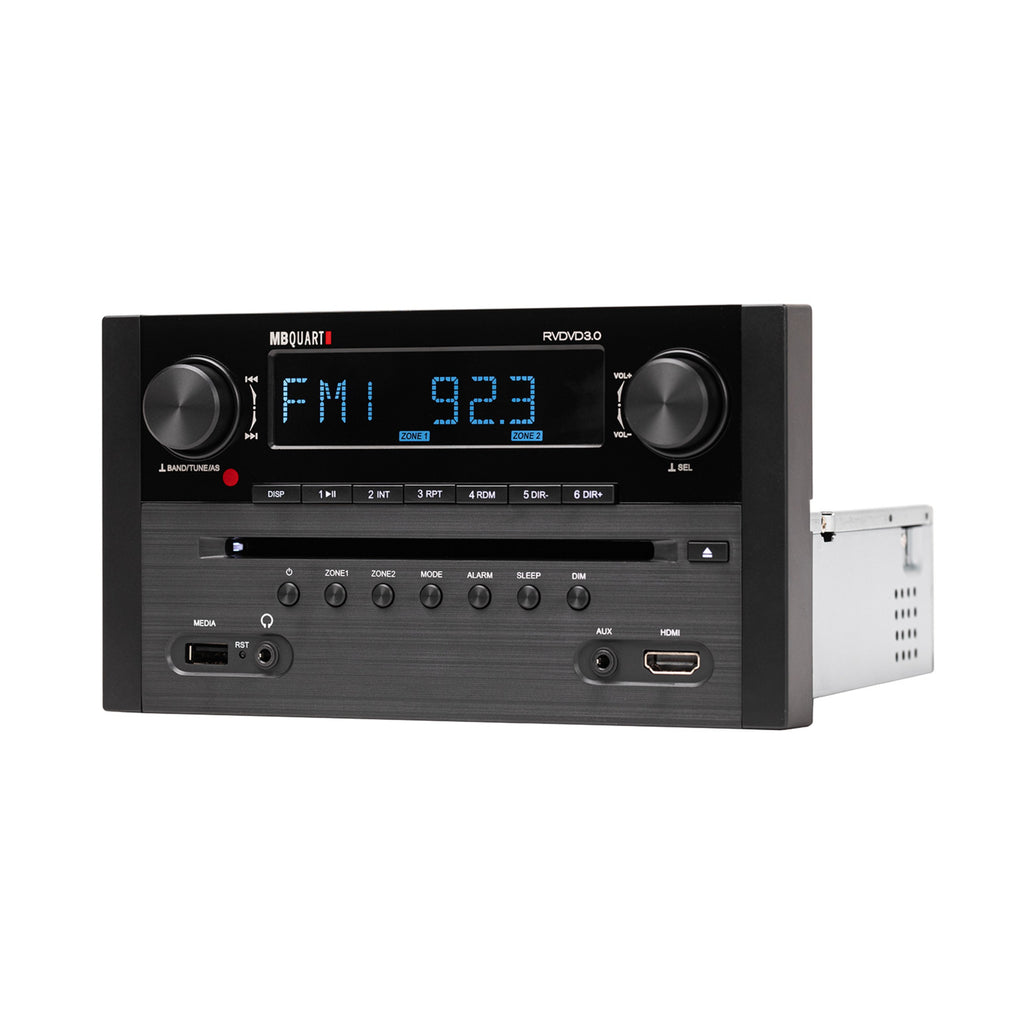

MB Quart RVDVD3.0 digital multimedia, multi-zone audio control, 160 Watt RV source unit with DVD, AM/FM, weather band and Bluetooth 4.0. Full function remote included.
| Apple® Control |
Quick control and access of iTunes collection with iPhone, iPod and iPad. |
|---|---|
| Source Type |
AM/FM/Bluetooth®, DVD |
| Input Types |
Bluetooth, RCA, USB, HDMI. Audio: CDDA,MP3,AC3,DTS,WMA. Picture: JPG, JPEG. Video: 720x576 - DAT, MPG, MPEG, MPA, MPE, VOB, AVI, MP4, DIV, DIVX, MOV, 3GP, M4A, FLV, SWF. |
| Bluetooth® Connect |
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. |
| Secure Simple Pairing™ |
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair™ |
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select ""MB Quart"" from your Bluetooth menu and you are connected, QUICKLY. |
| Built-In Power |
Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. |
| Control Method |

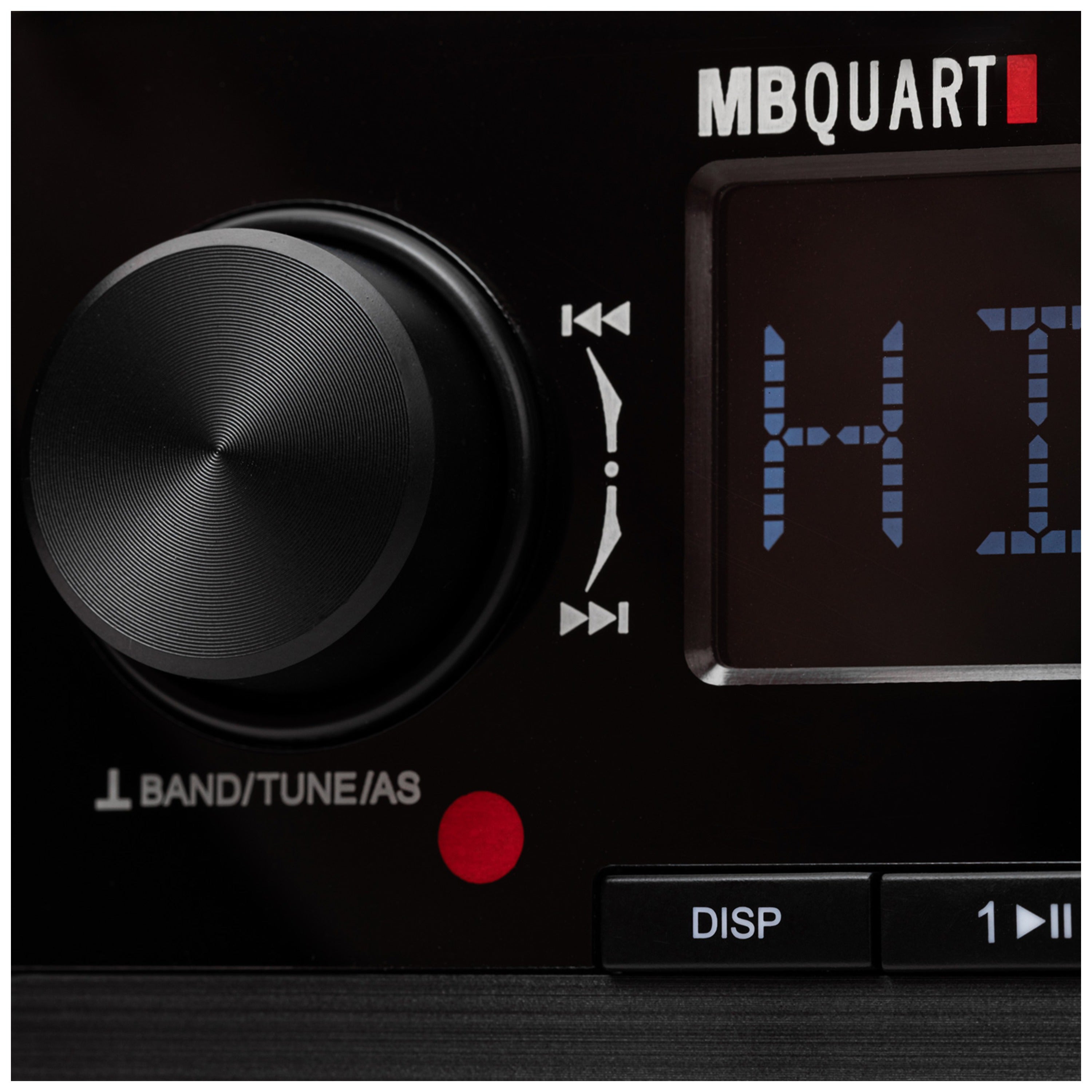

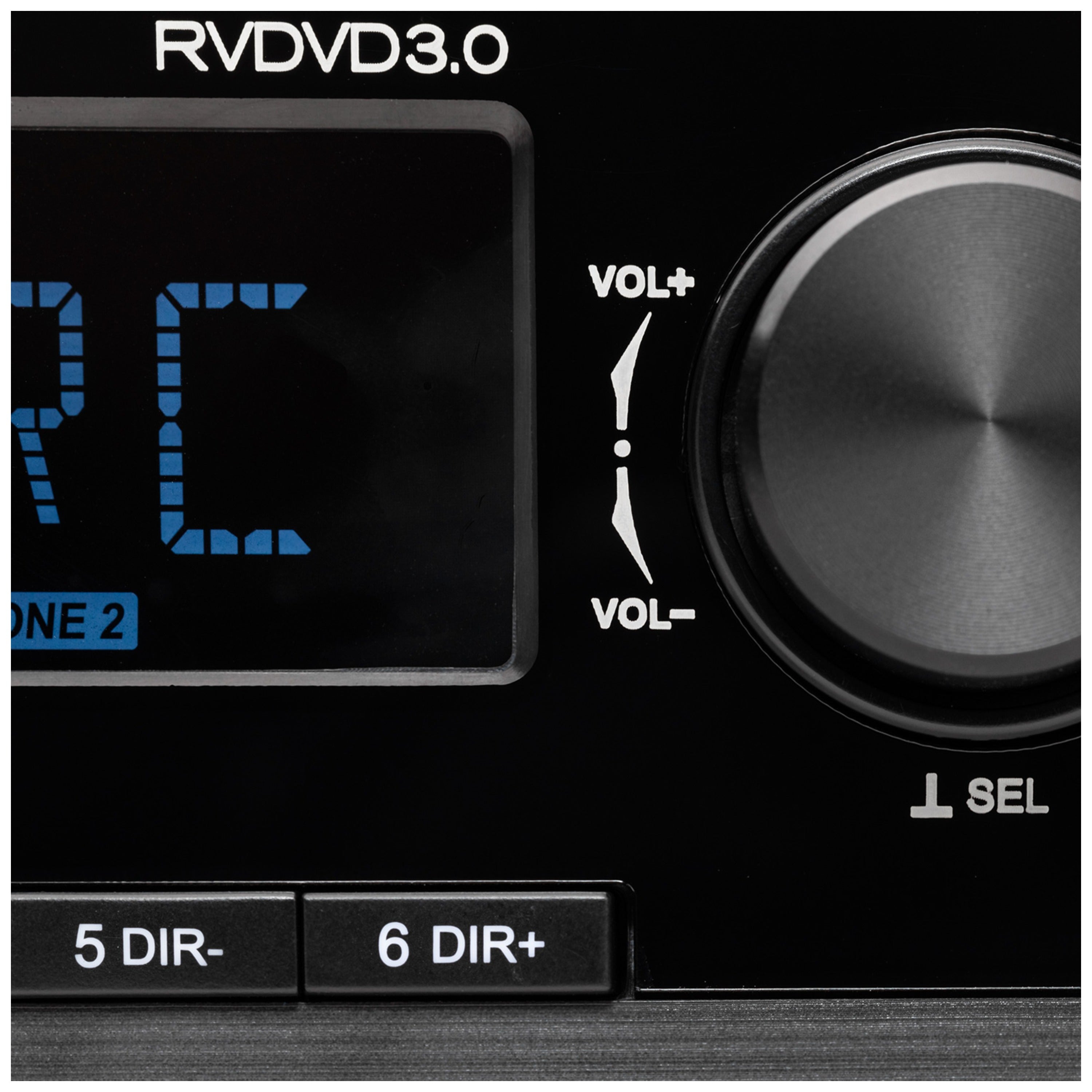

Unit is adjusted by master knob and menu selection. |
| AM/FM Tuner Presets |
AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations. 5 Weather Band Stations: Are preset from factory. |
| Frequency Range |
FM: 87.5-108MHz, AM: 520-1710kHz, Weather Band: 162.400-2162.550MHz |
| Weather Band |
Stay alert to changing weather conditions when on the road. |
| Video Input |

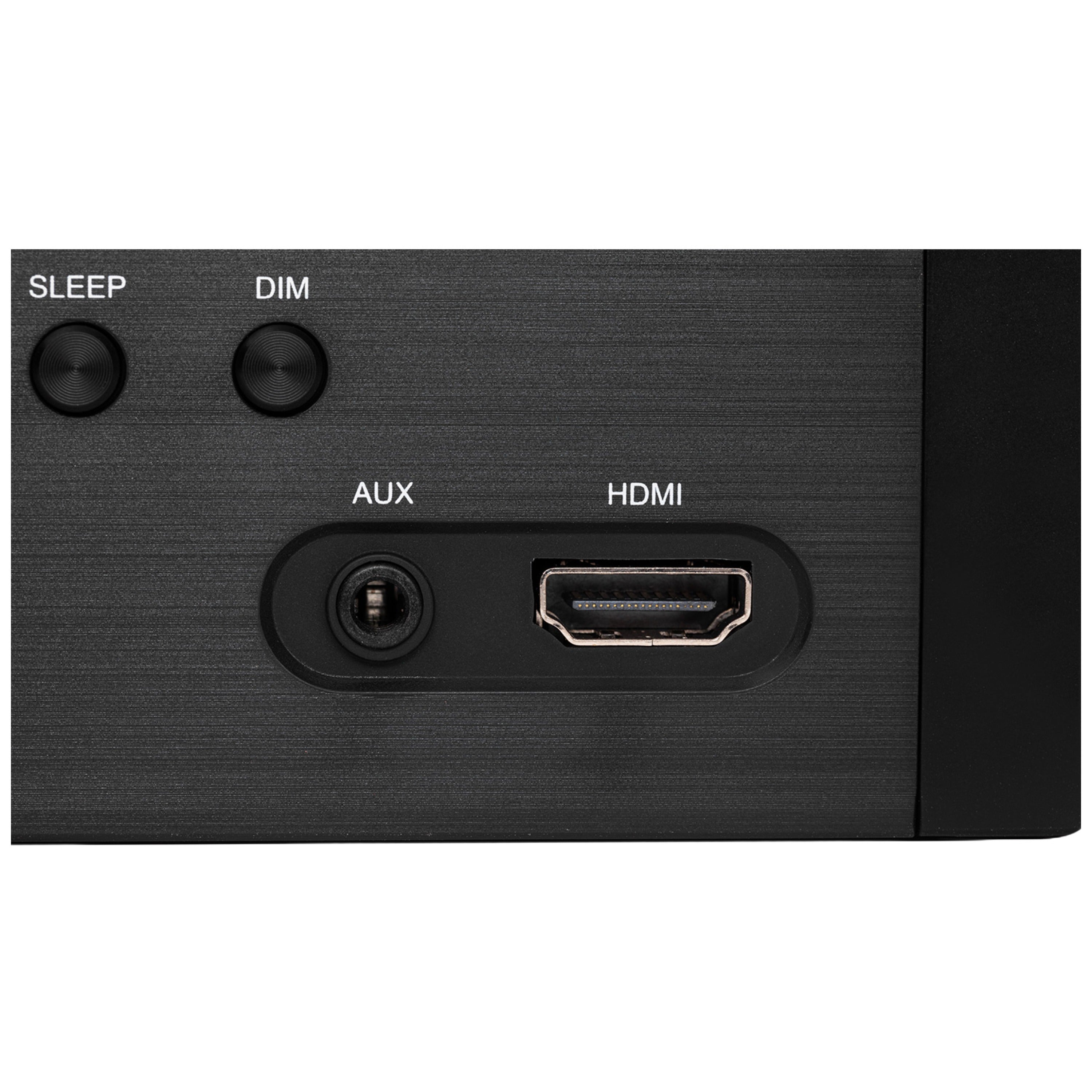

HDMI & RCA (In/Out) |
| Additional Inputs |
HDMI THRU PUT: All audio and video from satellite or other digital services are pushed to the TV monitor and audio system. |

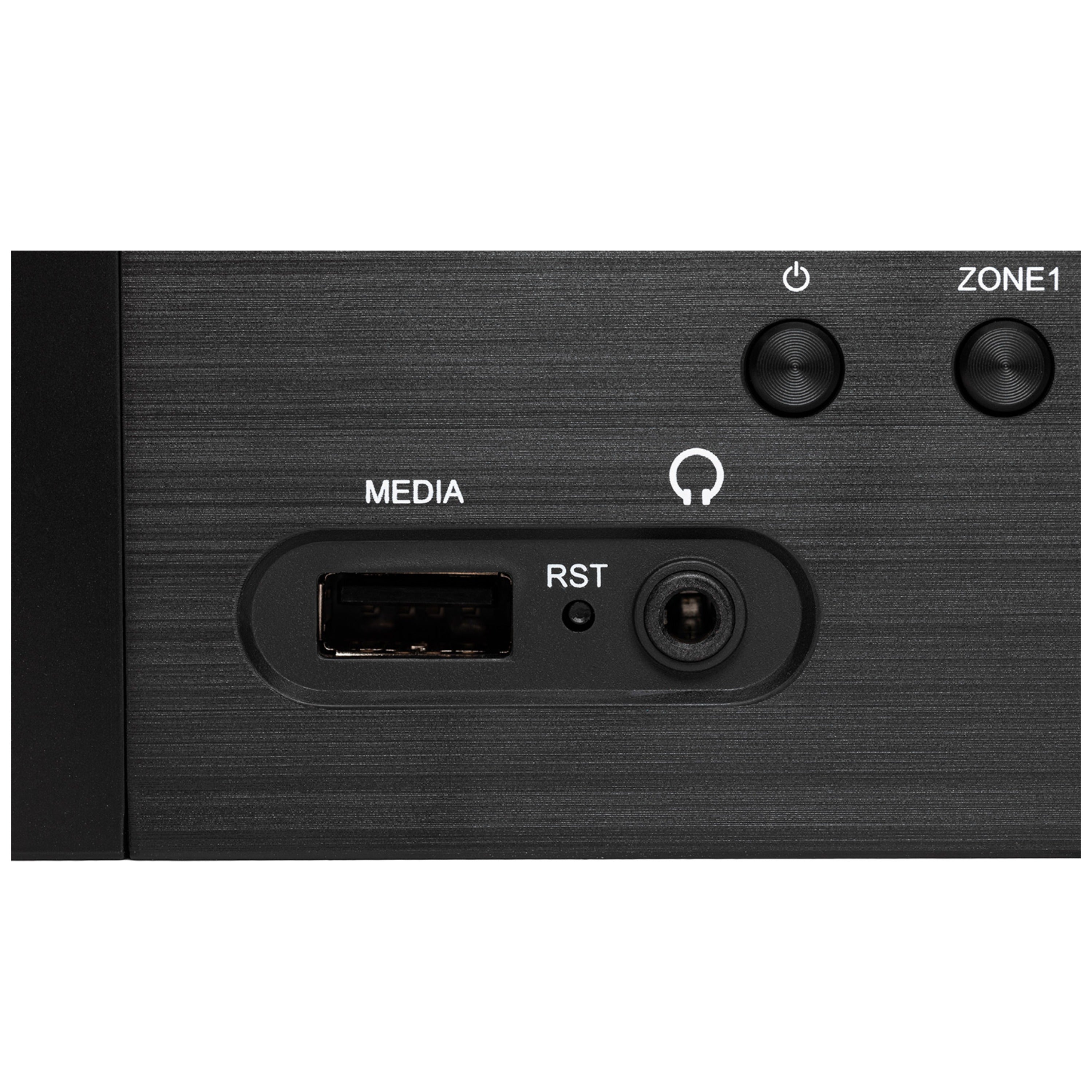

| USB / Apple® / Charging Port |
Yes |
| Bluetooth® Version |
Version 4.0 |
| User Presets |
FM1, FM2, FM3, AM, WB |
| Dual Audio Zone Capability |
Control volume in two different areas independently, such as passenger area and outdoor speakers. |
| Additional Features |
ALARM CLOCK: On/Off Options, Alarm, Sleep, Power Up, Beep. |
Details & Specs
| Type |
Source Unit |
|---|---|
| Brand |
MB Quart |
| Series |
RV |
| Category |
RV |
| Condition |
New |
| Color |
Black |
| Model Replaced |
RVDVD2.0 |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Source Unit Tuner Section FM Stereo Frequency Range |
87.5MHz-108MHz |
| Source Unit Bluetooth Range (ft) |
32 |
| Source Unit RMS Power Output (watts) |
4 x 20 |
| Source Unit Peak Power Output (watts) |
4 x 40 |
| Source Unit Pre-amp Outputs (Y/N #) |

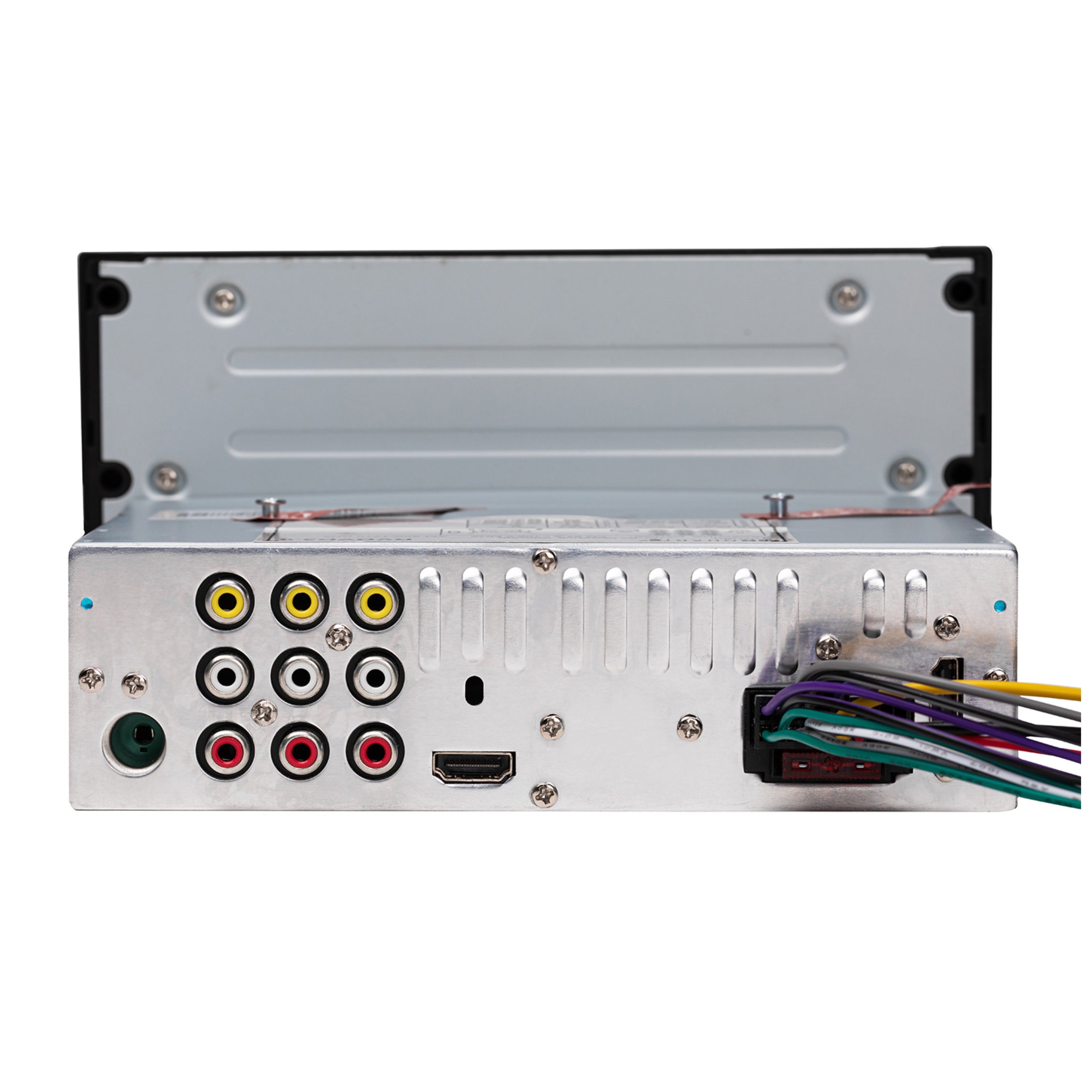

AUDIO: 2 RCA Pair – Front/Rear, AUDIO: Headphones – Front Panel, VIDEO: 1 Video RCA – Video Output, VIDEO: Video 2 – In/Out, Yes |
| Source Unit Pre-amp Voltage |
2.0V |
| Source Unit Minimum Impedance (ohms) |
4 |
| Source Unit Display Type |
LCD |
| Source Unit Display Backlit |
Yes |
| Source Unit Dimensions Mounting Hole (in) |
7.0 x 2.0 |

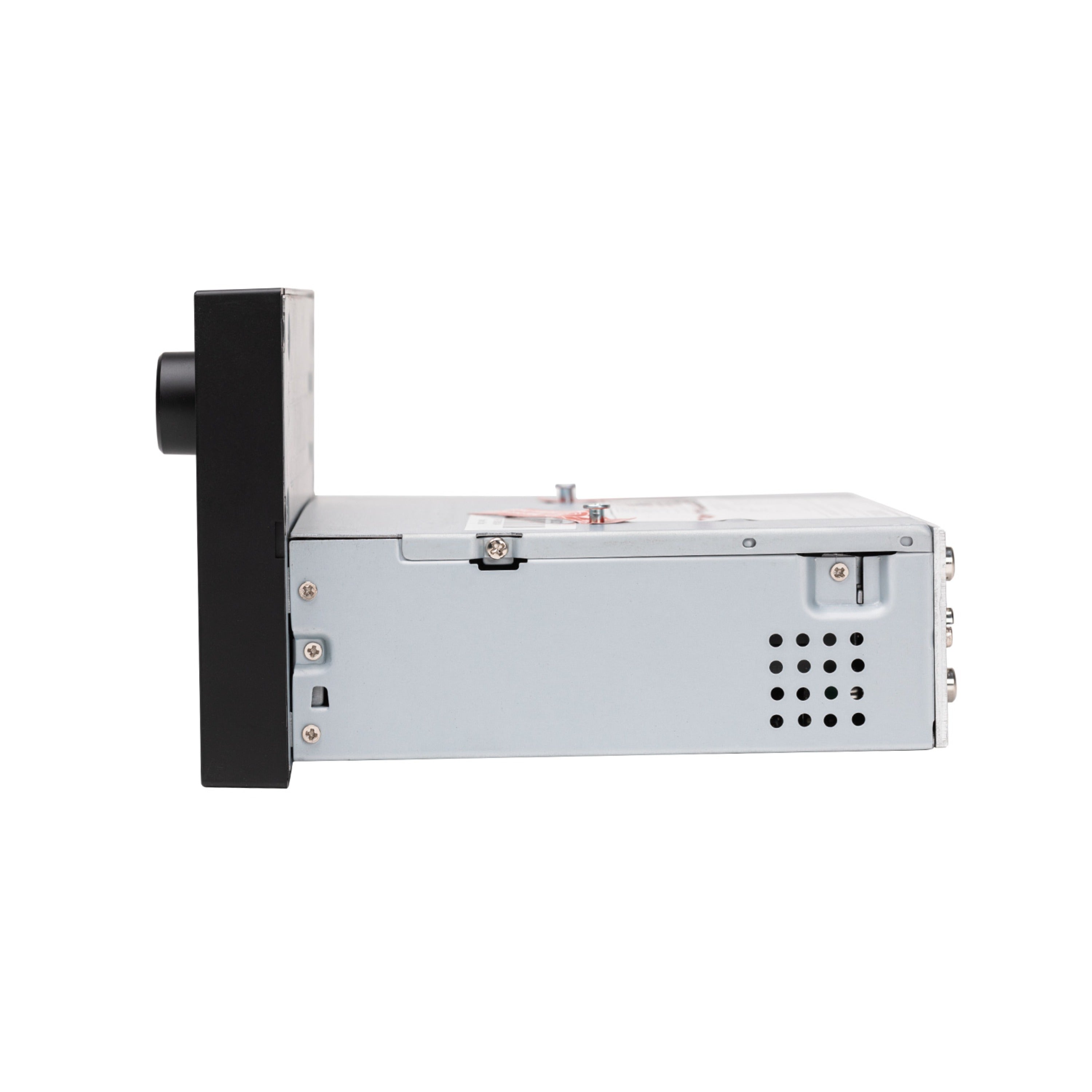

| Source Unit Dimensions Total Mounting Depth (in) |
5.9 |
| Source Unit Dimensions Mounting Bezel (Round) (in) |
7.87 x 4.33 x 0.74 |
| Additional Details | MAXIMUM THD+N AT 4 OHMS: 83.3dBA, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 2 Volts, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): -89.3dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): DVD/CD 20Hz-20KHz / Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): DVD/CD 20Hz-20KHz / Aux 10Hz-20KHz / Bluetooth: 20Hz-16.8KHz, STEREO SEPARATION (AUX INPUT): -64dB @ 5kHz, FM MONO USABLE SENSITIVITY: 5.2μV, AM MONO USABLE SENSITIVITY: 21.5μV, DISC LOAD TIME: 14.9s, TRACK CHANGE TIME: 2.2s |
