Description

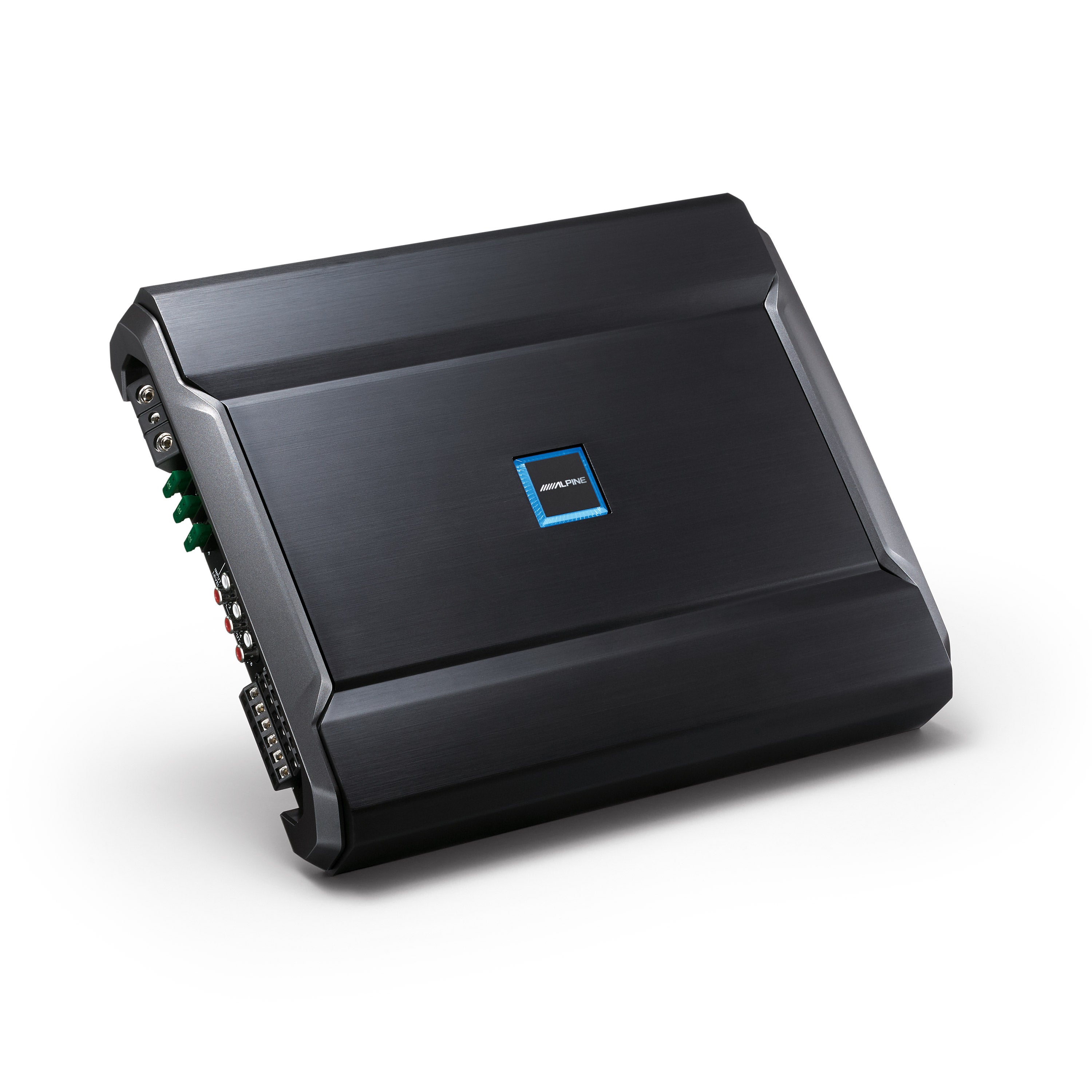

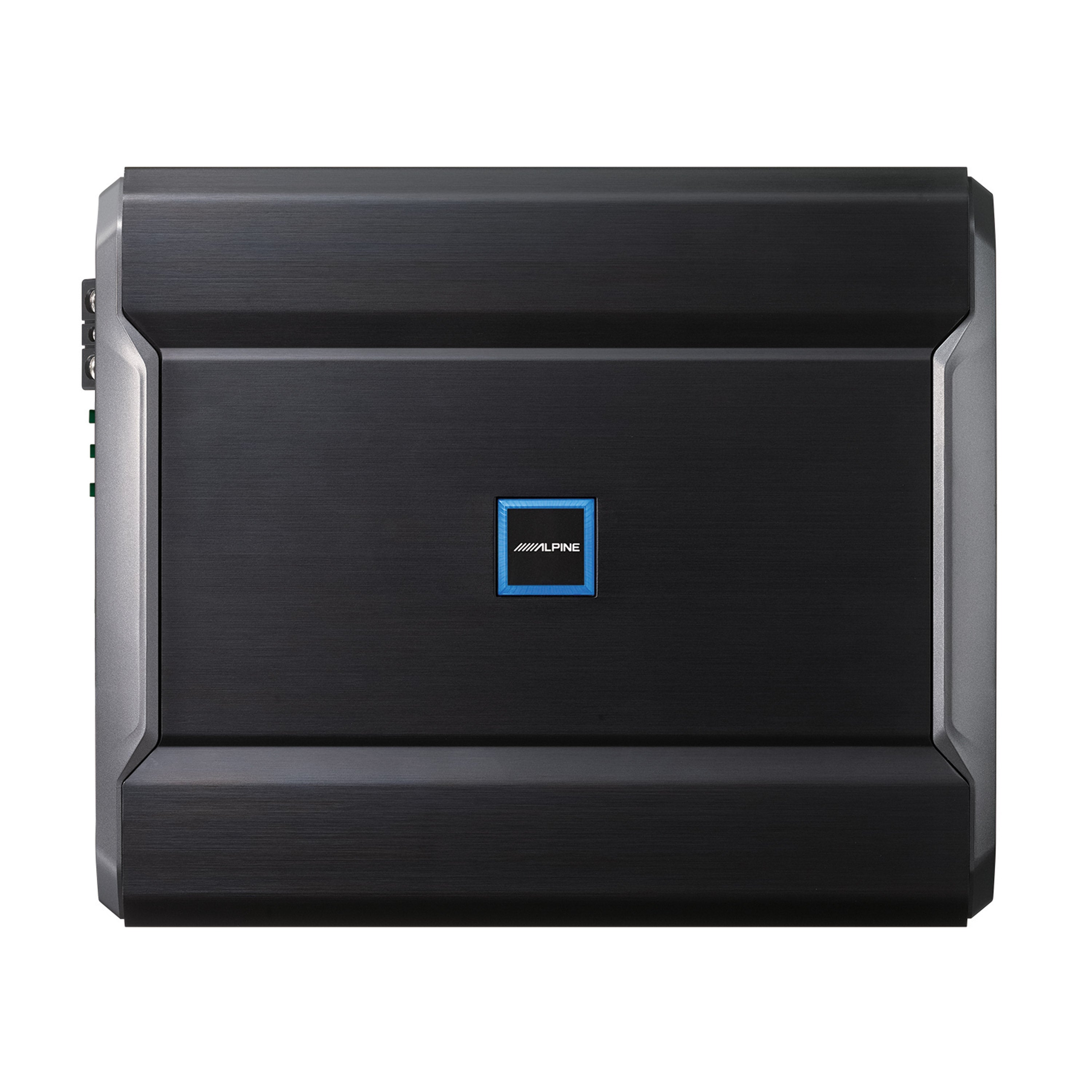

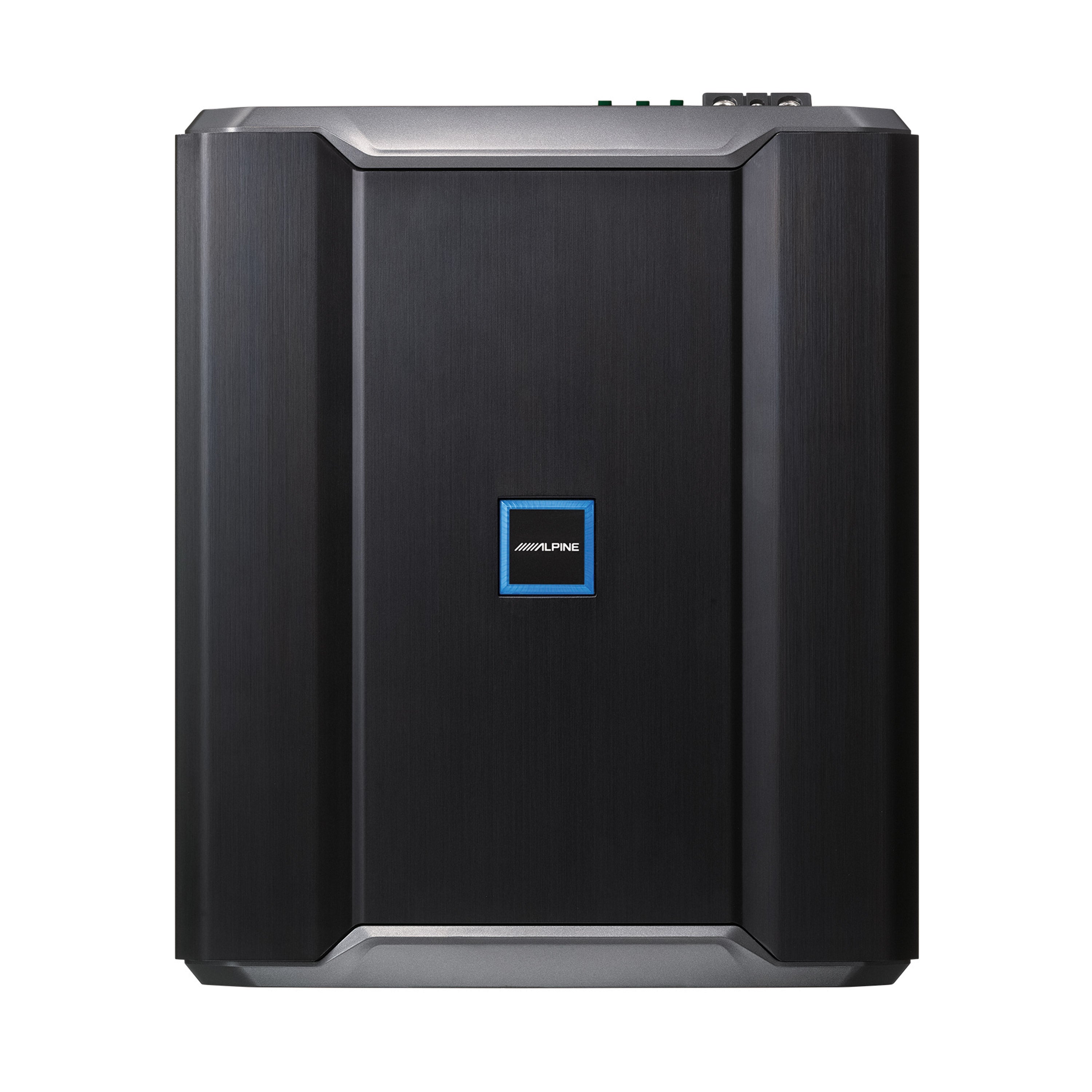

Experience your music in Hi-Res with the versatile R-A90S 6-Channel Amplifier for hair-raising details that puts you in the center of the performance.

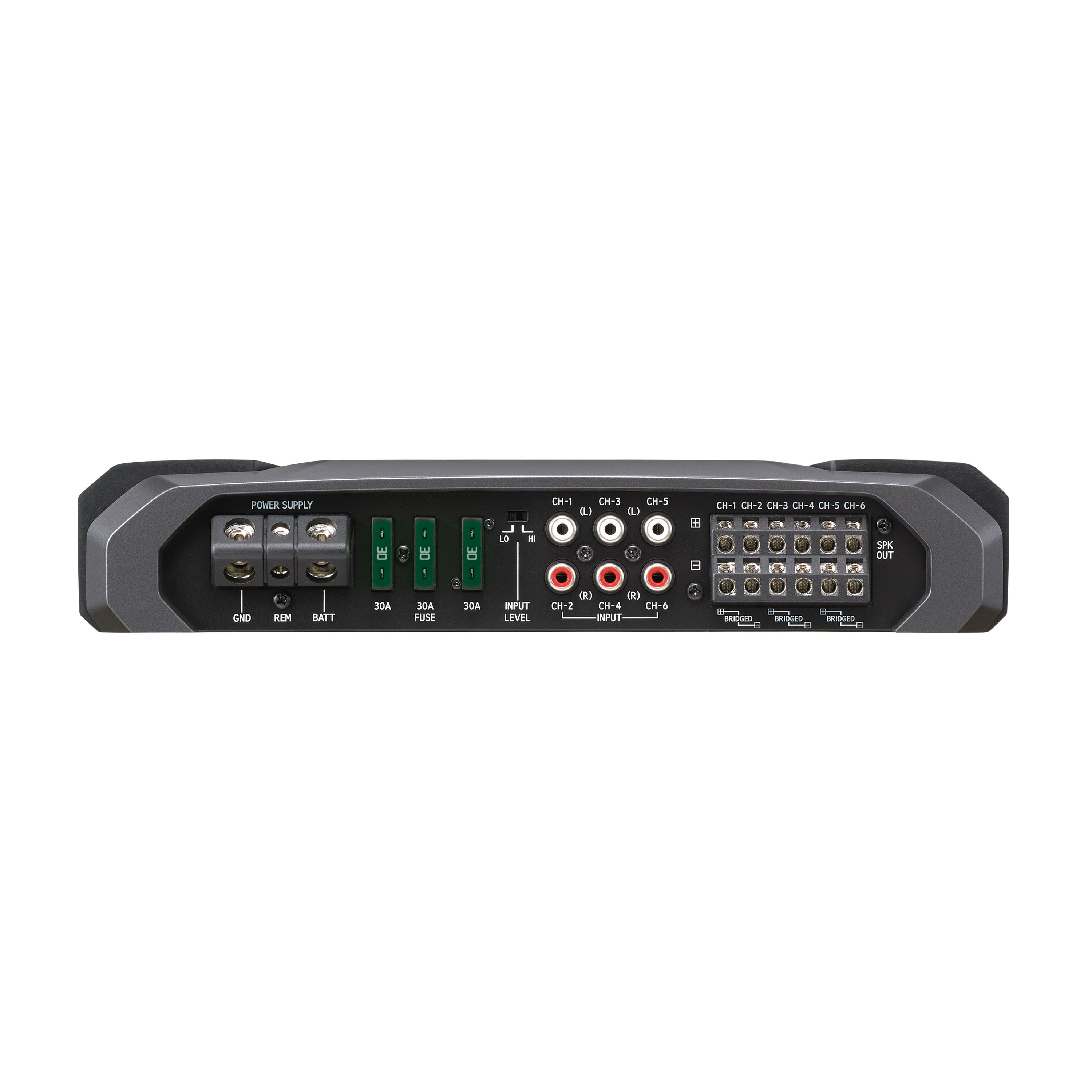

With double the power on the last two channels, the R-A90S’s 5th and 6th channels can be bridged to provide up to 500-watts at 4Ω to a subwoofer system such as a pair of S-SB12Vs.
When you’re ready to upgrade your Alpine system, use the R-A90S to amplify a 3-way active system with enough mid-bass power to create the up-front bass impact you crave.
With incredibly low phase shift and hi-resolution frequency response, the R-A90S can reproduce sound with incredible accuracy that stays true to the artist’s intention.
The R-A90S has dual "Sierra" post-filter feedback loop that correct signal distortion by making the output as close as possible to the original input for accurate sound reproduction.
Use the built-in bandpass, high pass, or low pass filter to individually power each component in your sound system and assign frequency bands for accurate and reliable sound reproduction.
The KTA-200M has input capability to add the optional RUX-H01 Remote Bass Control Knob for quick bass adjustments when needed.
- 12.75" x 10.75" x 2"
- Hi-Resolution Audio Compliant (40k Hz)
- Alpine’s Class D Amplifier Circuit
- 75W x 4 + 150W x 2 (4Ω, 14.4V, < 1% THD +N)
- 100W x 4 + 250W x 2 (2Ω, 14.4V, < 1% THD +N)
- Bridged: 200W x 2 + 500W x 1 (4Ω, 14.4V, < 1% THD +N)
- S/N > 85dB (ref. 1W into 4Ω)
- THD + N < 0.03% (ref. 10W into 4Ω)
- Frequency response: 10-45kHz (0/-3dB)
- Damping factor > 500
- CTA-2006
