Description
The iLX-W670-M features a vibrant 7-inch touchscreen in a sleek double-DIN design, giving your dash a modern, streamlined look. Its user-friendly interface makes it easy to control your music, apps, and navigation on the go. Now with the added iDatalink® Maestro® compatibility, you can seamlessly integrate with your factory controls.
- Elevated OEM Experience: Get an enhanced, integrated experience with the new iDatalink® Maestro® connection point on the iLX-W670-M. Coupled with the ultra-shallow chassis for expanded fitment options and the sleek, responsive6.75-inch touchscreen, get added customization and data visualization in a screen that feels like an elevated factory screen.
- Enhanced Audio & Ambiance: Access the Sound Boost menu for tuning options like expanded Bass Boost, Mid-Bass controls, and dedicated subwoofer settings. Dial in your ideal audio experience with 13-band graphic EQ, 6-channel time correction, and independent crossovers for the front, rear, and subwoofer channels. Plus, create a light show that’s sure to dazzle with the built-in Lighting Link Feature, compatible with Alpine’s Prisma Link Subwoofer Enclosure Line!
- Seamless Smartphone Integration: Keep your favorite apps and features right at your fingertips with wired Apple CarPlay® and Android Auto™ compatibility. Whether you're navigating, streaming music, or staying in touch, the iLX-W670-M brings the convenience of your smartphone to your dash, all while keeping you focused on the road.
OVERVIEW FEATURES
- 6.75” Capacitive Touchscreen Display with AM/FM Tuner
- Mech-Less (Does not play discs)
- Standard Double-Din Fitment (4” tall dash openings)
- 5-Color Key Illumination (Red, Green, Blue, Amber, White)
- Customizable Home Screen (Add your own background image)

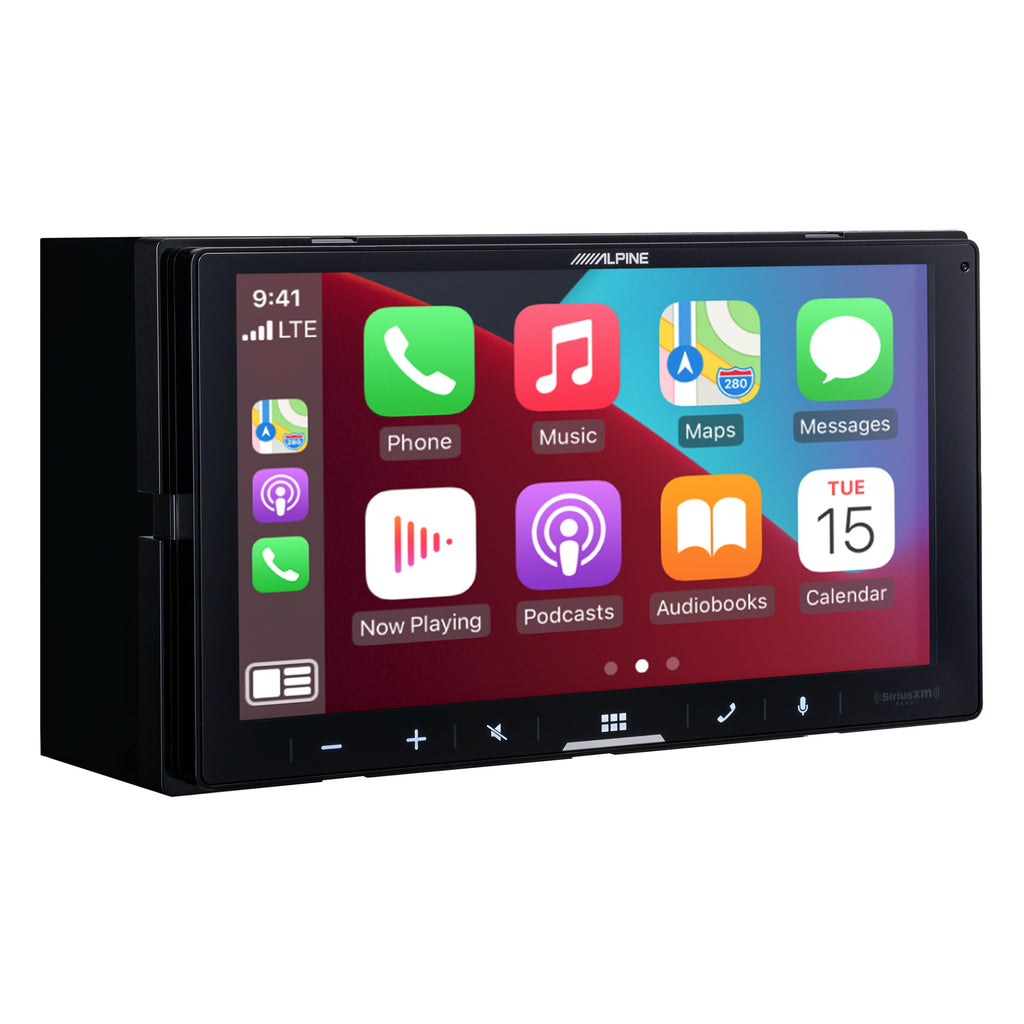

- Apple CarPlay® (Wired)
- Android Auto (Wired)
- Bluetooth® Hands-Free(Calling and Audio Streaming)
- SiriusXM-Ready® (requires SXV300 Tuner; Sold separately)
- Power Stack Capable (Mount the Alpine KTA-200M or KTA-450 amplifiers directly to the back)
- Lighting Link Control (Compatible with Alpine Prisma Link Subwoofer Enclosures (S2-SB8, S2-SB10, & S2-SB12)

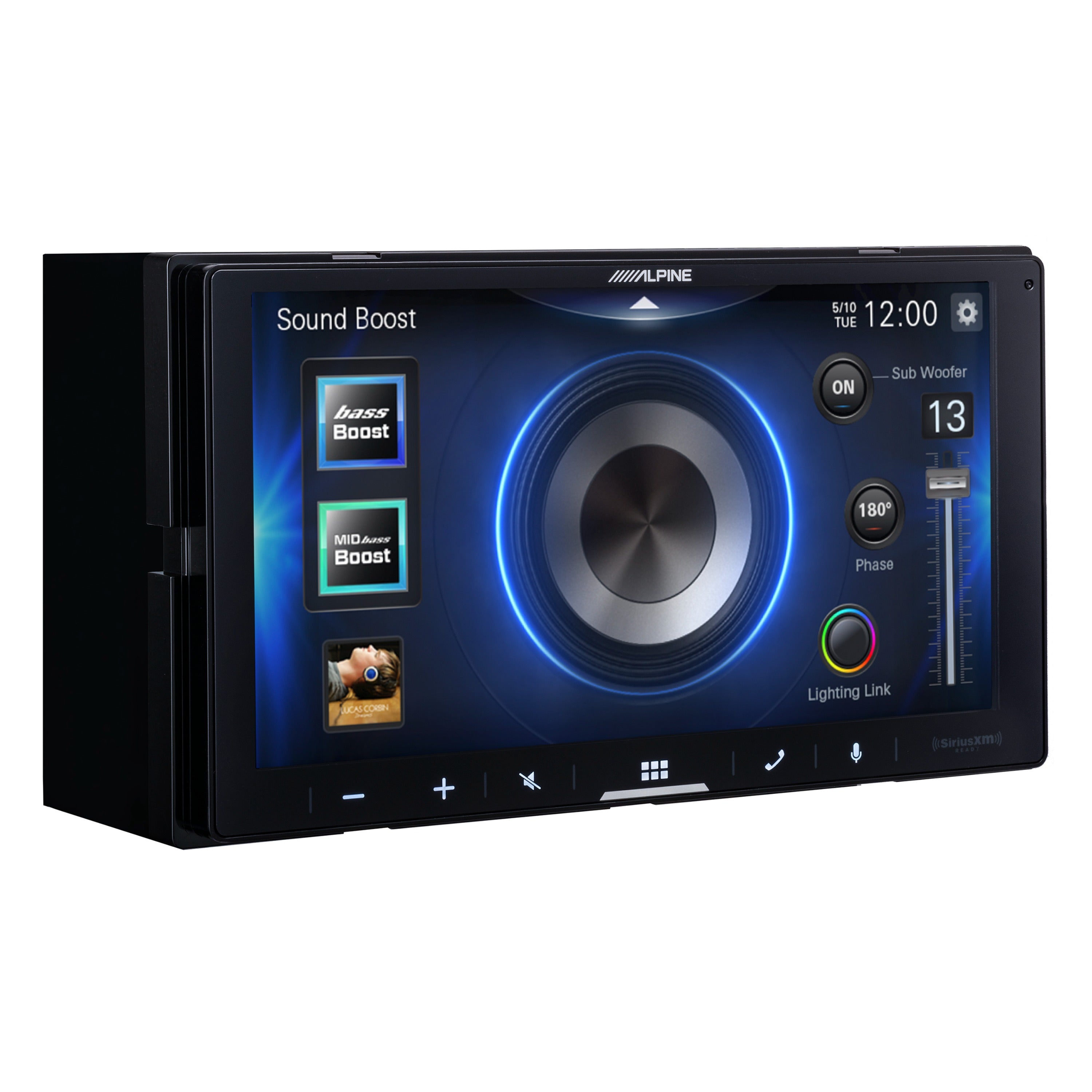

- Sound Boost Menu (Bass Boost, Mid-Bass Boost, &Subwoofer Controls)
- ***NEW! iDatalink® Maestro® Compatibility (module sold separately)
SYSTEM TECH SPECS
- Screen Size: 6.75”
- Screen Resolution: 800 x 480 px
- Aux Input: 1
- ***NEW! Updated SWC Adapter (Uses 3.5mm Mini Jack)

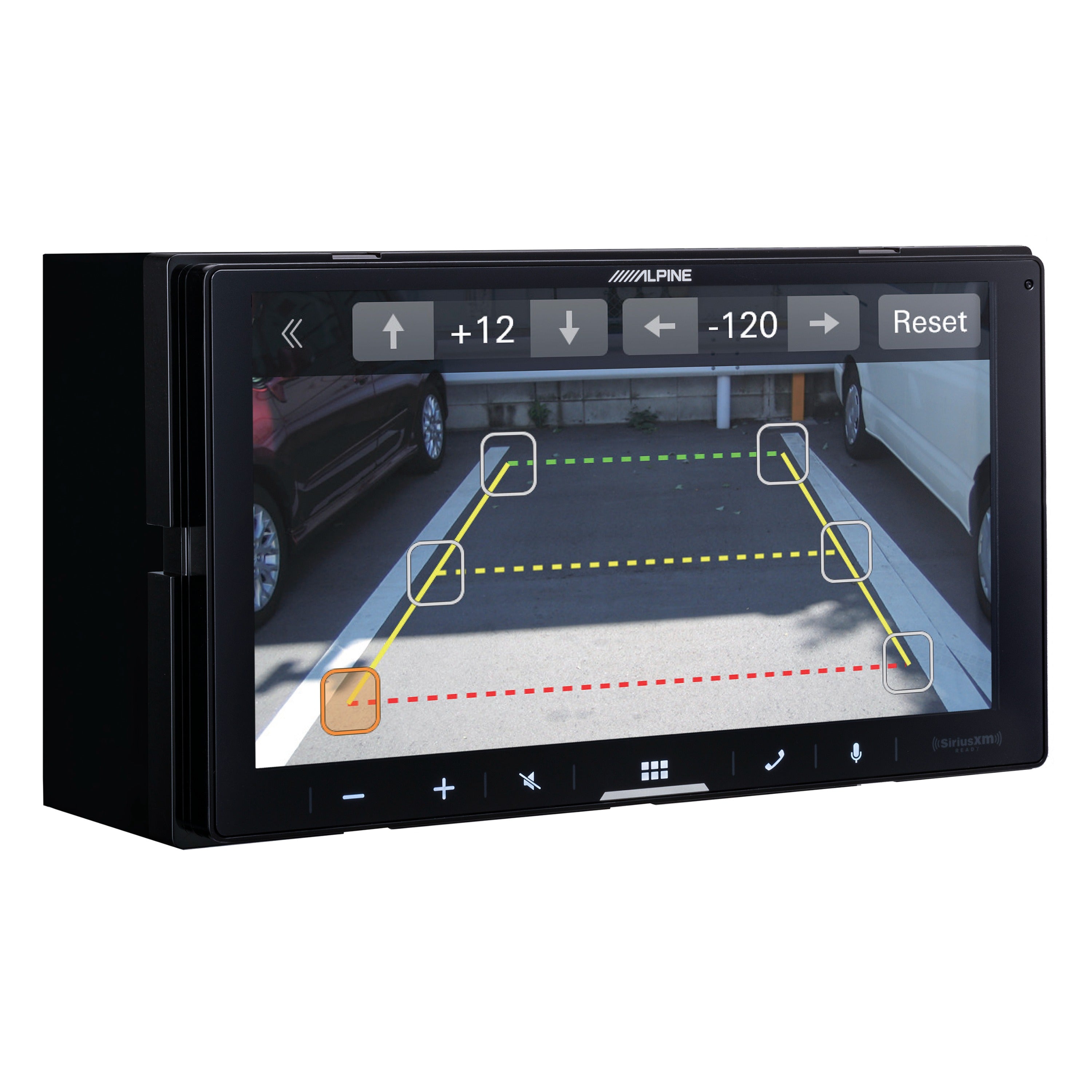

- Camera Input: 1
- USB Input: 1
- 4V Pre-Outs: 3 (Front, Rear, and Subwoofer)
- Built-In Amplifier: 16W RMS / 50W Peak x 4
- EQ: 13-Band Graphic
- Time Correction: 6-Channel
- Crossovers: Front, Rear, and Subwoofer
- Audio Playback: AAC, FLAC, MP3, WMA
- Video Playback: AVC, FLV, H.264, MP4, MPEG-4, MKV, MOV
