Product Setup Information
Description

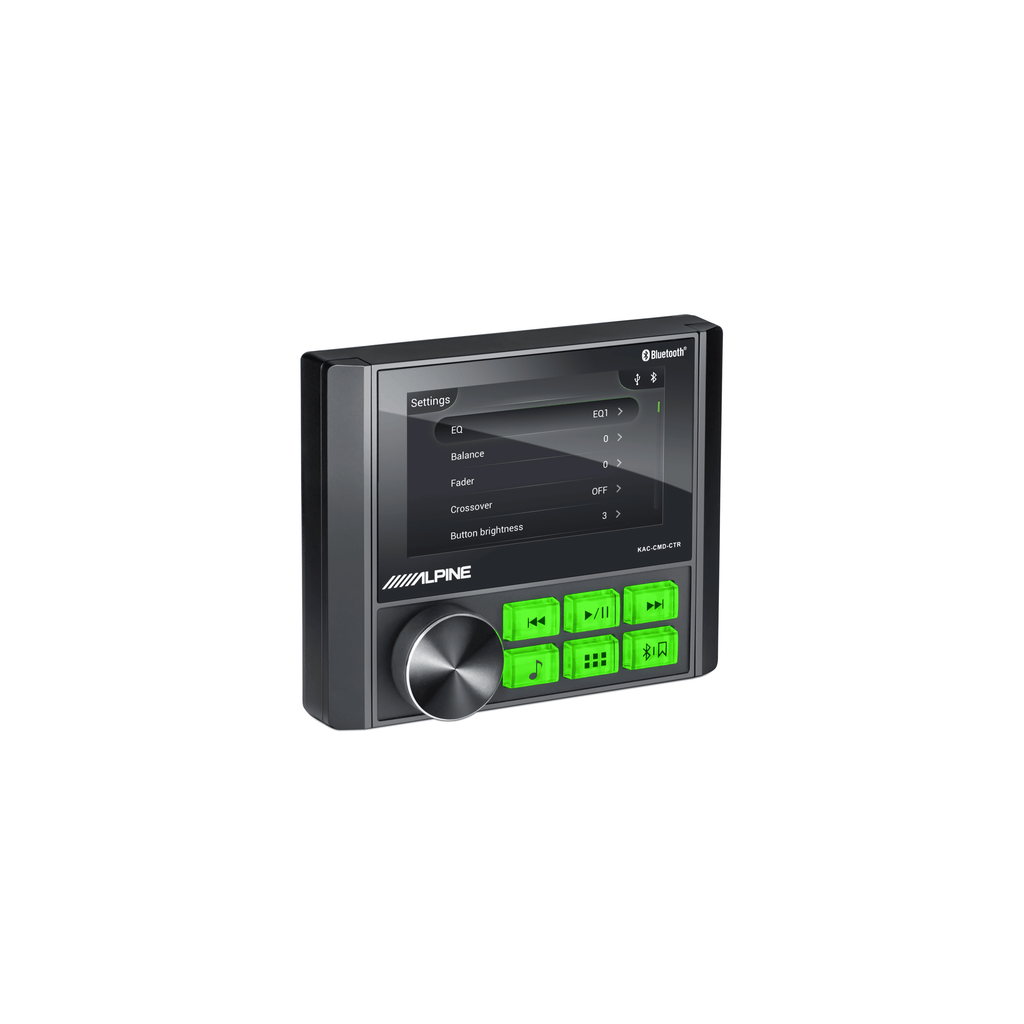

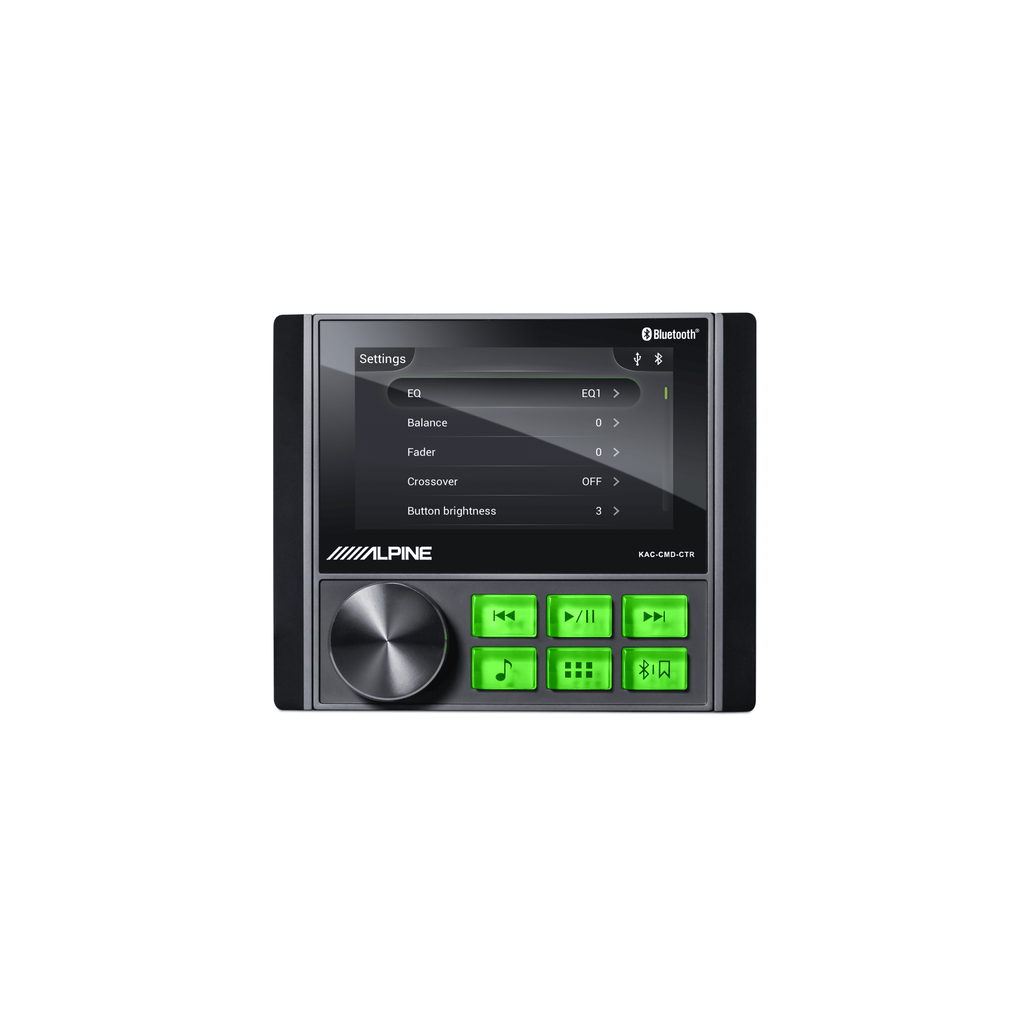

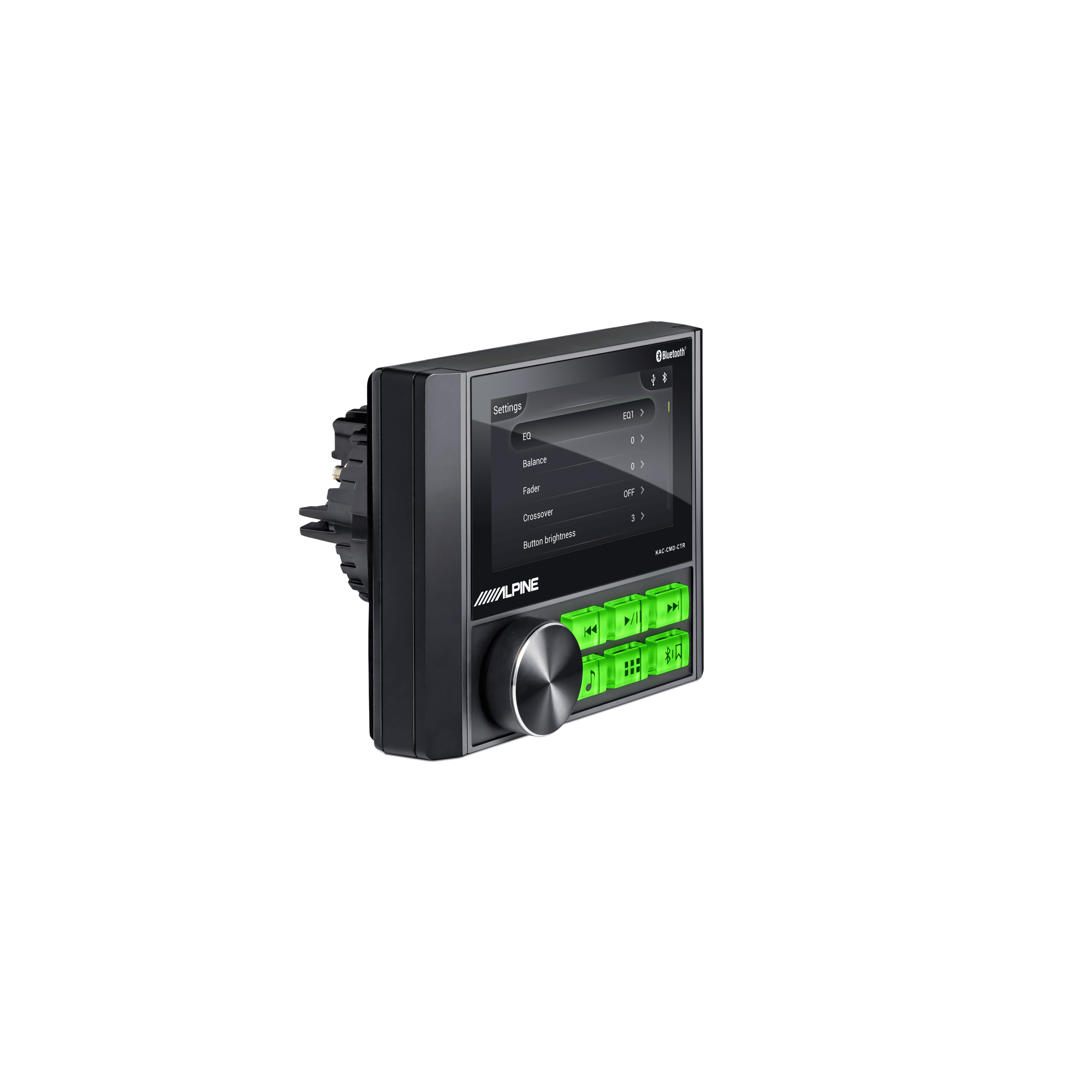

The KAC-CMD-CTR offers Bluetooth® streaming, IP66-rated weather resistance, and a built-in amplifier for UTV and powersports audio systems. The KAC-CMD-CTR is built for the outdoors with an IP66 rating, protecting it against dirt, water, and UV rays. This durable design ensures uninterrupted performance, making it the ideal multimedia receiver for UTVs, ATVs, and other recreational vehicles in rugged environments. The large, high-resolution screen has a matte-like finish that offers superior visibility, even in direct sunlight. Optimize your sound system with a 6-band parametric EQ and HP/LP filters. Fine-tune every detail for crystal-clear highs, punchy mids, and deep, powerful bass. With a built-in 17W RMS x 4-channel amplifier, the KAC-CMD-CTR delivers power and premium audio performance tailored to your setup. An RCA out allows for easy system building and is designed for power and performance for the SPV-65RGB-CAN 6.5” Speaker Cans and external amplifier. Stream your favorite music or with Bluetooth® connectivity. The KAC-CMD-CTR also includes USB and AUX inputs for additional playback options, allowing you to enjoy music from multiple sources during your adventures.
- 4.3-inch square full-color display (non-touchscreen)
- Alpine retro-inspired design
- Universal compatibility with UTVs and other powersports and recreational vehicles
- Intuitive, easy-to-use controls
- IP66-rated weather resistance protects against dust, water, and UV rays
- Bluetooth® Audio Streaming
- USB and AUX inputs for versatile music playback
- Built-in 17W RMS x 4-channel amplifier
- 6-band parametric EQ for optimal audio tuning
- Three 4V RCA preouts for system expandability
- Subwoofer control for fine-tuned bass adjustments
- Camera input for integration with a backup camera
- Five-level dimmable illumination

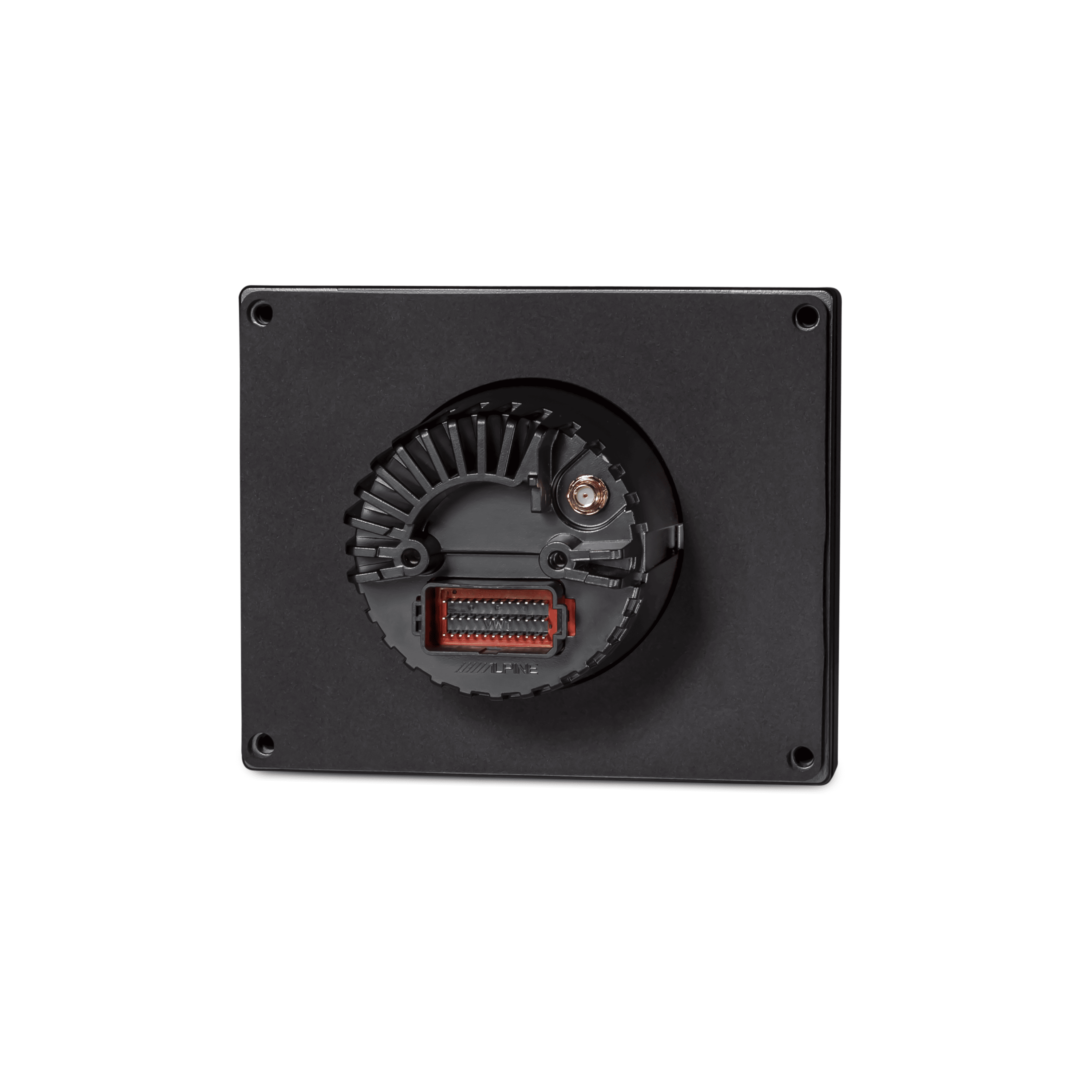

- Universal rear U-bracket for easy installation on a 3"" round gauge hole
- Screen Size: 4.3 inches
- Screen Resolution: 800 x 480 pixels
- Inputs: 1 USB, 1 Aux, 1 Camera
- Outputs: 3 RCA preouts (Front, Rear, Subwoofer)
- Built-in Amplifier: 17W RMS x 4 channels
- EQ: 6-band parametric with HP/LP filters
- Audio Playback Formats: AAC, FLAC, MP2, MP3, M4A, OGG, WAV, WMA
- Voltage Range: 9.5V – 16.5V DC
- Operating Temperature: -20°C to 60°C
- Weather Rating: IP66
