Description

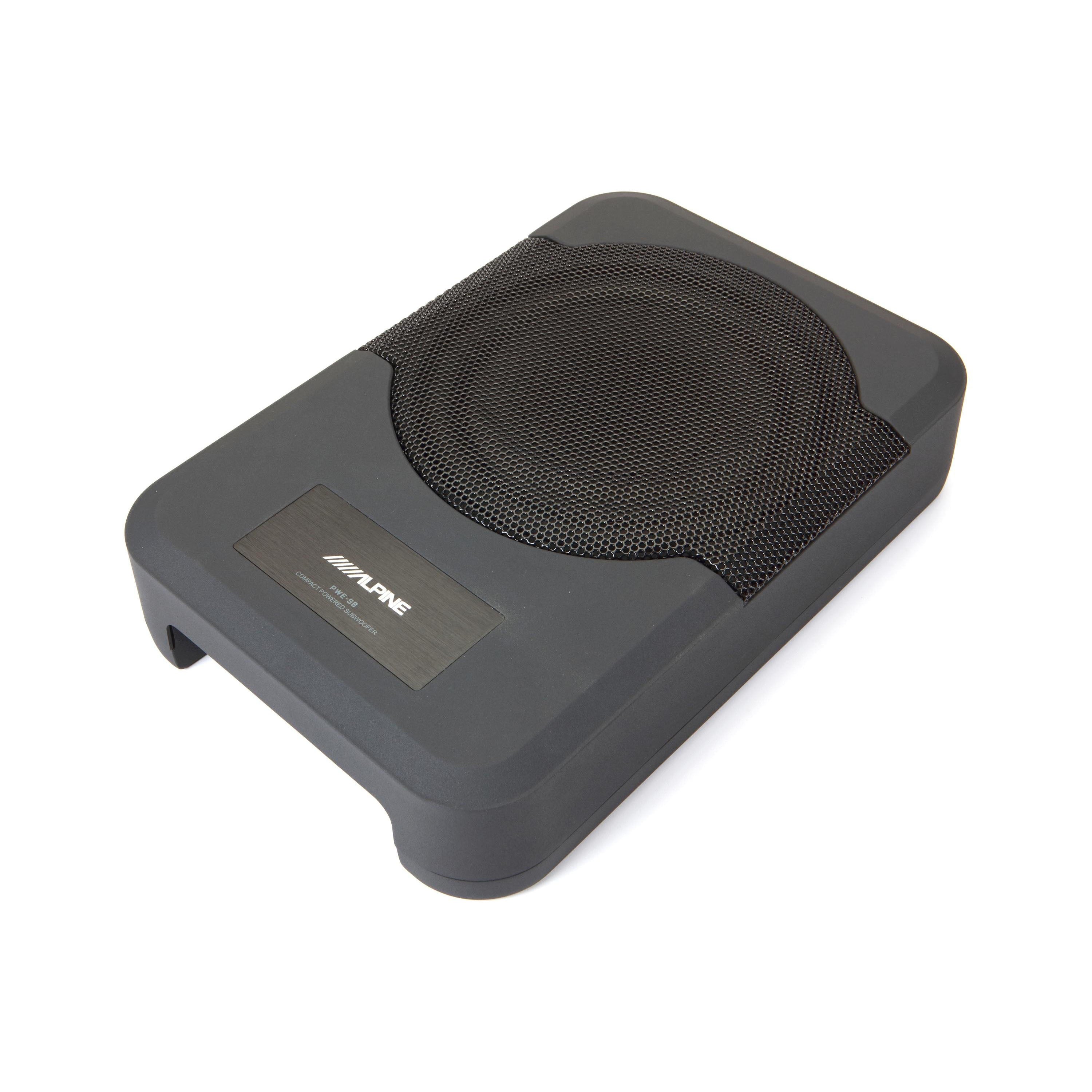

The compact 8" PWE-S8-WRA Compact Subwoofer lets you add deep, accurate bass to your Jeep Wrangler® sound system without taking up too much space.
Alpine's PWE-S8-WRA measures at 3-inch deep, 13.5-inches wide and 9-inches tall for a compact subwoofer system that can be installed under the driver's seat of the 2007-2018 Jeep® Wrangler.
The PWE-S8-WRA gives you bass you can rely on, with a rugged, cast metal enclosure that's built for a rough ride, while protecting the subwoofer inside.
Using a Class D amplifier rated at 120-watts, the 8" inch subwoofer is high-excursion to deliver strong bass output.

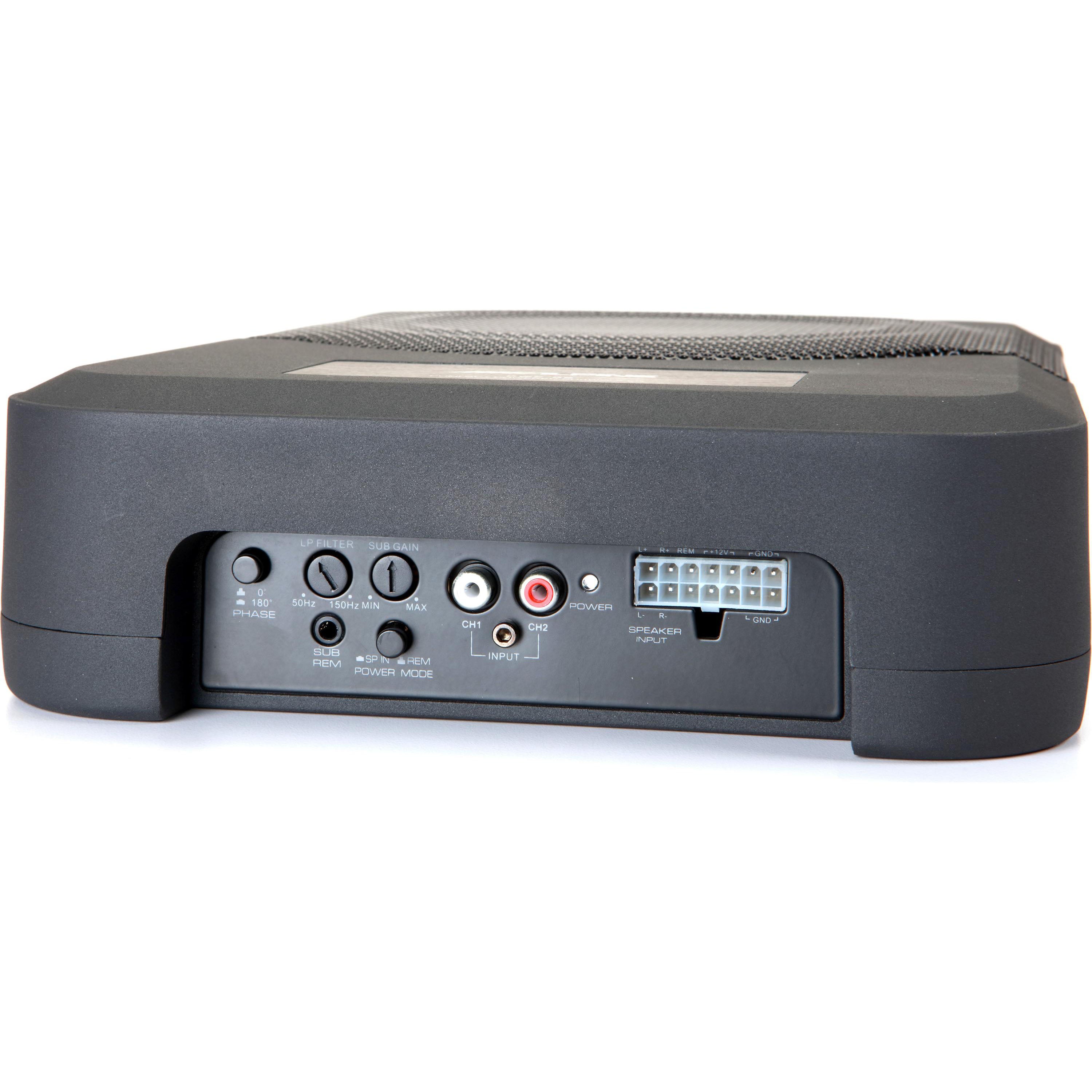

A side panel gives you access to the built-in amplifier controls for phase, gain, and a low-pass crossover so you can blend your bass with your factory or aftermarket sound system.
Control your bass level from the driver's seat with an input for a wired remote level knob.
The remote level knob has a 15' cable attached for flexible installation anywhere on the dash.
Adding the PWE-S8-WRA is easy with the easy-access RCA inputs and speaker-level inputs with automatic turn-on.
With the included Jeep®-specific brackets, adapters, and wiring harness the PWE-S8-WRA has easy Plug-and-Play installation.
The PWE-S8-WRA is compatible with the X409-WRA-JK 9-inch Weather-Resistant Navigation System with Off-Road Mode (recommended), any aftermarket Alpine radio, or factory non-amplified Jeep® base radio.
- Input Harness
- 0-180-degrees variable phase control
- Pre-amp and speaker-level inputs
- Cast metal enclosure
- Mounting Brackets
- 13' Remote Bass Level Knob (Adjustment Range: 0 to -20db)
- Polypropylene/Aluminum diaphragm material
- Rubber surround
- 8" Powered Subwoofer with High-Excursion Quad Coil
- 120-watt RMS/ 240-watts peak power
- 32Hz-150Hz frequency response
- 80-200Hz variable low pass crossover
- Plug-and-play sound system for the 2011-2018 Jeep® Wrangler 4-door
- Not compatible with the factory amplified system

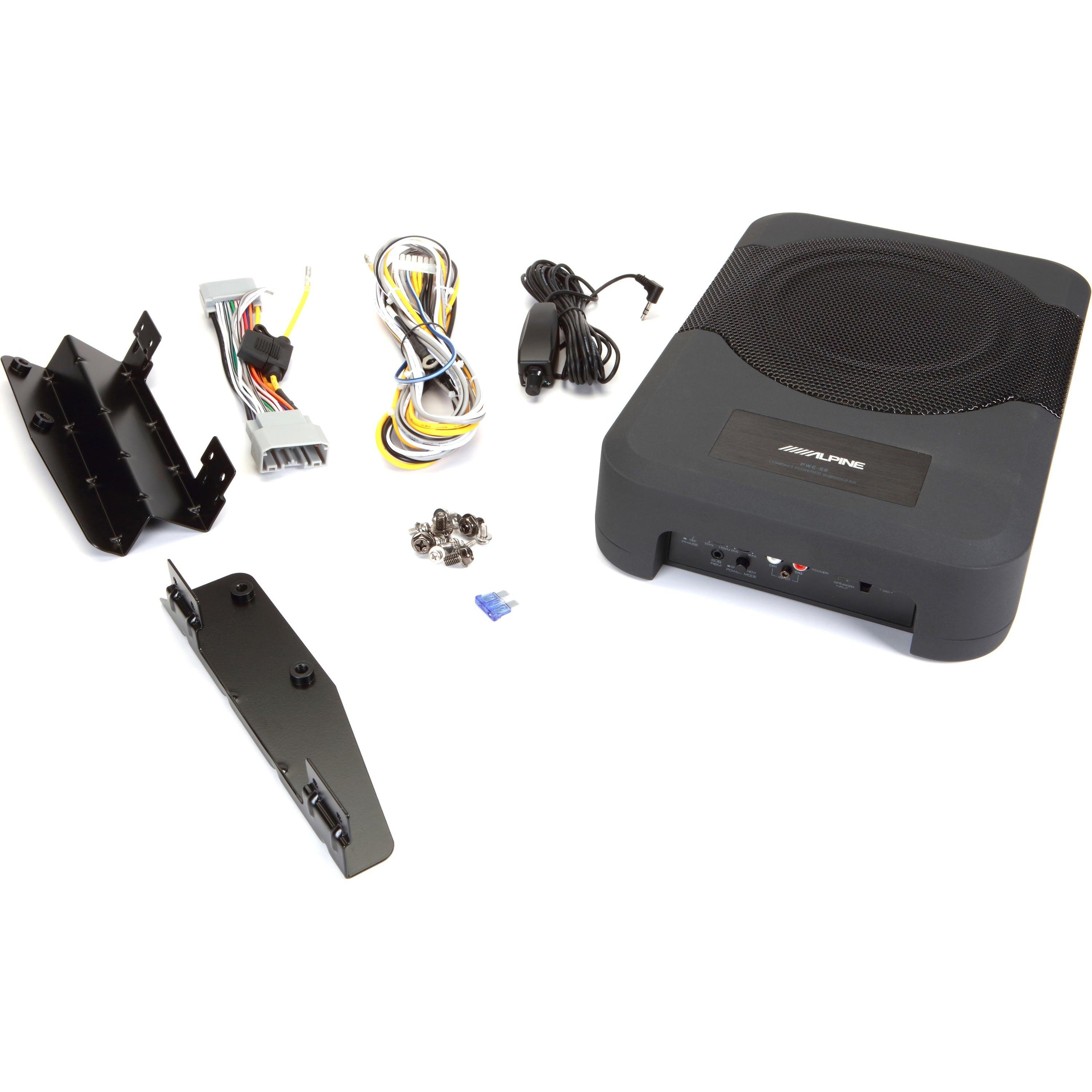

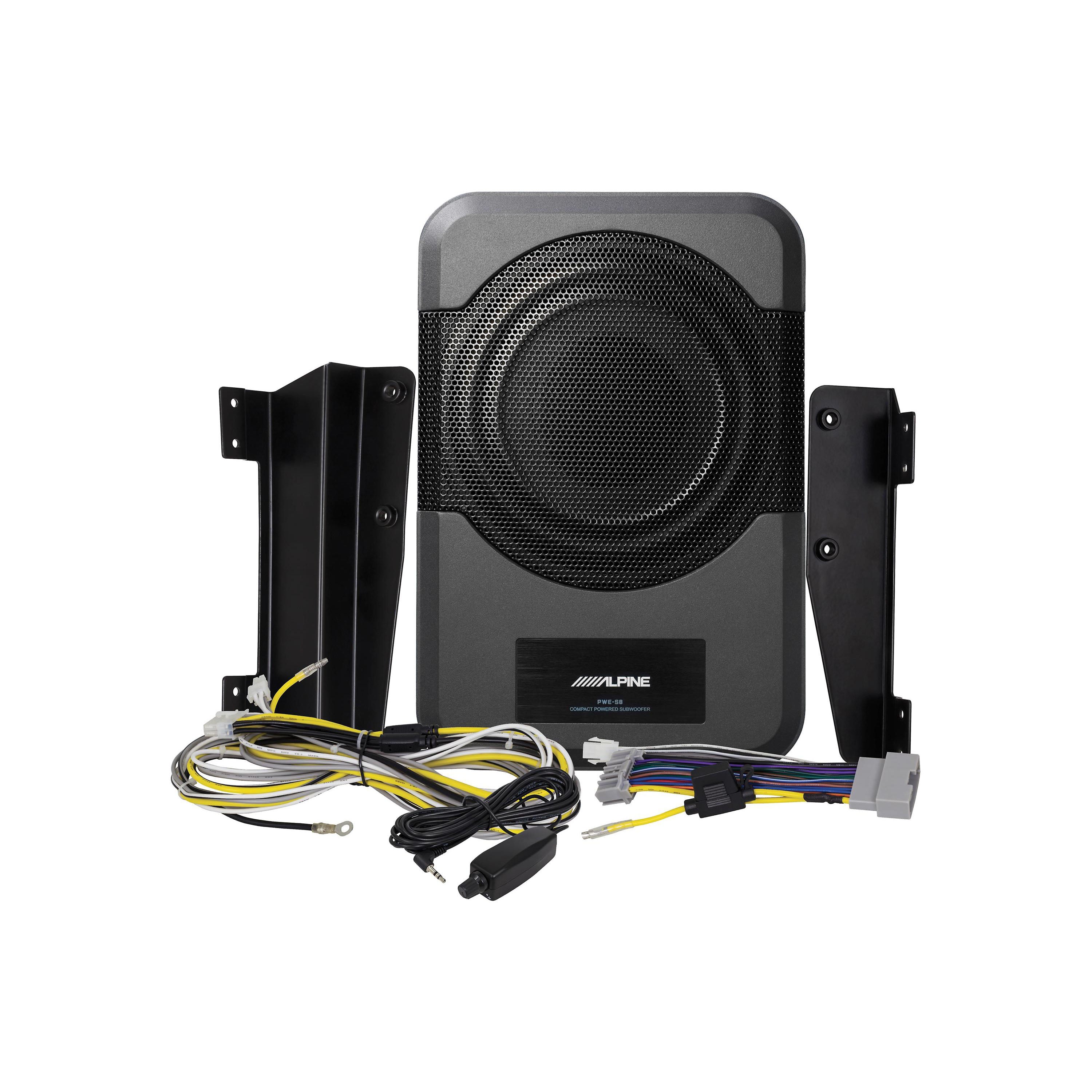

- Includes pre-assembled kit, Jeep®-specific brackets, adapters, and wiring harness
- Compatible with the Alpine X409-WRA-JK 9-inch Weather-Resistant Navigation System with Off-Road Mode (recommended), any aftermarket radio, or factory non-amplified Jeep® base radio

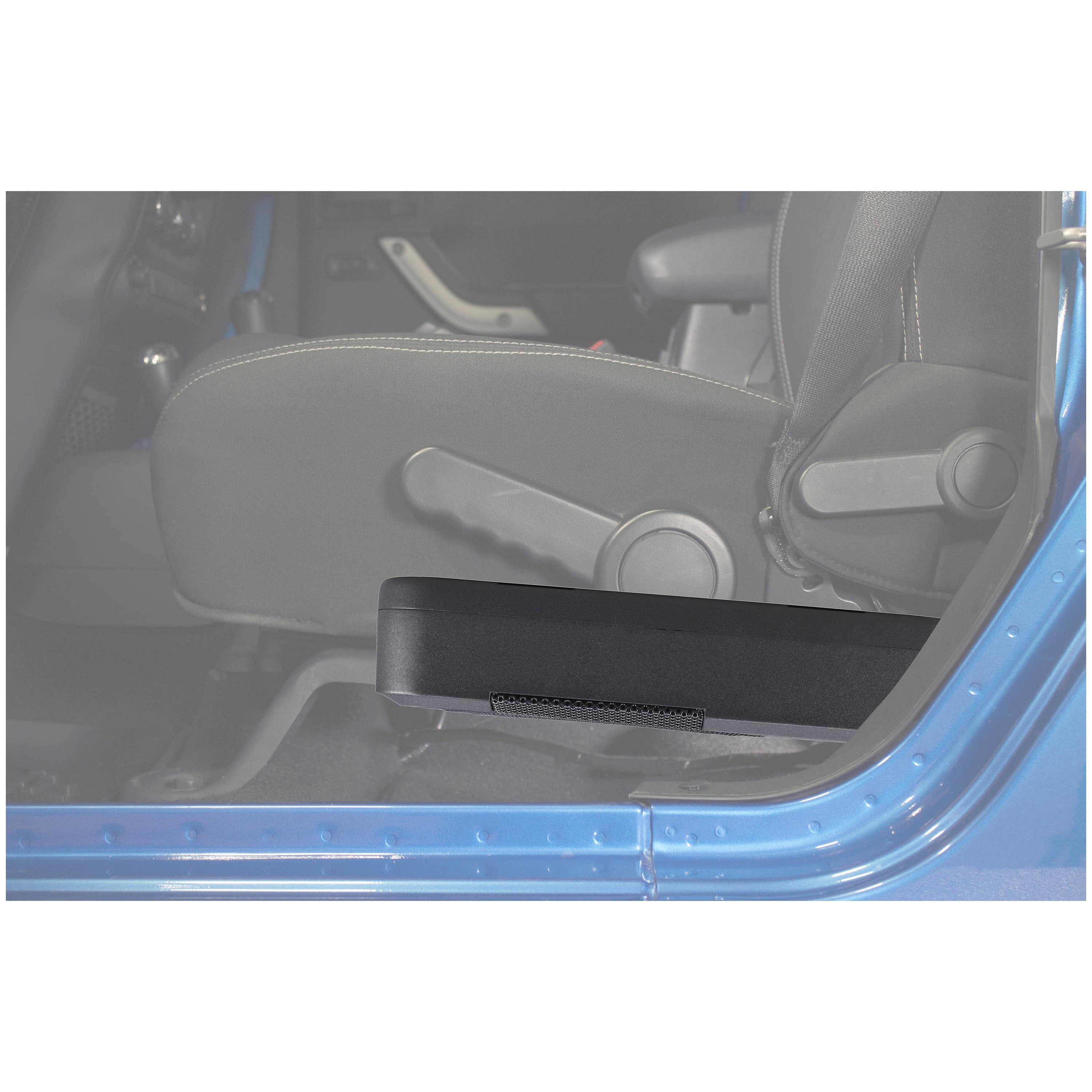

- Under the seat installation maximizes bass extension with the top on or off
