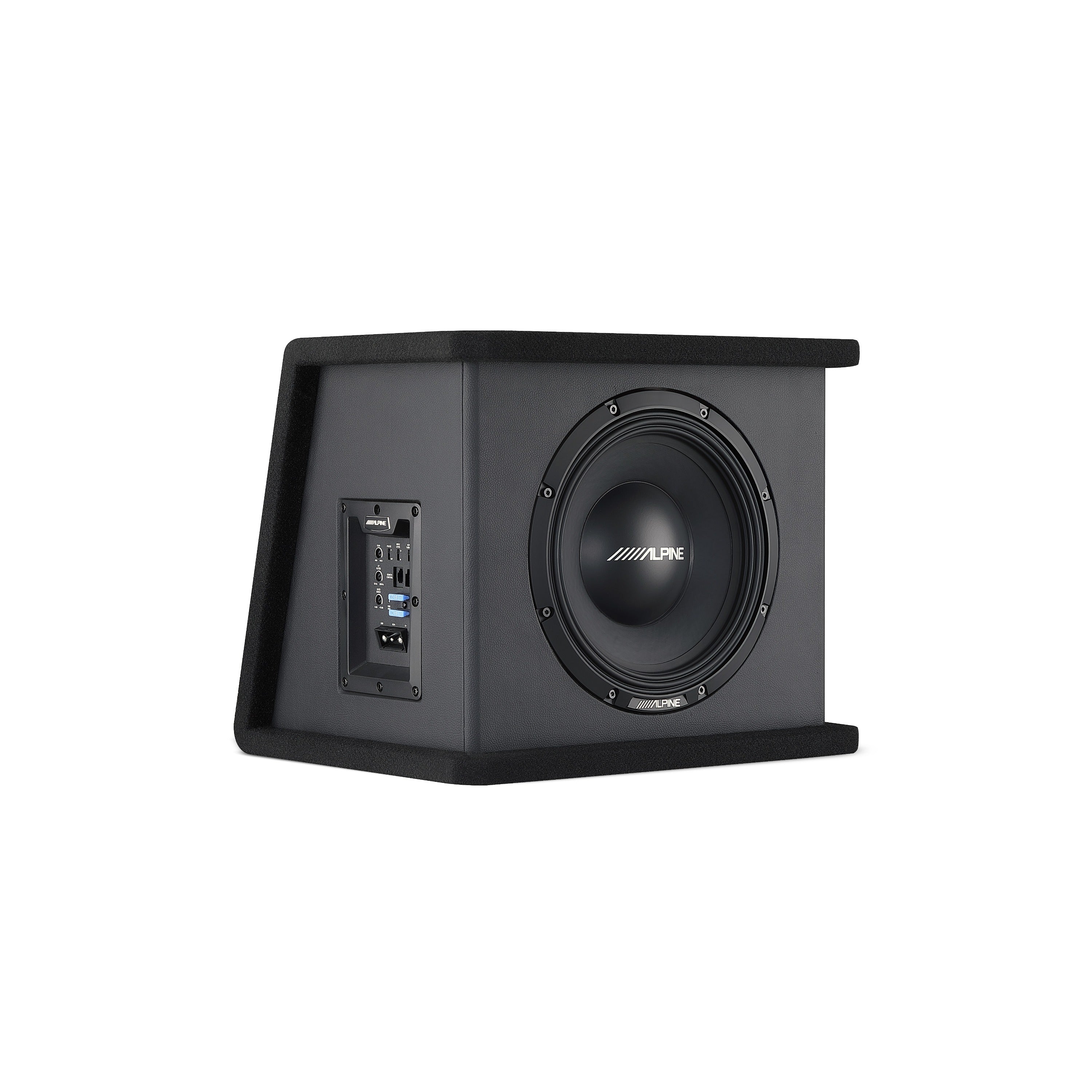

Alpine PWE-SB10 10" Powered Subwoofer Wedge Enclosure

AlpineSKU: PWE-SB10

Retail Price:
Sale price$548.00

Product Setup Information

Description

Add powerful bass to almost any vehicle with the Alpine PWE-SB10 powered 10"" wedge subwoofer enclosure featuring a built-in 300W RMS amplifier.

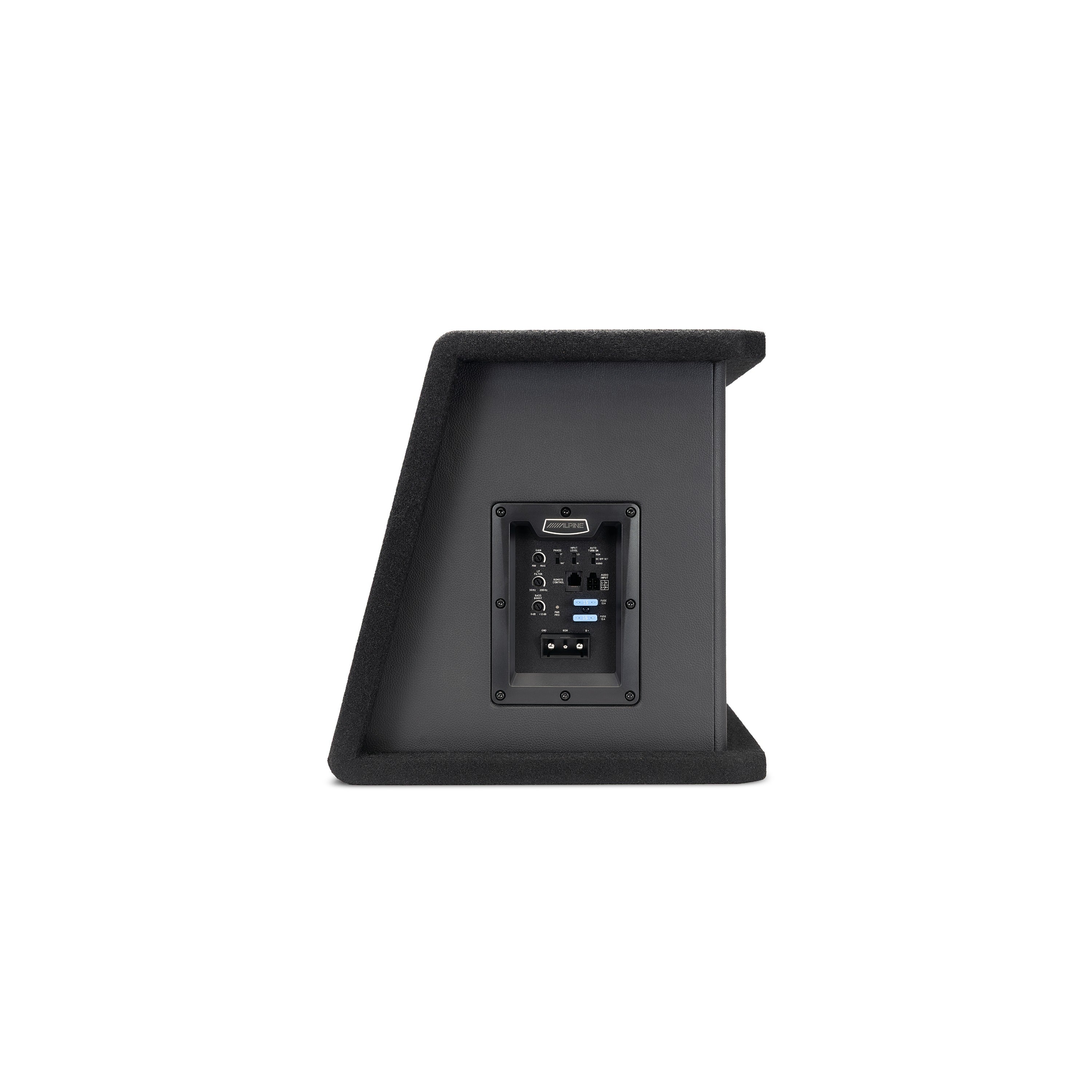

Compact Wedge Design

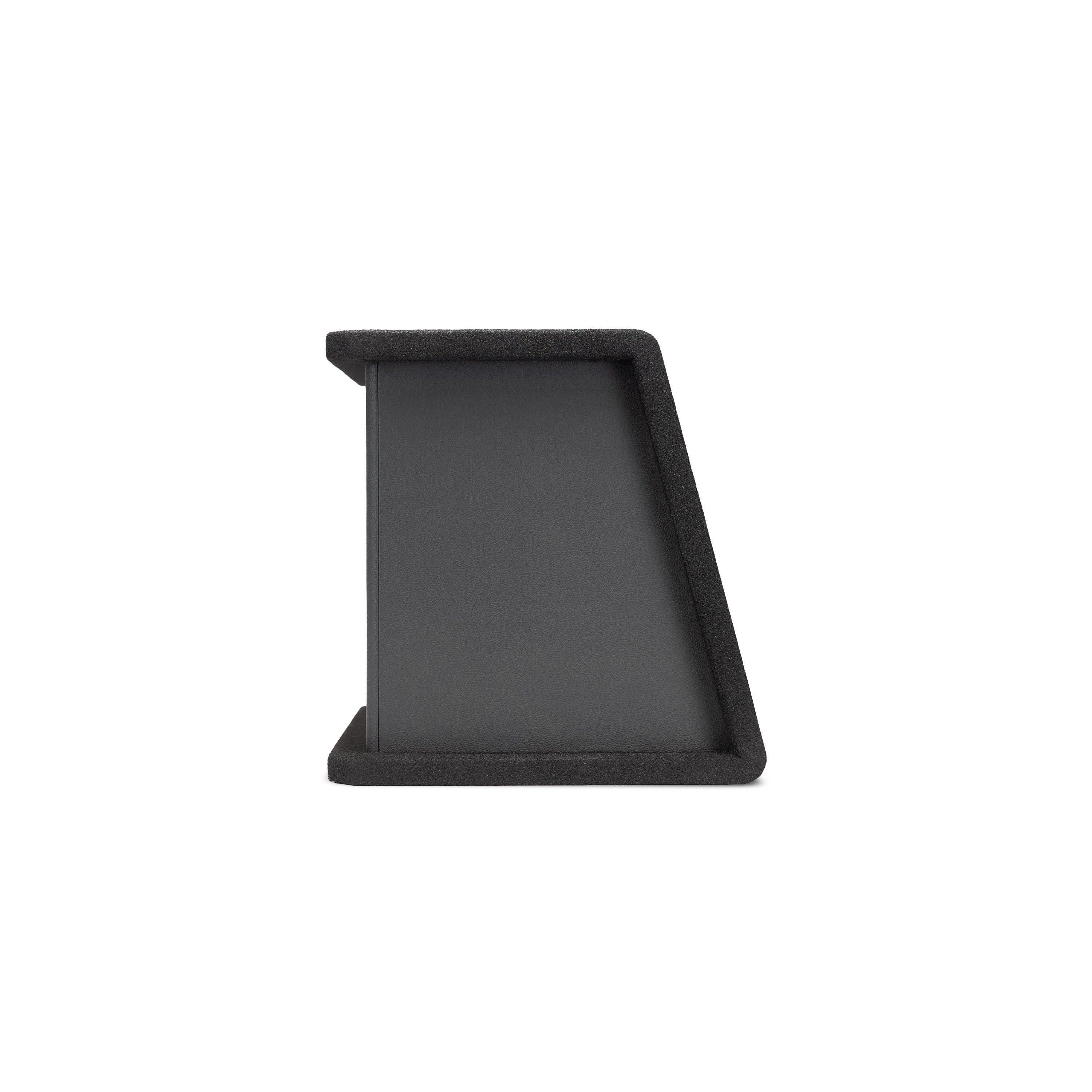

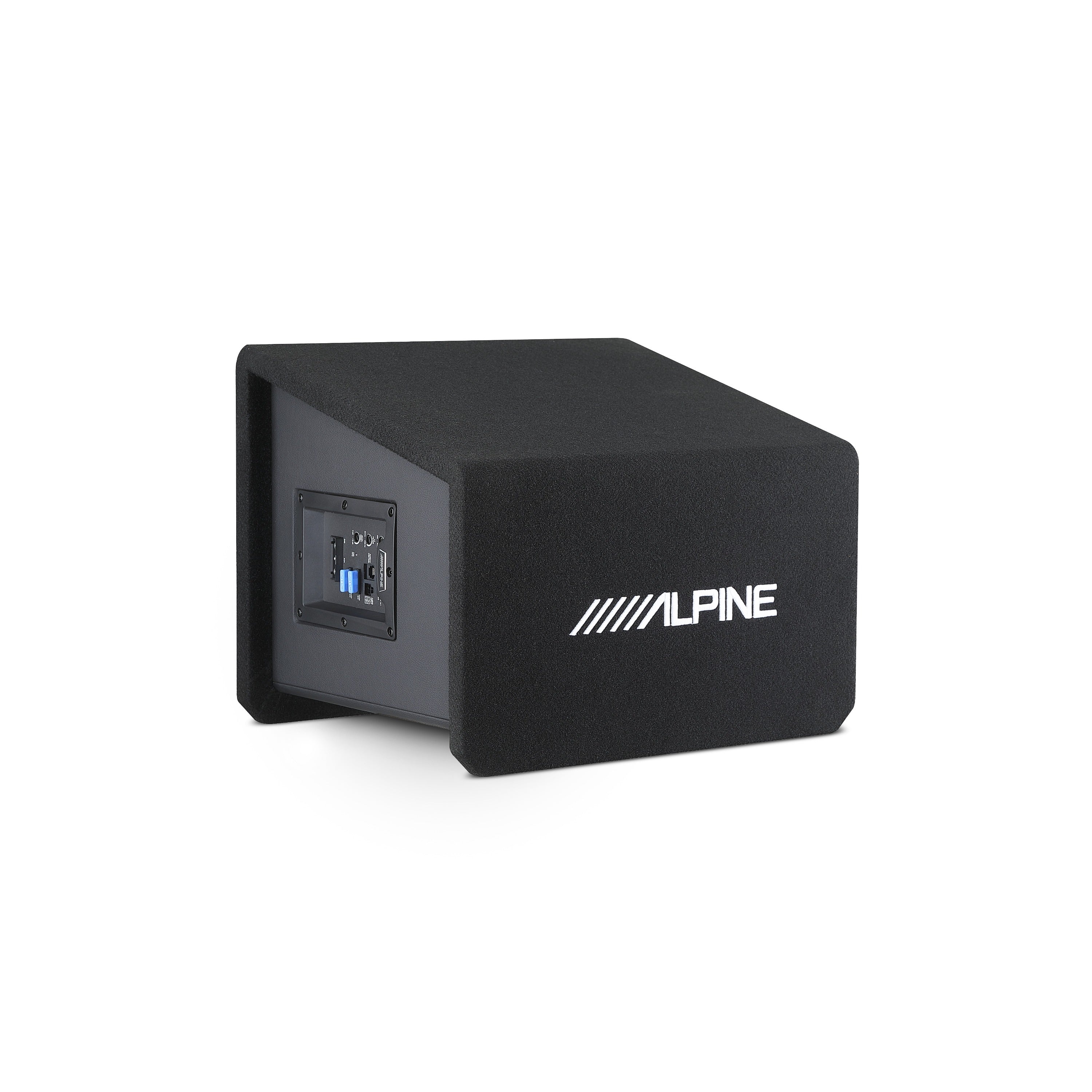

Designed for versatility, the compact wedge-shaped enclosure allows the PWE-SB10 to fit easily in a variety of vehicle locations such as trunks, cargo areas, or behind seats. The angled enclosure helps maximize available space while directing bass output efficiently into the cabin. Finished with a durable carpeted exterior, premium black leather wrap, and embroidered Alpine logo, the enclosure offers both installation flexibility and a refined appearance.

Powerful Integrated Bass Performance

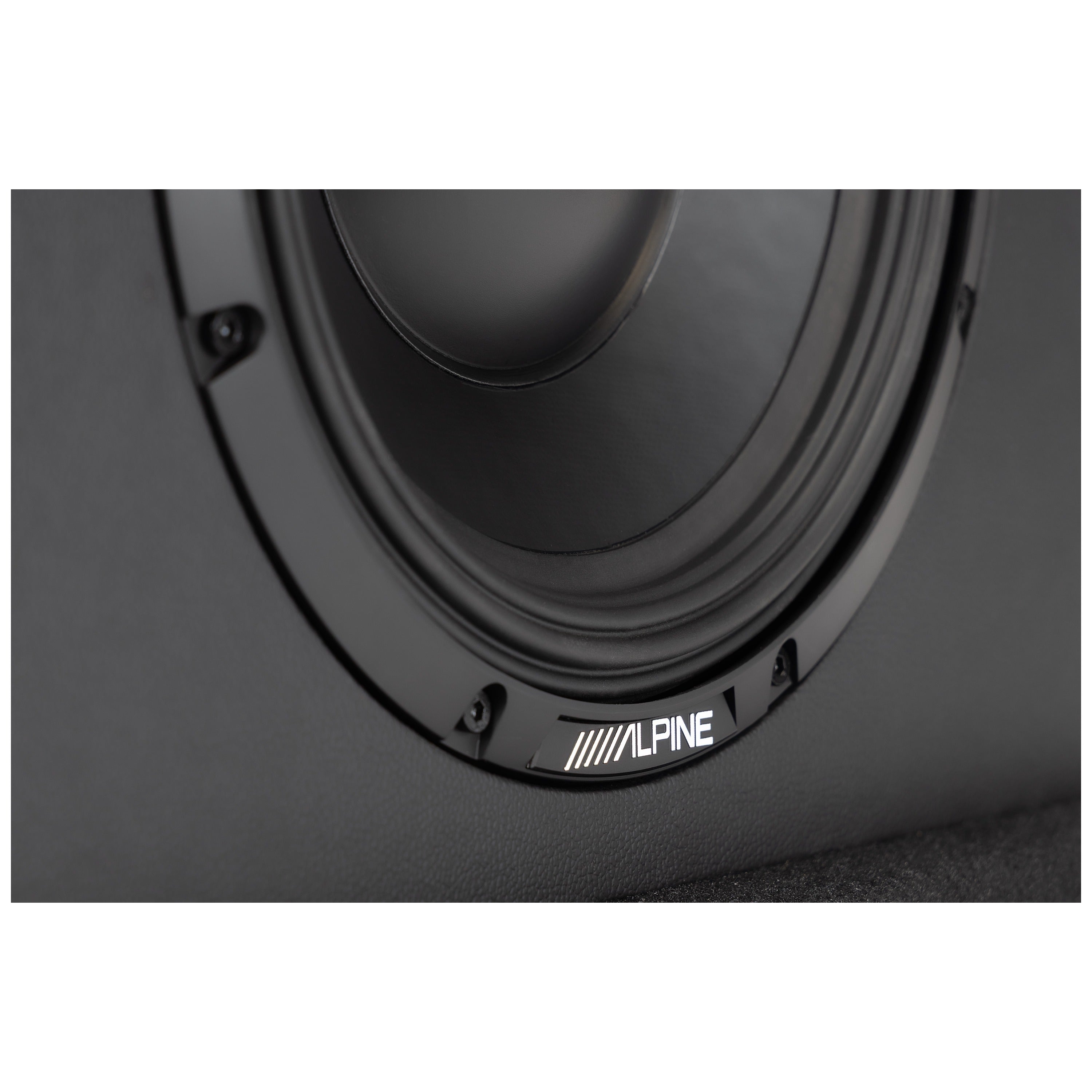

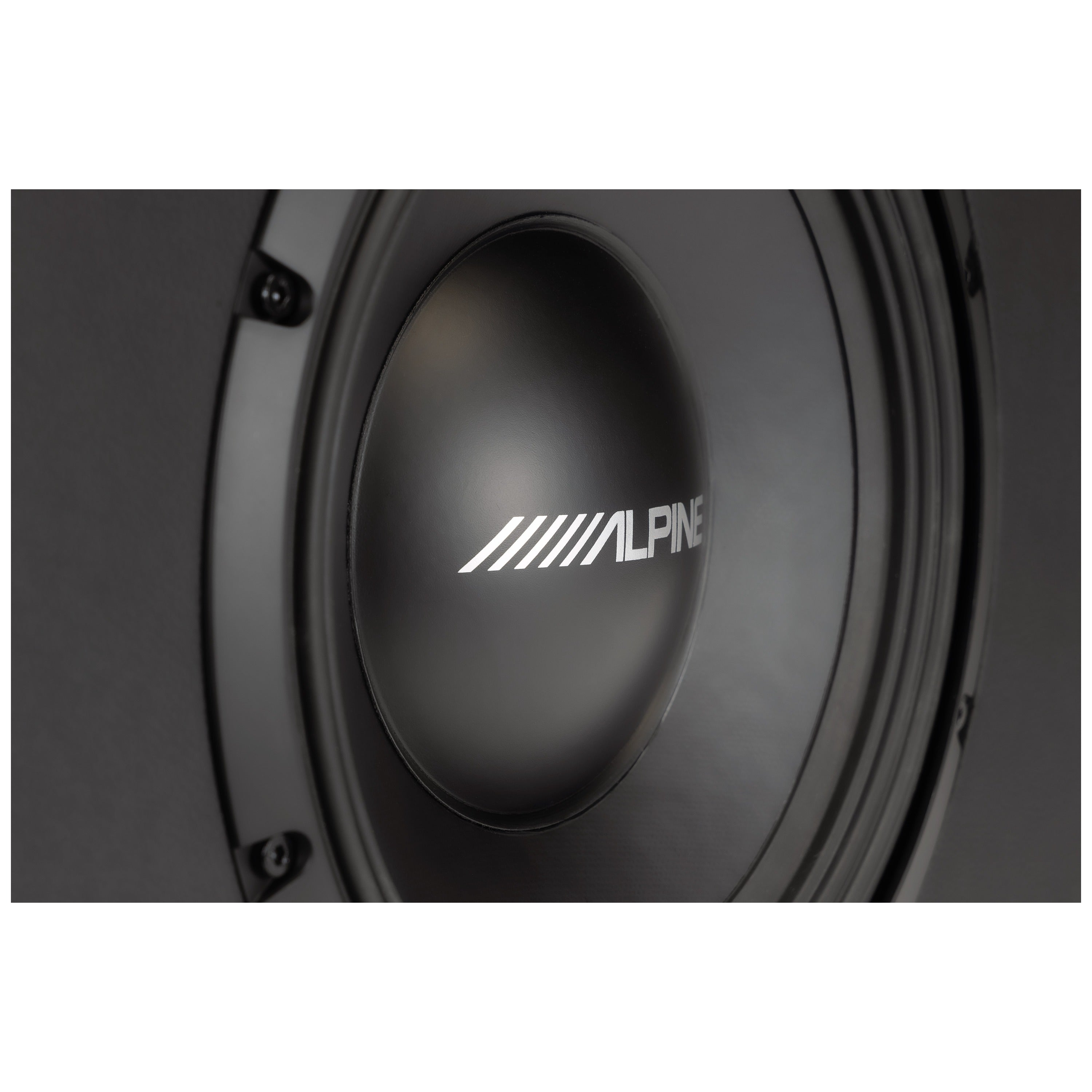

The Alpine PWE-SB10 delivers deep, expressive bass with a built-in amplifier engineered specifically for the enclosure’s 10"" subwoofer. The amplifier’s power output is carefully matched to the subwoofer’s configuration, allowing the system to operate efficiently while maintaining tight, controlled bass. This optimized pairing ensures dynamic low-frequency performance that enhances music detail and impact across a wide range of genres.

Convenient Controls

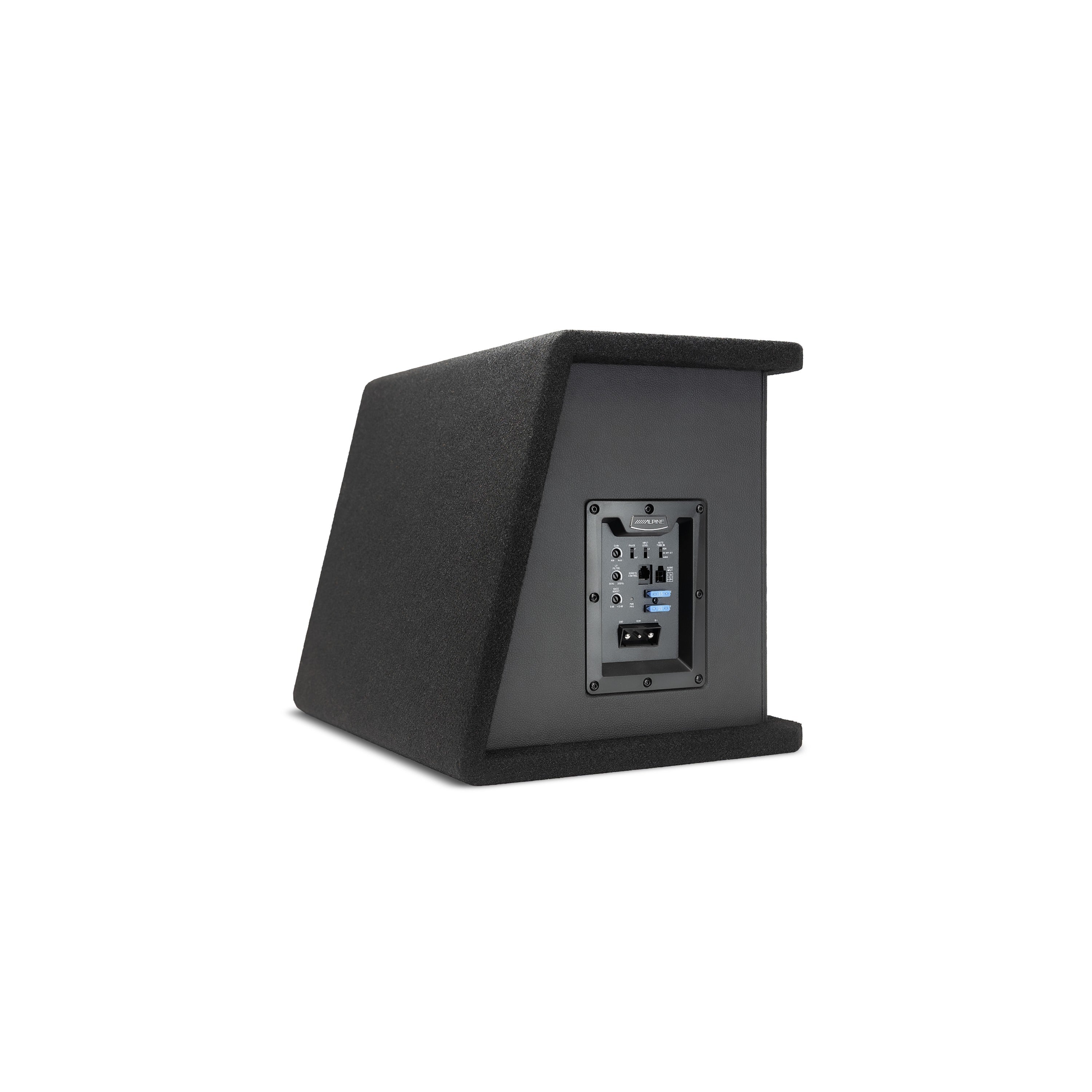

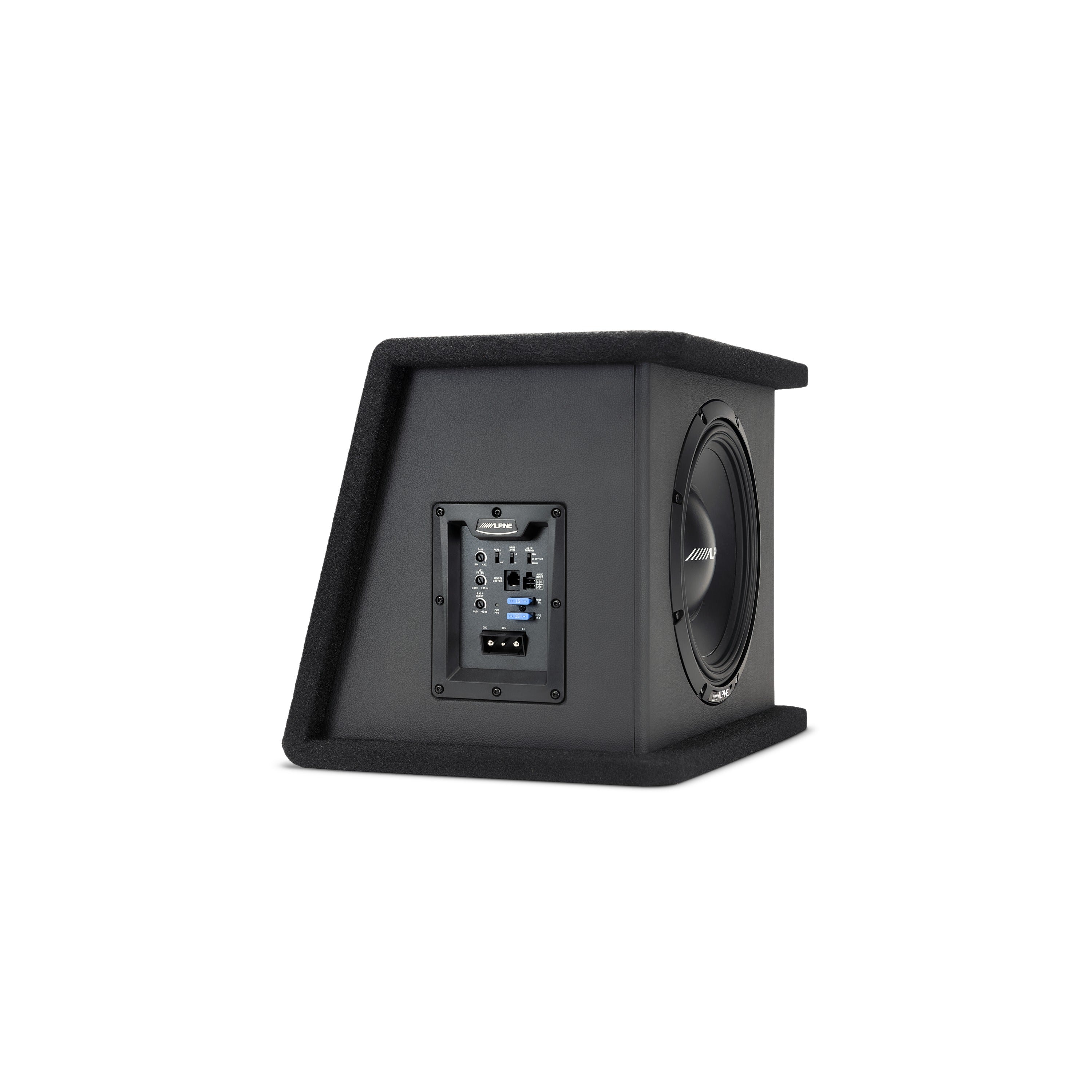

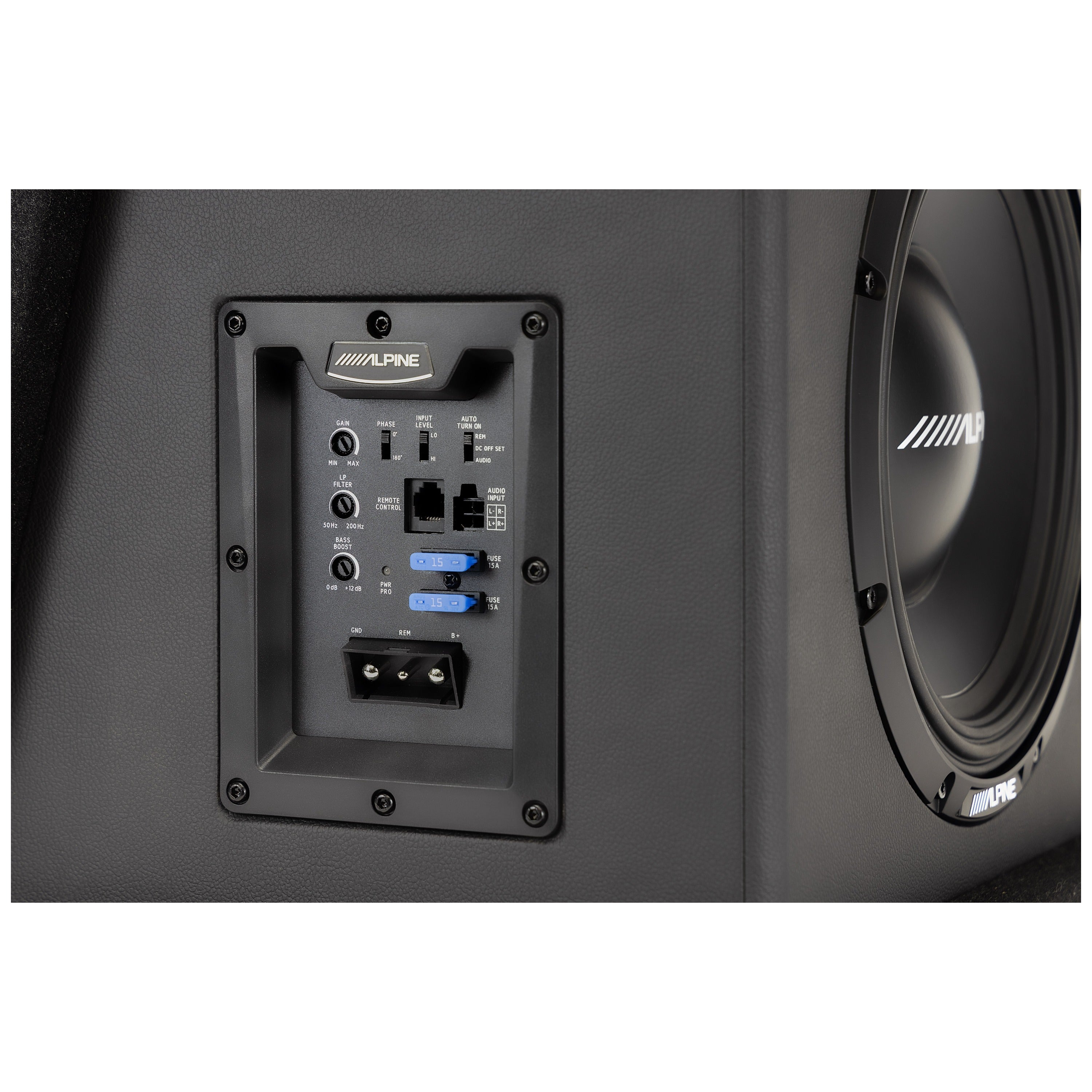

The PWE-SB10 is built for straightforward installation and easy system tuning. Accessible amplifier connections on the side of the enclosure allow quick wiring and clean cable management. With selectable low-level and high-level inputs, the enclosure integrates easily with both aftermarket and factory head units. An included remote level control lets you adjust bass output from the driver's seat, while auto turn-on funtionality simplifies system integration.
  • Preloaded 10"" powered wedge-style subwoofer enclosure
  • Built-in amplifier delivering 300W RMS / 450W Peak
  • Compact wedge design for flexible vehicle installation
  • Dual 3Ω voice coil subwoofer optimized for amplifier efficiency
  • Low-level and high-level inputs for universal compatibility
  • Included remote level control (0 to -12 dB)
  • Auto Turn-On mode for simplified installation
  • Durable carpeted enclosure with black leather wrap

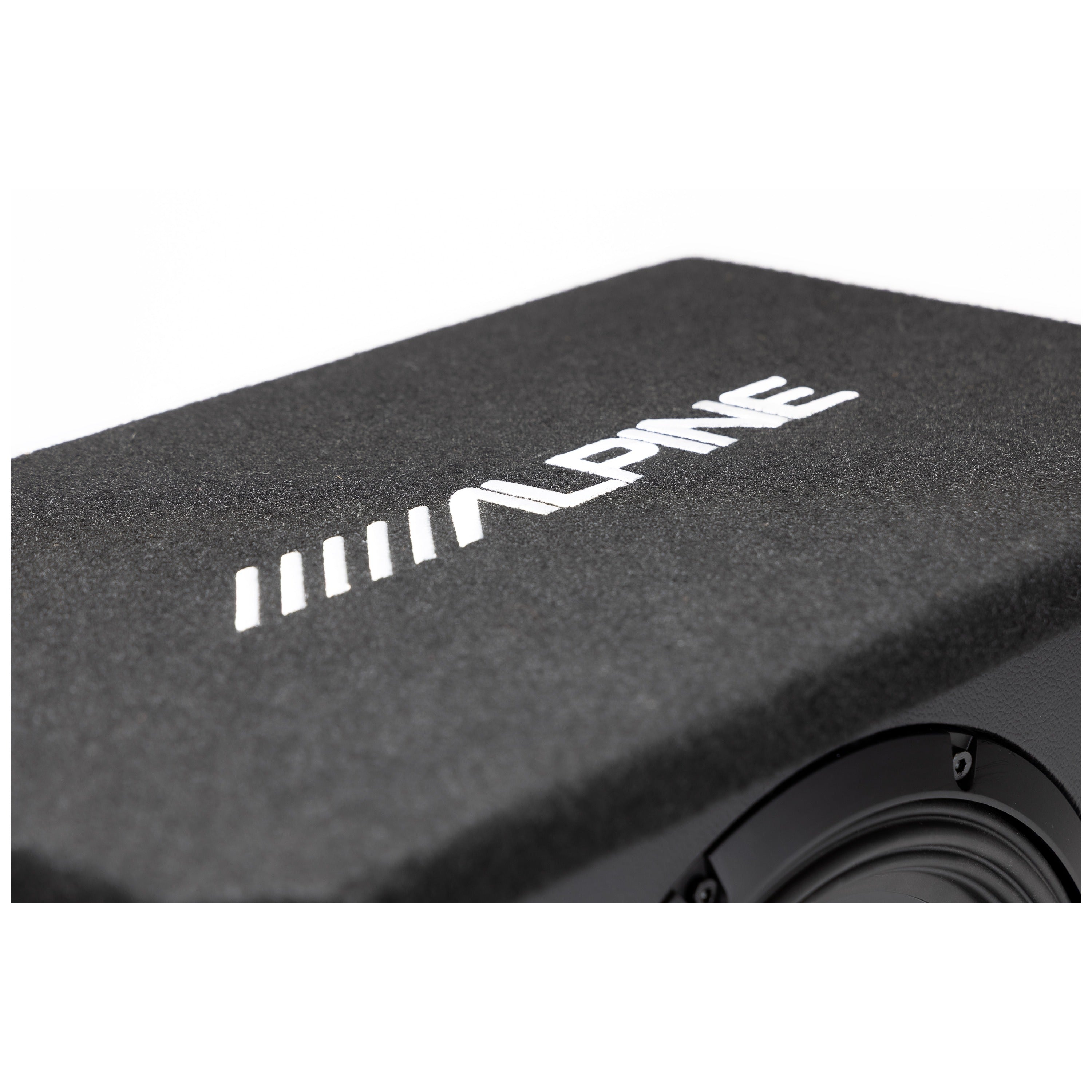

  • Premium embroidered Alpine logo

Tech Specs

Subwoofer Size: 10""
Power Handling: 300W RMS / 450W Peak
Frequency Response: 35Hz – 200Hz
Low-Pass Filter: 50Hz – 150Hz (adjustable)
Phase Control: 0° / 180°
Inputs: Low-Level / High-Level selectable
Remote Level Control: Included (0 to -12 dB)
Enclosure Type: Sealed wedge enclosure
Dimensions: 16-3/4"" W × 13-1/3"" D × 13-1/2"" H
Weight: 30.5 lbs (13.83 kg)
