Alpine S2-SB10V Single 10" Alpine Halo S-Series Preloaded Subwoofer Enclosure with ProLink

AlpineSKU: S2-SB10V

Retail Price:
Sale price$799.00

Product Setup Information

Sorry, no downloads available at this time.


A subwoofer enclosure that sounds as good as it looks. Alpine's preloaded, linkable subwoofer enclosures give you powerful performance with the unique Alpine Halo design.

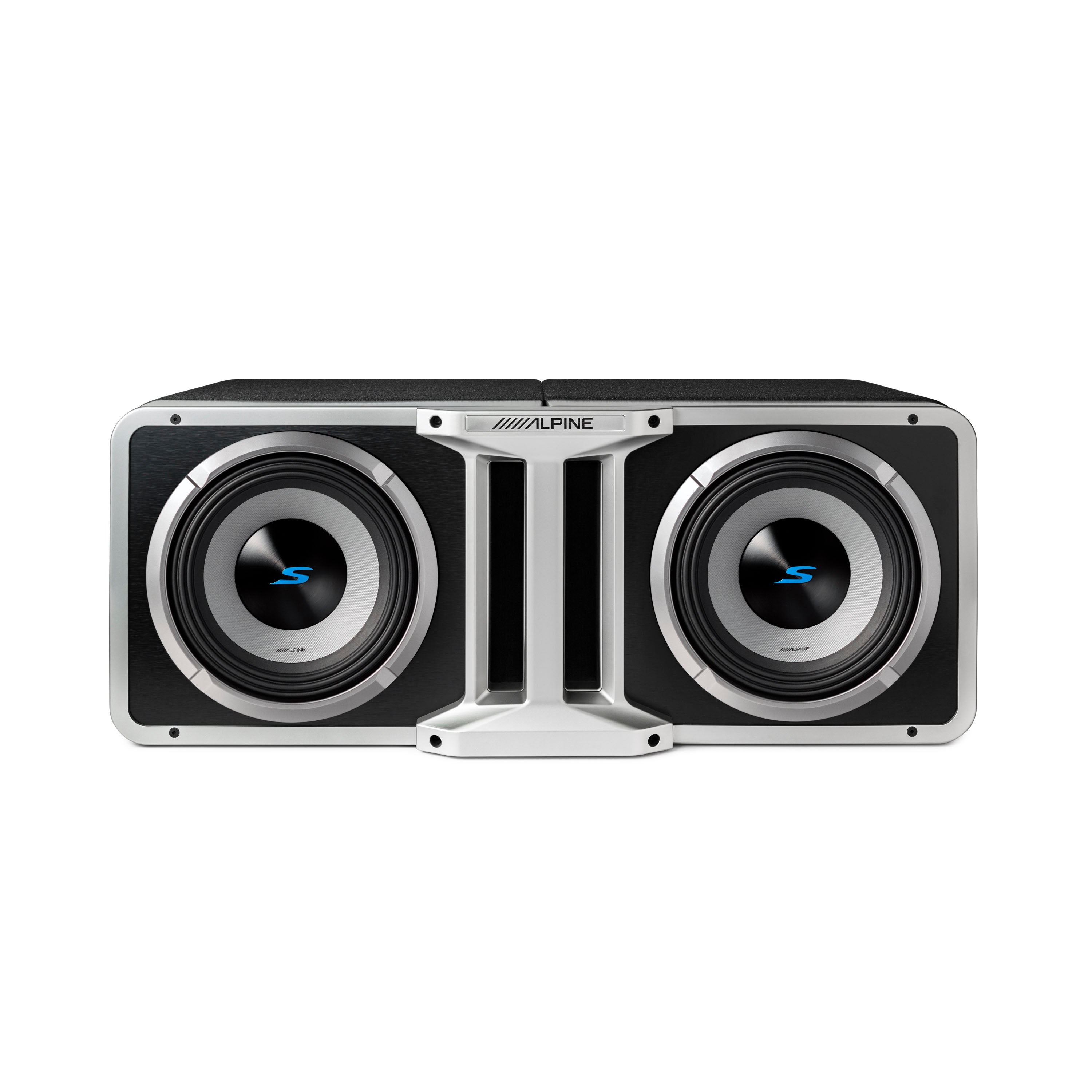

ProLink™ is unique to Alpine and allows you to link two S2-SB10V enclosures together using an optional KTX-H10 Linking Kit (sold separately) to create a dual subwoofer-enclosure.

Drawing inspiration from the sleek, tapered lines and clean silver finish of the Alpine Halo Display, the S2-SB10V shares the same unique, curved edges outlined by a silver trim and a metallic front baffle for a matching system aesthetic.

The ported enclosure design features an optimized vent and rounded internal port edges that maximize the output performance of the subwoofer.

Made from 3/4" medium density fiberboard (MDF) with internal edge bracing, the S2-SB10V is sturdy with a rugged, yet stylish black carpet cover and brushed aluminum finish on the metallic front baffle.

The S2-SB10V includes a preloaded S-Series S2-W10D4 10" subwoofer that's turned to 36Hz for optimized performance with Alpine S-Series sound system line.

Dual 4Ω voice coils are wired in parallel for a 2Ω load that's compatible with the S-Series S2-A60M Mono Power Amplifier.

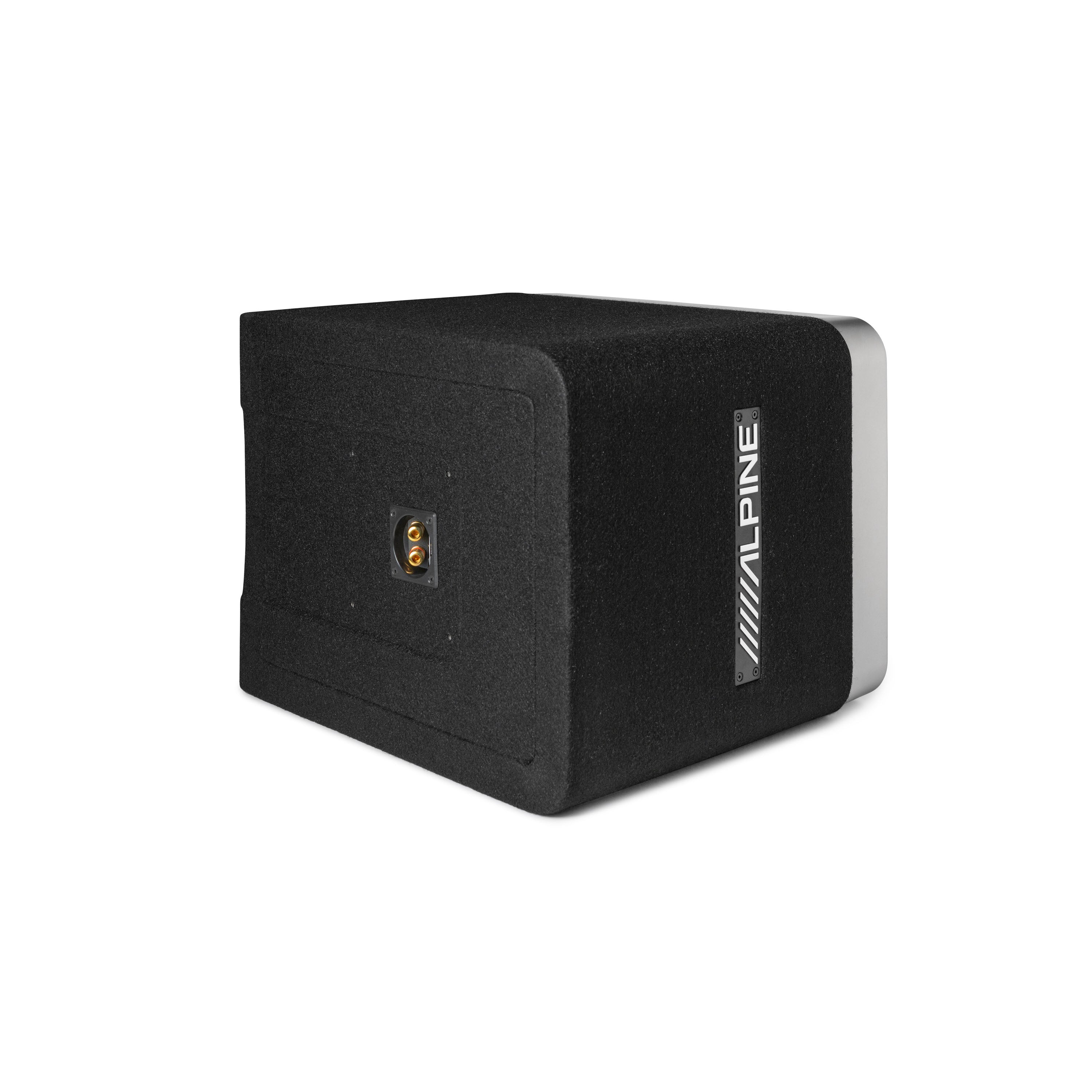

Gold-plated binding post terminals allow for speaker wire, ring terminal, or quick disconnect banana plug connections from your amplifier's output.

  • Groundbreaking Alpine Halo Design
  • ProLink™ ported enclosure design
  • Optimal Sound Performance
  • 600W RMS Power Handling
  • Includes preloaded S2-W10D4 10” S-Series subwoofer
  • CARB compliant 3/4-inch MDF construction
  • Premium black carpet
  • Silver Alpine embossed side logo badge
  • Brushed aluminum finished metallic front baffle
  • 16” W x 12.6825” H x 14.5” D
  • Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with S2-A60M)
  • 12 Gauge OFC Speaker Box Wire
  • Binding Post Terminal Cup
  • Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
  • 2Ω Impedance
  • Frequency Response: 25-215Hz
  • Vented Enclosure Tuning Frequency: 36Hz
