Description

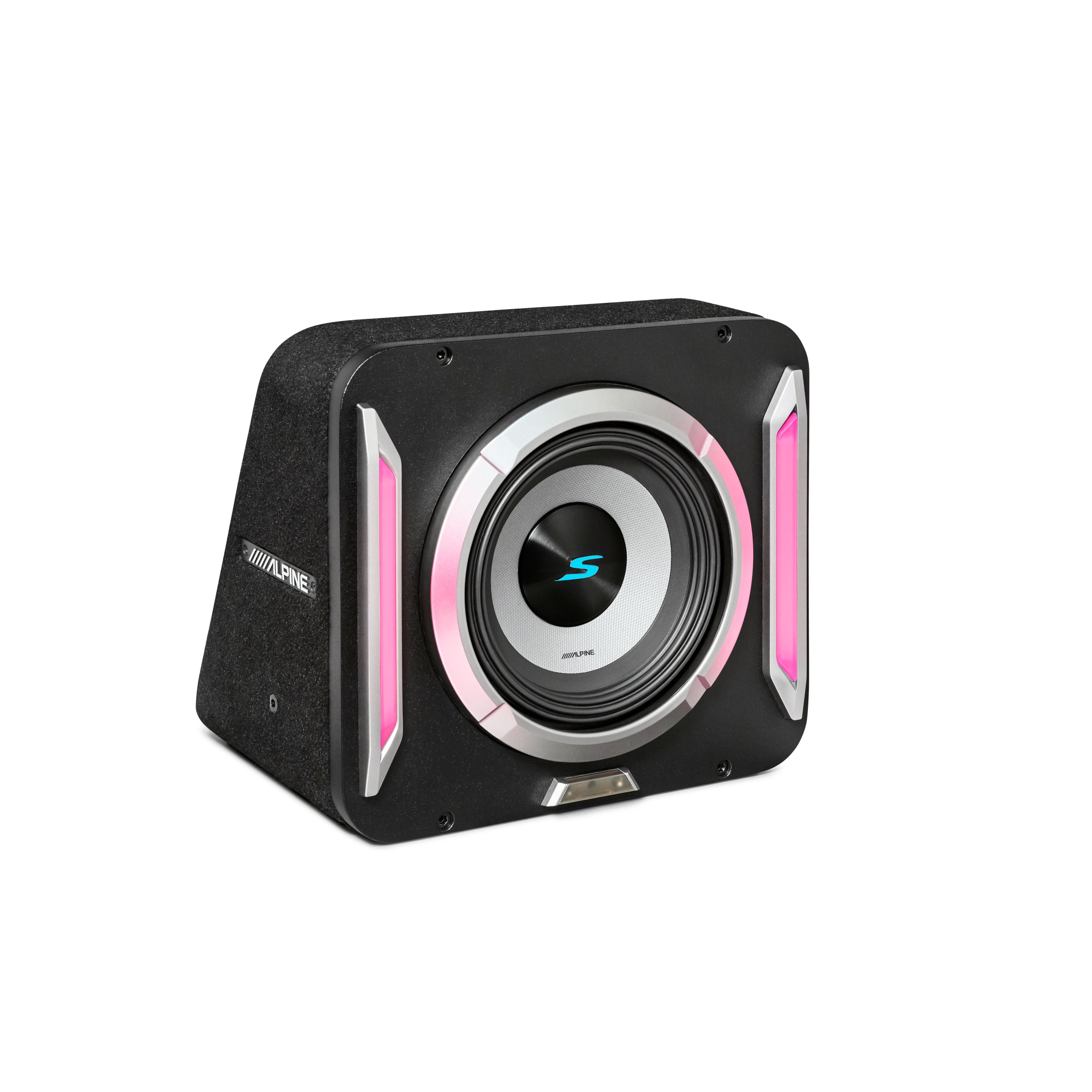

Color and sound collide to bring you PrismaLink™, an intentionally crafted wedge enclosure that’s designed for optimal bass performance and vehicle fitment with an integrated RGB lighting system.
PrismaLink™ is a sealed wedge enclosure line that comes preloaded with a 12” (S2-SB12), 10” (S2-SB10), or 8” (S2-SB8) subwoofer from Alpine’s Next-Generation S-Series line and features RGBW multi-color trim bar lighting controlled by an included IR remote or the iLX-W670 (sold separately) via Lighting Link feature.
The Lighting Link feature is accessible from the “Sound Boost” menu on the iLX-W670 home screen where users can select from 12 changeable static colors and four “Dynamic Modes,” which offer different light experiences like rainbow, flashing, and cascading colors.
The enclosures have a multi-link design that’s able to connect dual, triple, and even quad-enclosures with an optional linking kit for the 12” (KTX-LK12), 10” (KTX-LK10), and 8” (KTX-LK8) versions. When used as a multi-linked enclosure application, the lighting feature is able to connect across the subwoofers for an uninterrupted visual experience.

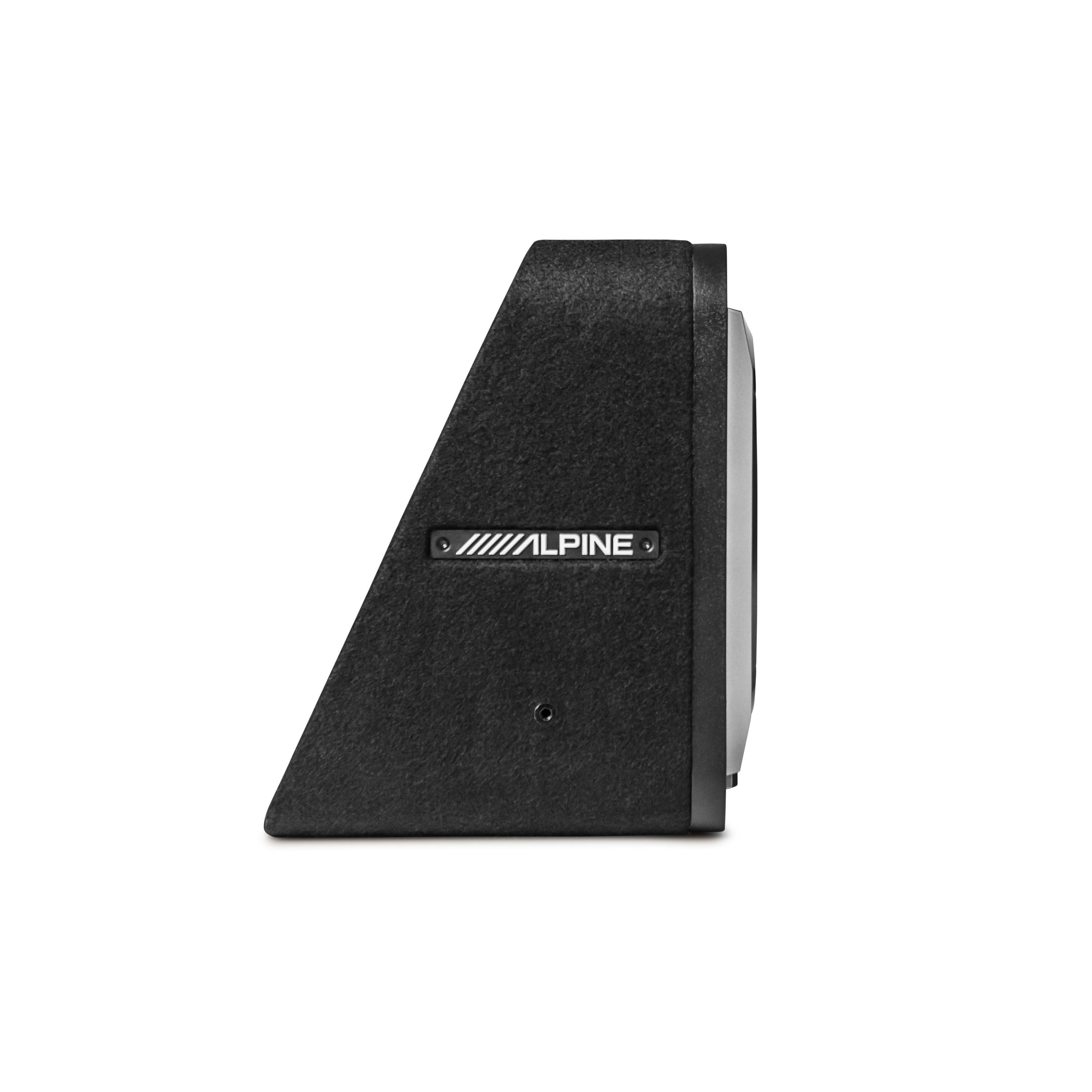

- Sealed Wedge Style Enclosure with Preloaded S2-W8D4 8” S-Series Subwoofer

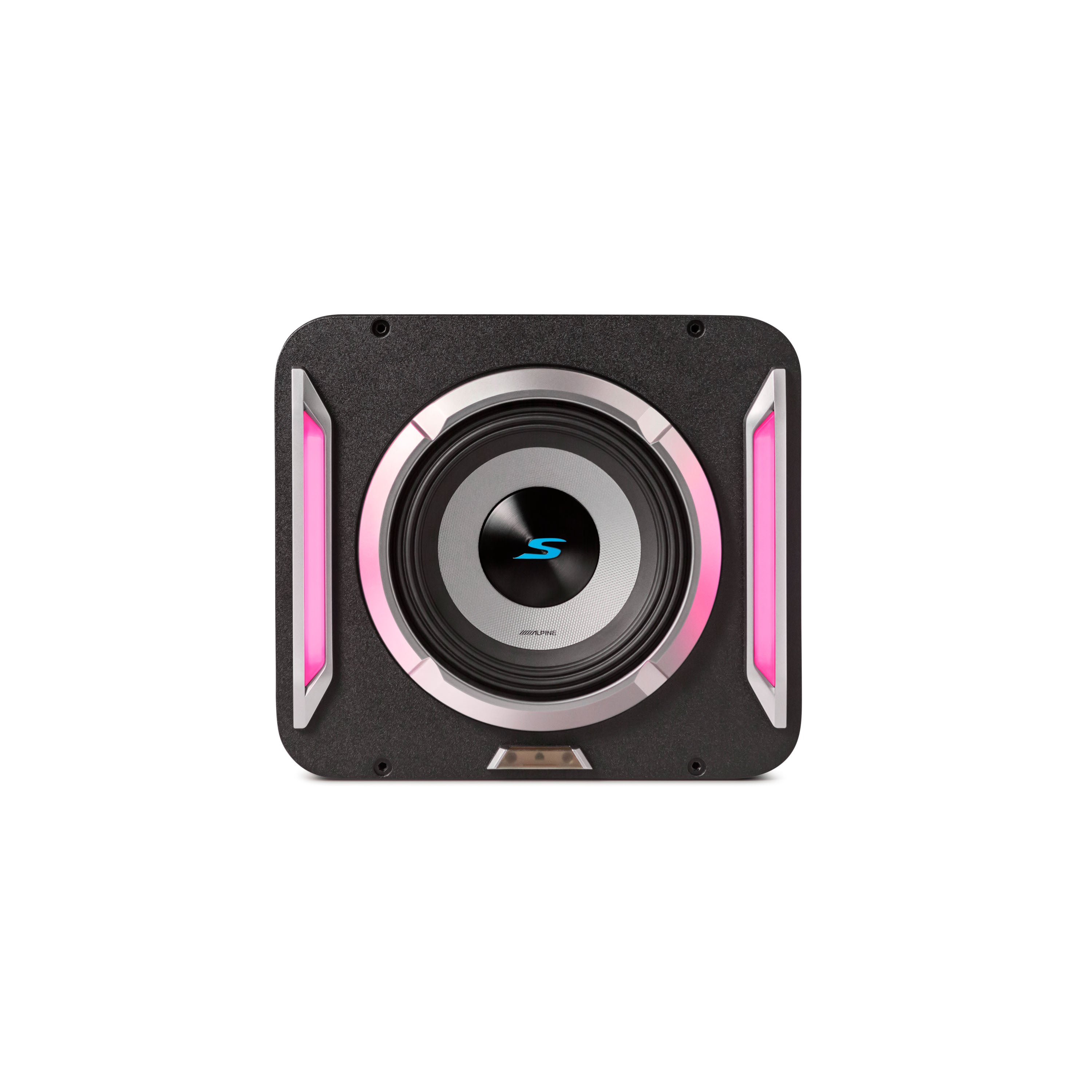

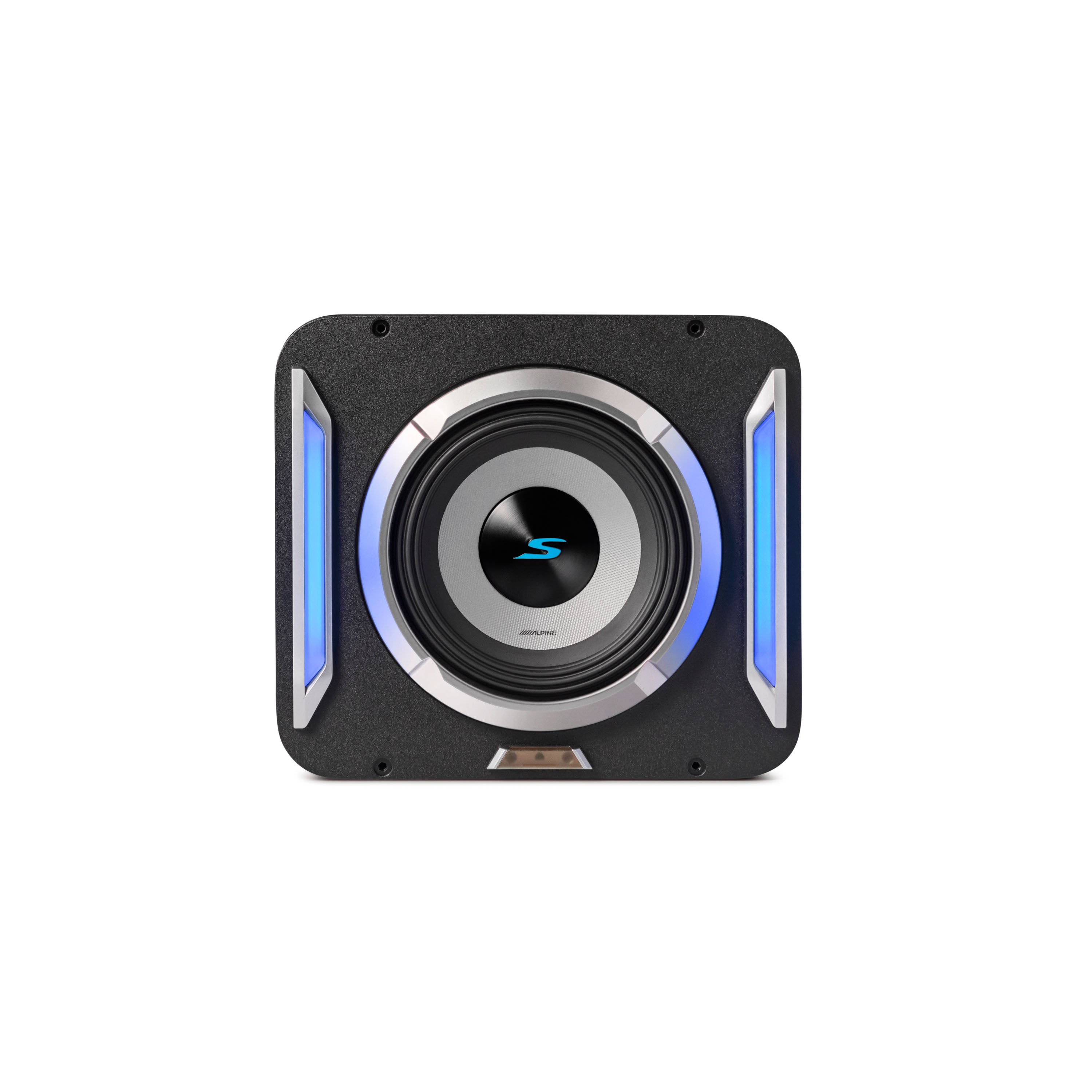

- RGBW Multi-color Trim Bar Lighting with IR Remote
- 12 Static Colors, 4-Dynamic Modes
- Multi-Link Capable (Link 2 or more enclosures toghether)
- Carbon Fiber / Poly Propylene Subwoofer Cone for Lightweight Construction with High Output and Low Distortion
- Enhanced “Punch” and Accurate Bass
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Dimensions: 12.5”(W) x 11”(H) x 9.25”(D)
- Frequency Response: 35Hz-215Hz
- Sensitivity: 83dB
- Nominal Impedance: 2Ω (4+4)
- Power Handling: 300W RMS / 900W Peak
- Compatible with KTX-LK8 Linking Kit & KTX-EBKT Mounting Brackets
- Compatible with iLX-W670 for Lighting Link Control
