Description

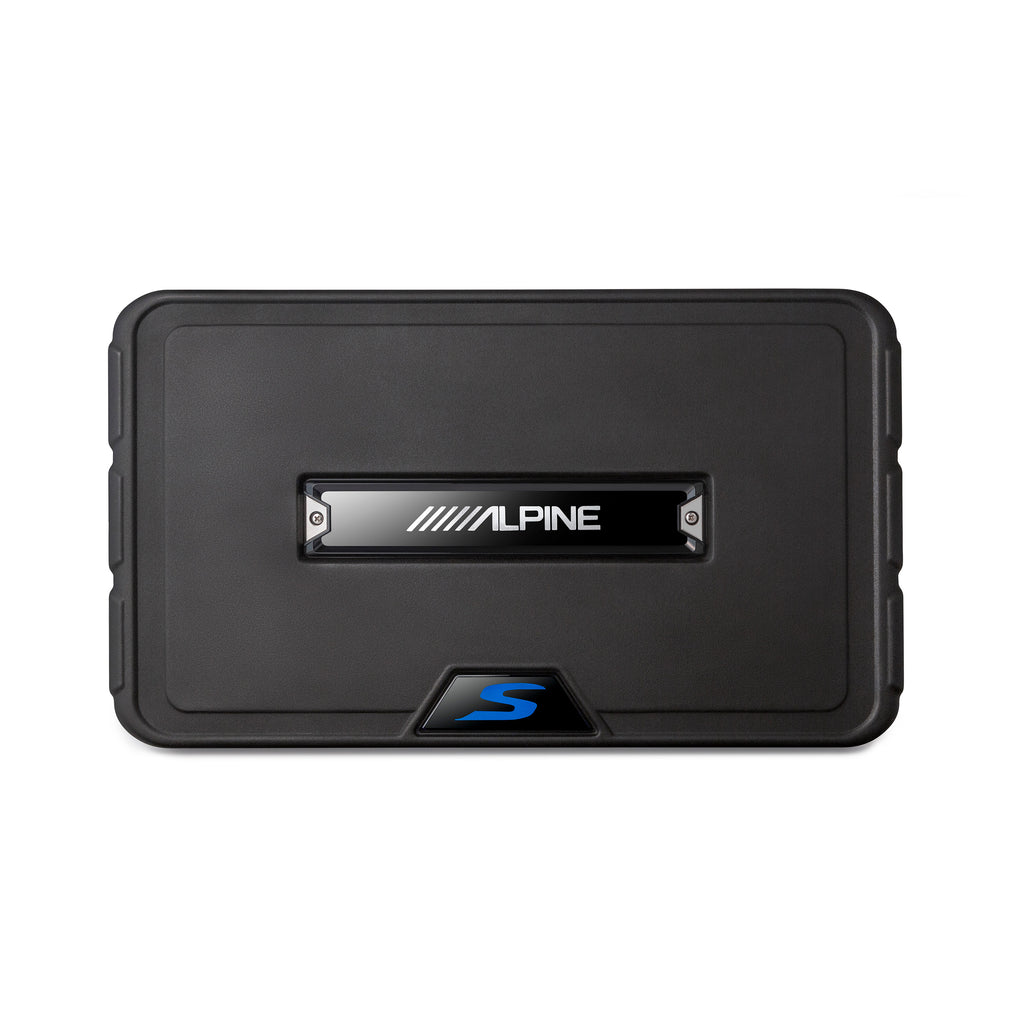

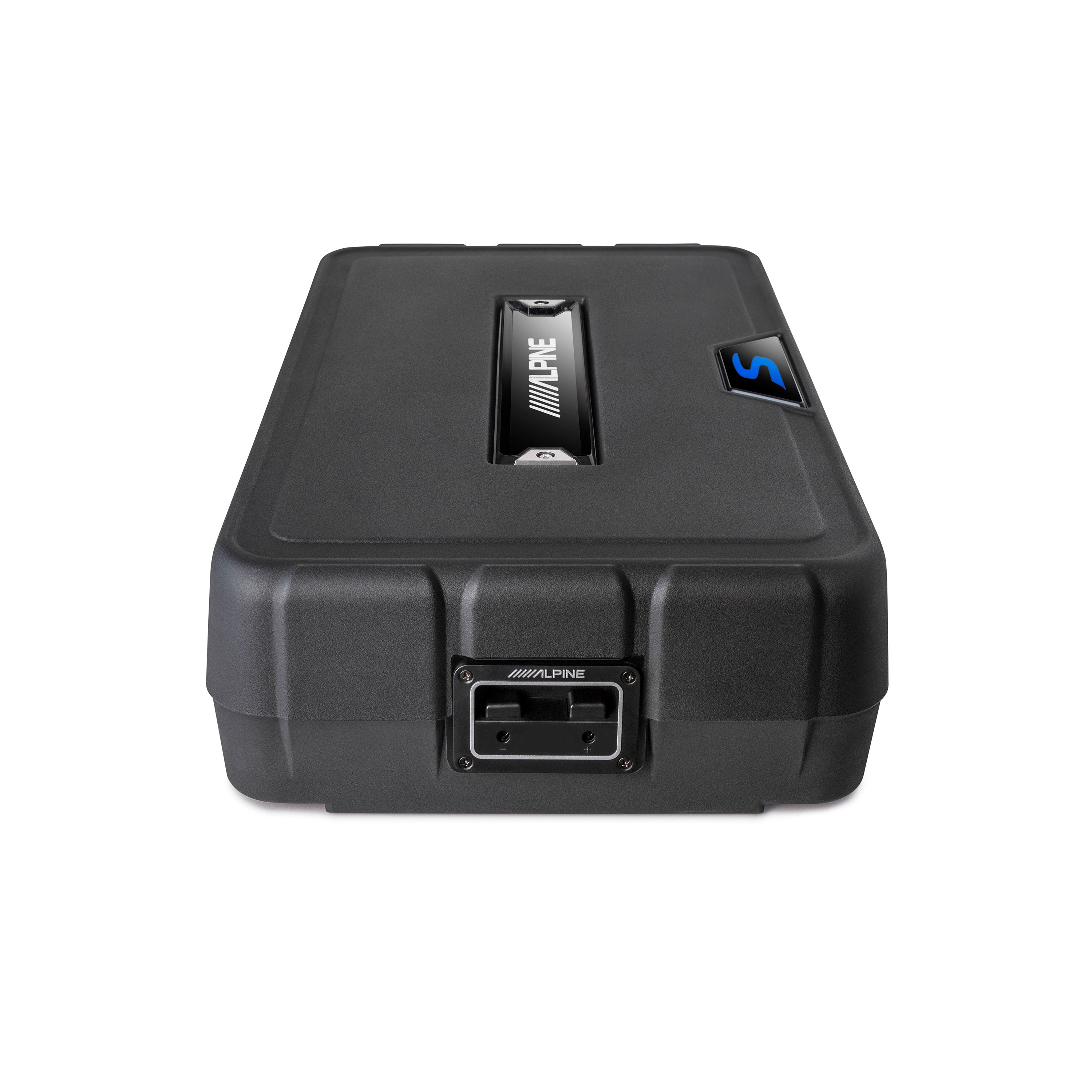

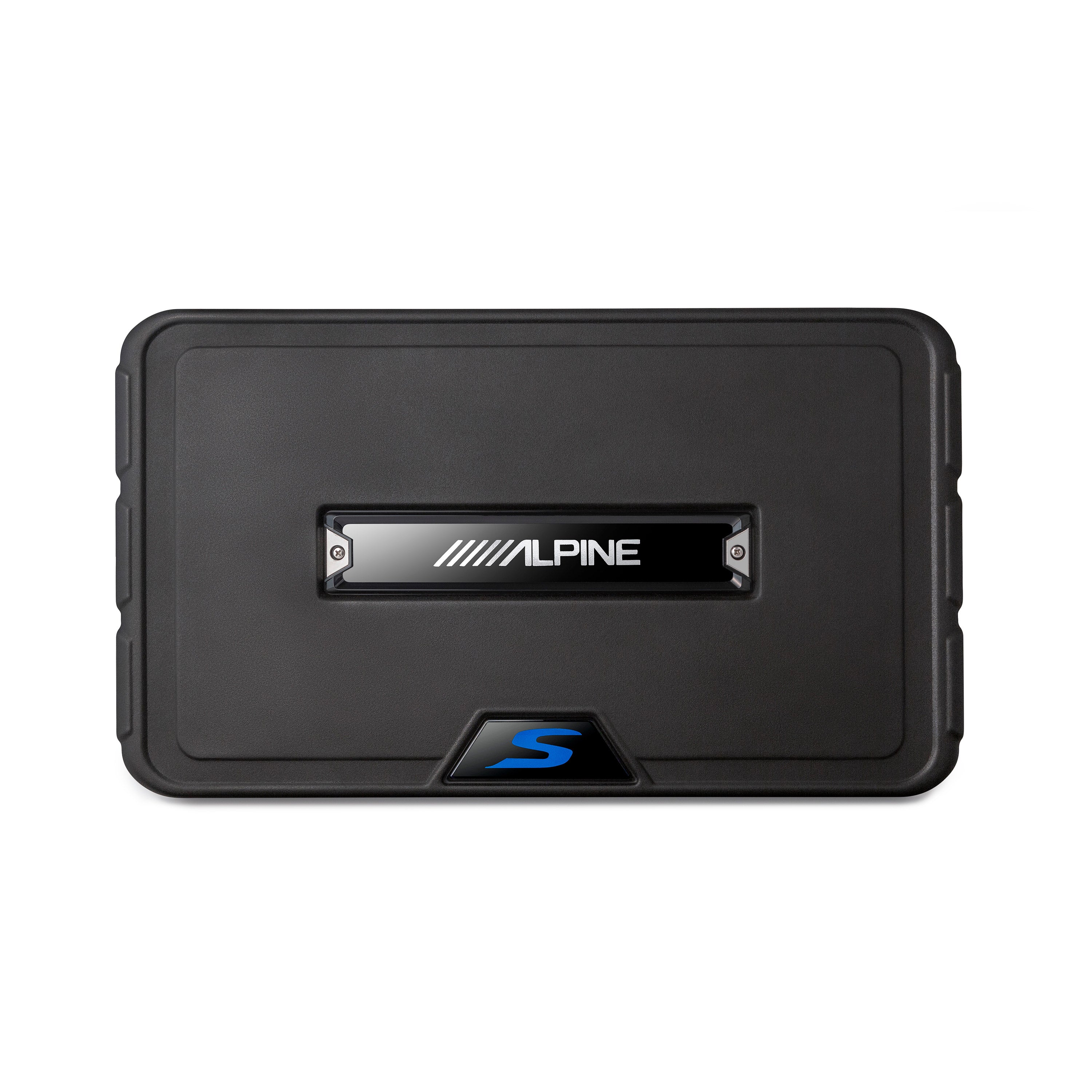

With an ultra-shallow enclosure design and powerful sound output, the 12” S-Series Shallow Preloaded Subwoofer Enclosures give you the best of both worlds in size and sound.

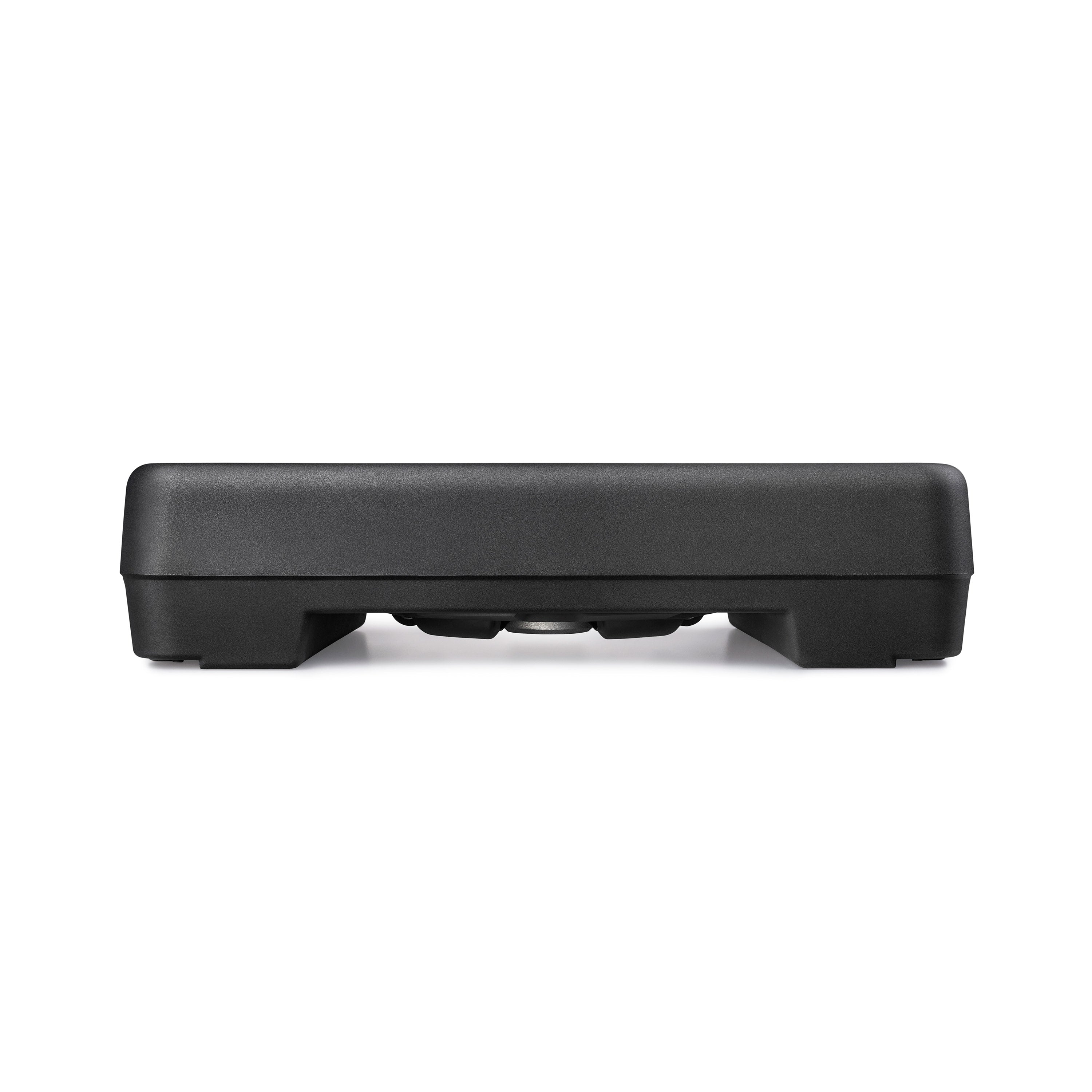

Alpine’s 12” S-Series Shallow Preloaded Subwoofer Enclosure measures at a minimal 5.25” deep to deliver clean and reliable bass performance in most vehicle applications.

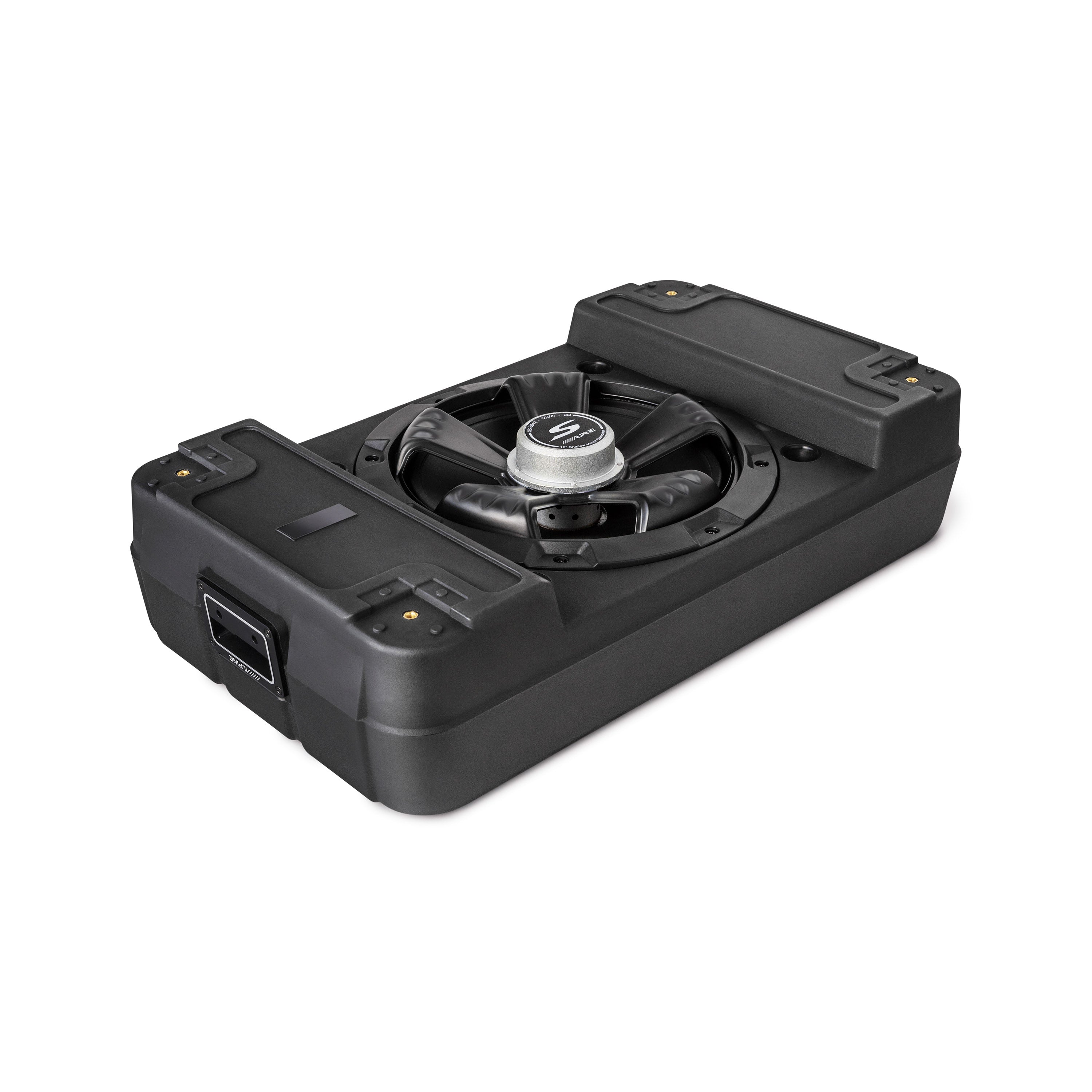

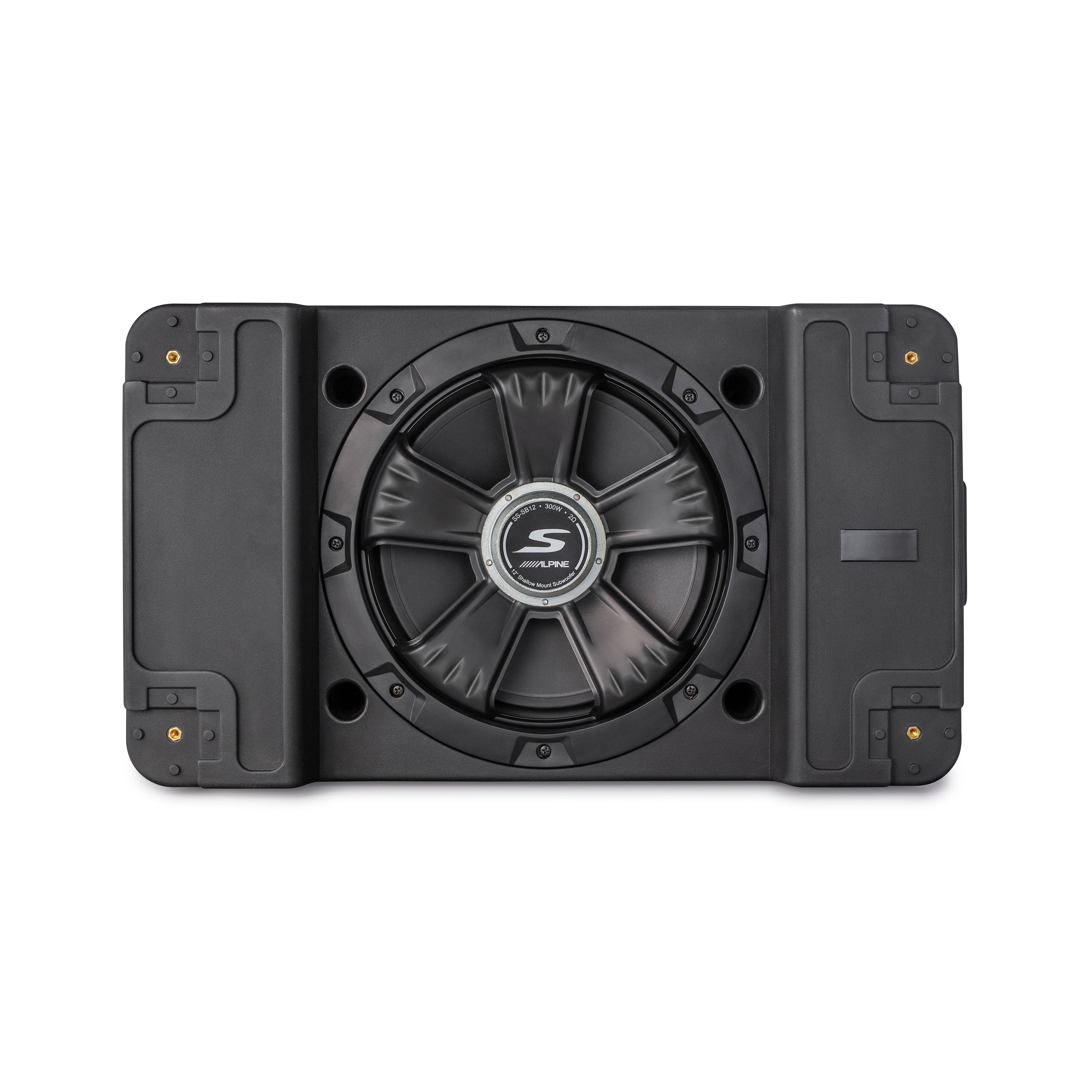

The SS-SB12 features a 2” voice coil inside of a lightweight yet powerful neodymium magnet for up to 300W RMS of power handling. This combined with a front-mounted magnet motor allows the enclosure to have an extremely shallow footprint while maintaining powerful bass performance.
Alpine’s Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in 22mm of peak-to-peak linear excursion for maximized output.

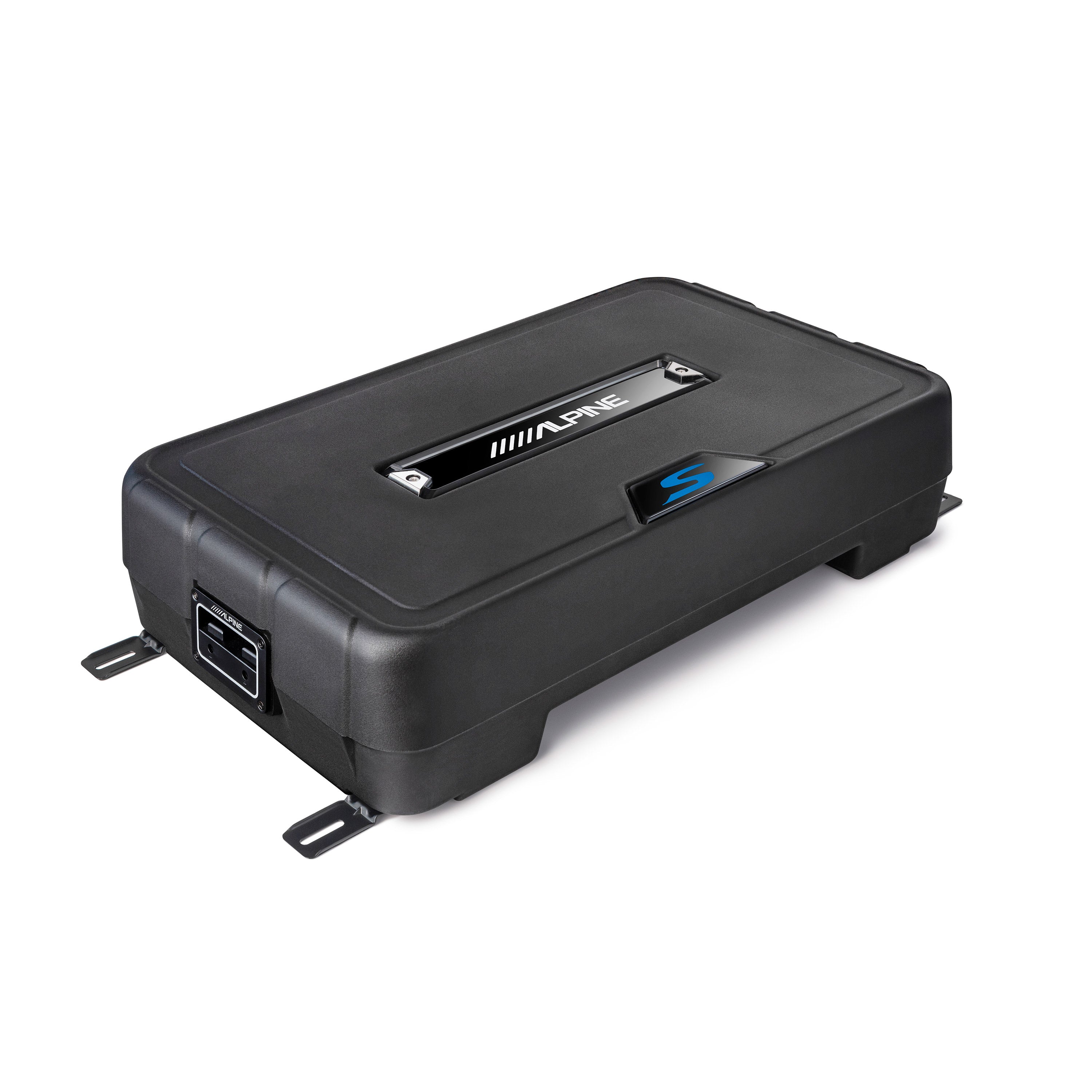

Four adjustable, foam-padded steel mounting brackets allow for flexible installation in many areas and vehicle types, while the foam reduces vibration during play for optimized performance.
- Preloaded 12” Shallow Subwoofer
- Optimal Sealed Cabinet Quality
- Neodymium Magnet
- Front-Mounted Neodymium Magnet
- Alpine Gen2 DD Linear Magnetic Circuit
- Rugged Polymer Enclosure Cabinet
- Adjustable, foam-padded mounting brackets for flexible installation and reduced vibration
- Dimensions: 22.25” (W) x 5.25” (H) x 13.125” (D)
- Power Handling: 300W RMS
- X-Max: 11mm 1-Way Linear
- Nominal Impedance: 2Ω
- Frequency Response: 30Hz - 200Hz
- Copper Voice Coil: 2”
- Single 2 Ohm Voice Coil for a 2 Ohm load (compatible with S2-A55V, KTA-200M, or KTA-30MW Amplifiers)
