Description

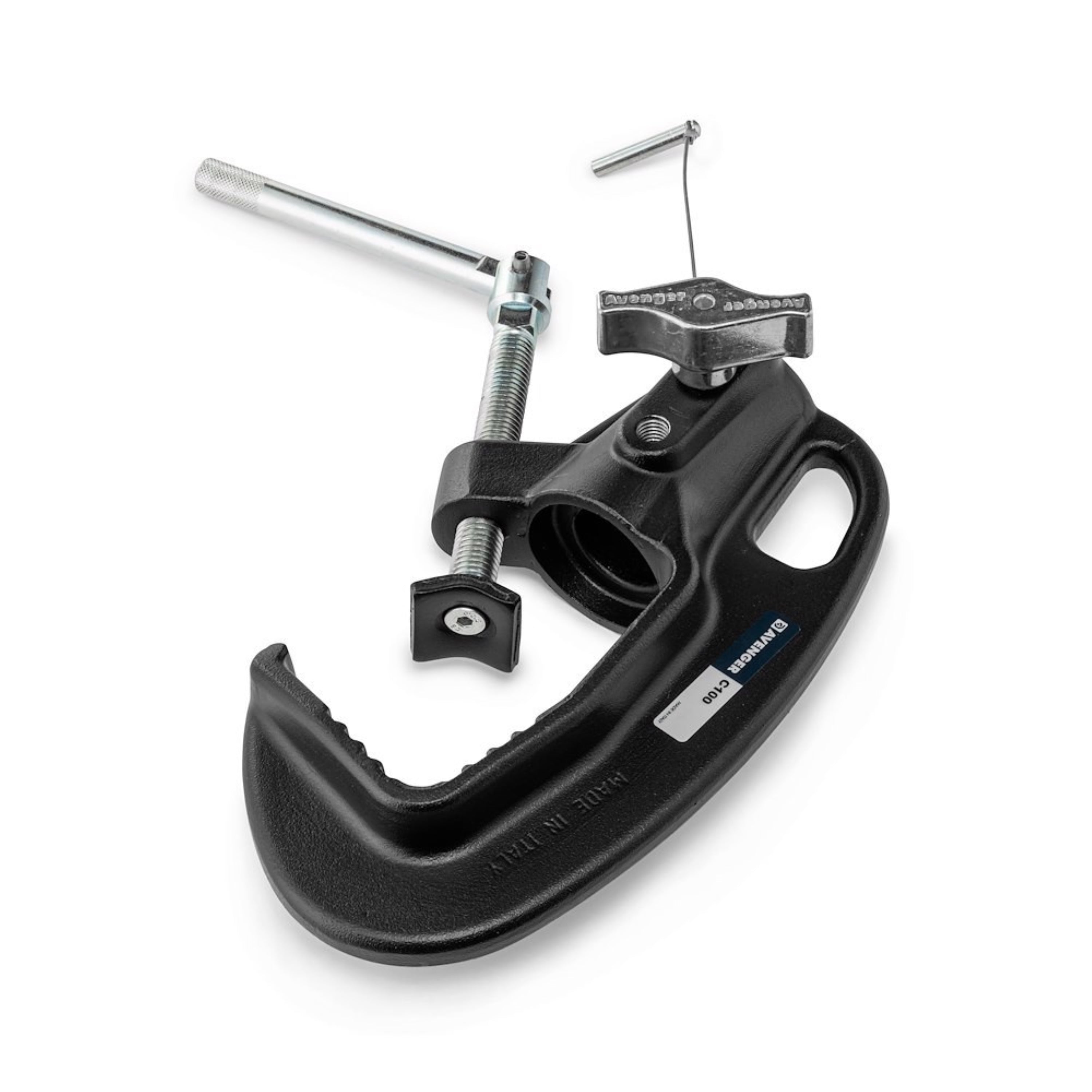

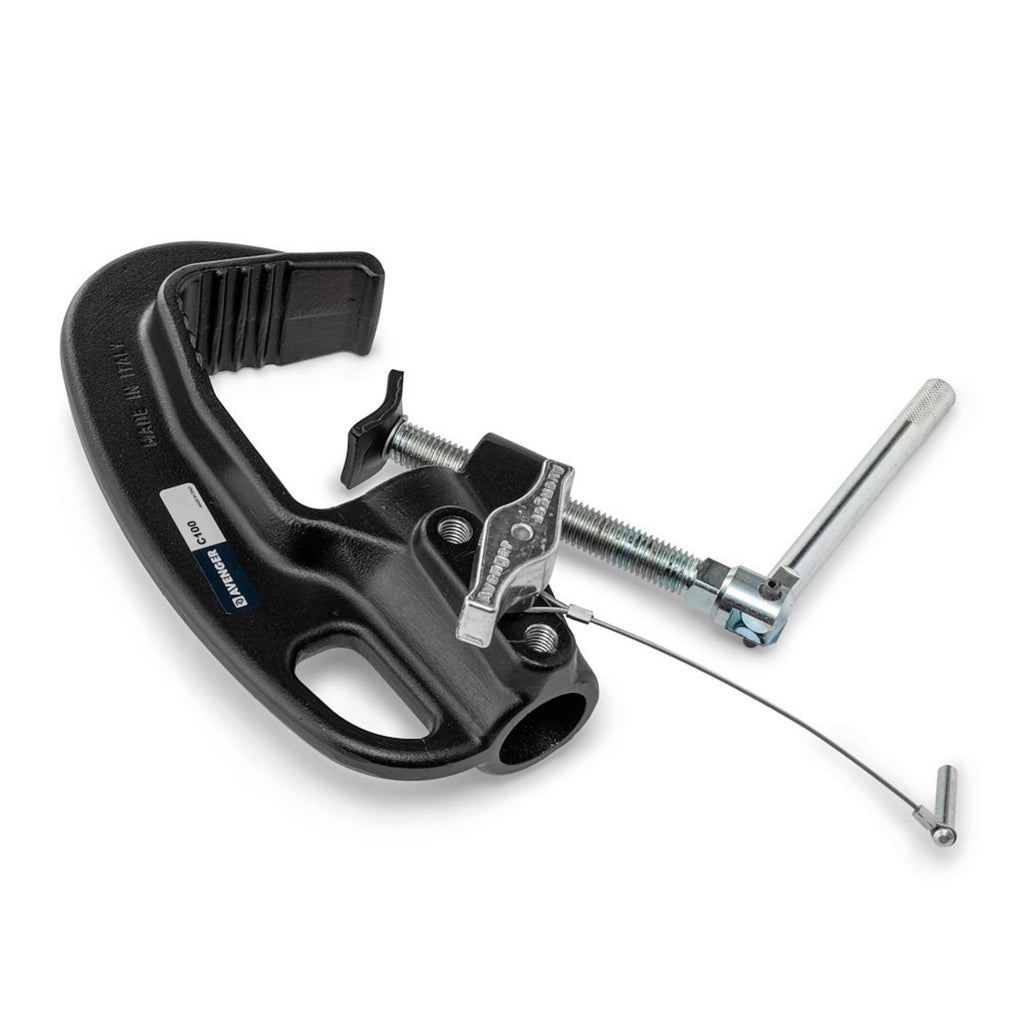

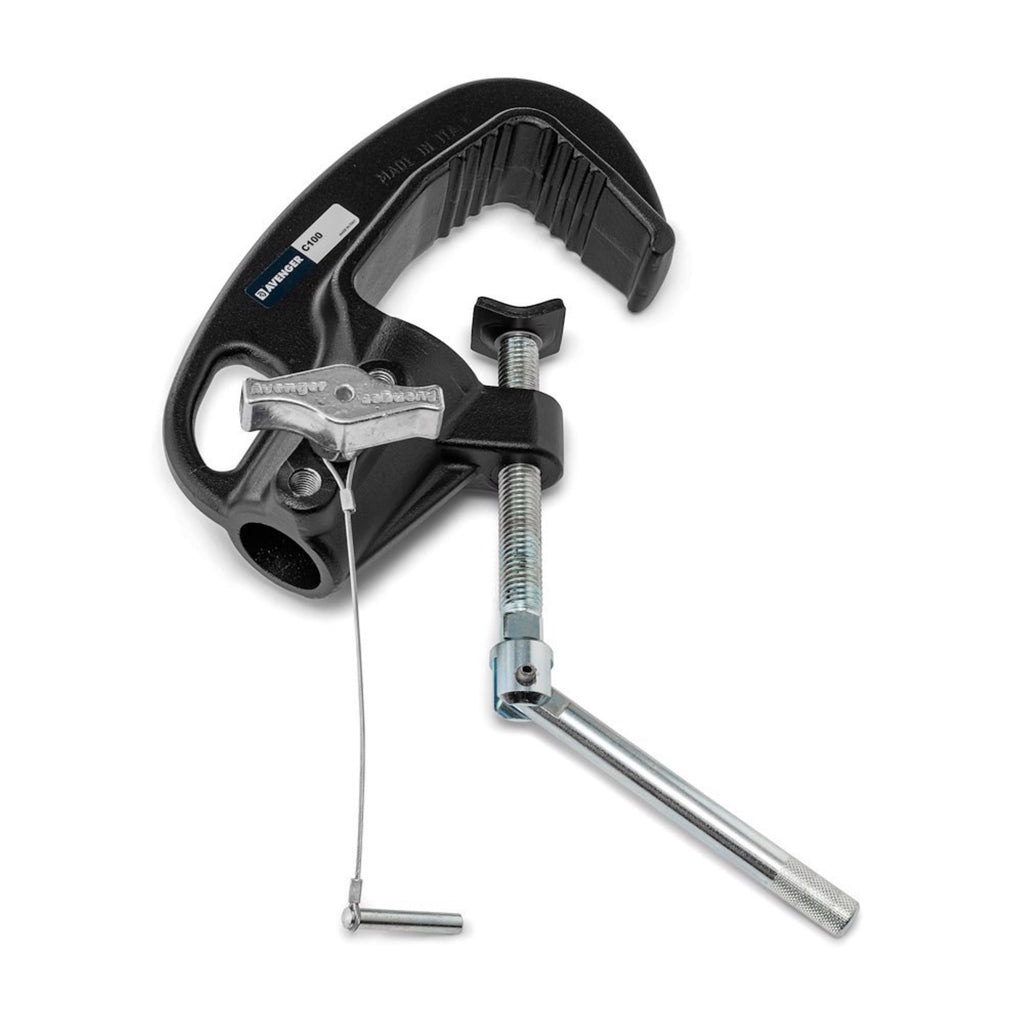

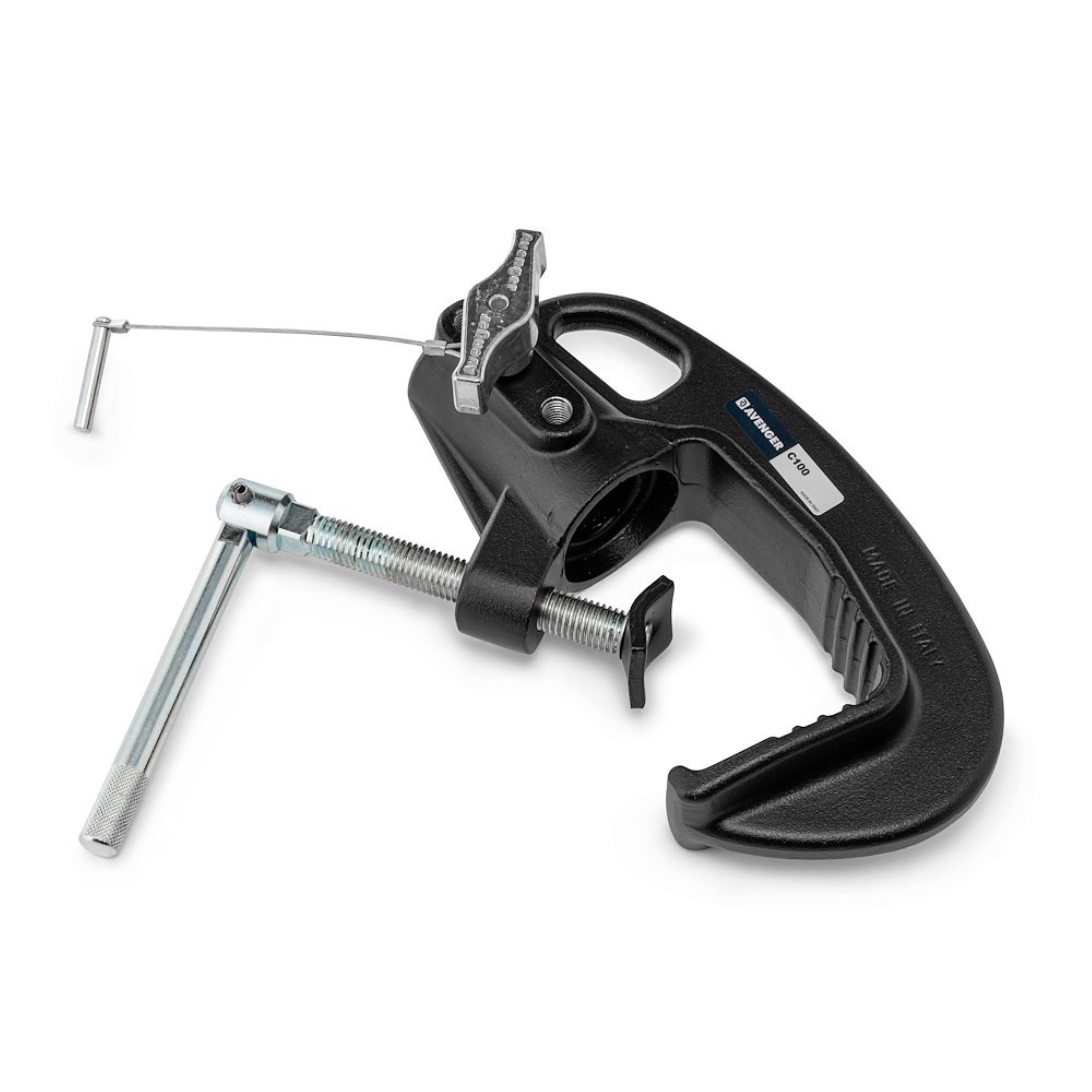

The C100 Junior Pipe Clamp has a built-in 28 mm/1 1/8 in receiver. Capable of handling all junior pins, this gravity cast aluminum clamp has a Tommy Bar locking handle and requires no tools when attaching to truss or pipe grids. This clamp has a capacity of 250 kg/551.2 lbs., the jaws clamping range is from 20 mm - 55 mm/0.78 - 2.16 in and has an added safety cable with pin to secure junior pins. Recommended Accessories: C155, E200, C4461-1, C590, C4485, C822, C820, C888UH, C500, C150.
- Gravity Cast junior clamp with load capacity of 250 kg/551.2 lbs.
- Pipe clamp jaws work on diameters from 20 to 55 mm/0.78 to 2.16''
- Includes safety cable with pin to secure junior pins in socket
- Tommy bar included to lock clamp: No tools required
- Easily accepts a safety cable to secure clamp and load
Specifications
| Weight |
1.13 kg |
| Payload | 250 kg |
| Attachment 01 | 1 1/8" (28mm) socket |
| Length | 4.8 cm |
| Clamp range - max. (round tube) | 55 mm |
| Clamp Range Min Round Tube | 20 mm |
| Color | Black |
| Material | Aluminium |
