Description

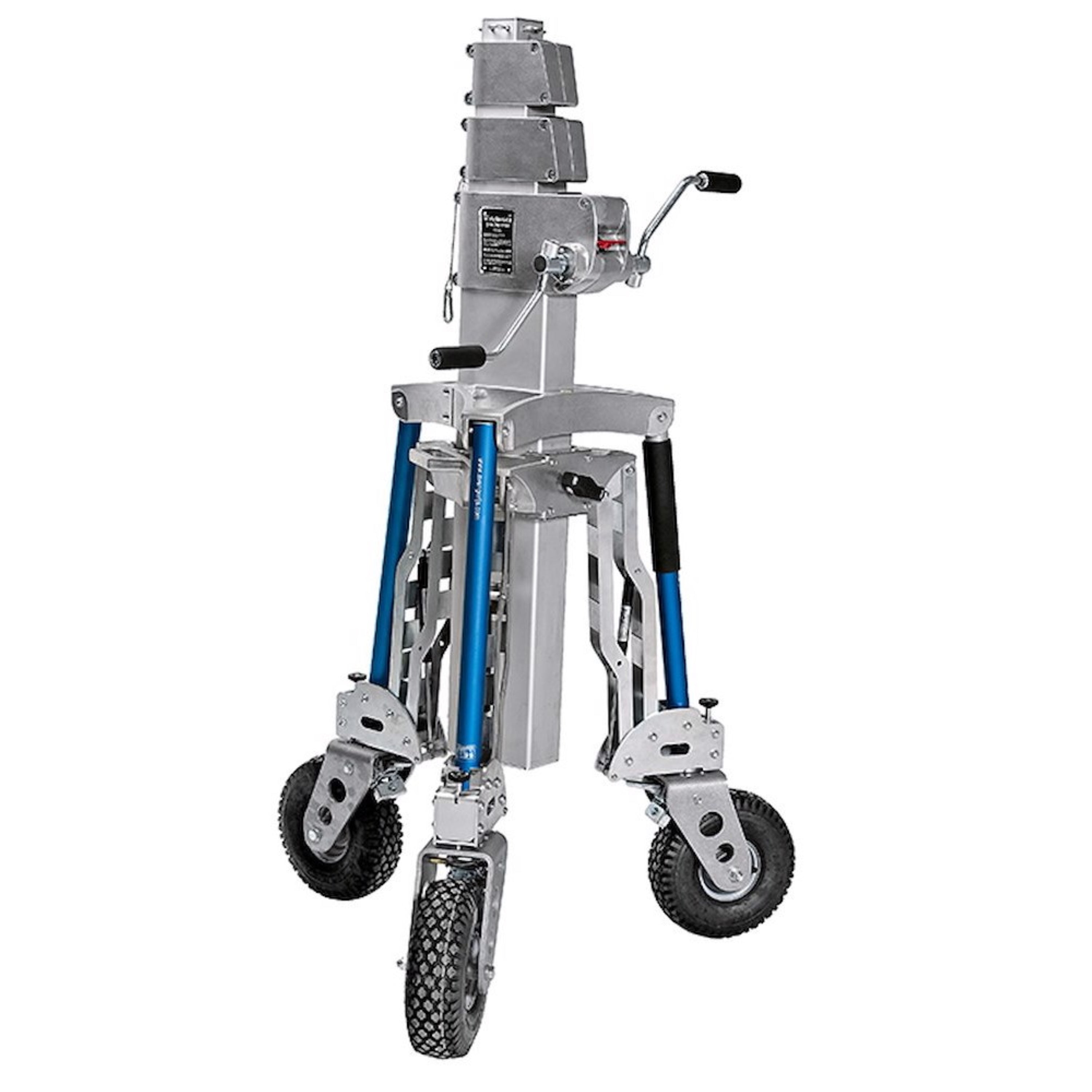

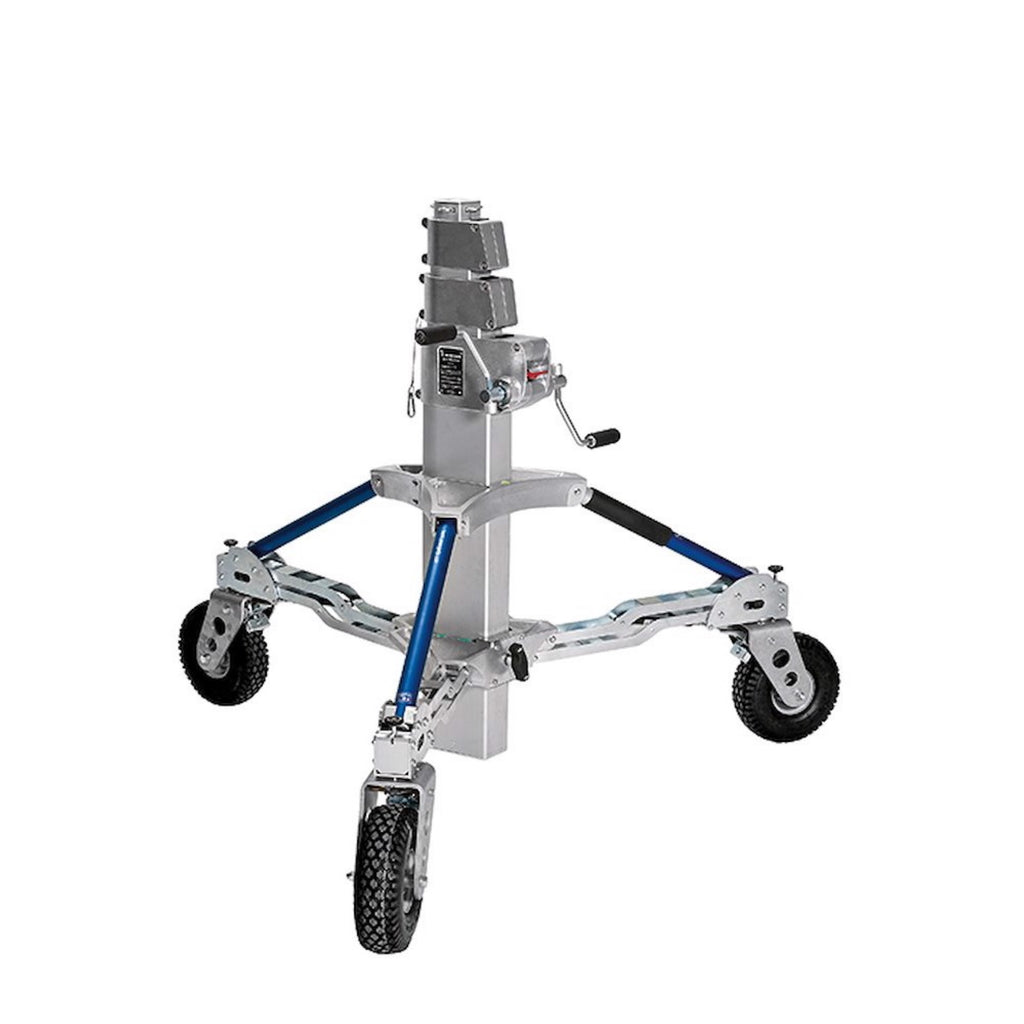

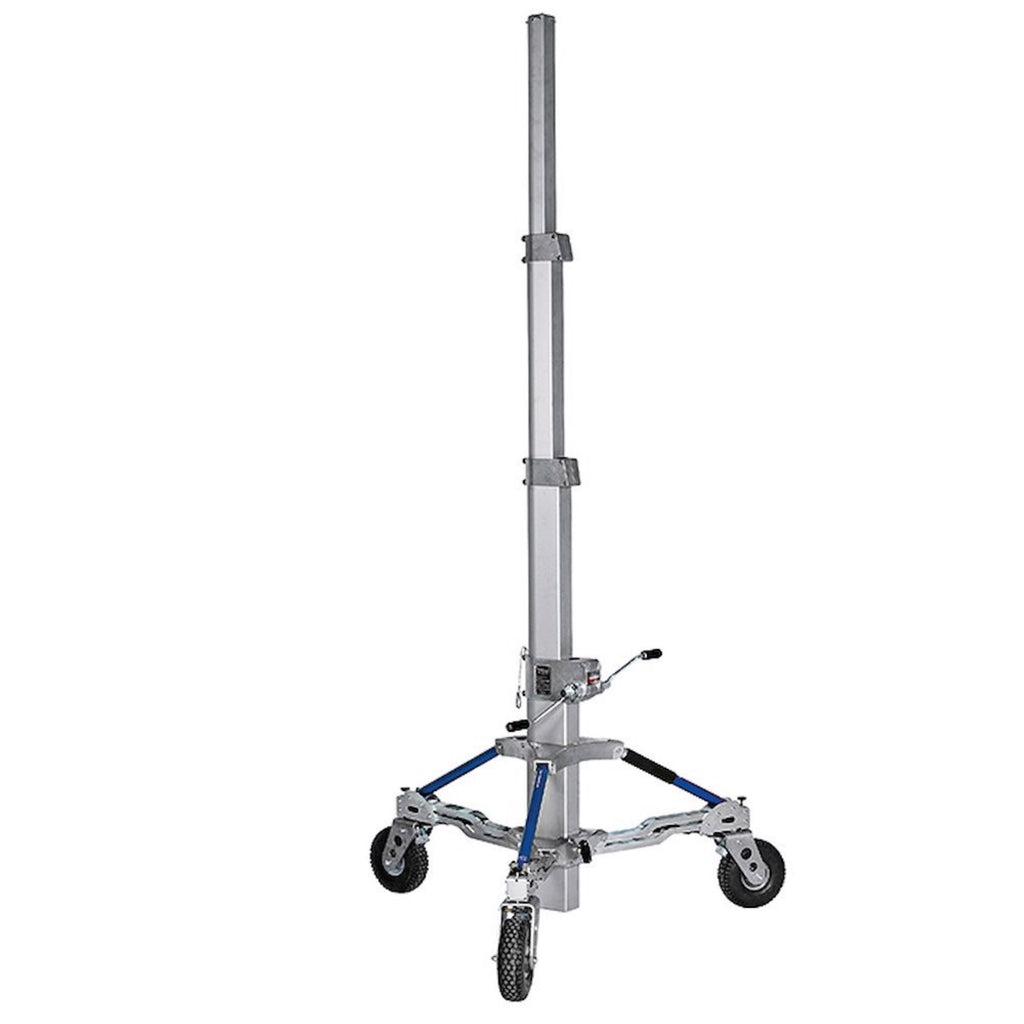

The Avenger B7034FF Long John Silver Junior (Jr.) Stand is a heavy-duty stand used primarily for cine applications capable of supporting maximum payloads up to 120 kg/264 lbs up to a height of 340 cm/133.9 in. The winch driven hoisting system allows for easy lifting and lowering of large panel lights and HMI's. The B7034FF has a one of the lowest loading heights of 127 cm/50 inches in the industry! The stand includes foam filled braked wheels, 1 built-in levelling leg and swift-lift gas pistons providing the ultimate ease of set-up and take down. The stand is made of steel and aluminium and features 4 sections, 3 risers and can perform perfectly on set, in studio or in any location! Recommended Accessories: 425B, D650, E200, G300, 087WBK, C626, C461-1, C4461-1, 163-12, E390
- Heavy duty light stand with a low-loading height- 127 cm/50''
- Winch-driven hoisting system w/red safety lowering-load clutch

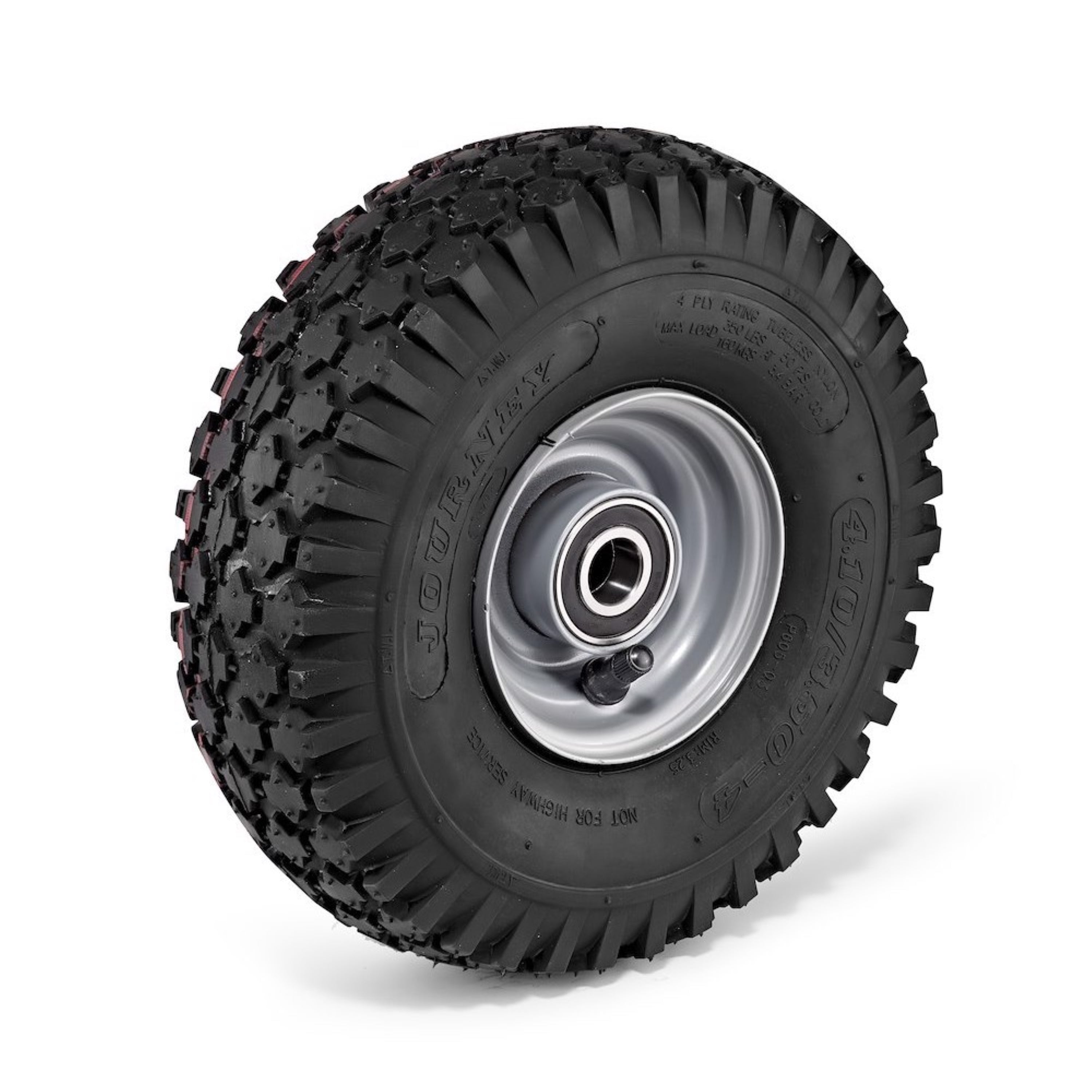

- 270 mm/10.6'' Foam filled wheels designed for all kinds of terrain

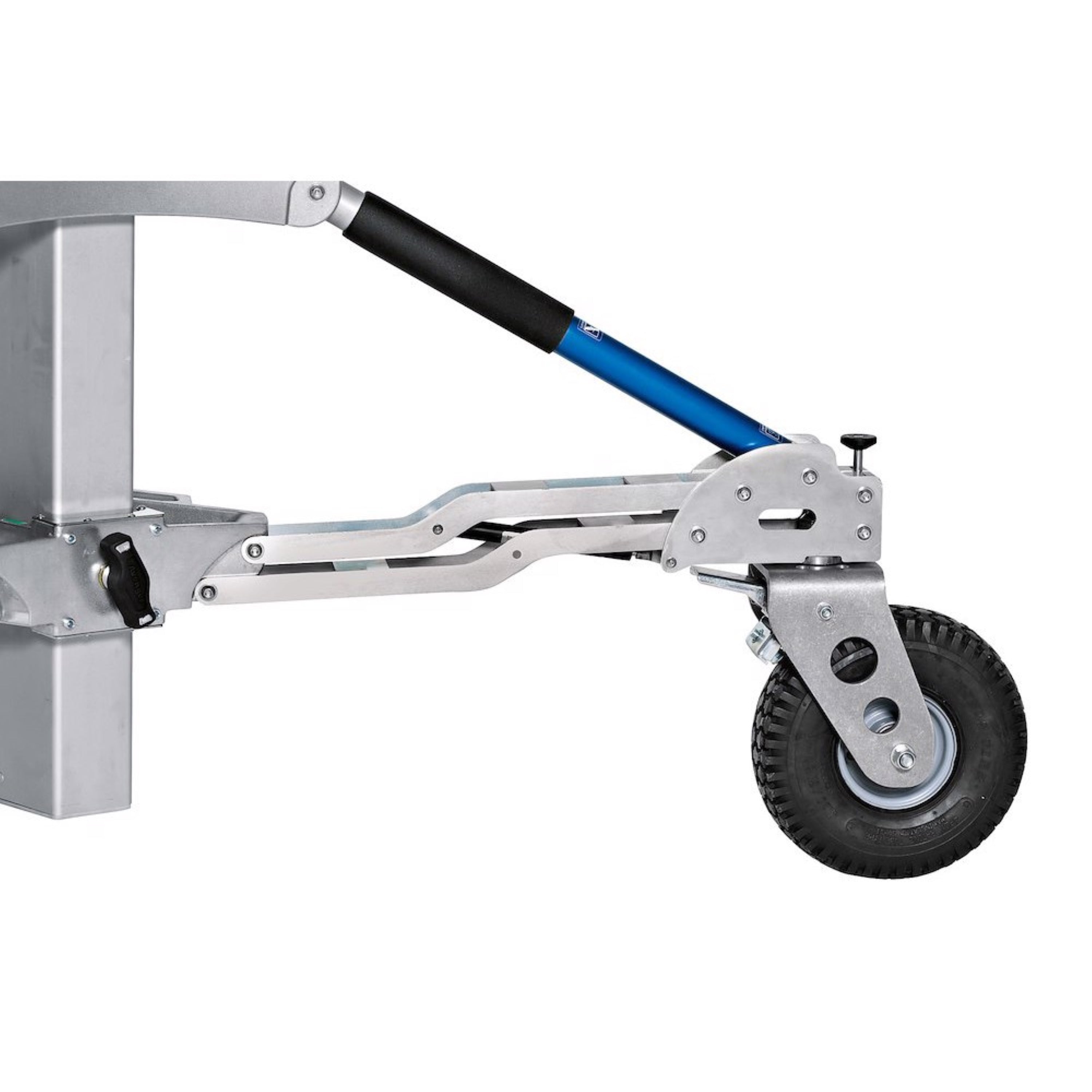

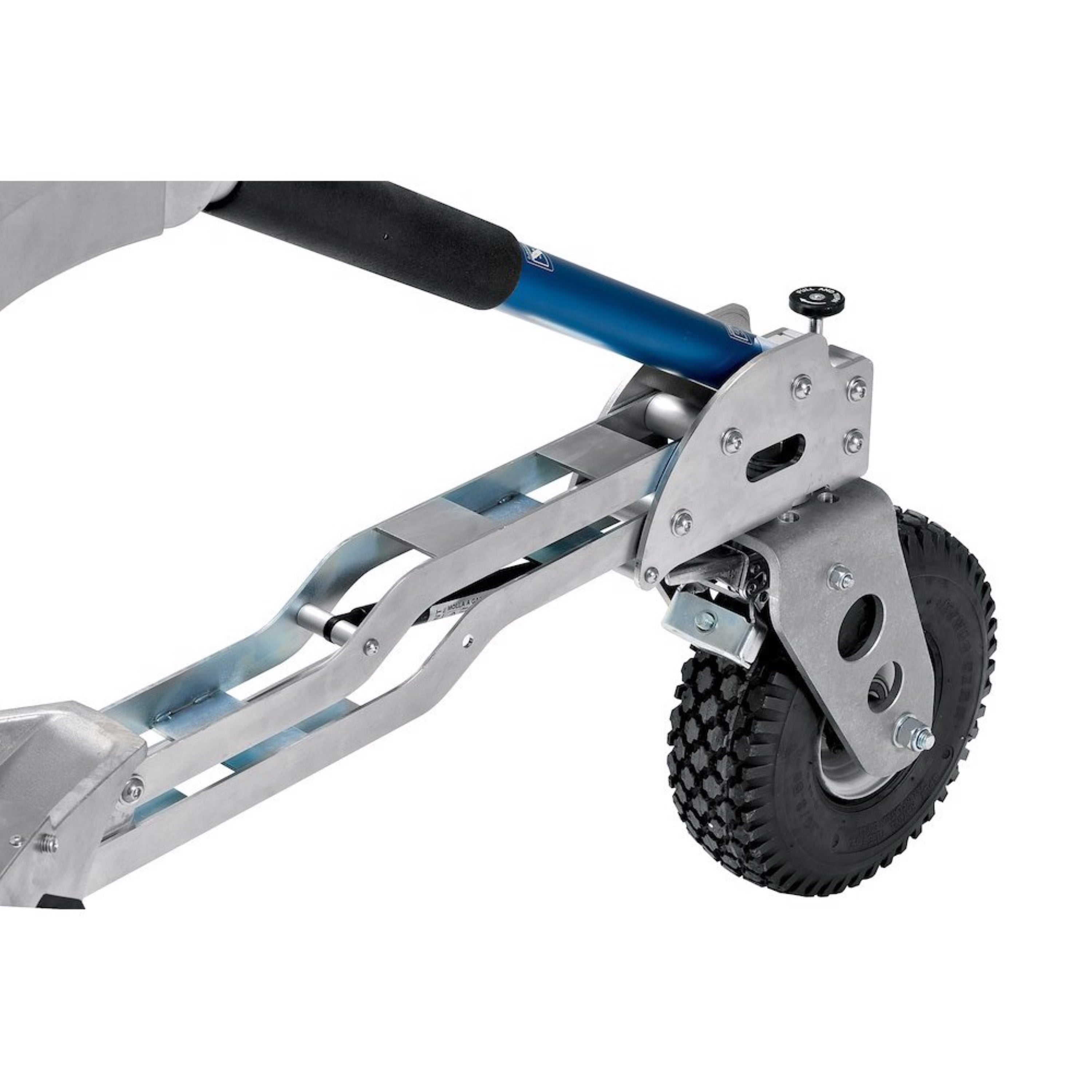

- 1 Adjustable Levelling leg with 3 swivel block braked wheels
- Maximum load capacity:120 kg/264 lbs @max height of 3.4 m/133.9''
Specifications
| Weight | 85 kg |
| Min Height | 177 cm |
| Maximum Height | 570 cm |
| Payload | 120 kg |
| Top Attachment | 1 1/8″ (28mm) socket |
| Air Cushioned | No |
| Female Attachment | 28 |
| Load Capacity at Maximum Extension |
120 kg |
| Closed Length | 224 cm |
| Color | Silver |
| Footprint Max Diameter | 240 cm |
| Leg Cross Section | round |
| Leg Sections | 1 |
| Levelling Leg | 3 |
| Material column | Aluminum |
