Description

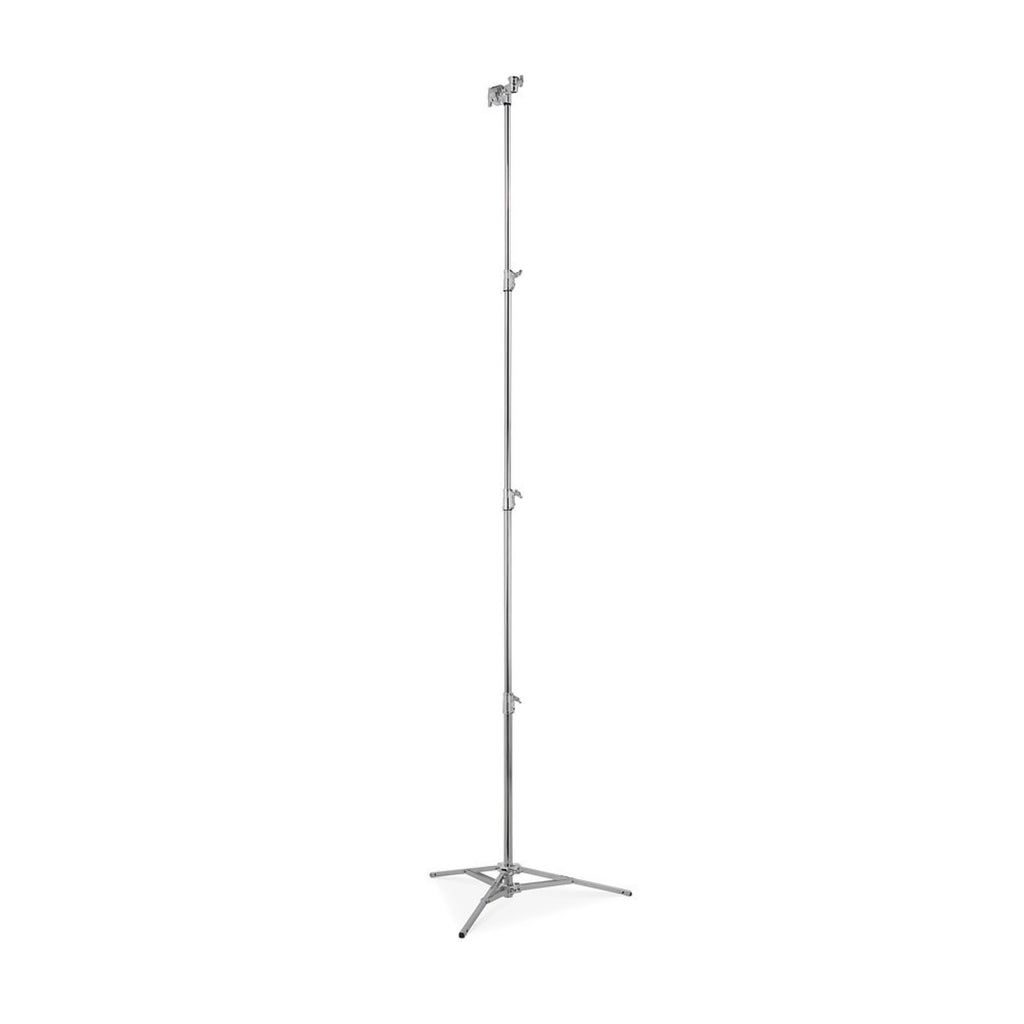

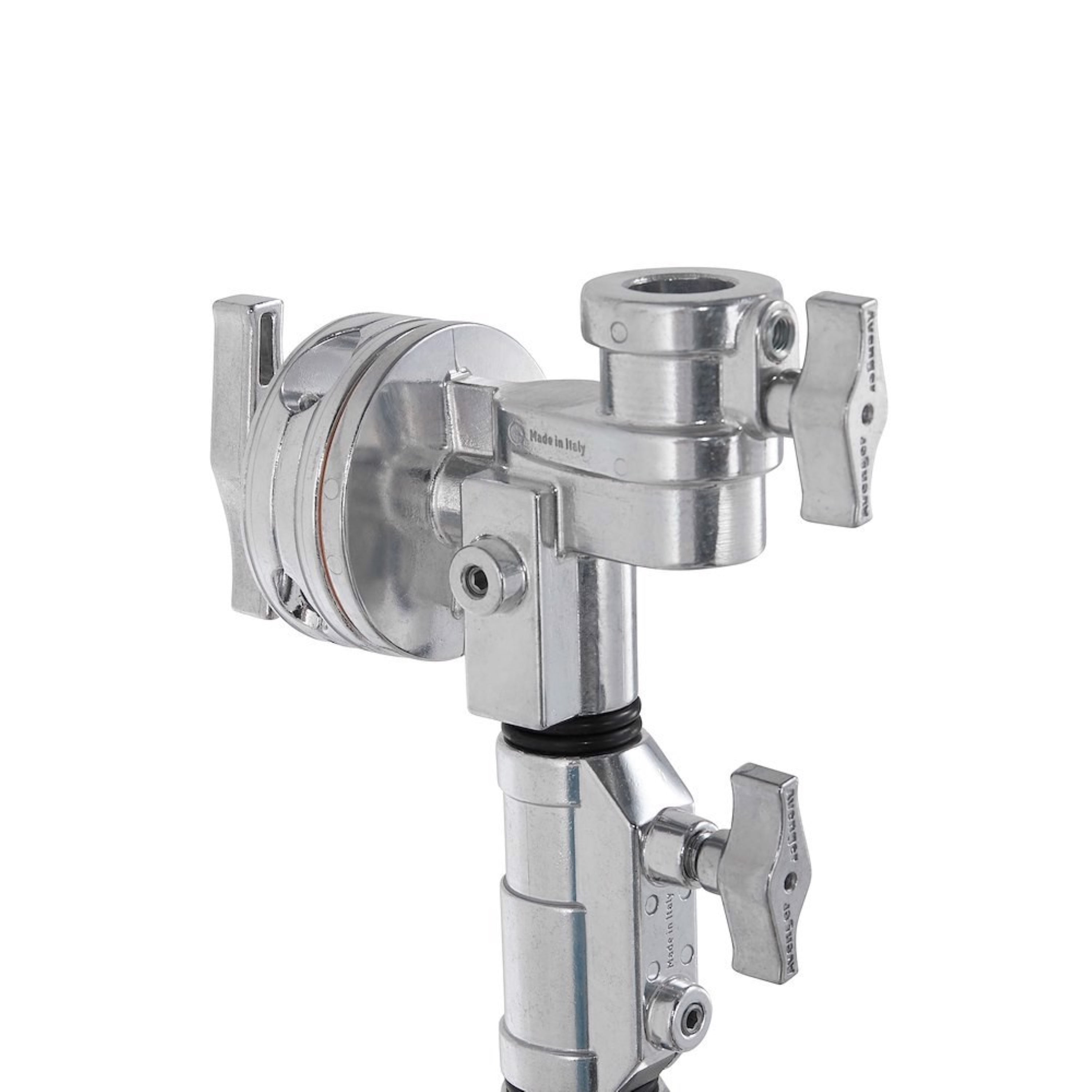

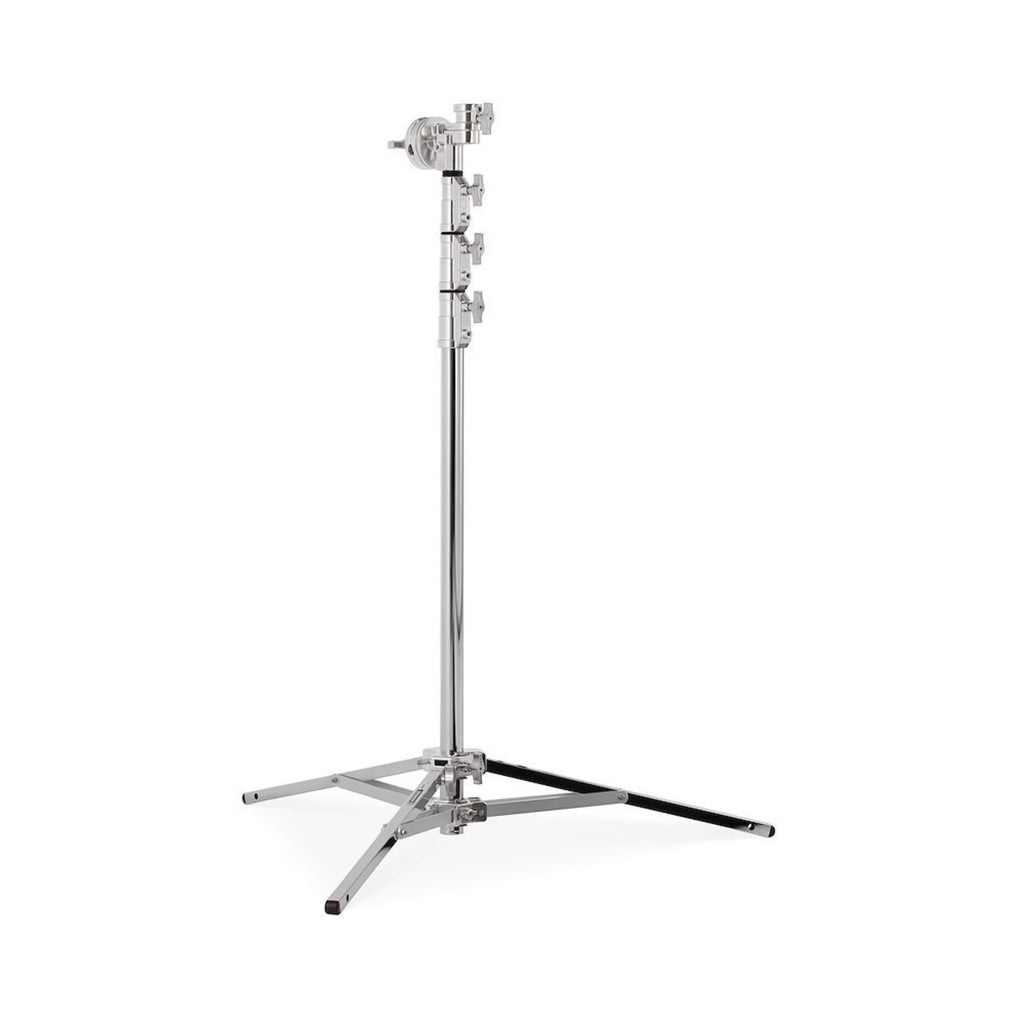

Avenger overhead stands are built in chrome steel, incorporate a dual purpose head that has a 4 1/2 in grip head and 28 mm/ 1 1/8 in receiver. The style of these stands are nicknamed ''Mombo Combo''. The Avenger A3042CS is a 4 section, 3 riser stand and is very popular in supporting overhead frames, fold away frames, butterflies and butterfly pipe kits. Max height on this stand is 423 cm/166.5 in and is capable of taking a max load of 40 kg/88.2 lbs. Braked wheels (A9000N) are not included with this stand and can be easily ordered and attached if needed. Recommended Accessories: H2012, A9000N Wheels, H2008, H1200M, H2000M, 087WBK, E200, H9000, H2512, G200-1, E200
- Silver Overhead Stand with built-in grip head & junior receiver
- Works well with overhead, modular & fold away butterfly frames

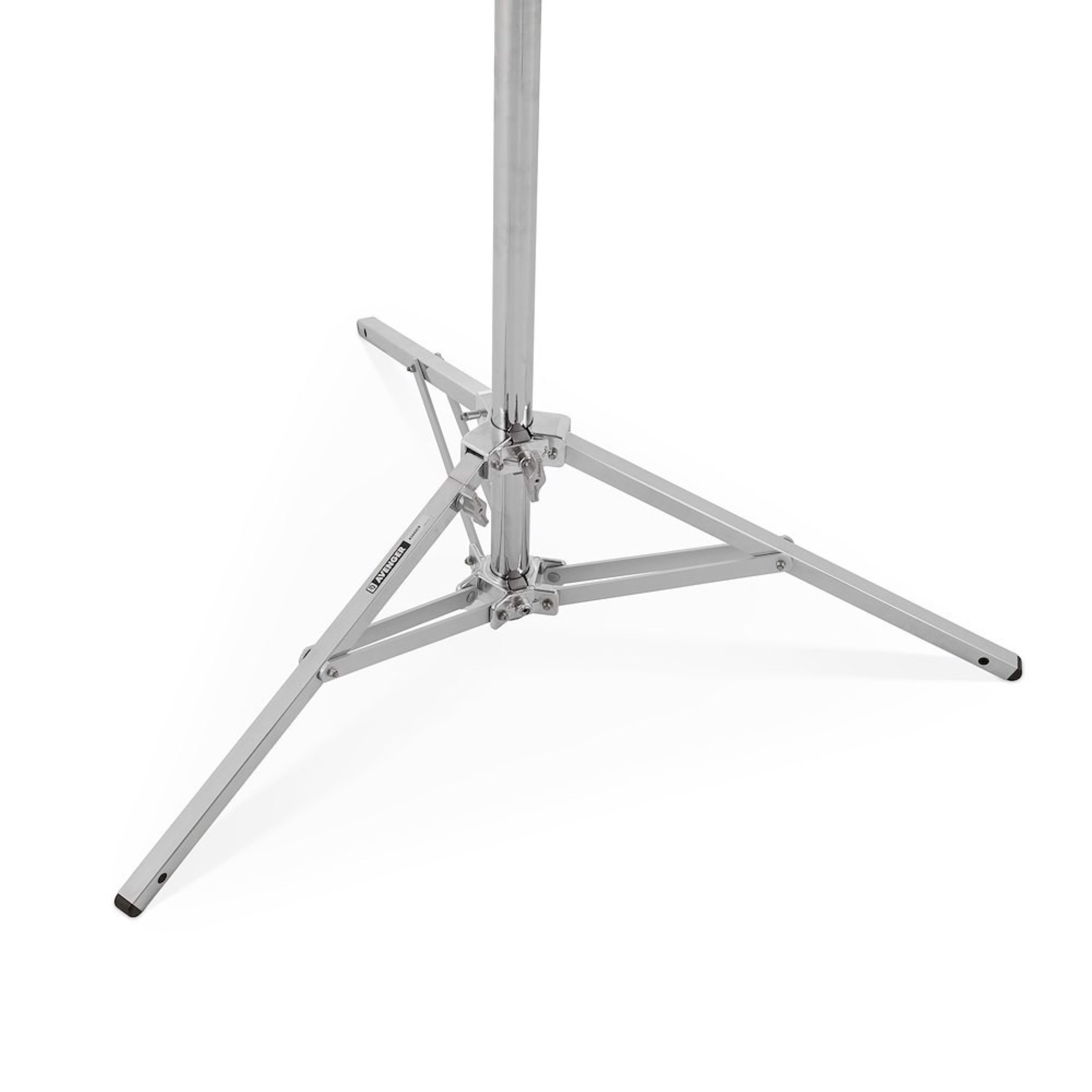

- Standard base w/o wheels. Optional A9000N wheels available
- Mobile Column w/double locking T-knobs on the spider castings

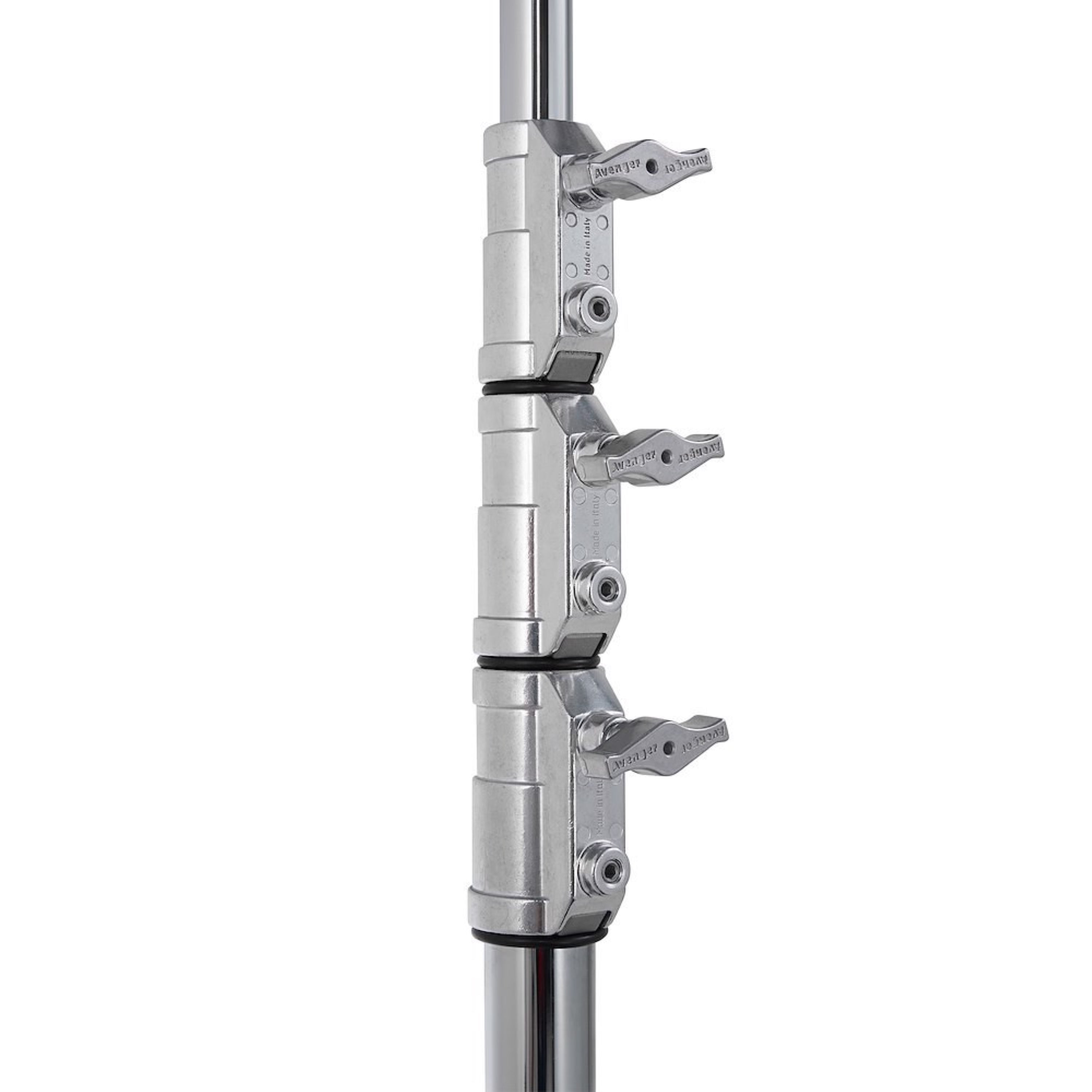

- 4 sections, 3 risers. Ø: 45, 40, 35, 30 mm. Leg Ø: 25 x 25 mm
Specifications
| Weight |
11.8 kg |
|
Min Height |
143 cm |
| Maximum Height | 423 cm |
| Payload | 40 kg |

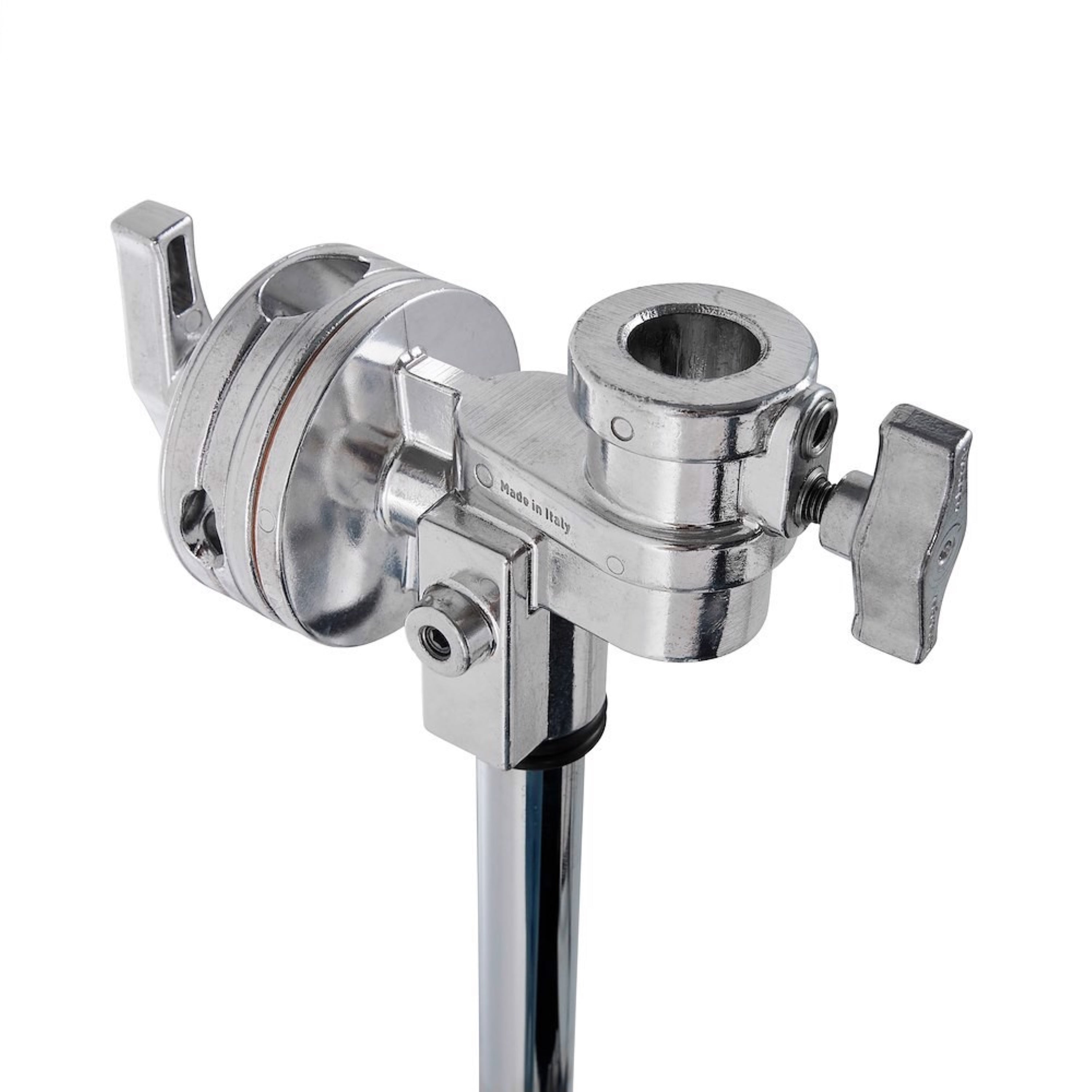

| Top Attachment | 1 1/8″ (28mm) socket, Grip Head size 115mm |
| Female Attachment | |
| Sections Number of Support Systems | 4 |
| Load Capacity at Maximum Extension | 40 kg |

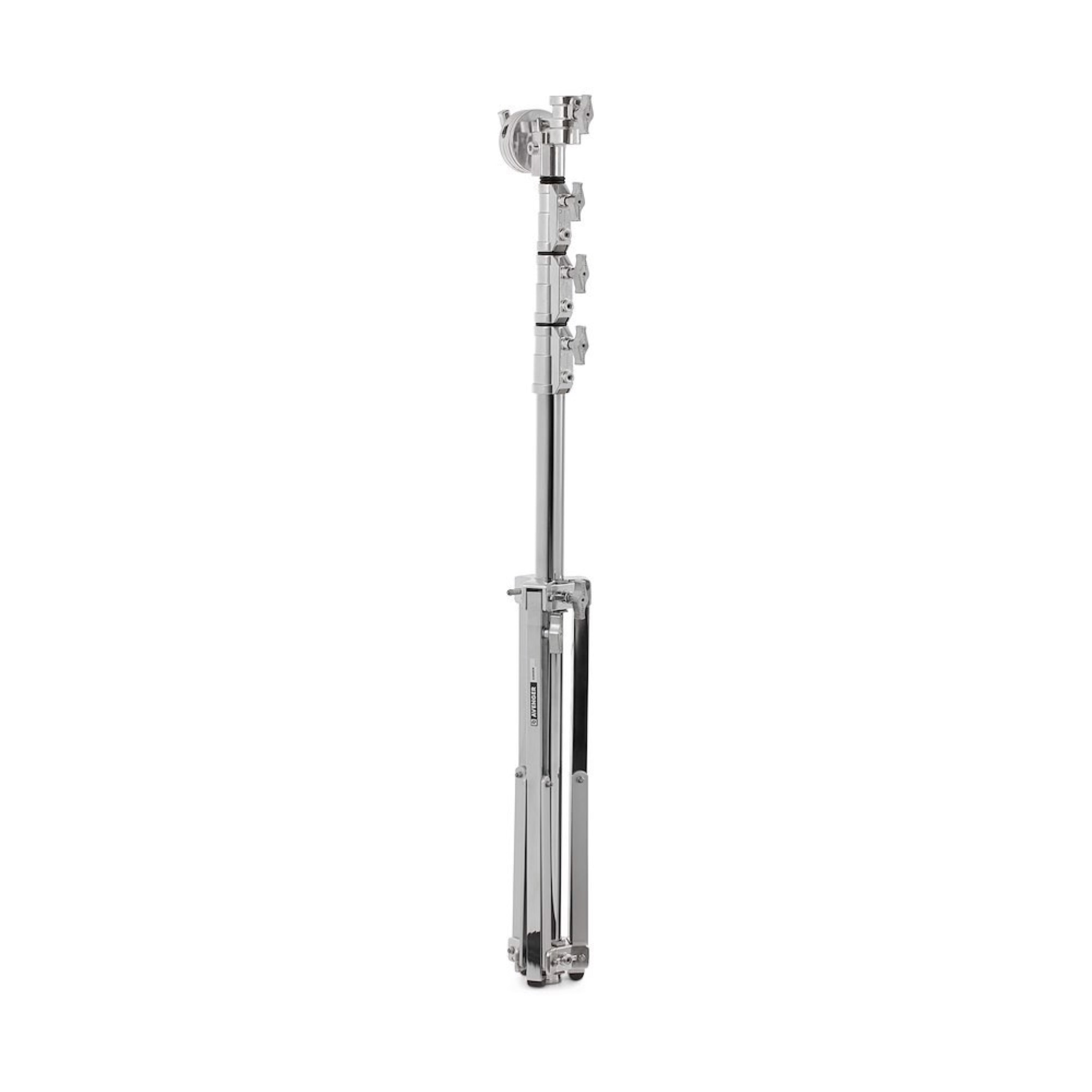

| Closed Length | 135 cm |
| Color | Silver |
| Footprint Max Diameter | 129 cm |

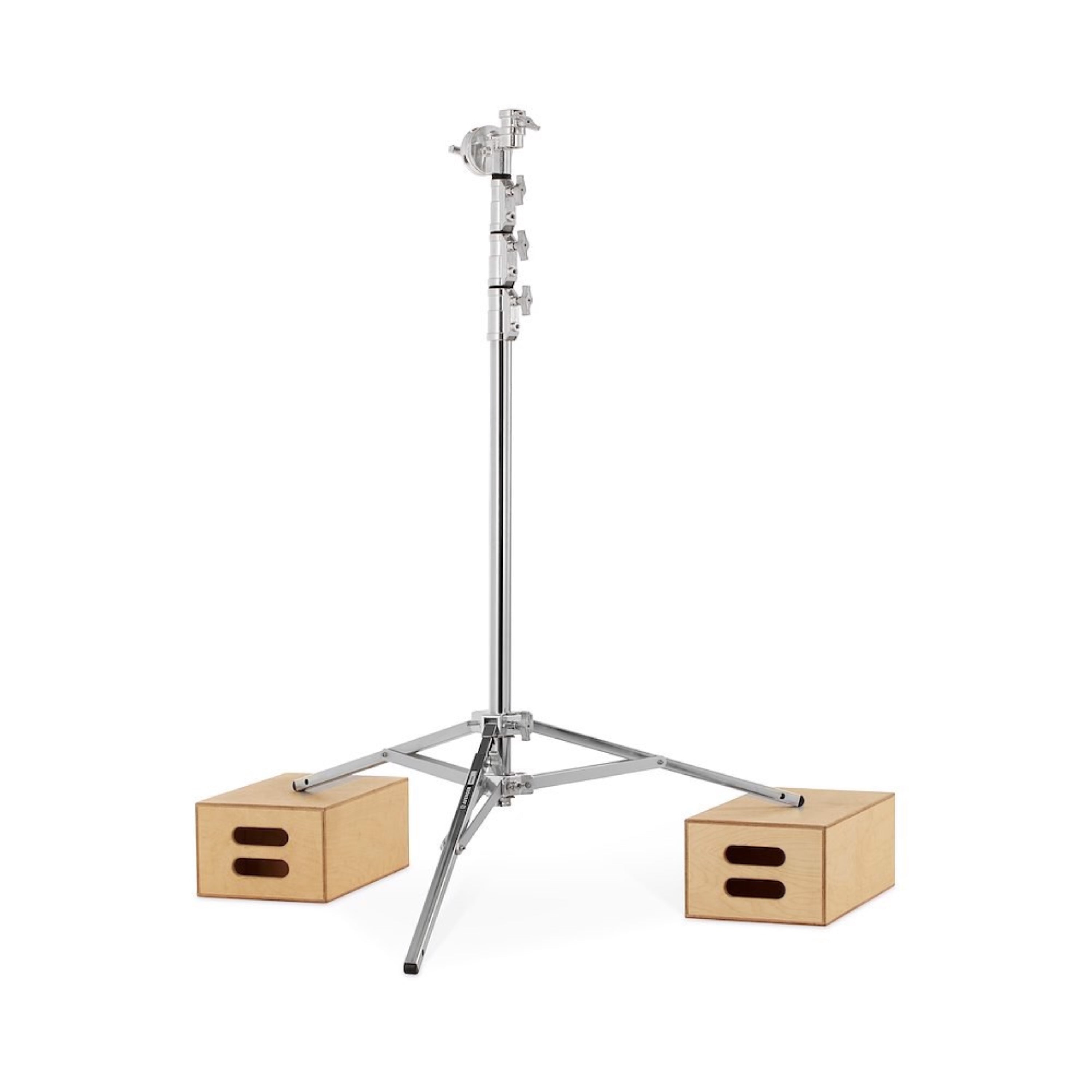

| Levelling Leg | 1 |

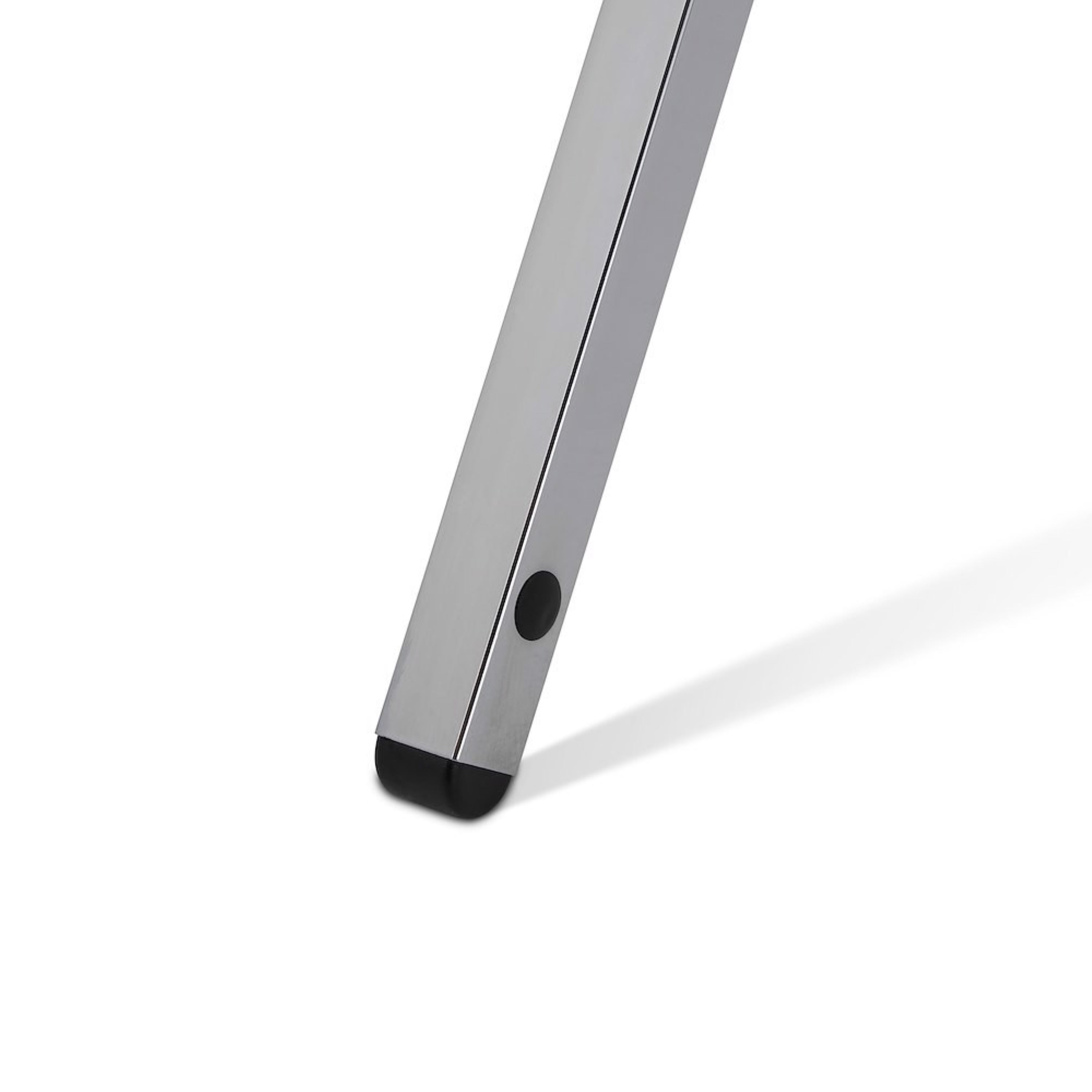

| Stand Leg Size | 25x25mm |
|
Suggested Wheels |
A9000N |
|
Material Base |
Chrome Steel |
| Material column | Chrome Steel |
