Description

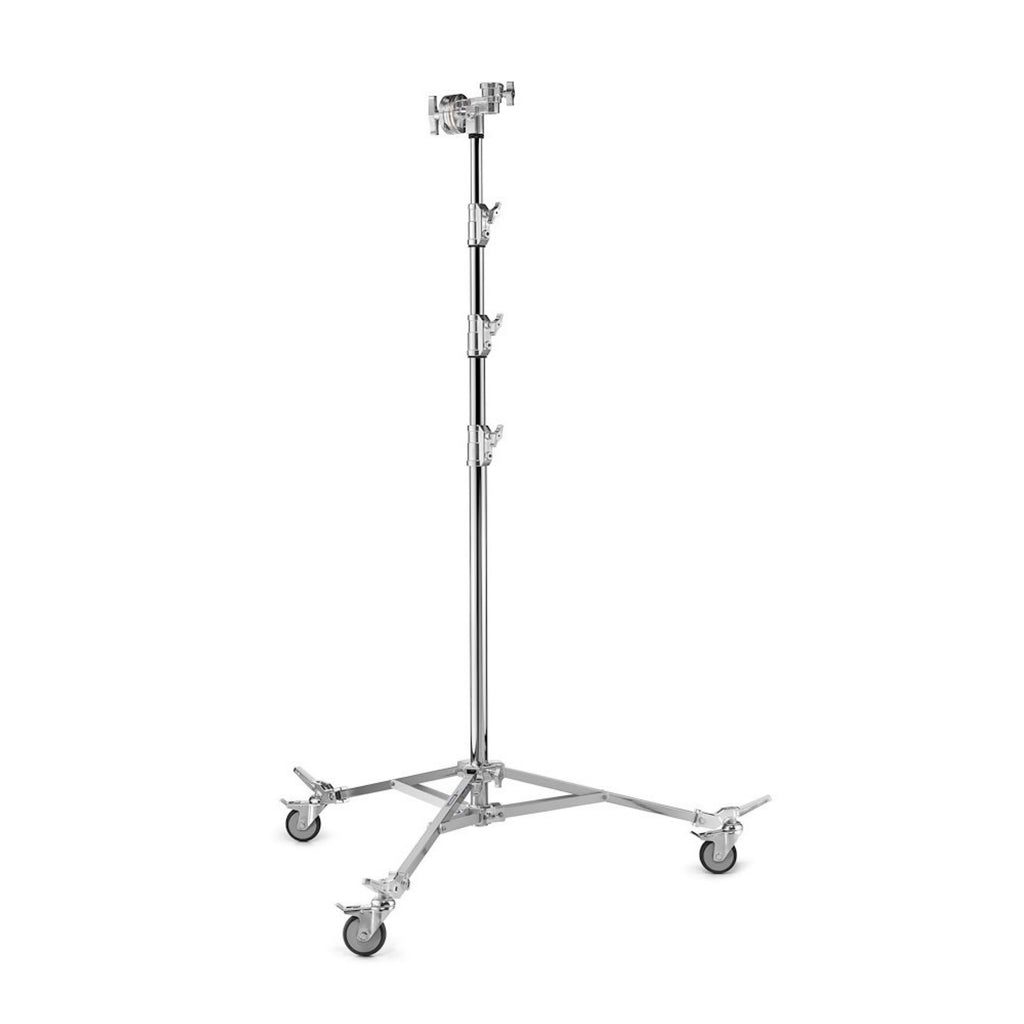

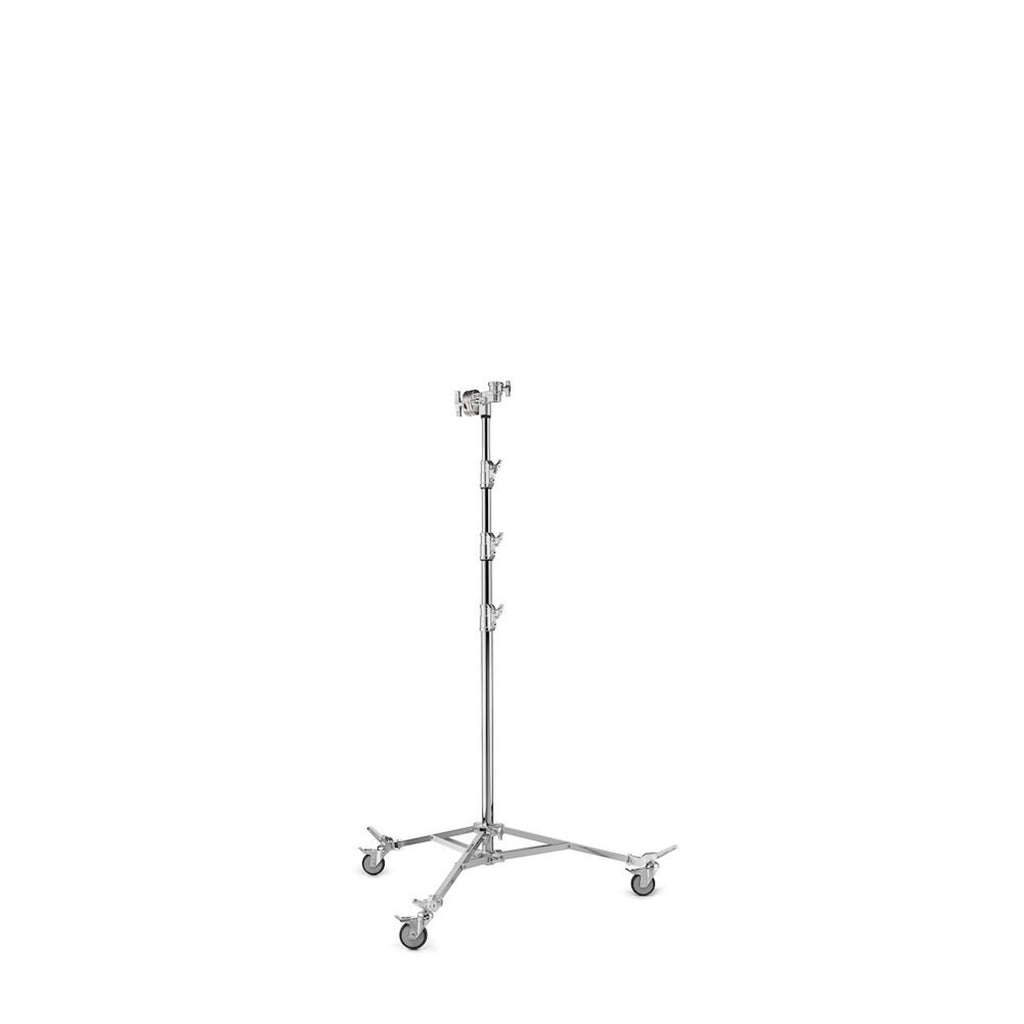

Avenger overhead stands are built in chrome steel, incorporate a dual purpose head that has a 4 1/2 in grip head and 28 mm/ 1 1/8 in receiver. The style of these stands are nicknamed ''Mombo Combo''. The Avenger A3043CS is a 4 section, 3 riser stand and is very popular in supporting overhead frames, Avenger fold away frames, butterflies and butterfly pipe kits. Max height on this stand is 432cm/170.1in and is capable of taking a max load of 40 kg/88.2 lbs. Braked (A9000N) wheels are included with this stand and can be easily attached or removed if desired. Recommended Accessories: H2012, H2008, H1200M, 087WBK, E200, H2000M, H9000, H2512, G200-1
- Silver Overhead Stand with built-in grip head & junior receiver
- Works well with overhead, modular & fold away butterfly frames
- Standard base stand w/ levelling leg & includes A9000N wheels.
- Mobile Column w/double locking T-knobs on the spider castings
- 4 sections, 3 risers. Ø: 45, 40, 35, 30 mm. Leg Ø: 25 x 25 mm
Specifications
| Weight | 16 kg |
| Min Height |
153 cm |
| Maximum Height | 432 cm |
| Payload | 40 kg |
|
Top Attachment |

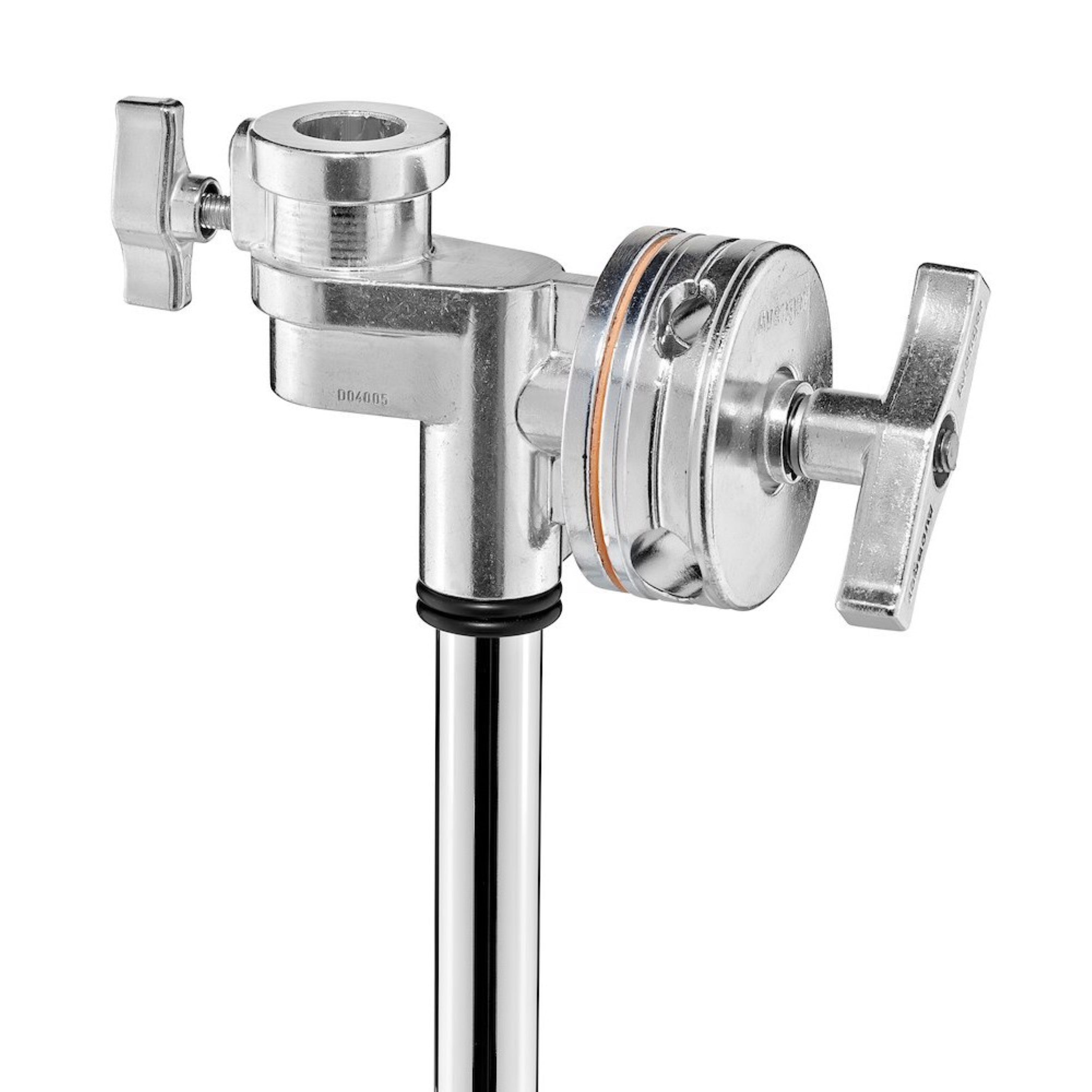

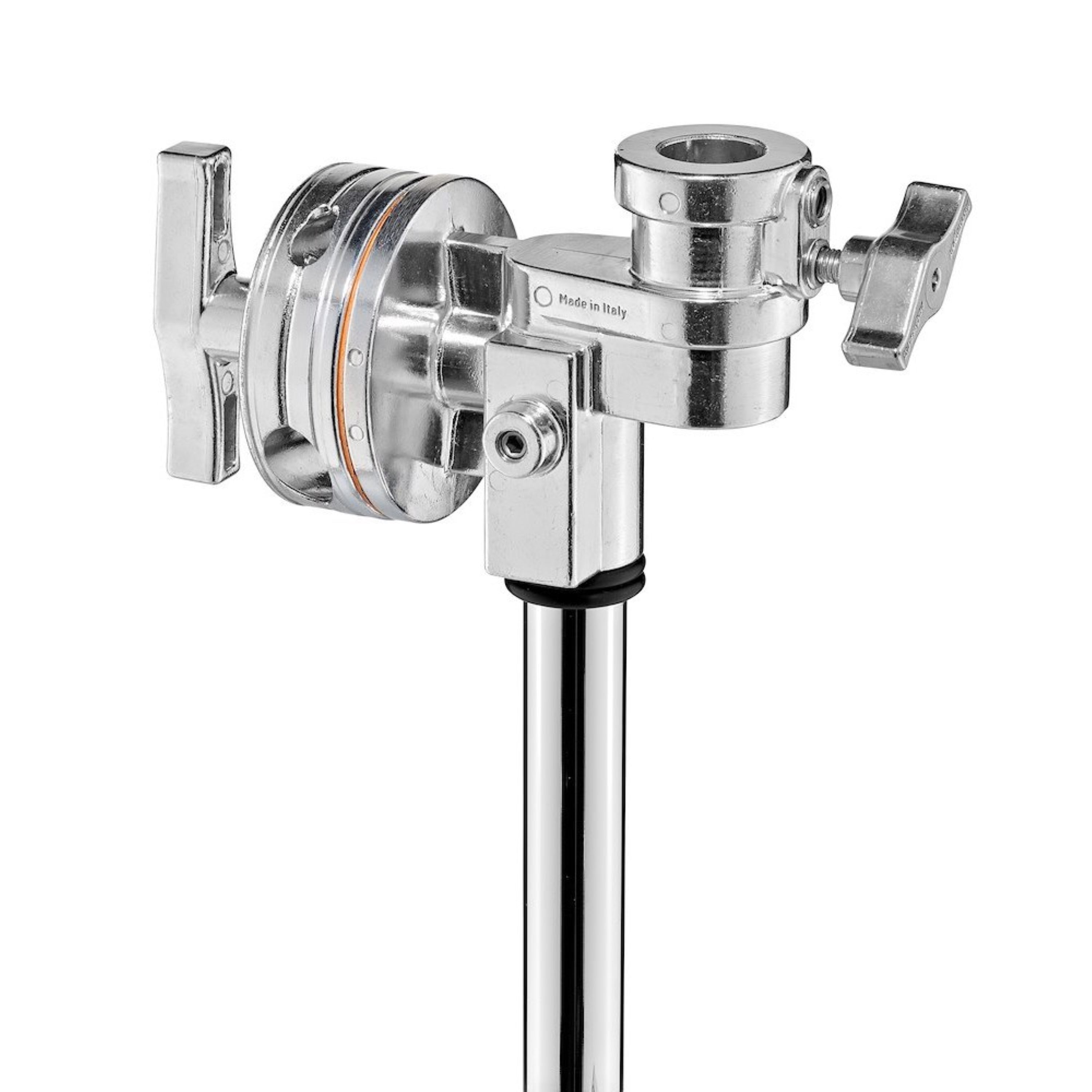

1 1/8″ (28mm) socket, Grip Head size 115mm |
| Female Attachment | 28 |
| Sections Number of Support Systems | 4 |
| Load Capacity at Maximum Extension | 40 kg |
| Closed Length | 150 cm |
| Color | Silver |
| Footprint Max Diameter | 154 cm |
| Levelling Leg | 1 |
| Stand Leg Size | 25x25mm |
|
Suggested Wheels |
A9000N |
| Material Base | Chrome Steel |
| Material column | Chrome Steel |
