Description

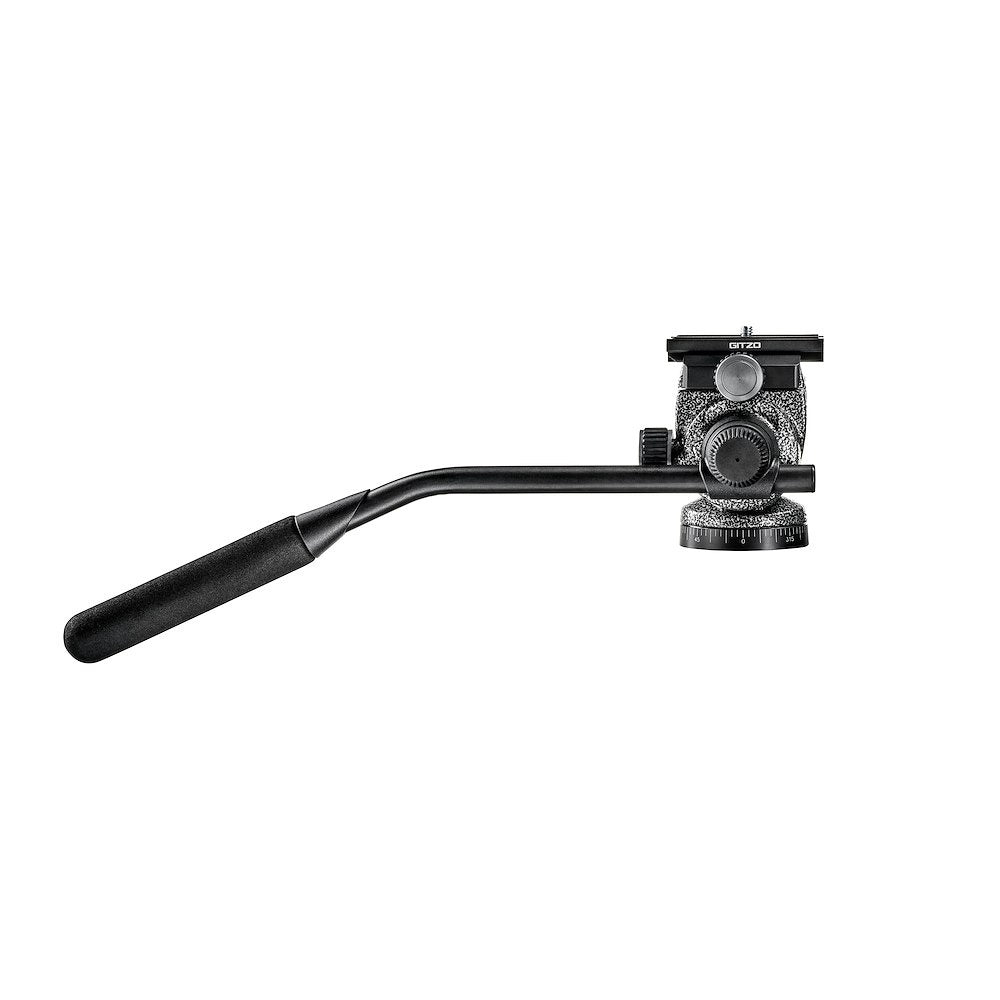

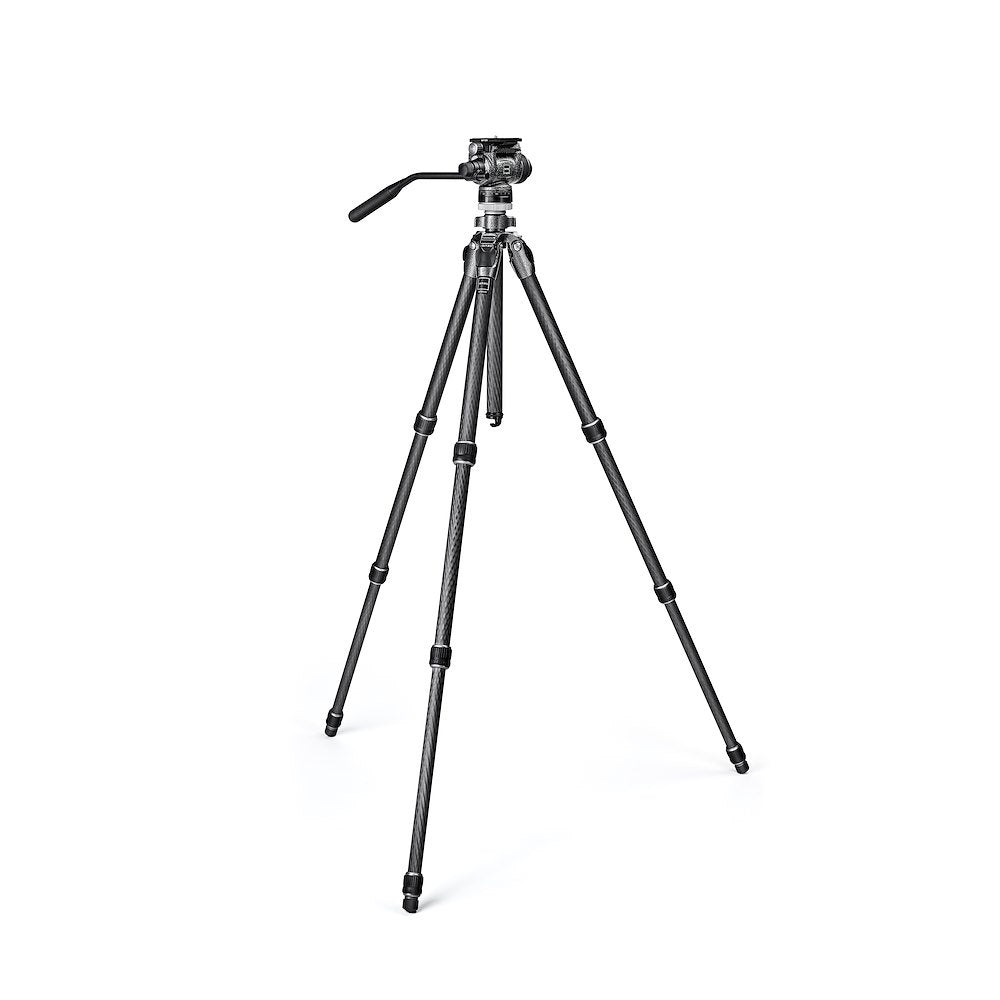

Gitzo 2 Way Fluid Head is an extremely compact head with superior fluidity that provides the highest performance for birdwatchers and digiscopers with medium-sized spotting scopes, as well as for wildlife photographers and videographers using premium CSC or DSLR cameras with lenses up to 200 mm.
Features & Benefits
- Supports medium size lenses with a good payload (4 kg) and lightweight/compact construction
- Capture moving objects precisely thanks to the fluid cartridges
- Easily and firmly carry gear that’s perfectly balanced with the included Arca-Swiss sliding plate and counter balance system
- Whip Pan mechanism gives free of friction movements when needed
- Integrated pan bar
|
Technical Specifications |
|
|
Payload |
4kg @ 55mm |
|
Weight (kg) |
590 g (without plate and pan bar) |
|
Height |
95 mm |
|
Width |
156 mm |
|
Depth |
75 mm |
|
Tilt angle |
from +90° to -60° |
|
Pan angle |
360° |
|
Tilt drag |
fluid cartridge with fixed drag |
|
Pan drag |
fluid cartridge with fixed drag |
|
Base |
60 mm - 3/8” thread |
|
Working temperature |
from -30°C to +70°C |
|
Plate type |
GS5370DR with 1/4” screw + 1/4”-3/8” adapter |
|
Bubble spirit level (N°) |
none |
|
Material (main body/ies) |
Magnesium - Aluminium |
|
Finishing of metal part |
noir decor - silver - black |
|
Pan bar |
yes, included |
