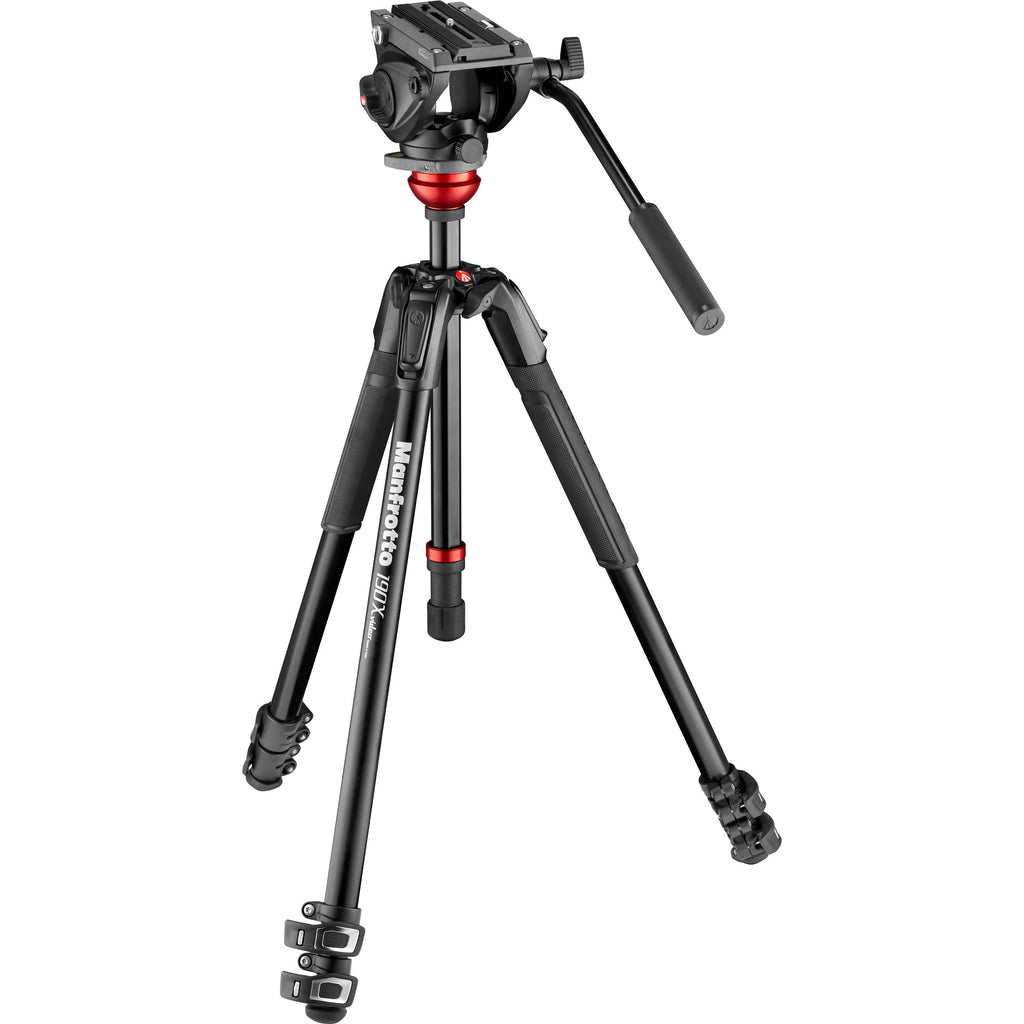

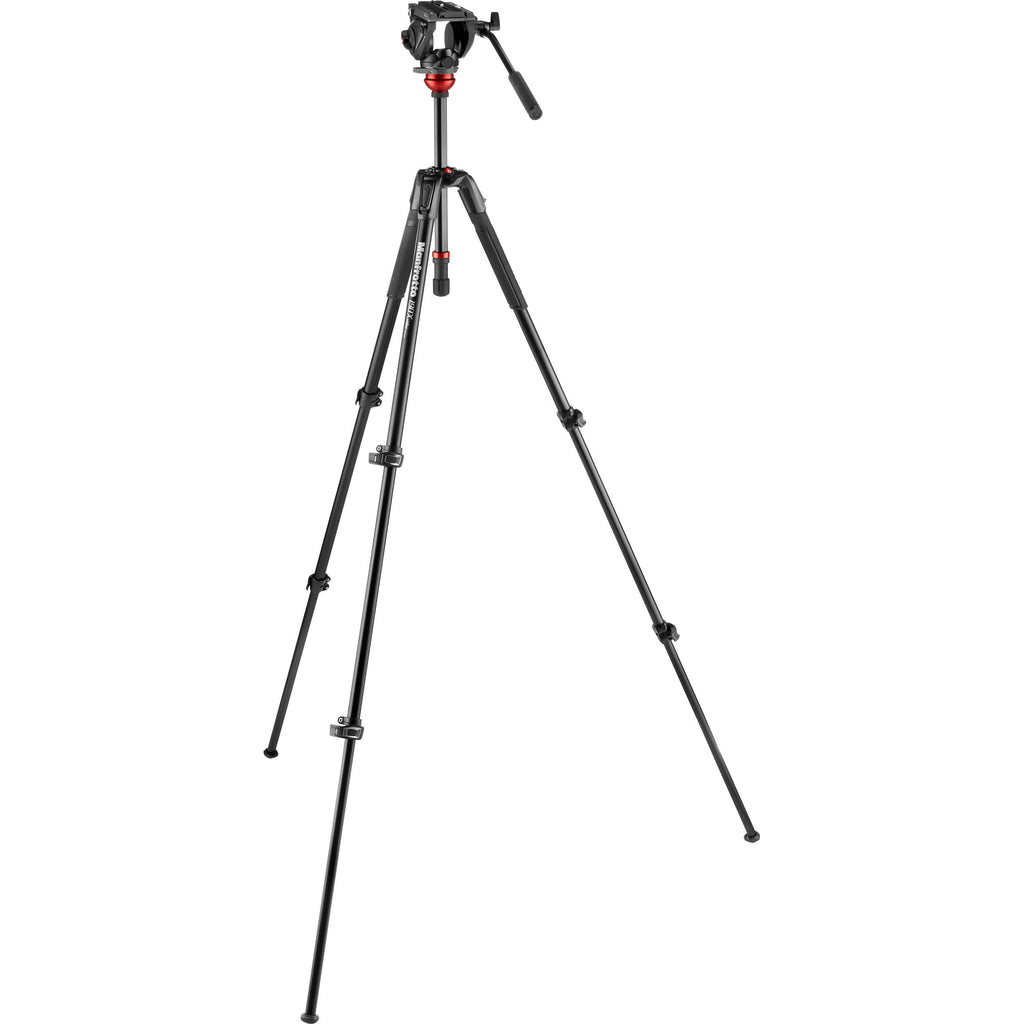

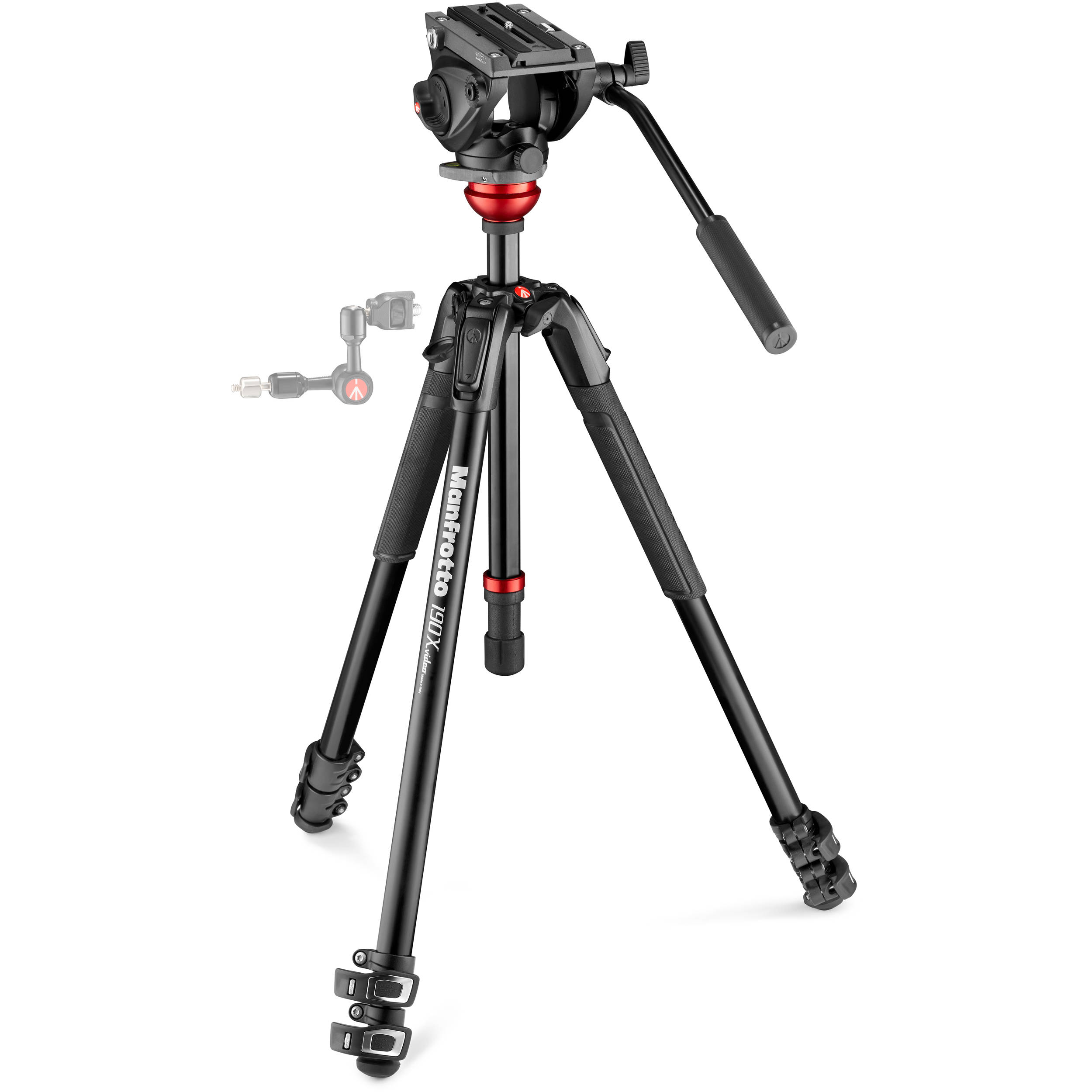

Manfrotto 190 Aluminum Tripod w/ 500AH Video Head

ManfrottoSKU: MVK500190XV

Retail Price:
Sale price$579.95

Product Setup Information

Sorry, no downloads available at this time.

Description

MANFROTTO MT190X3 TRIPOD+556B LEVELLING COLUMN+MVH500AH HEAD
  • 500 video head flat base for greater versatility
  • Single leg, 3 section aluminum tripod with levelling column
  • Easy link connectors for external accessories

DESCRIPTION

The new MVK500190XV is a video system composed by MVH500AH fluid video head and dedicated 190X Video aluminium tripod, ensuring the utmost versatility and carrying convenience.

The 500 head comes in the flat base version, for greater versatility when it comes to using it in combination with other video accessories (such as slider or jib). It also features fluid cartridges on both pan and tilt axes to ensure that every camera movement is smooth. It comes with a side lock system, allowing the camera and sliding plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. The side lock system also makes it quicker and simpler to lift the camera out of the head from above. The head has a pre-set counterbalance of 2.4kg at 55mm C.O.G., but can support up to 5kg of equipment. It has a 3/8'' Easy Link connector to fit an external monitor or other accessories.

The dedicated single leg, 3 section, aluminium 190X Video tripod features a levelling column for quick and easy set-up, easily extendable, adjustable legs and Quick Power Lock (QPL) levers that rapidly block or unblock each leg section.

The tripod’s casting also features an Easy Link connector equipped with anti-rotation for accessories.

The system can support up to 5 kg.

SPECIFICATIONS

Weight

3200 g

Material

Aluminum

Safety Payload Weight

5 kg

Min Height

50.3 cm

Maximum Height

173.3 cm

Head Type

Video/Fluid Head

Leg Sections

3

Quick Release

Yes

Counterbalance Weight

2.4 kg

Closed Length

72.2 cm

Ball Flat

Flat

Accessory Compatibility

500HLV

Top Attachment

1/4″ screw, 3/8″ screw

Base Diameter

60 mm

Powered by (batteries)

0

Bubble Spirit Level (No.)

1

Certifications

None

Color

Black

Easy Link

Yes

Front Tilt

-70° / +90°

Leg Type

Single

Leg Angles

25°,46°,66°,88°

Leg Lock Type

Flip Lock

Maximum Height (with Center Column Down)

149.3 cm

Maximum Working Temperature

60 C

Minimum Working Temperature

-20 C

Pan Bar Included

Yes

Pan Drag

fluid cartridge with fixed drag

Panoramic Rotation

360

Plate Type

500PLONG

Tilt Drag

fluid cartridge with fixed drag

Upper Disc Diameter

60 mm
