Manfrotto 504X Head w/ Fast Single Leg CF Tripod

ManfrottoSKU: MVK504XSNGFC

Retail Price:
Sale price$1,769.95

Product Setup Information

Sorry, no downloads available at this time.

Description

  • Fluid video head with 4-step counterbalance system up to 14.3 lbs.
  • Maximum versatility thanks to flat base
  • FAST Twisting Lock: secure locking with a single gesture
  • Carbon Fiber single leg tripod for greater rigidity
  • Side lock plate attachment and two 3/8'' easy link connectors.

Description

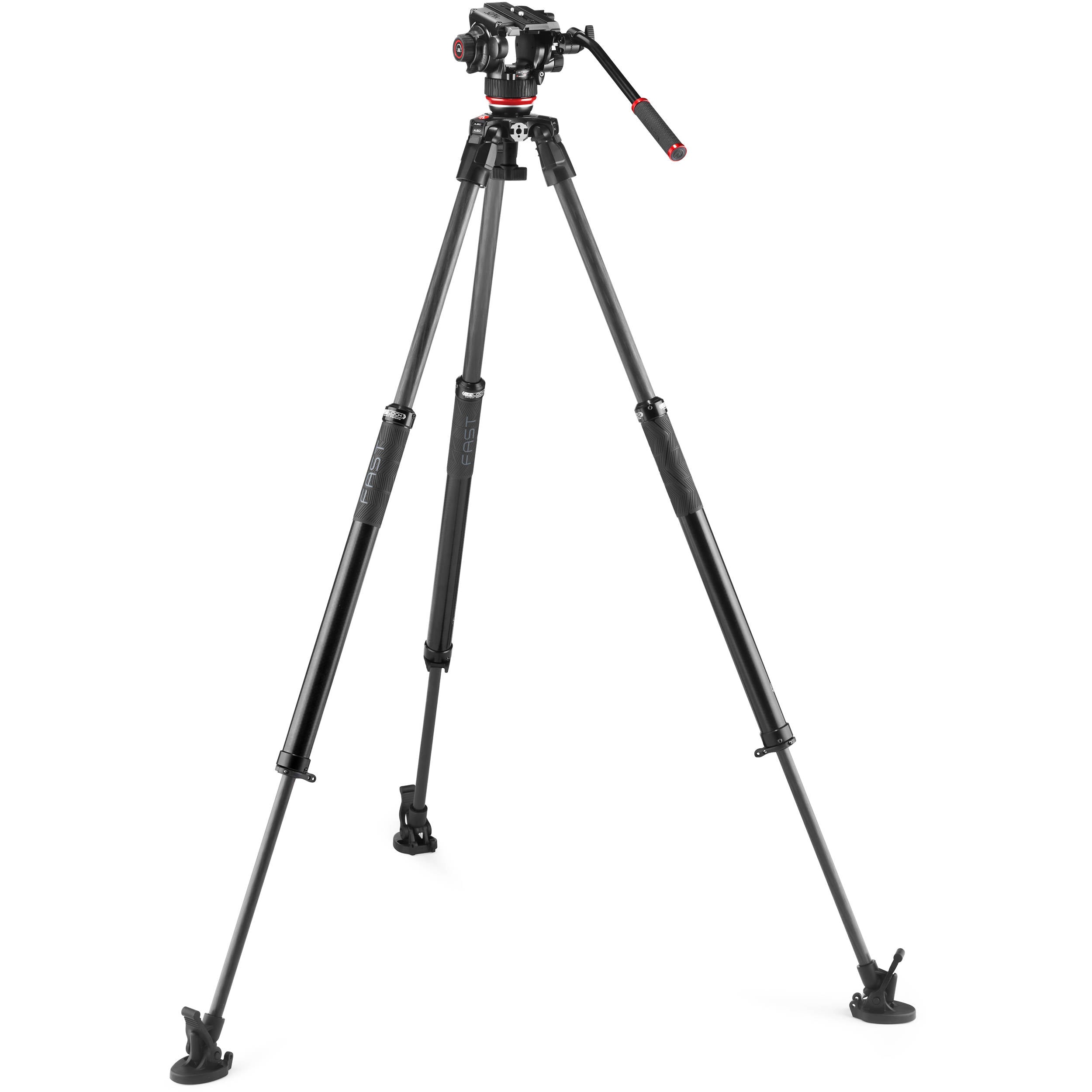

This video system includes the Manfrotto 504X Fluid Video Head and the 635 Fast Single Leg Carbon Tripod.

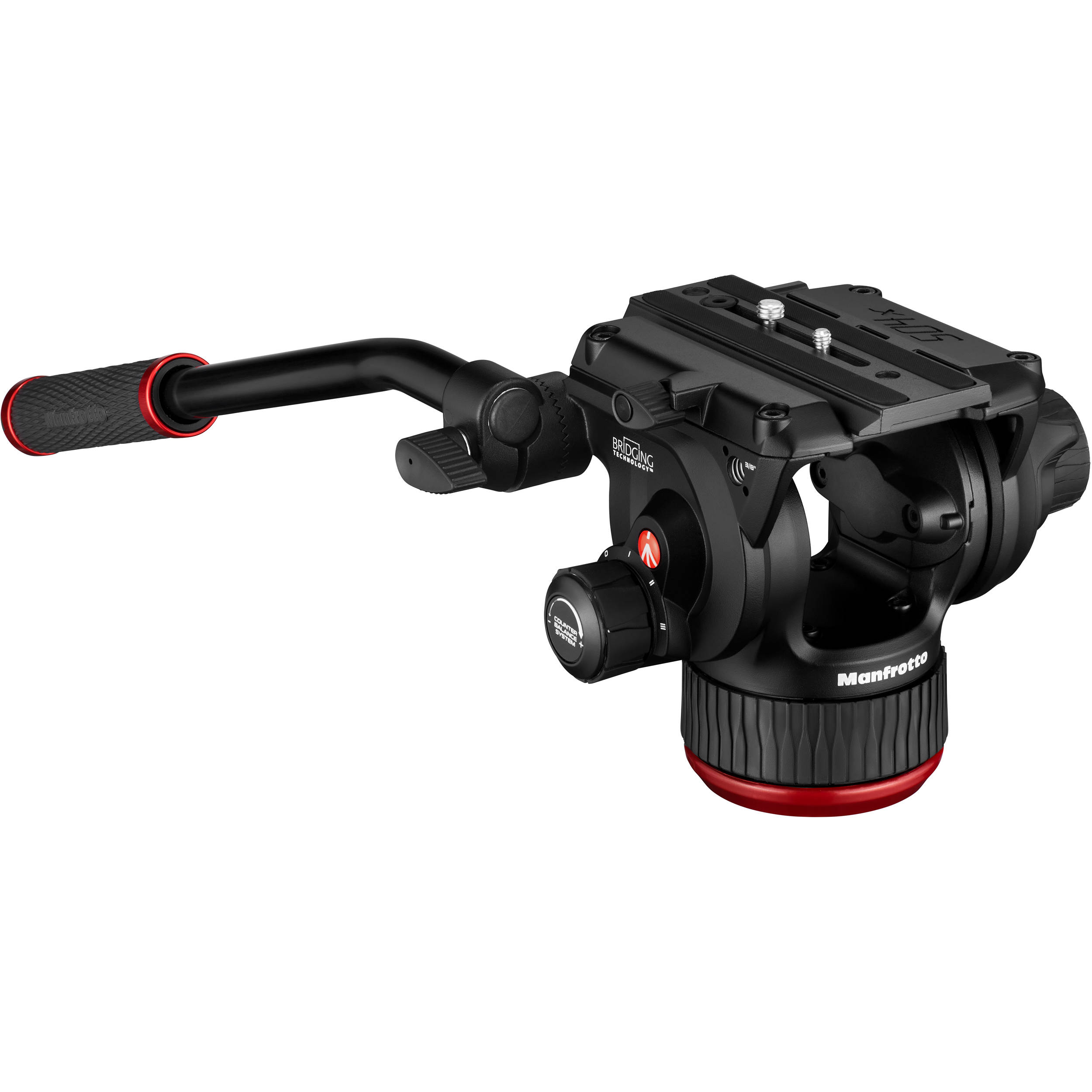

The 504X head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system loads up to 14.3 lbs at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 26.4 lbs.

It is a compact, light head with a flat base (base diam. 75 mm), that lets you choose from a wide variety of different shooting options. It features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

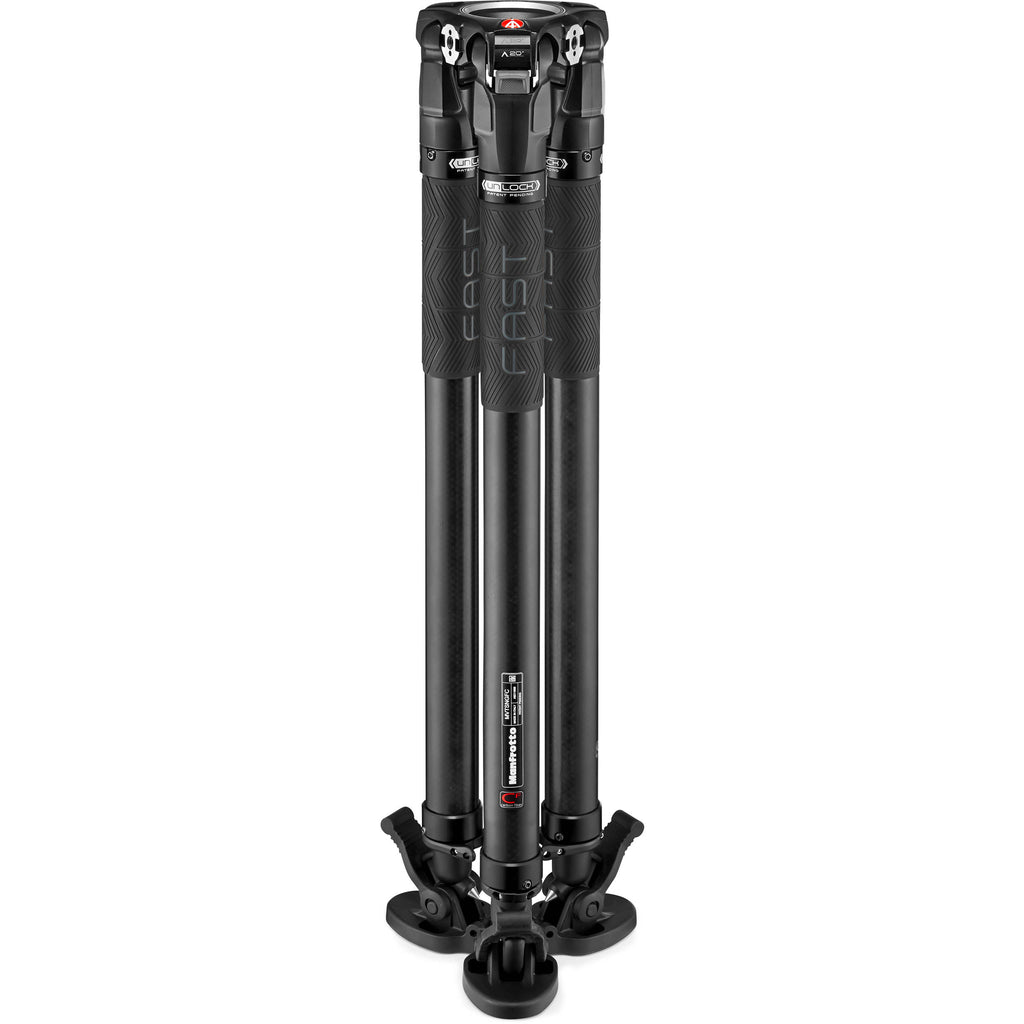

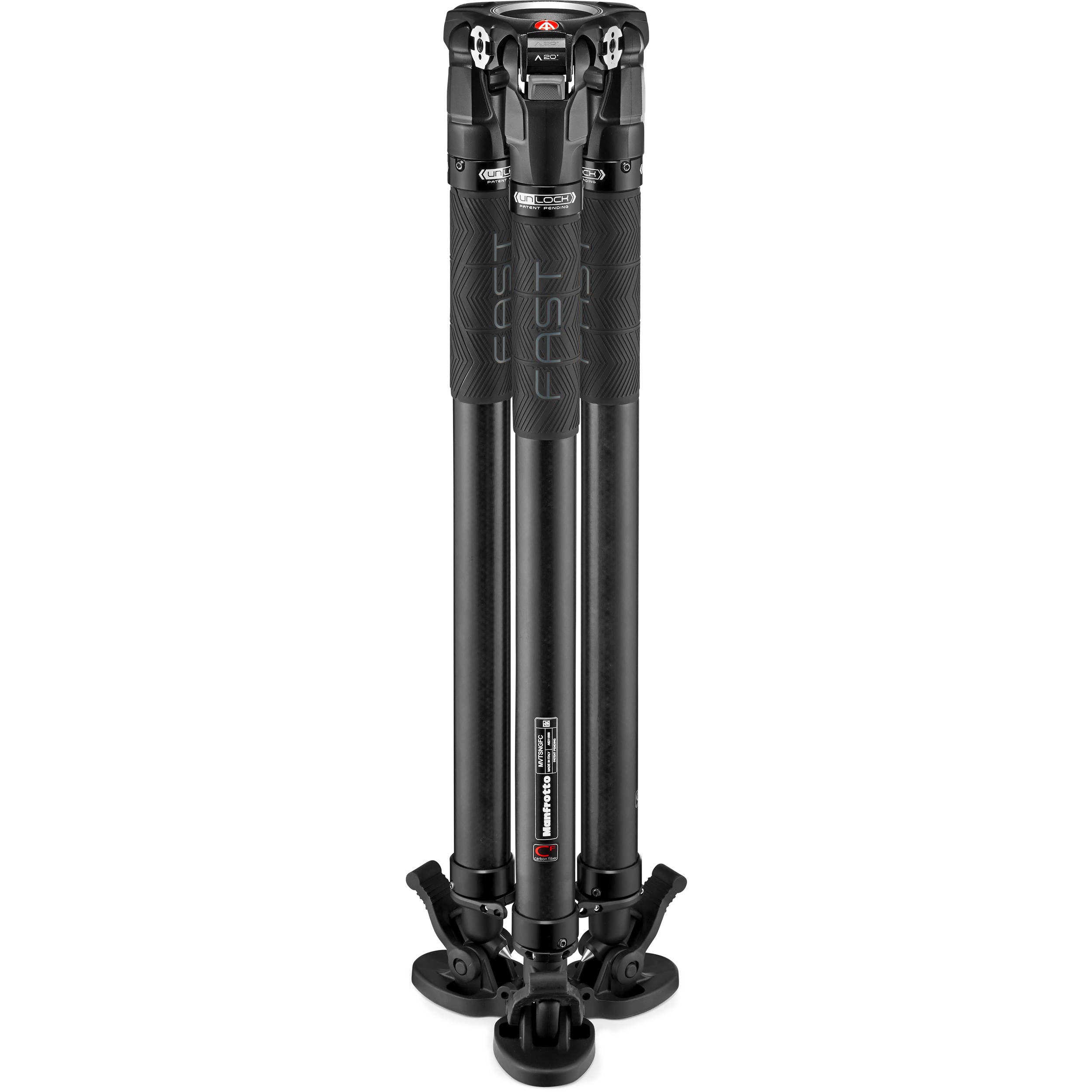

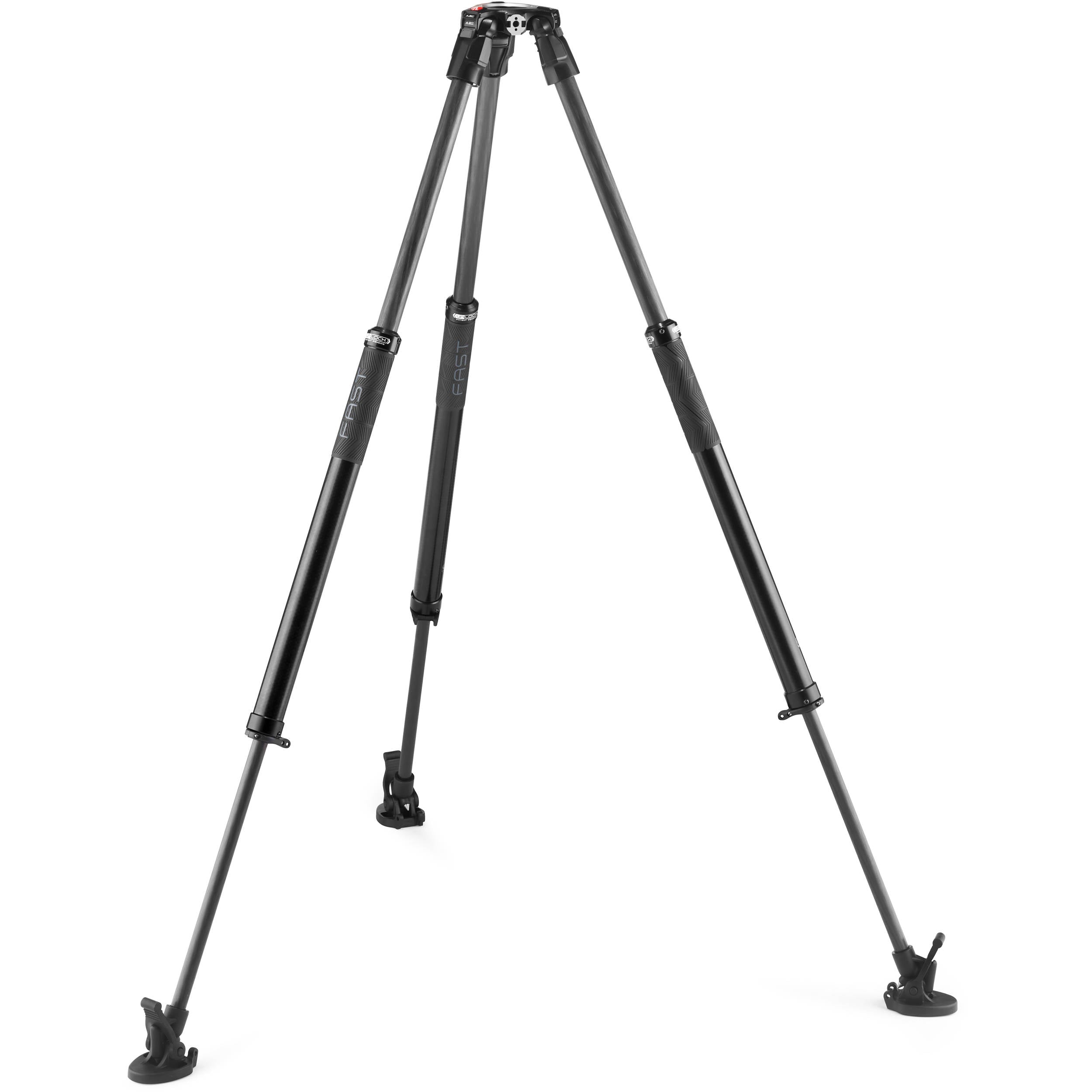

The 635 Fast Single Tripod was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The FAST Twisting Lock technology enables videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

It is compatible with the 2-in-1 ground and middle telescopic spreader (as an optional accessory) and features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

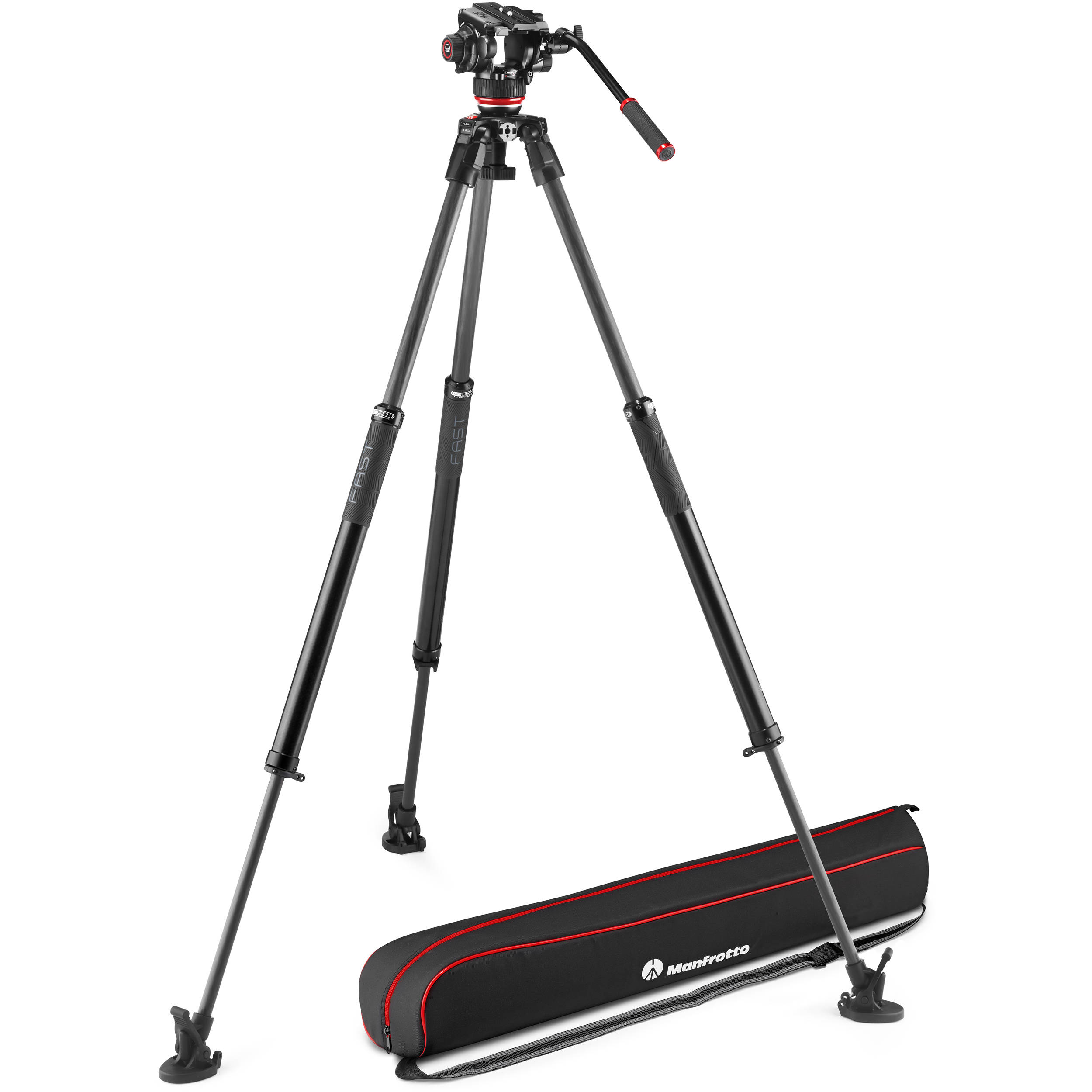

Supplied with its own padded carrying bag.

Specifications

Weight

5.8 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

Flat

Safety Payload Weight

12 kg

Counterbalance System

Variable Steps

Powered By (Batteries)

Lithium

Base Diameter

75 mm

Counterbalance Weight

2.2, 4.4, 6.5 kg

Bubble Spirit Level (No.)

1

Center Of Gravity

55 mm

Carrying Bag Included

yes

Center Column

no center column

Certifications

WEEE; RoHS

Closed Length

89.5 cm

Color

Black

Easy Link

Yes (with antirotation)

Front Tilt

-70° / +90°

Head Type

Video/Fluid Head

Leg Type

Single

Leg Angles

20°, 50°, 70°

Leg Lock Type

Twist Lock

Leg Sections

3

Legs Tube Diameter

29.2, 24.8, 20.4 mm

Material

Aluminum, Carbon Fiber

Maximum Height

171 cm

Maximum Working Temperature

60 °C

Min Height

44.5 cm

Minimum Working Temperature

-30 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

504PLONGR-1

Quick Release

Yes

Tilt Drag

continuously adjustable from 0 to max level

Accessory Compatibility

165, 165MV, MVASPR2N1, 114, 114MV, 181B, 127, 127VS
