Description
- Fast Technology
- Fluid video head with 4-step counterbalance system up to 6.5 kg
- Maximum versatility thanks to flat base
- FAST Lever Lock & 3-angle selection mechanism for easy set up
- 100 mm half ball, compatible with a 75 mm half ball adapter.
- Side lock plate attachment and two 3/8'' easy link connectors.
Description

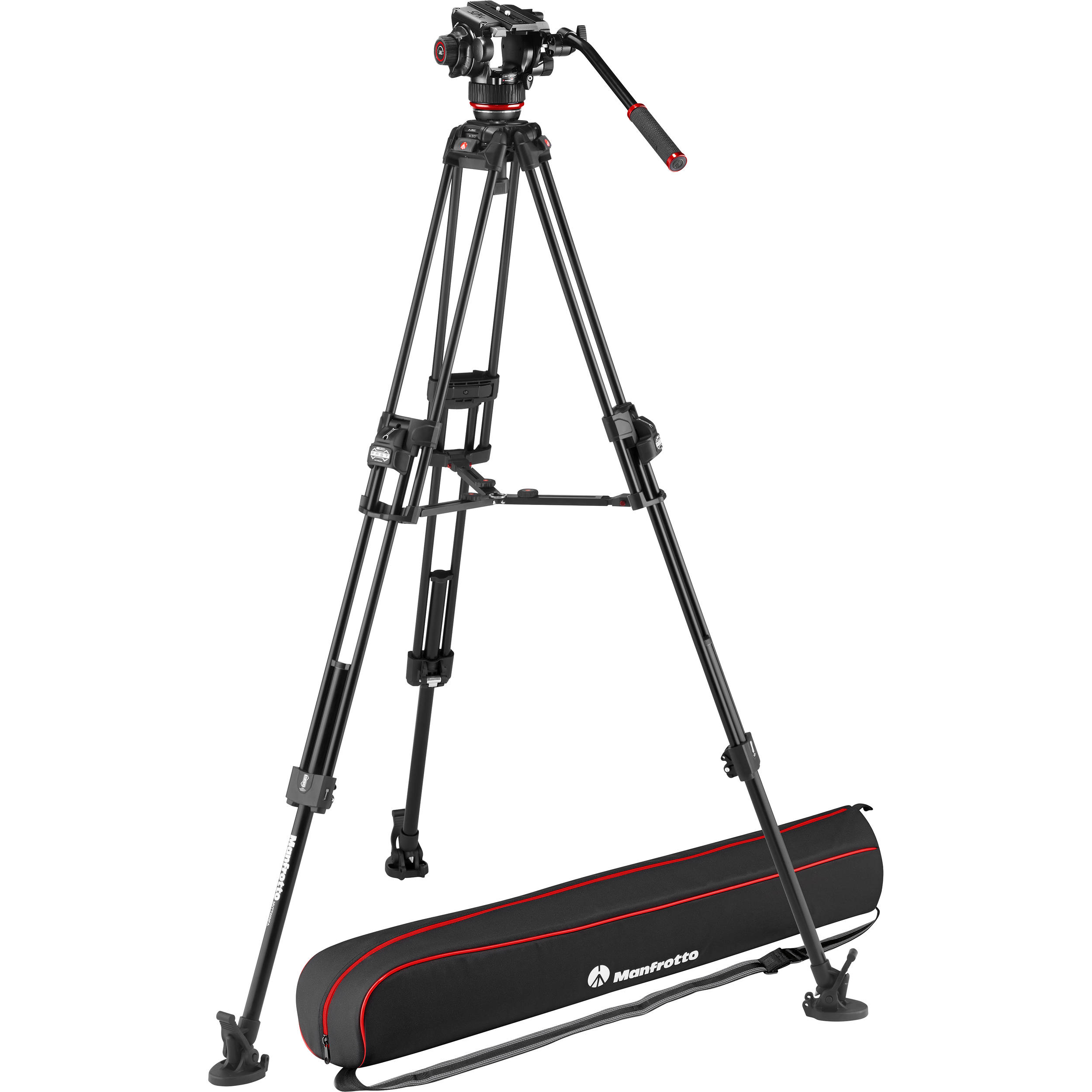

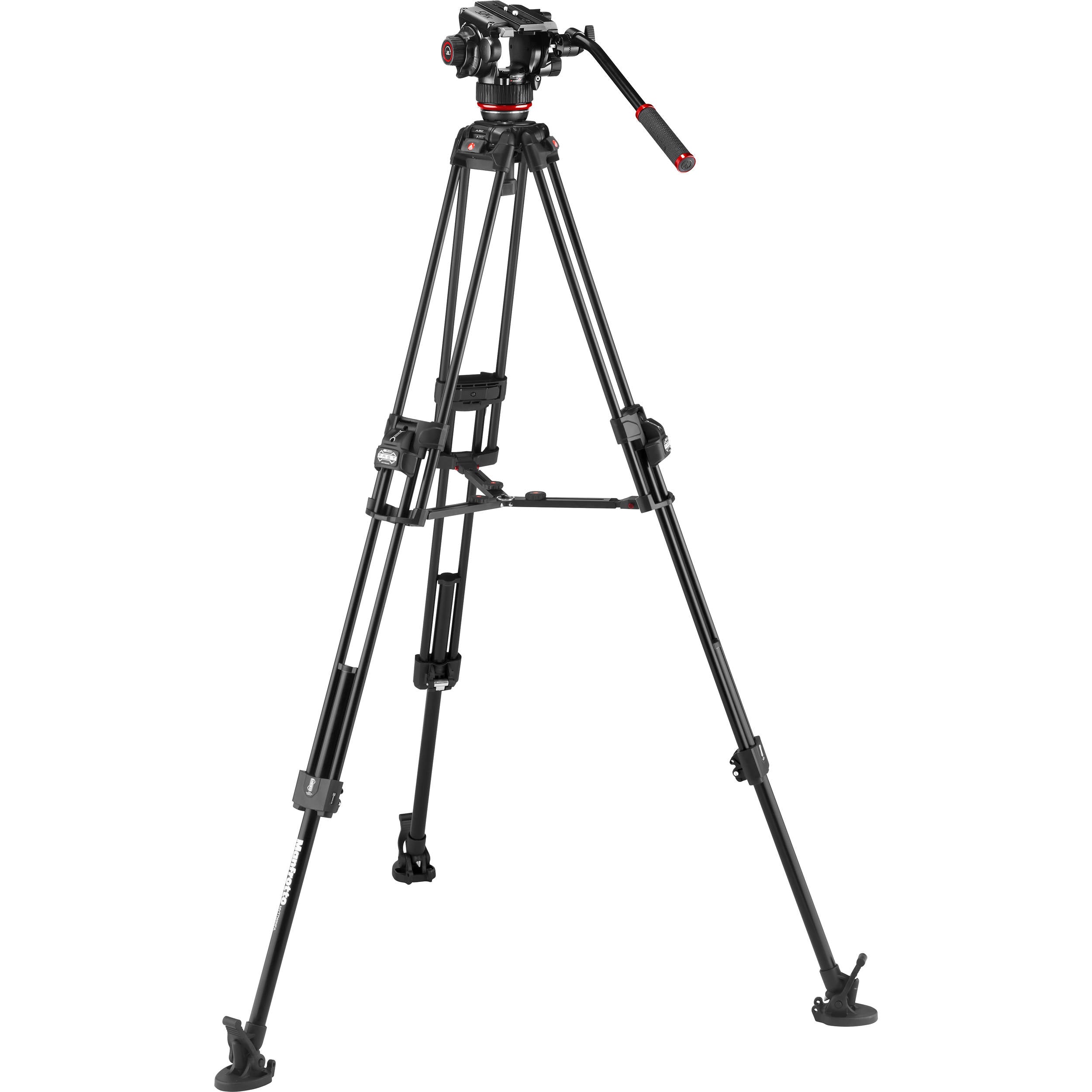

This video system includes the Manfrotto 504X Fluid Video Head and the 645 Fast Twin Tripod in aluminium.

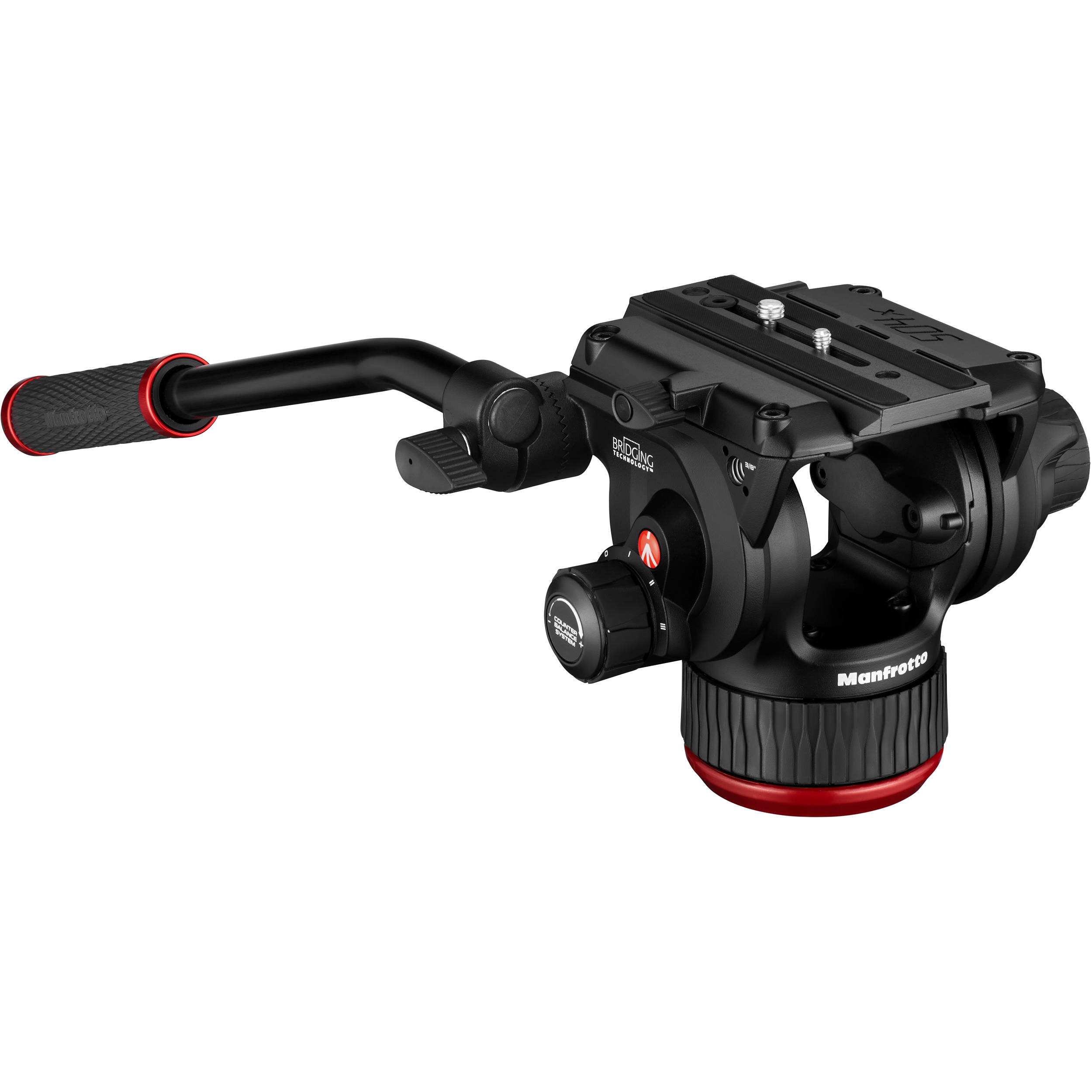

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 14.3 lbs at 55 mm C.O.G.
The head is made from a brand-new catching aluminium design and has a maximum payload of 26.4 lbs.
It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

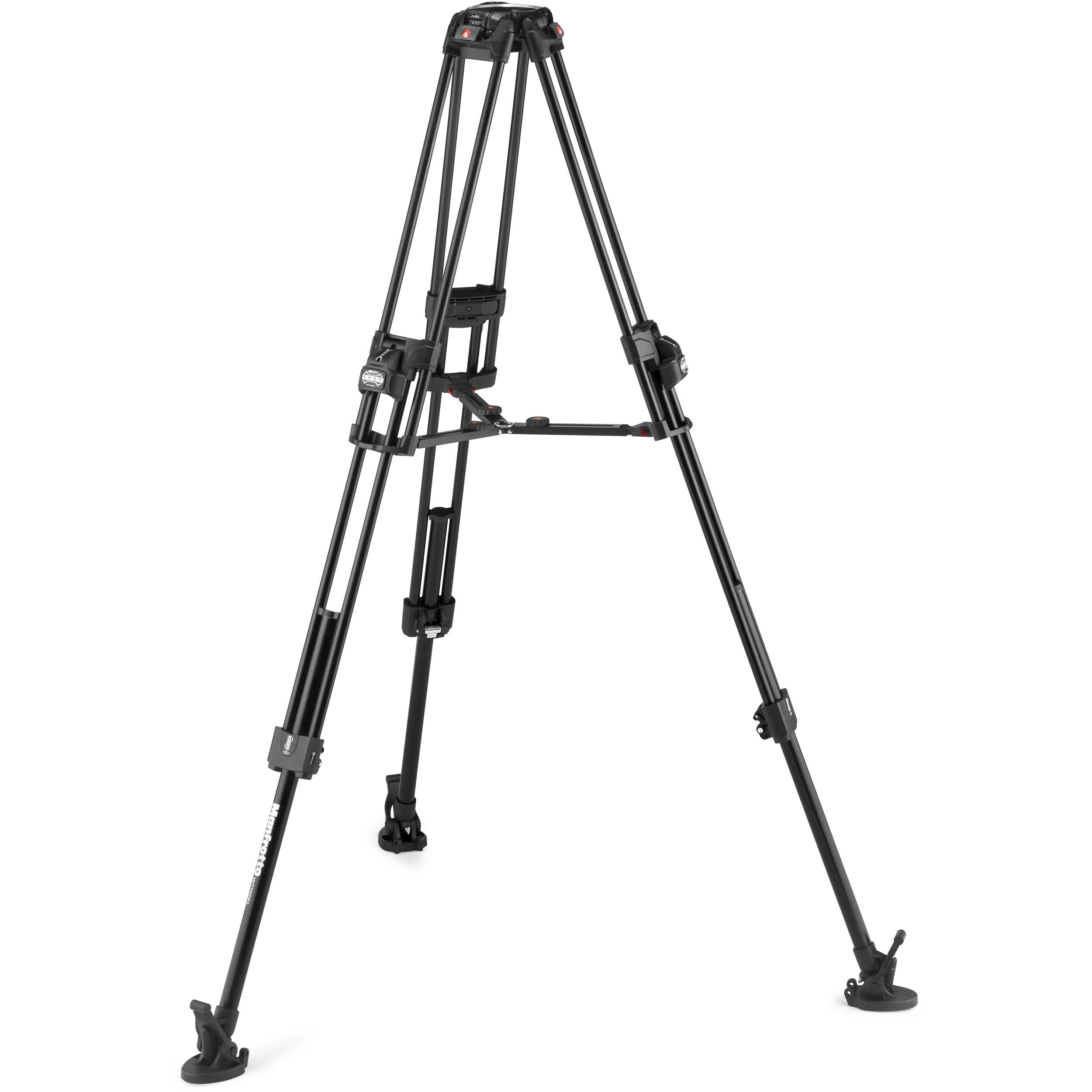

The 645 FTT Fast Twin Alu Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The synchronized closure mechanisms between the upper and lower locks enable videographers to control the entire leg with a single lock and get to work in record time.
The tripod is provided with a 2-in-1 half ball: a standard 100mm bowl compatible with a 75mm adapter (included in the kit) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.
It is compatible with the 2-in-1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.
Supplied with its own padded carrying bag.
Specifications
Weight
6.2 kg
Top Attachment
1/4″ screw, 3/8″ screw
Ball Flat
Flat
Safety Payload Weight
12 kg
Counterbalance System
Variable Steps
Powered By (Batteries)
Lithium
Base Diameter
75 mm
Counterbalance Weight
2.2, 4.4, 6.5 kg
Bubble Spirit Level (No.)
1
Center Of Gravity
55 mm
Carrying Bag Included
yes
Center Column
no center column
Closed Length
89.5 cm
Color
Black
Easy Link
Yes (with antirotation)
Front Tilt
-70° / +90°
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Angles
20°, 50°, 70°
Leg Lock Type
Flip Lock
Material
Aluminum
Maximum Height
173 cm
Maximum Working Temperature
60 °C
Min Height
43.5 cm
Minimum Working Temperature
-30 °C
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONGR-1
Quick Release
Yes
Spreader
mid level - variable arm length
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL
