Manfrotto 504X Head w/ Twin Leg CF Tripod GS

ManfrottoSKU: MVK504XTWINGC

Retail Price:
Sale price$1,679.95

Product Setup Information

Sorry, no downloads available at this time.

Description

MVK504XTWINGC

  • Fluid video head with 4step counterbalance system up to 14.3 lbs
  • Maximum versatility thanks to flat base
  • Carbon Fiber twin leg tripod for greater rigidity
  • Side lock plate & two 3/8''easy link connectors for accessories
  • Adjustable ground spreader for extra stability and versatility.

Description

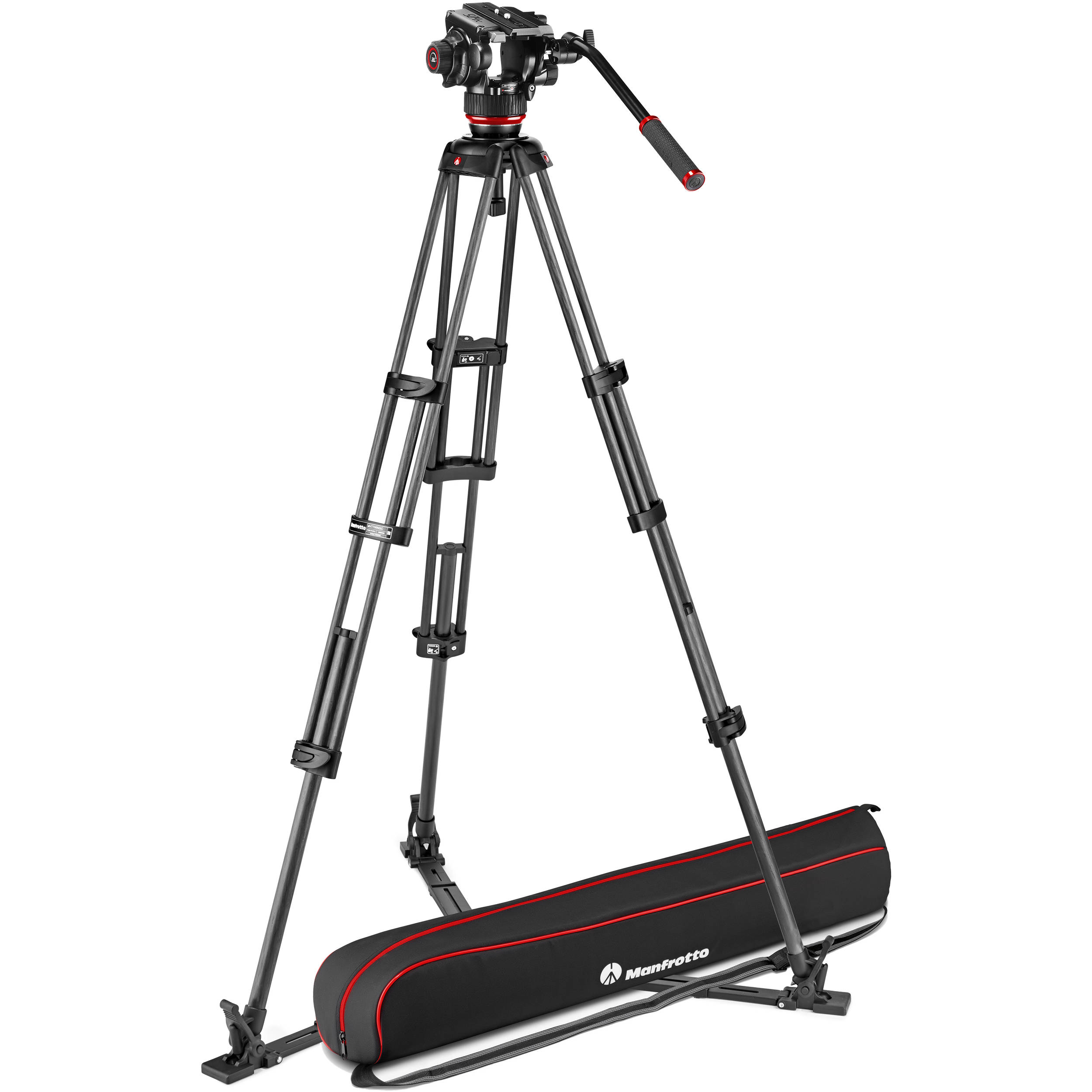

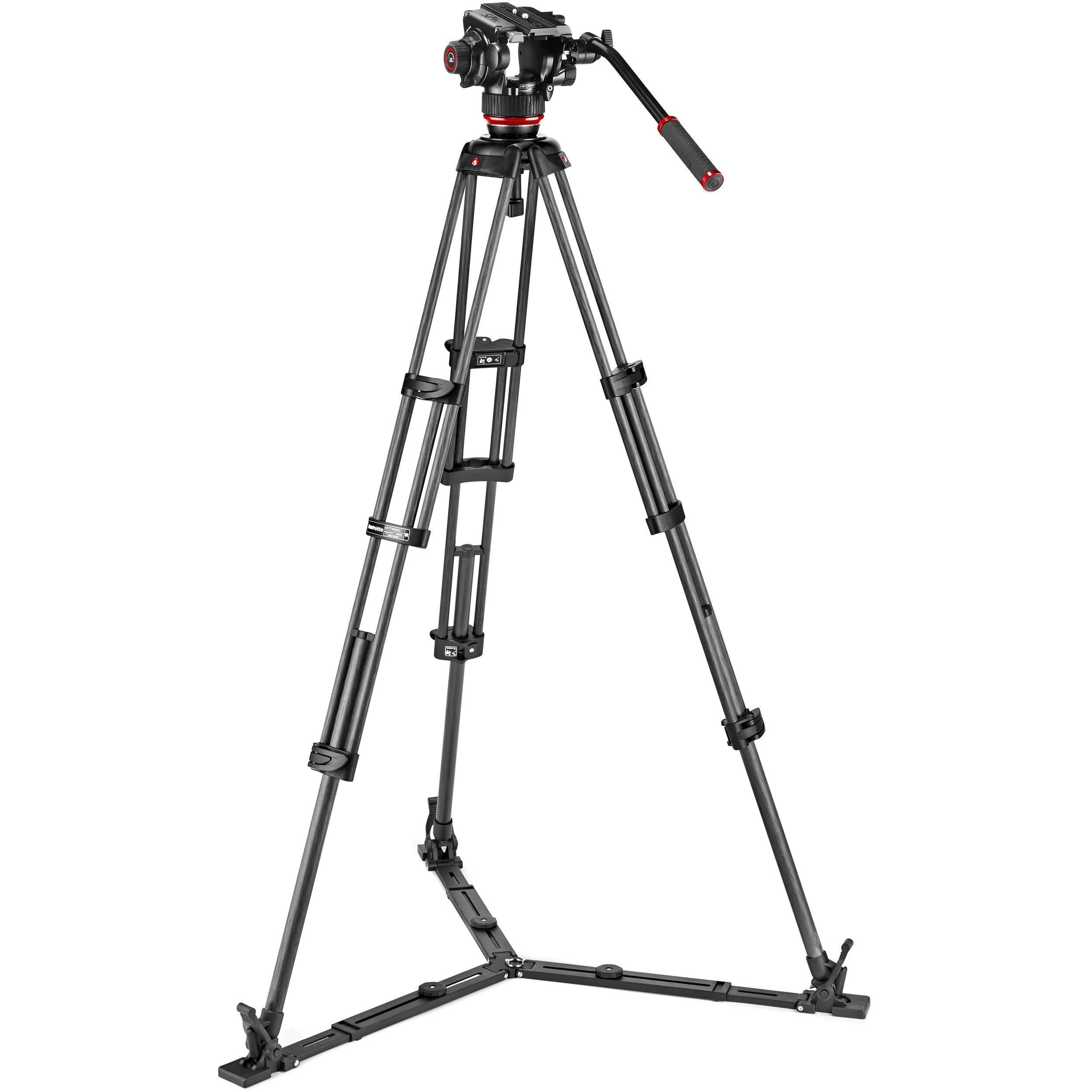

This innovative video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINGC carbon fiber twin leg with ground spreader tripod.

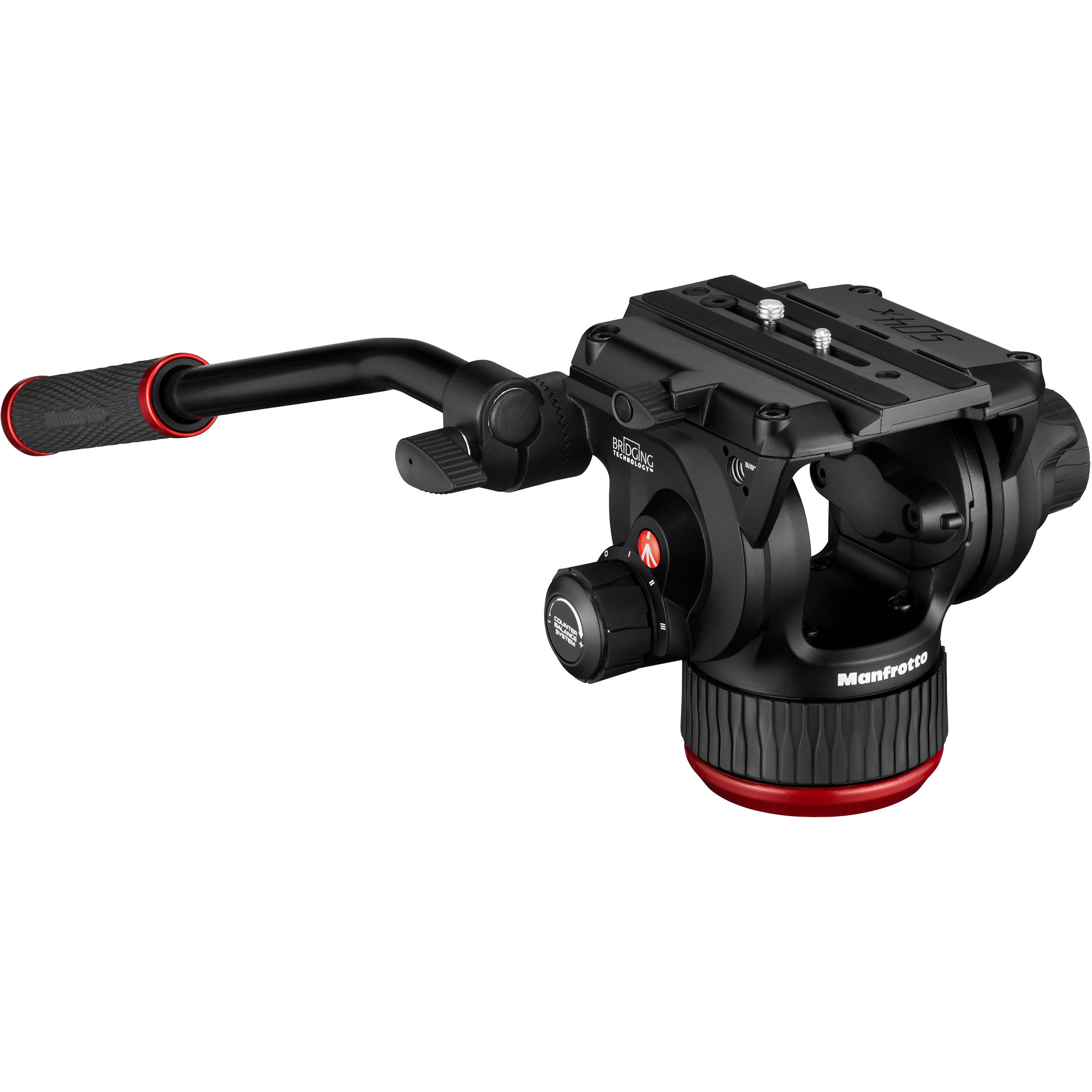

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 14.3 lbs at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 26.4 lbs.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The head attaches to the tripod via a dedicated 75mm half ball.

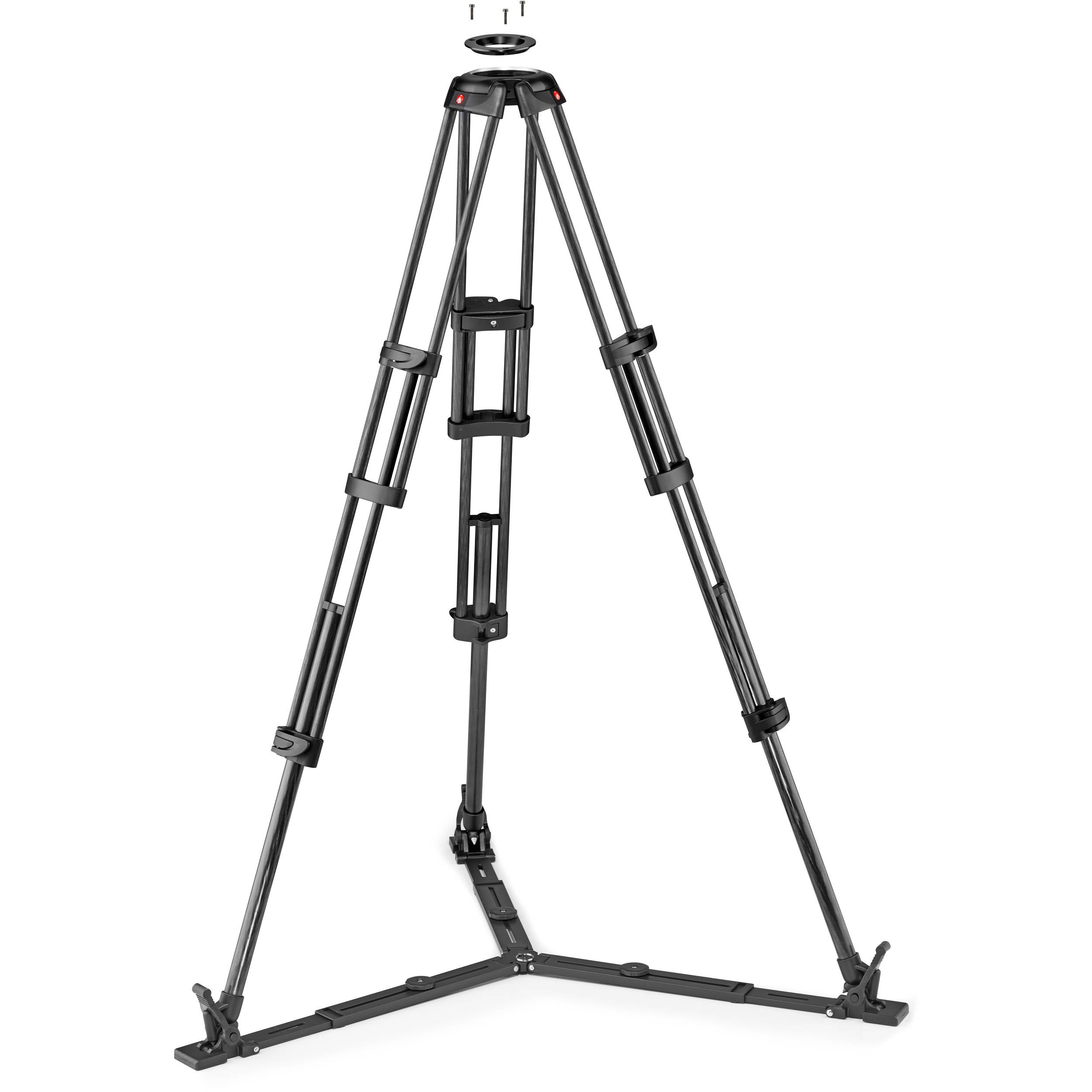

The MVTTWINGC carbon fiber twin leg with ground spreader video tripod is a professional-quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level videos or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl, and it comes with an aluminum adapter that converts the bowl into a 75mm.

The tripod has ground level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing you to use the tripod in combination with the middle spreader Manfrotto 537SPRB and rubber shoes 565, which are sold separately.

Leg locks are secure and reliable and twin spiked feet are provided for external use, e.g. in the grass. For maximum versatility, the tripod can be used with various dollies (114MV and 181B).

With its combination of robust construction and compatibility options, this tripod definitely has it all.

Supplied with its own padded carrying bag.

Specifications

Weight

5.57 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

Flat

Safety Payload Weight

12 kg

Counterbalance System

Variable Steps

Powered By (Batteries)

Lithium

Base Diameter

75 mm

Counterbalance Weight

2.2, 4.4, 6.5 kg

Bubble Spirit Level (No.)

1

Center Of Gravity

55 mm

Carrying Bag Included

yes

Center Column

no center column

Closed Length

85 cm

Color

Black

Easy Link

Yes (with antirotation)

Front Tilt

-70° / +90°

Head Type

Video/Fluid Head

Leg Type

Twin

Leg Lock Type

Flip Lock

Leg Sections

3

Material

Carbon Fiber

Maximum Height

175 cm

Maximum Working Temperature

60 °C

Min Height

49 cm

Minimum Working Temperature

-30 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

504PLONGR-1

Quick Release

Yes

Spreader

low level - variable arm length

Tilt Drag

continuously adjustable from 0 to max level

Accessory Compatibility

114MV; 181B; 565; 537SPRB; MVAPANBARM; MVAPANBARL
