Manfrotto 526 Fluid Video Head & Fast Twin Leg Alu

ManfrottoSKU: MVK526TWINFA

Retail Price:
Sale price$3,759.95

Product Setup Information

Sorry, no downloads available at this time.

Description

Fast Technology

  • 526 Pro Fluid Video Head securely supports up to 16kg
  • Tripod with 100mm bowl and compatible with 75mm adapter

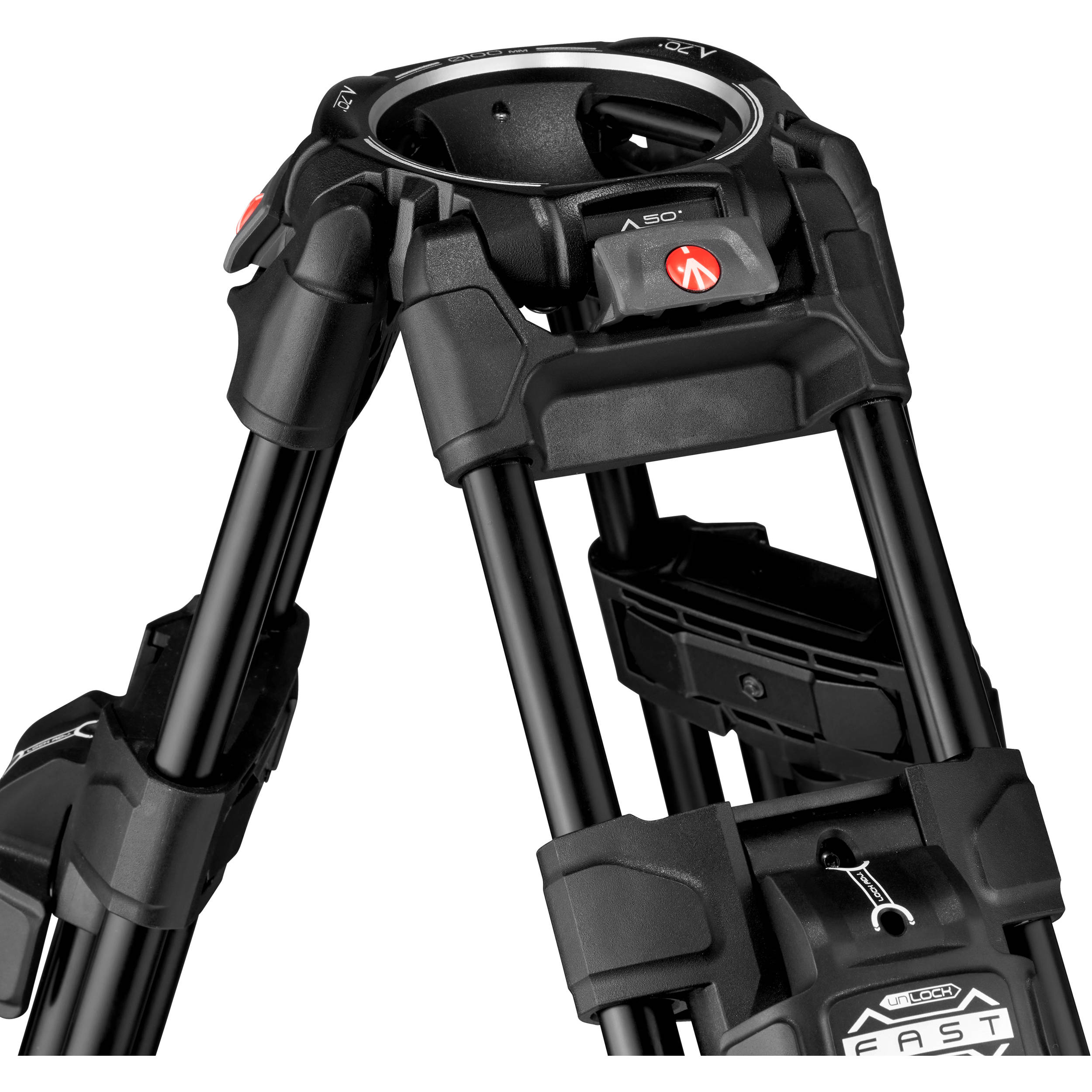

  • FAST Lever Lock & 3-angle selection mechanism for easy set up
  • Equipped with spiked feet and rubber overshoes for a firm grip
  • 2 in 1 spreader boosts tripod stability

Description

The video system includes the Manfrotto 526 Professional Fluid Video Head and the 645 Fast Twin Tripod in aluminum.

The 526 Professional Fluid Video Head directly addresses the high-end, heavy-duty video market by offering a feature-packed fluid video head with the ability to support up to 16 kg and counterbalance weight from 8 to 15 kg. It provides a fluid drag system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus an additional no-drag setting (number 0) for occasions such as snap-pans/tilts. It features a continuous counterbalance system for weights between 8 to 15 kg @ 125 mm C.O.G. The built-in 100mm half-ball adapts to a number of our tripods, allowing quick camera levelling with the aid of the levelling bubble.

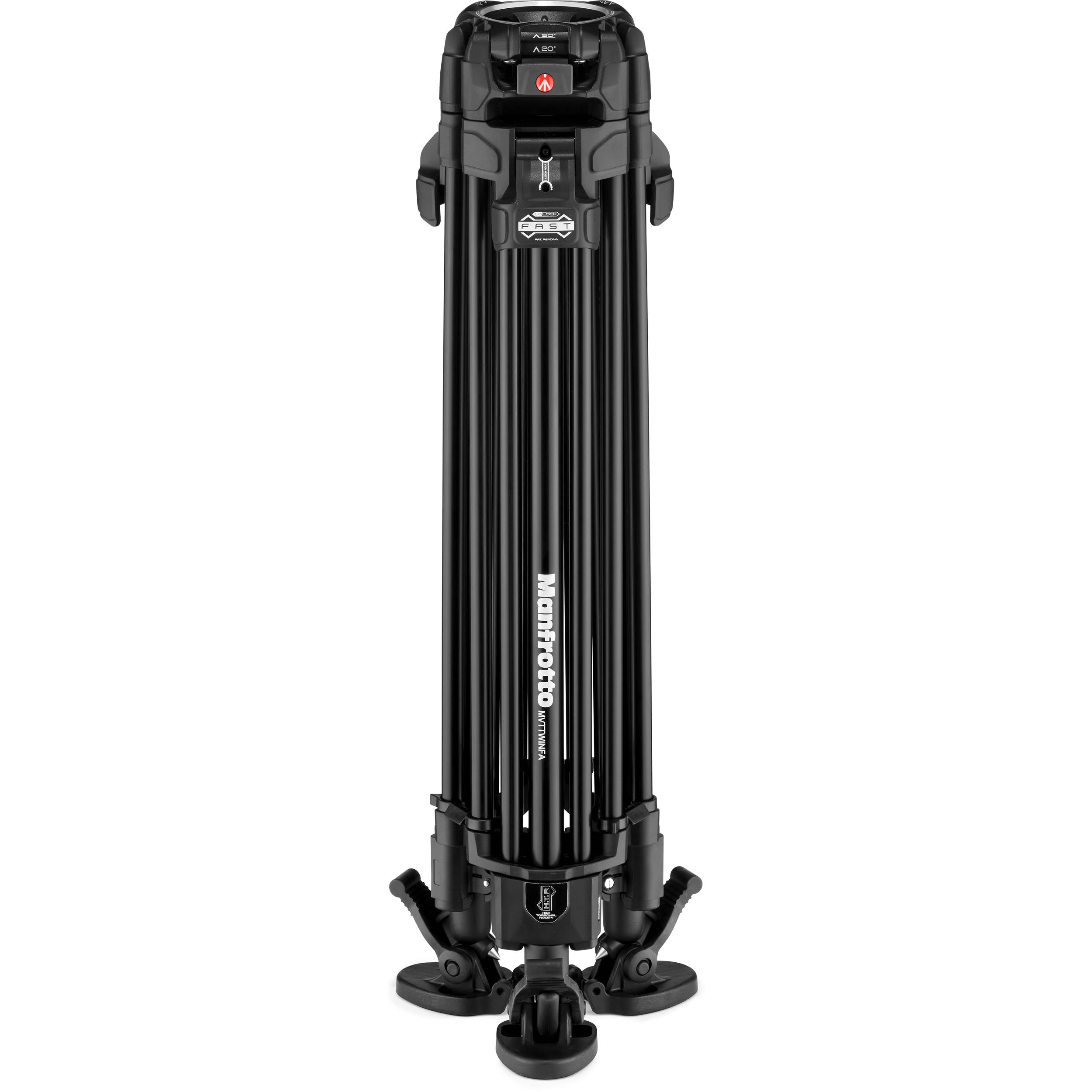

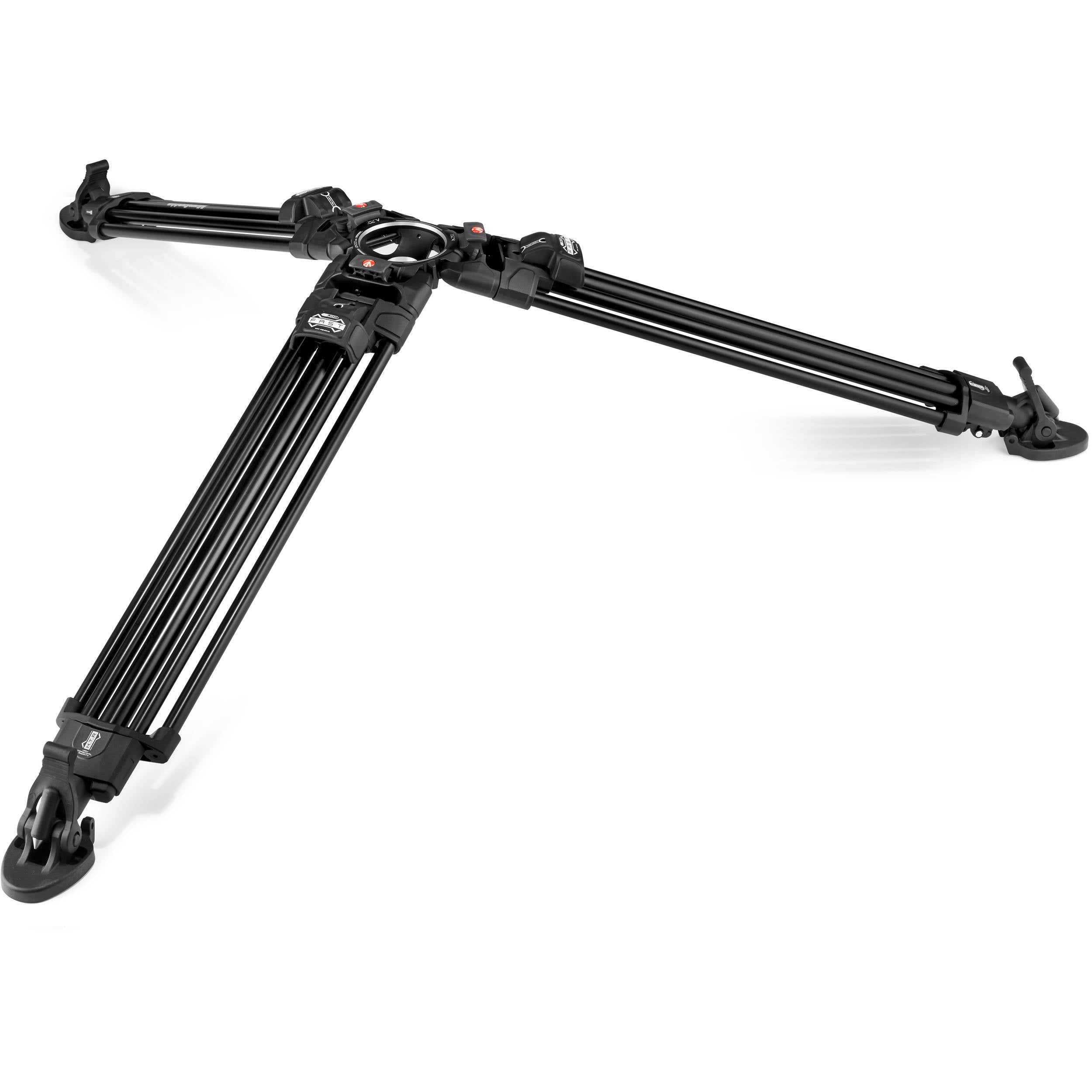

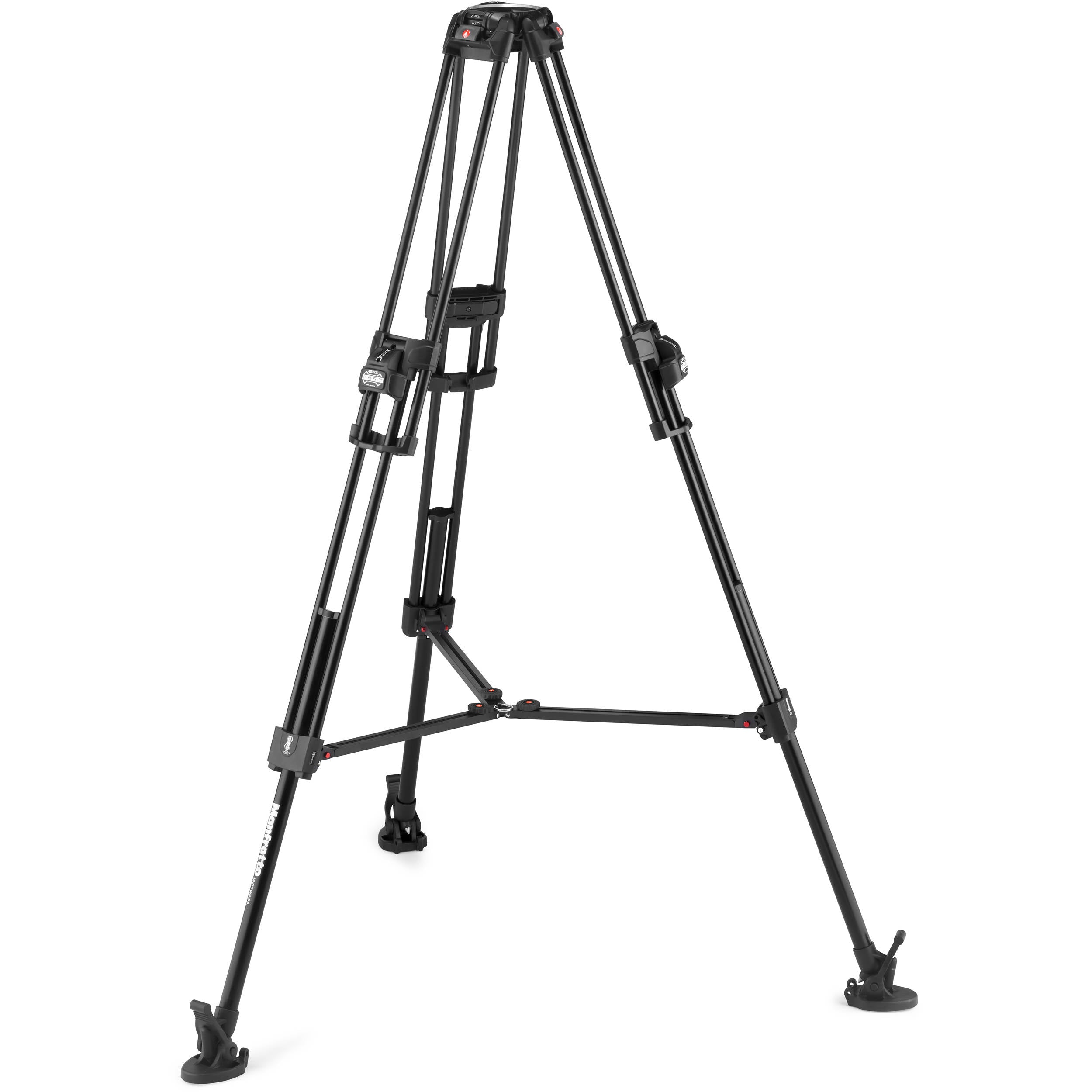

The 645 FTT Fast Twin Alu Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The tripod is provided with a 2 in 1 half ball: a standard 100mm bowl compatible with a 75mm adapter (available as accessory) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

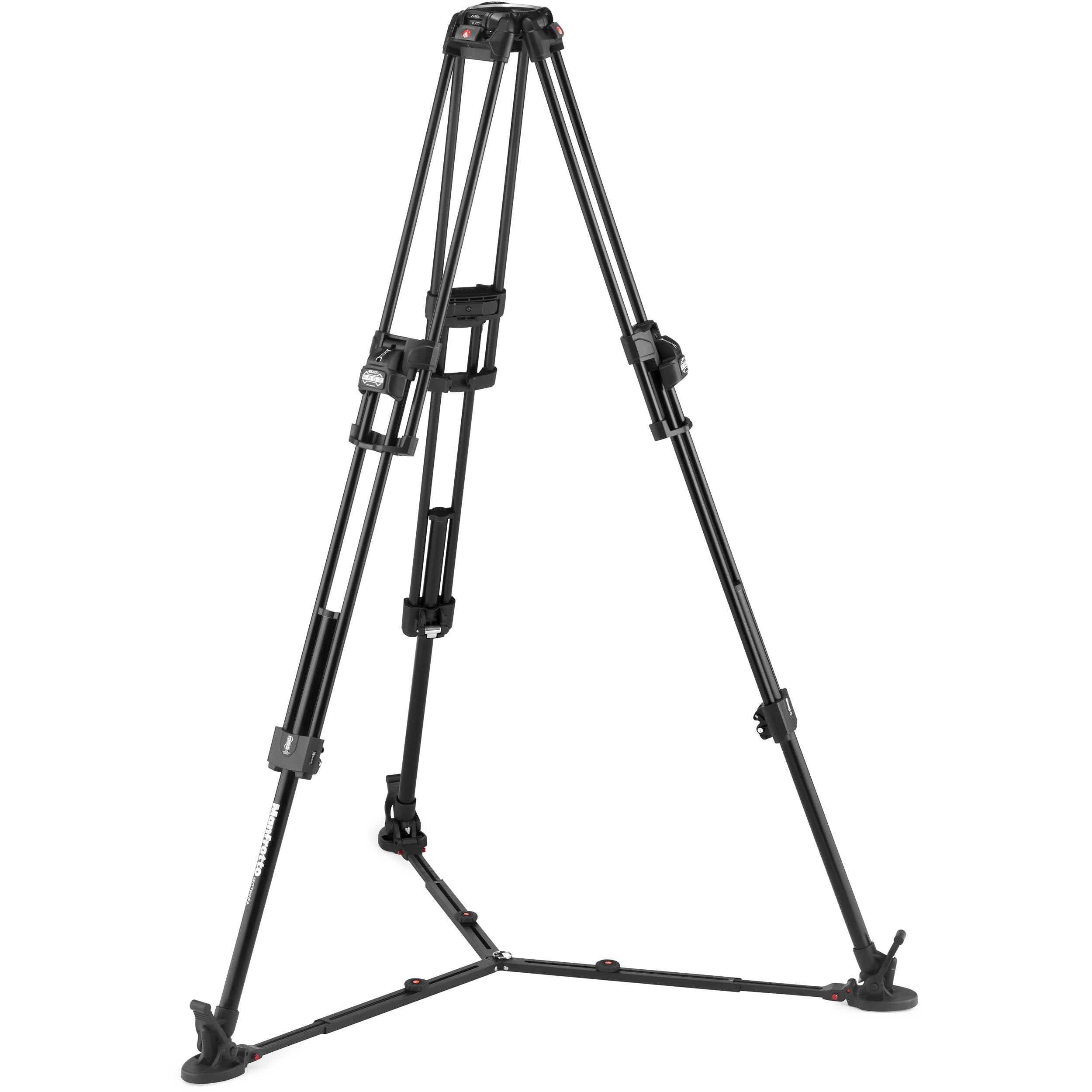

Moreover, it comes with the 2 in 1 ground and middle telescopic spreader and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Specifications

Weight

7.5 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

100 Ball

Safety Payload Weight

16 kg

Counterbalance System

Variable Continuous

Powered By (Batteries)

0

Counterbalance Weight

8 → 15 kg

Bubble Spirit Level (No.)

1

Center Of Gravity

125 mm

Carrying Bag Included

MB MBAG100PN

Center Column

no center column

Closed Length

88.5 cm

Color

Black

Easy Link

No

Front Tilt

-70° / +75°

Head Type

Video/Fluid Head

Leg Type

Twin

Leg Angles

20°, 50°, 70°

Leg Lock Type

Flip Lock

Leg Sections

3

Material

Aluminum

Maximum Height

171.5 cm

Maximum Working Temperature

60 °C

Min Height

42.5 cm

Minimum Working Temperature

-20 °C

Pan Bar Included

Yes

Pan Drag

0 plus 3 step

Panoramic Rotation

360 °

Plate Type

357PLV-1

Quick Release

Yes

Spreader

Low & Mid level - Variable arm leg

Tilt Drag

0 plus 3 step

Accessory Compatibility

MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 114MV; 181B
