Description
- Fluid video head with continuous counterbalance system (4-12 Kg)
- Variable continuous fluid pan & tilt drag system
- Flat base mount ideal for various applications
- Aluminium twin leg tripod
DESCRIPTION

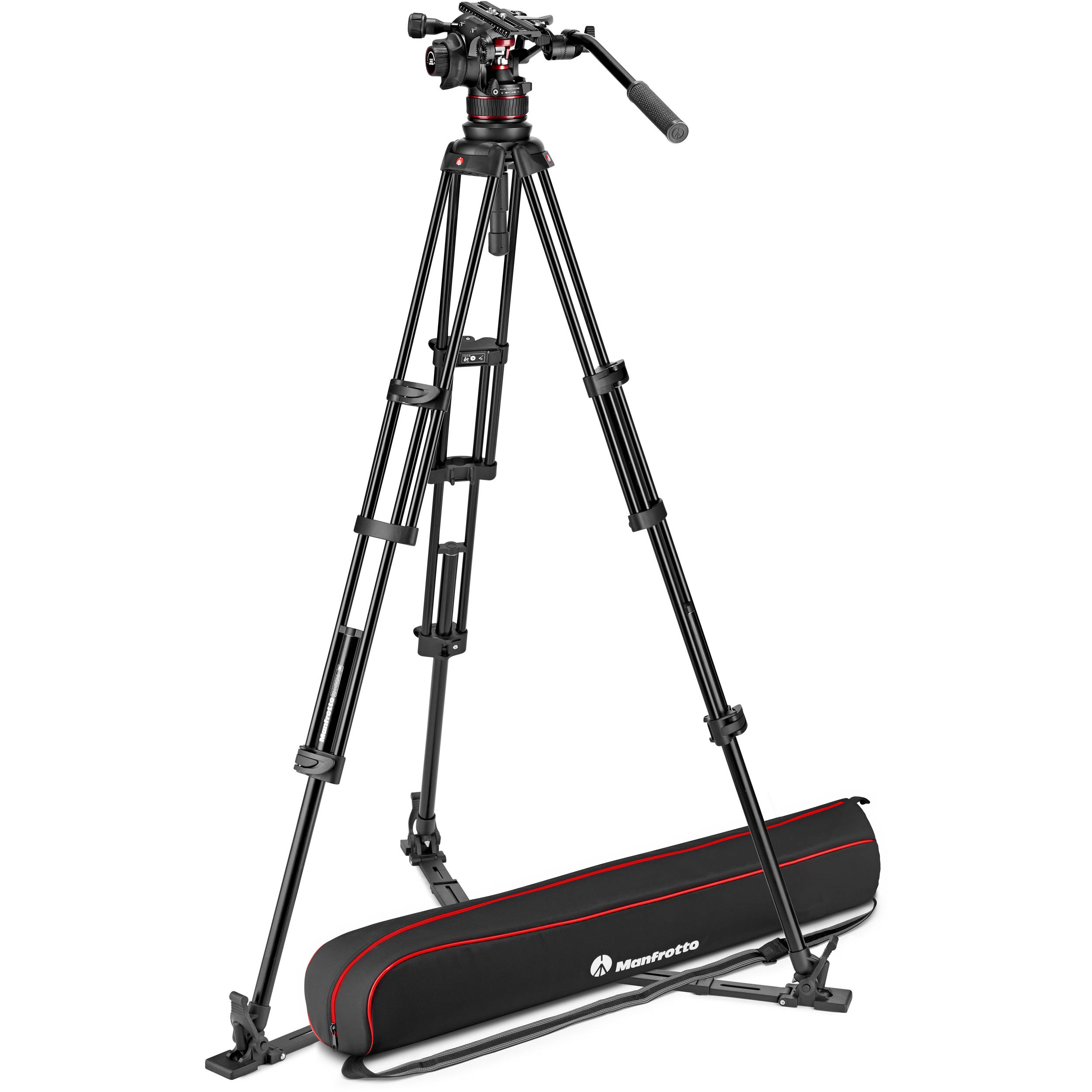

The video system includes the NITROTECH 612 fluid video head (flat base) and the MVTTWINGA aluminium twin leg with ground spreader tripod.

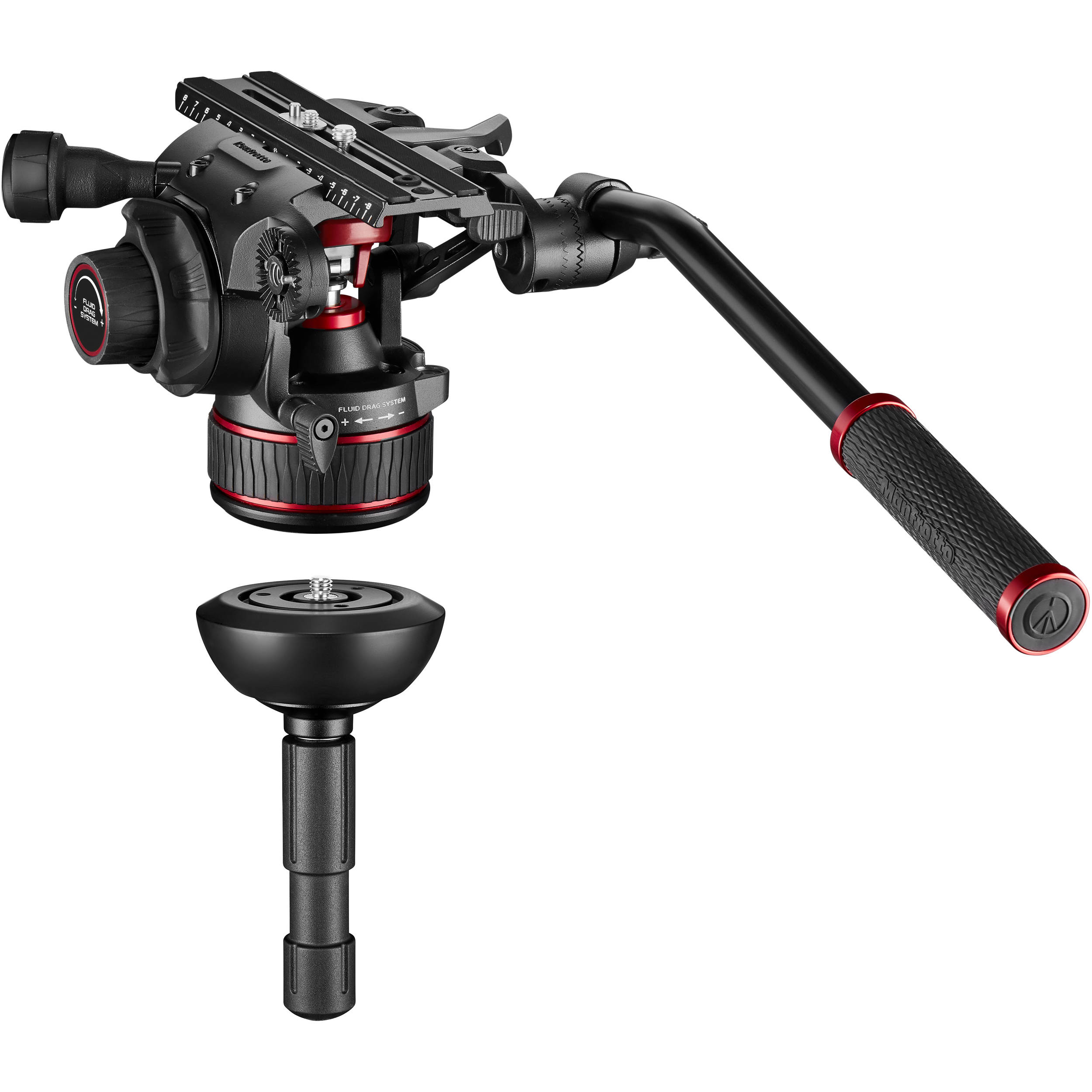

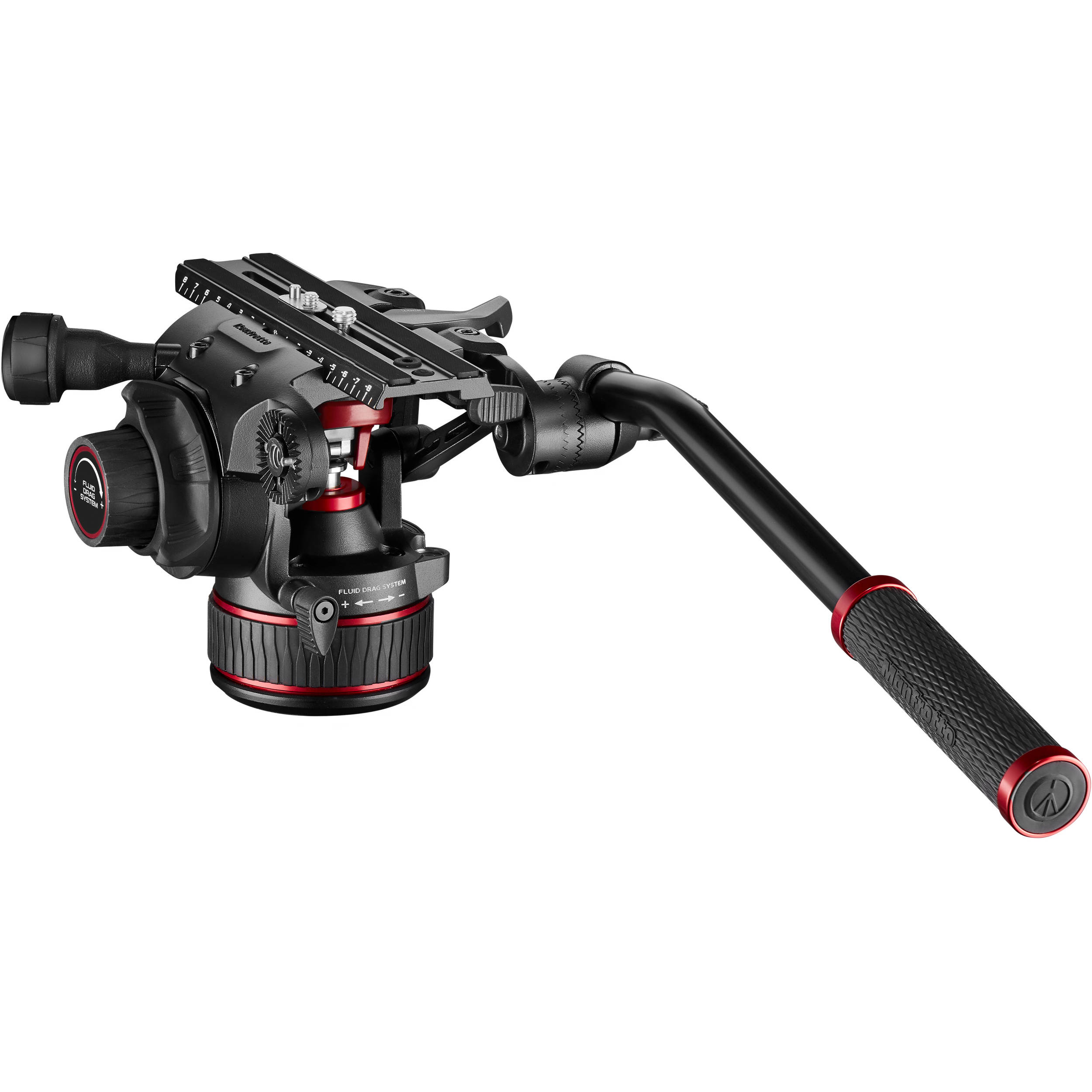

The NITROTECH 612 fluid video head features continuous counterbalance system that enables precise control of a camera and accessories from 4 up to 12 Kg at 55mm center of gravity. No matter the camera gear weight you are using you can have constant control despite the tilt degrees you will select. Camera operation will be much easier and effort free!
The variable continuous fluid drag system is powered by a brand new fluid technology that with Its formula sets a new level of performance in the Manfrotto range boosting the smoothest and judder-free pan and tilt movements.
The head also features a 3/8” Easy Link equipped with an anti-rotation systems both to accommodate Manfrotto arms equipped with an anti-rotation system or arms equipped with ARRI locating pins in order to enable an external monitor or other accessories to be fitted securely. The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment. The NITROTECH head has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane).
The head attaches to the tripod thanks to a dedicated 100mm half ball.

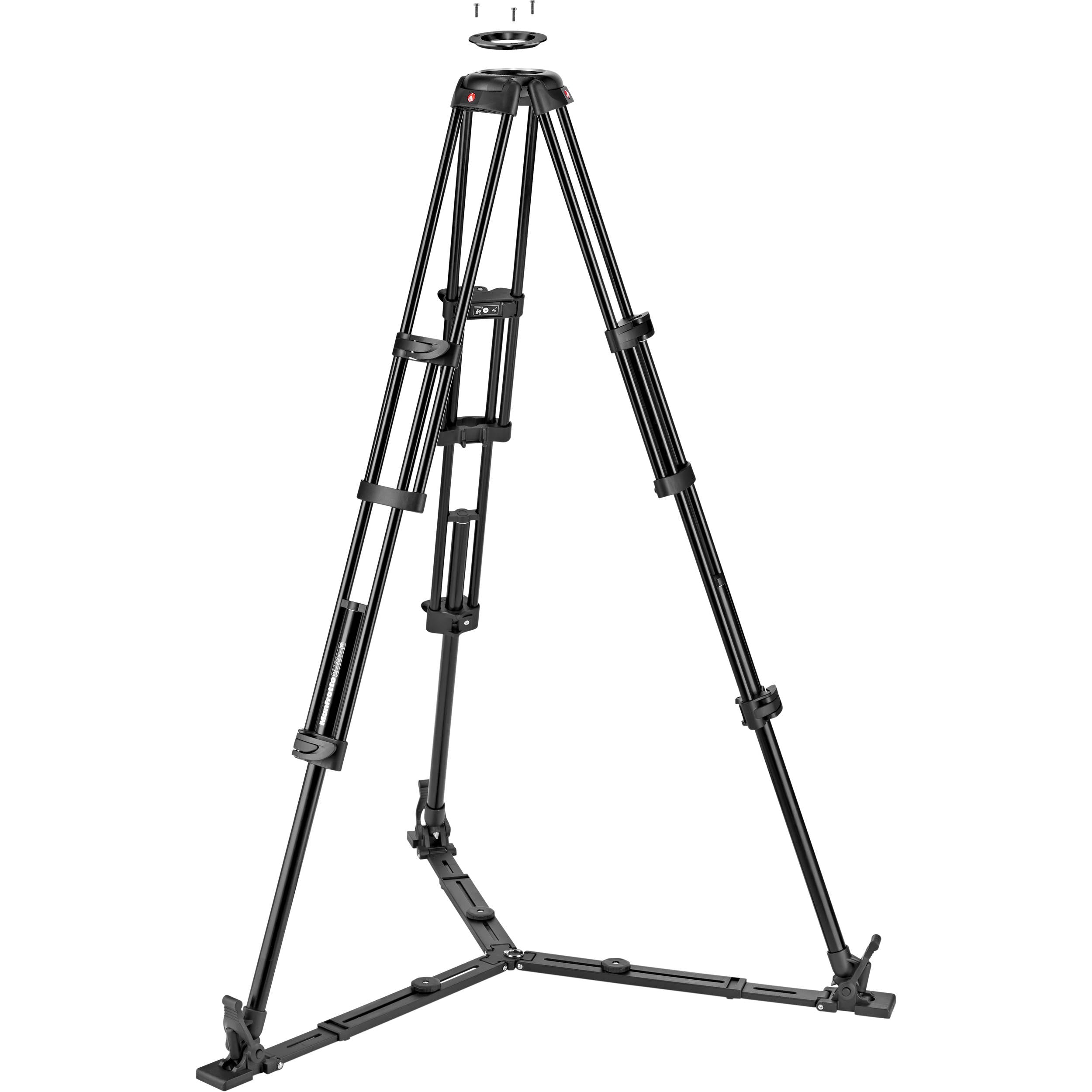

The MVTTWINGA aluminium twin leg with ground spreader video tripod is a professional quality tripod with a two-stage, rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level videos or films, then this is the must have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.
The tripod has ground level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the usage of the tripod also in combination with the middle spreader Manfrotto 537SPRB and rubber shoes 565 which are sold separately.
Leg locks are secure and reliable and twin spiked feet are provided for external use, e.g. in the grass. For maximum versatility, the tripod can be used with various dollies (114MV and 181B).
Supplied with its own padded carrying bag.
SPECIFICATIONS
|
Weight |
6290 g |
|
Collection/Series |
Nitrotech |
|
Material |
Aluminum |
|
Safety Payload Weight |
12 kg |
|
Min Height |
49 cm |
|
Maximum Height |
176 cm |
|
Head Type |
Video/Fluid Head |
|
Quick Release |
Yes |
|
Counterbalance System |
Variable Continuous |
|
Counterbalance Weight |
4 → 12 kg |
|
Center of gravity |
55 mm |
|
Spreader |
low level - variable arm length |
|
Closed Length |
85 cm |
|
Ball Flat |
Flat |
|
Accessory Compatibility |
114MV; 181B; 565; 537SPRB; MVAPANBARM; MVAPANBARL |
|
Top Attachment |
1/4″ screw, 3/8″ screw |
|
Base Diameter |
75 mm |
|
Powered by (batteries) |
Lithium |
|
Bubble Spirit Level (No.) |
1 |
|
Carrying Bag Included |
yes |
|
Center Column |
no center column |
|
Color |
Black |
|
Easy Link |
Yes (with antirotation) |
|
Front Tilt |
-70° / +90° |
|
Leg Type |
Twin |
|
Leg Lock Type |
Flip Lock |
|
Maximum Working Temperature |
50 |
|
Minimum Working Temperature |
-20 |
|
Pan Bar Included |
Yes |
|
Pan Drag |
continuously adjustable from 0 to max level |
|
Panoramic Rotation |
360 |
|
Plate Type |
504PLONGRL |
|
Tilt Drag |
continuously adjustable from 0 to max level |
