Manfrotto Nitrotech 612 Fluid Video Head & Fast Si

ManfrottoSKU: MVK612SNGFC

Retail Price:
Sale price$2,199.95

Product Setup Information

Sorry, no downloads available at this time.

Description

MVK612SNGFC

Fast Technology

  • Continuous counterbalance from 4 to 12 kgs
  • Maximum versatility thanks to the flat base
  • FAST Twisting Lock: secure locking with a single gesture
  • 75mm half ball and compatible with a 60mm half ball adapter
  • Compatible with Manfrotto anti rotation and Arri anti-twist pins

Description

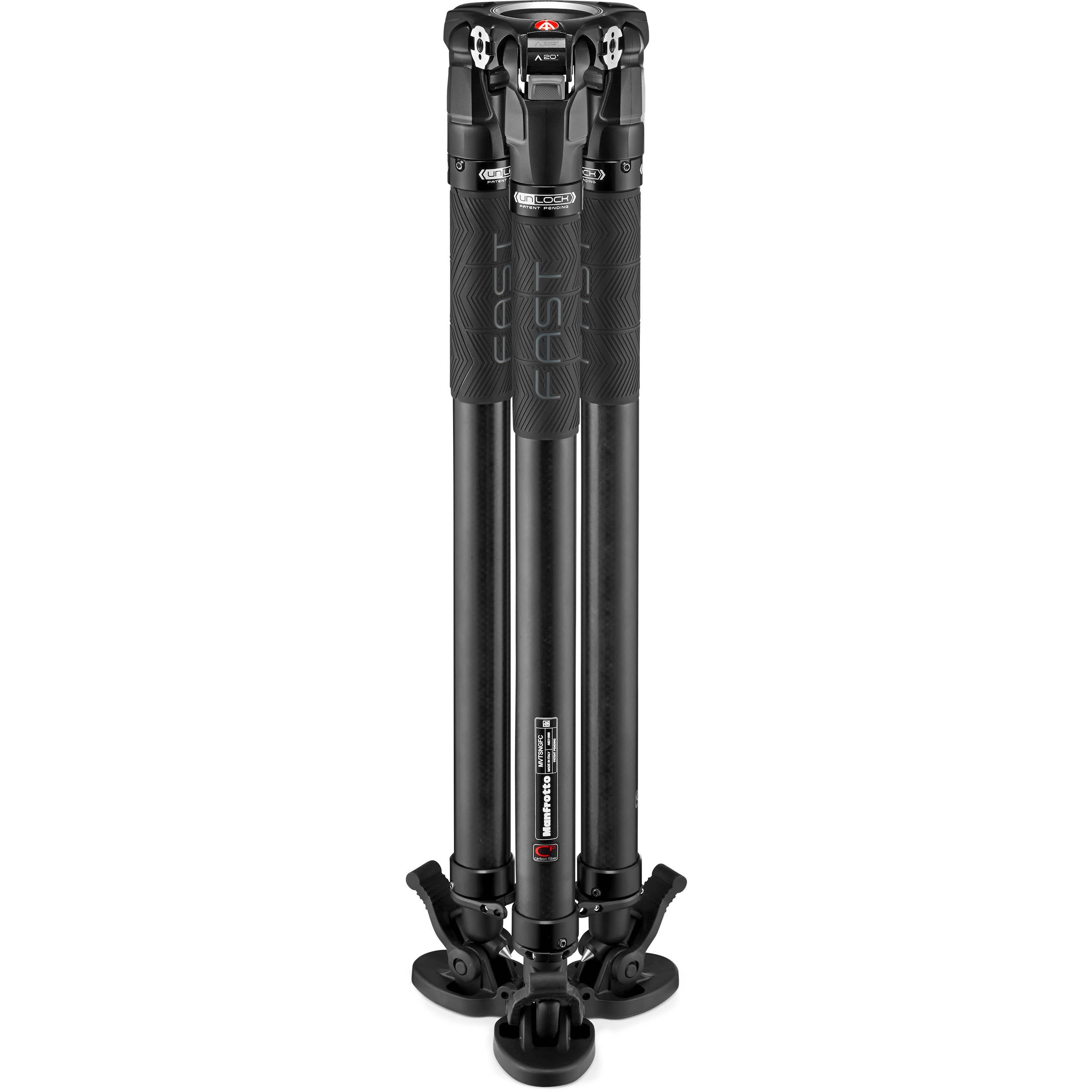

The video system includes the Manfrotto NITROTECH 612 Fluid Video Head and the 635 Fast Single Tripod in carbon fibre.

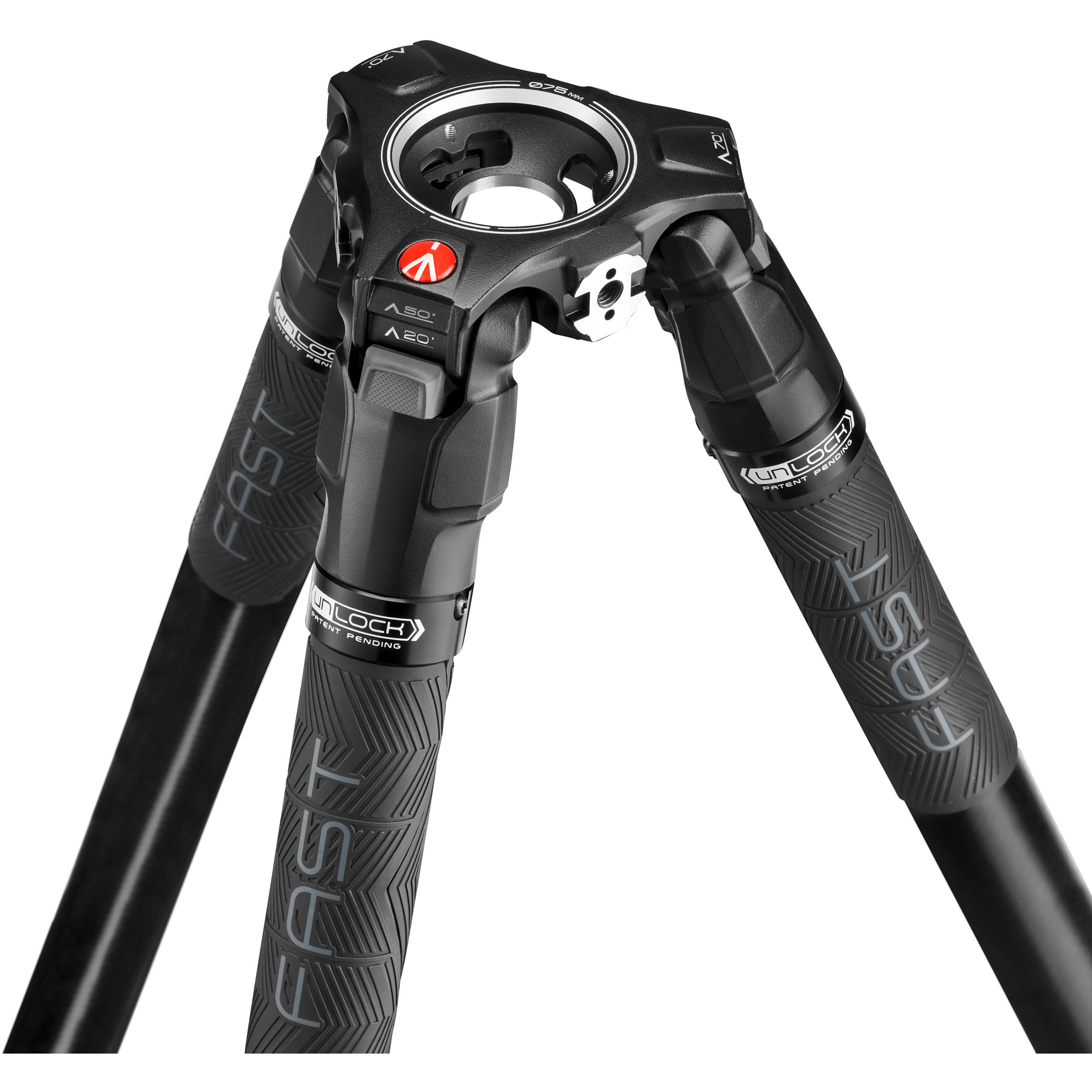

Manfrotto’s NITROTECH 612 fluid video head is provided with the innovative Nitrogen piston mechanism which allows continuous counterbalance. NITROTECH 612 ensures precise camera control with accessories from 4 to 12kg (8.8-26.4 lbs). The fluidity function on both pan and tilt guarantee extremely smooth movement. The camera can be attached easily, safely and quickly to the 180mm sliding plate and secured to the head with a side-lock mechanism. External monitors and accessories can be securely mounted on the head thanks to a 3/8” Easy Link equipped with an anti-rotation mechanism. The NITROTECH 612 has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane). Manfrotto 635 Fast Single Tripod Carbon Fiber with Synchronized closure mechanisms between the upper and lower locks, has single tubing and features the FAST Twisting Lock, for secure locking with a single, easy gesture. The 635 FST tripod features a 75mm half ball and is compatible with a 60-mm half ball adapter (sold separately). In addition, it features Easy Link friction arm attachments compatible with Manfrotto anti rotation and Arri anti-twist pins. This enables users to attach an external monitor or any other accessory they may require without the risk of the arm rotating while in use.

The 635 Fast Single Carbon Tripod was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provide maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

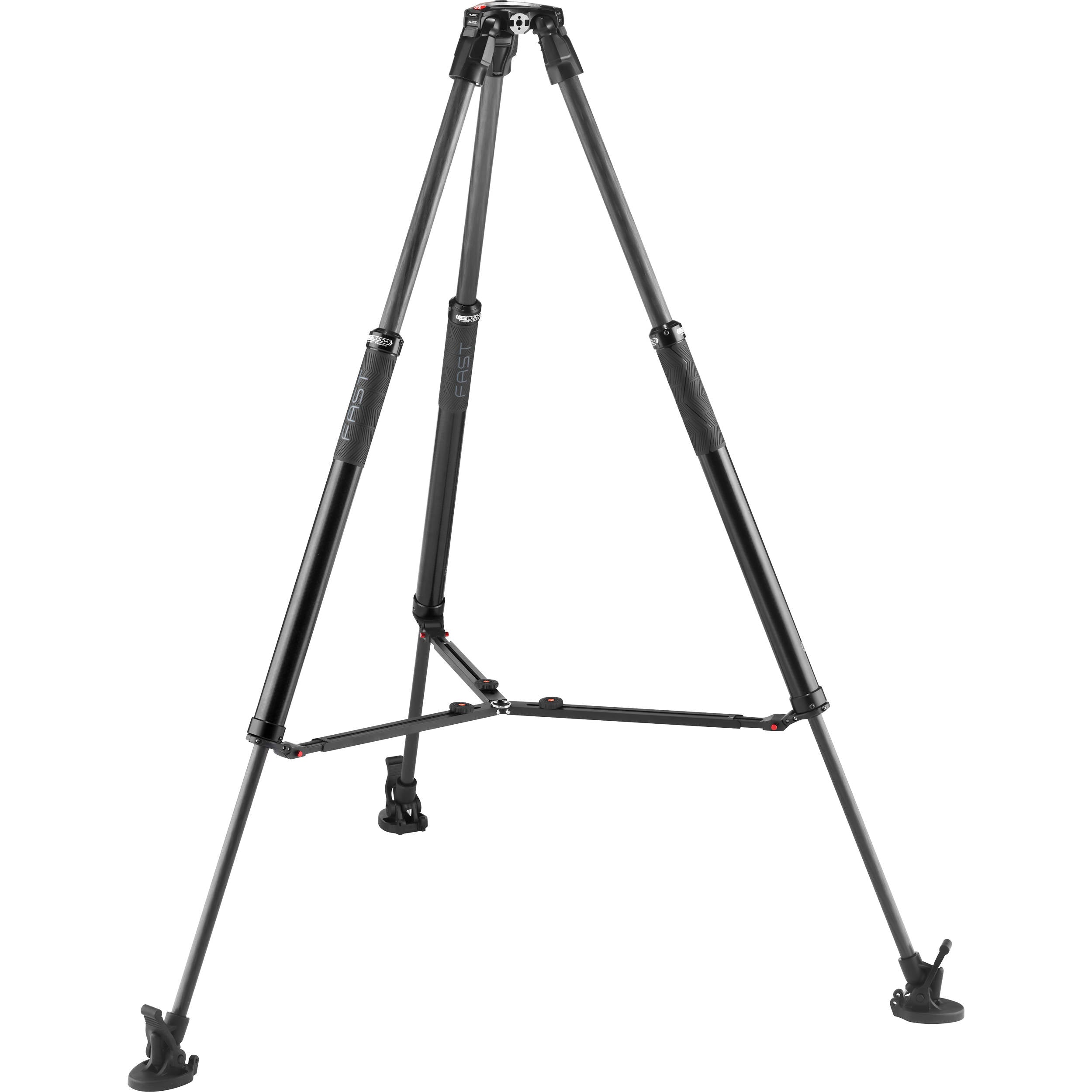

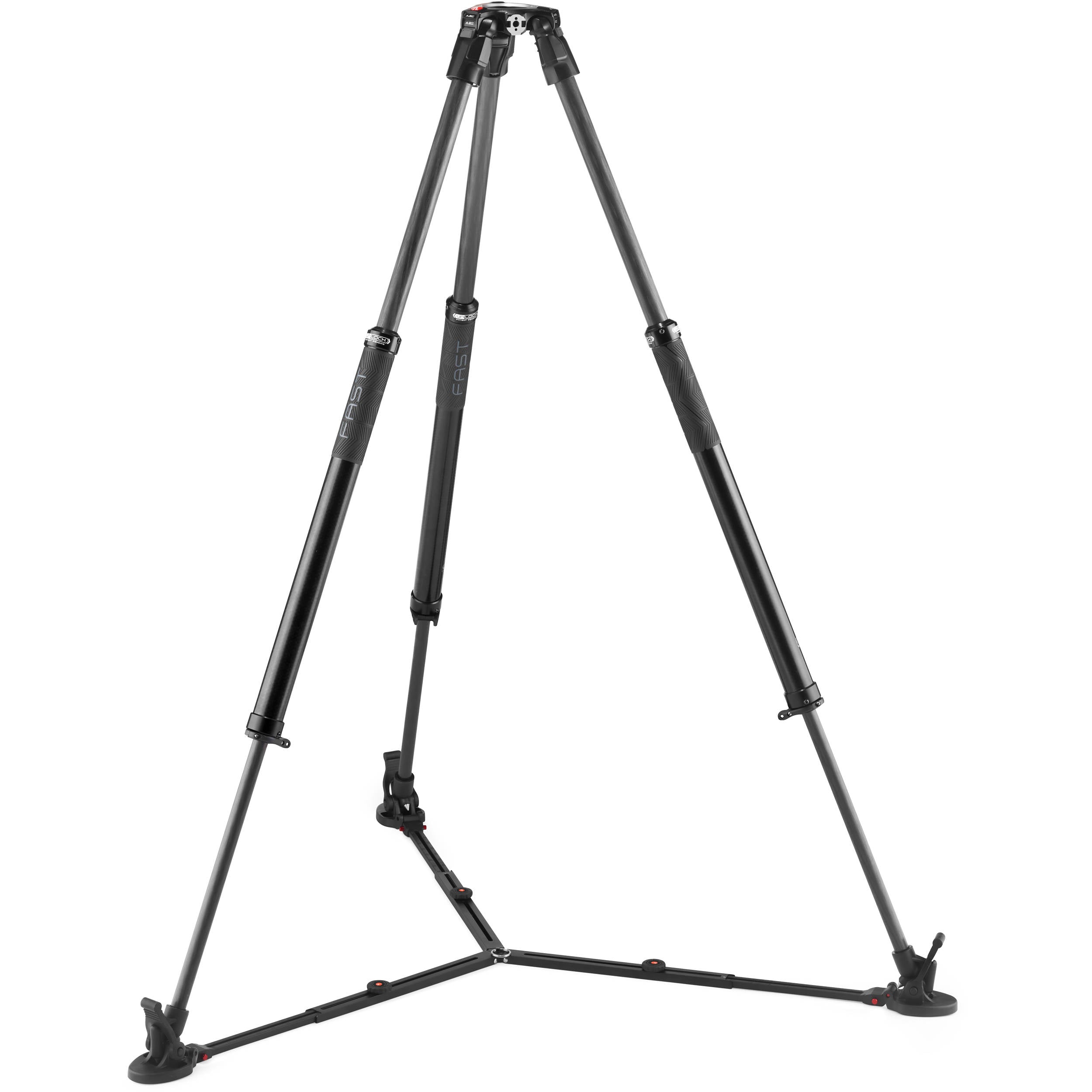

Moreover, it is compatible with the 2 in 1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Specifications

Weight

5.6 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

Flat

Safety Payload Weight

12 kg

Counterbalance System

Variable Continuous

Powered By (Batteries)

Lithium

Counterbalance Weight

4 → 12 kg

Base Diameter

75 mm

Bubble Spirit Level (No.)

1

Center Of Gravity

55 mm

Carrying Bag Included

yes

Center Column

no centre column

Certifications

WEEE; RoHS

Closed Length

89.5 cm

Colour

Black

Easy Link

Yes (with antirotation)

Front Tilt

-70° / +90°

Head Type

Video/Fluid Head

Leg Type

Single

Leg Angles

20°, 50°, 70°

Leg Lock Type

Twist Lock

Leg Sections

3

Legs Tube Diameter

29.2, 24.8, 20.4 mm

Material

Aluminium, Carbon Fiber

Maximum Height

171 cm

Maximum Working Temperature

50 °C

Min Height

44.5 cm

Minimum Working Temperature

-20 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

504PLONGR-1

Quick Release

Yes

Tilt Drag

continuously adjustable from 0 to max level

Accessory Compatibility

165, 165MV, MVASPR2N1, 114, 114MV, 181B, 127, 127VS
