Description

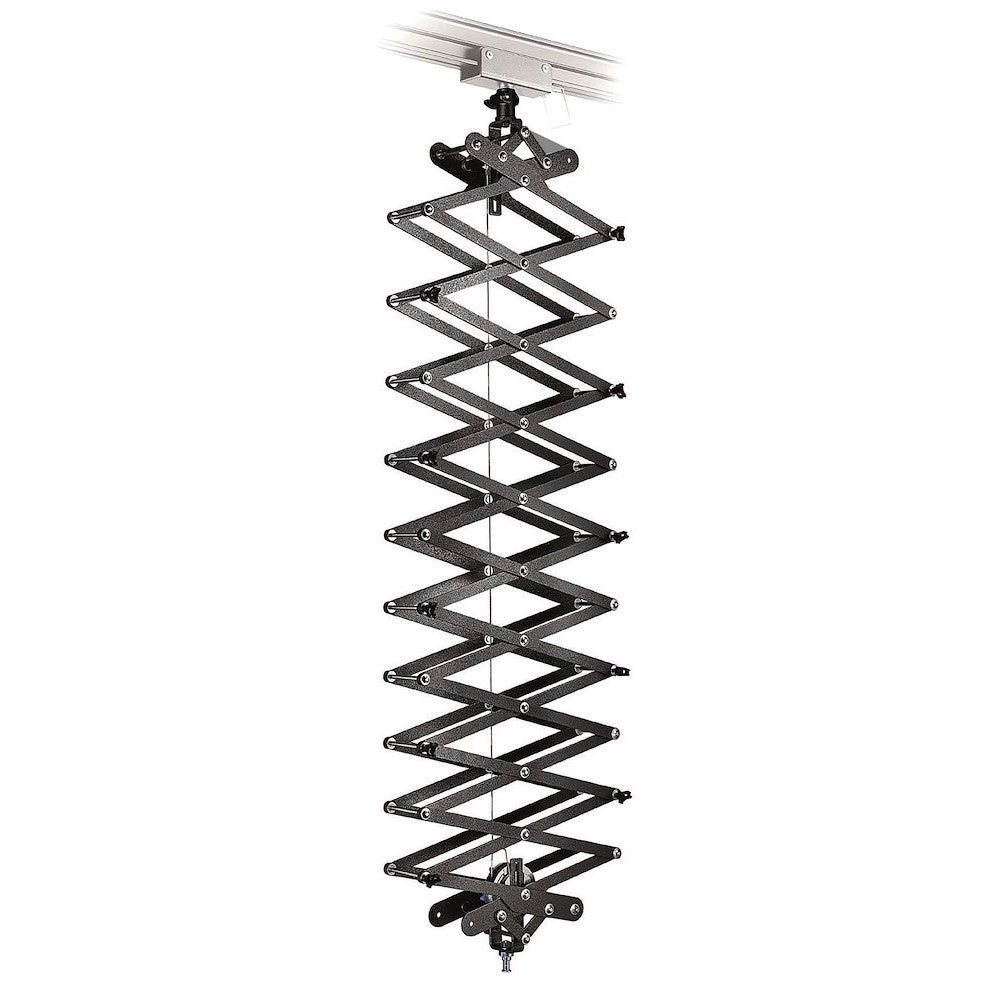

- The pantograph is made of aluminum (P-Al MgSi UNI 3569) and manufactured according to DIN 15560-46
- The attachments at both ends of the pantograph are 16mm male on the bottom and female on the top
- The load is supported by a steel cable of 2mm
- diameter (safety factor 12)
- Loads up to 12Kg can be suspended using only the patented friction device while loads up to a maximum of 18kg require the use of the optional springs
- The pantograph can be regulated to keep suspended loads from 1 to 18kg perfectly balanced
- By turning the colored notched ring you can adjust the pantograph’s friction; this will ensure that the load remains stable when set in position but that it will move smoothly up and down when necessary
