Description

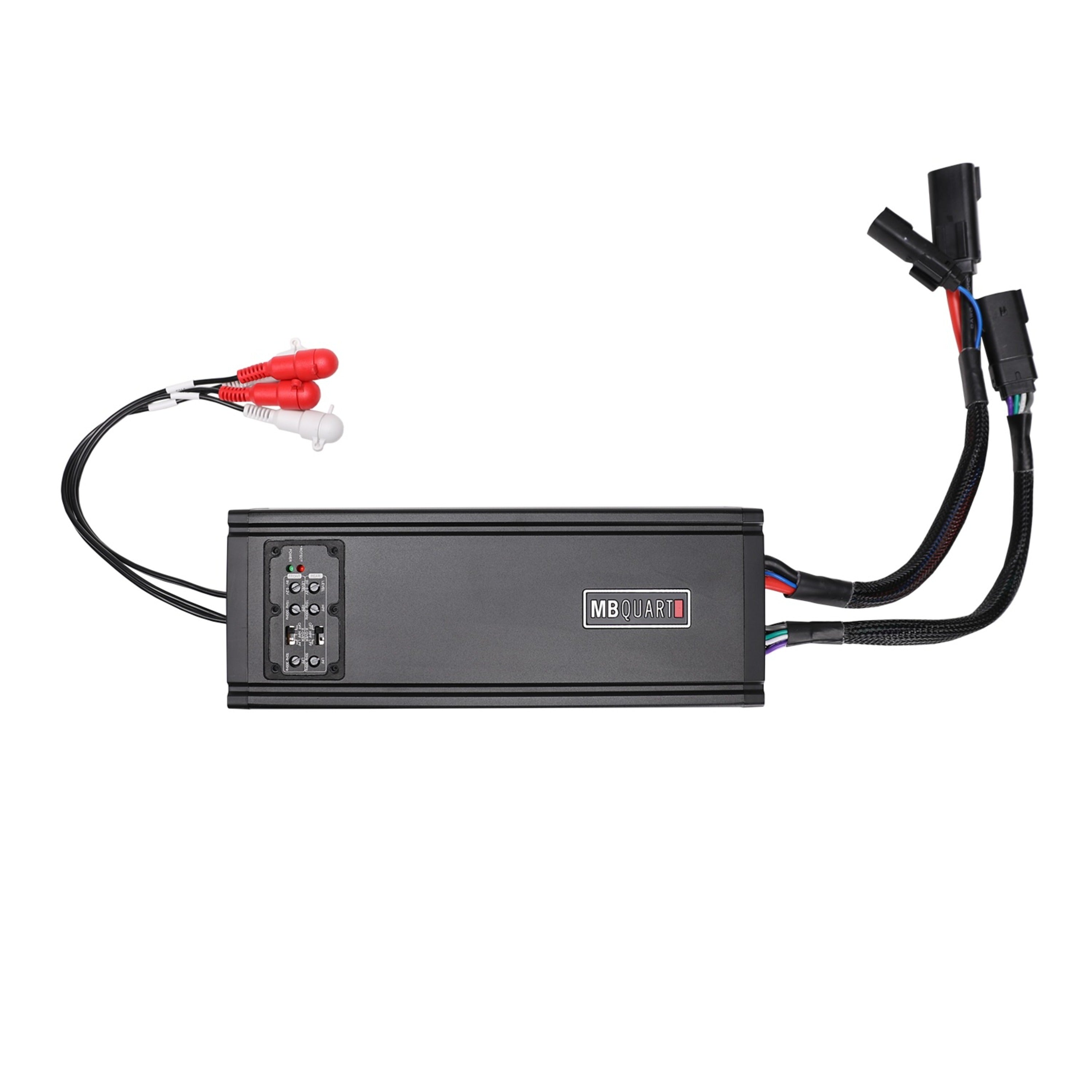

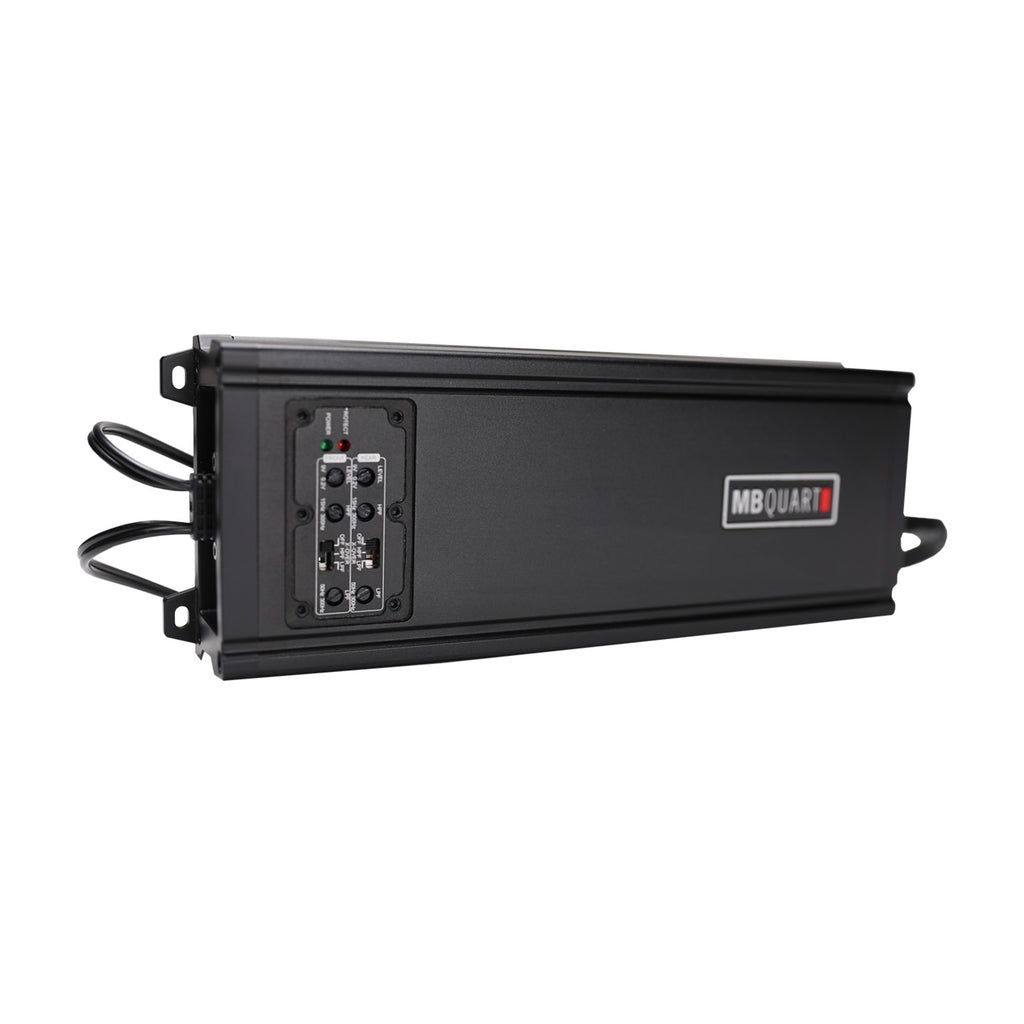

MB Quart DA2-520.4D Discus 520 Watt Waterproof Four Channel Amplifier.
| Compatible Vehicle Fitment |
Universal |
|---|---|
| Marine Grade Protection / IPX Rating |
Meets or exceeds IP67 standards for waterproof and dustproof. |
| Low Noise Preamplifier Circuit |
Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
| RCA Inputs |
Prewired to PC Board for additional protection. Leave connector cover closed on RCA jacks that are not used. |
| Crossover Type |
Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer |
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. |
| Class / Topology |
Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a compact heatsink. |
| Output Device Technology |
MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. |
| Heat Sink |
Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled. |
| Power Supply |
Robust premium grade MOSFET Pulse Width Modulation power supply allows the amplifier to produce efficient power without taxing the electrical system. |
| Output Connections |

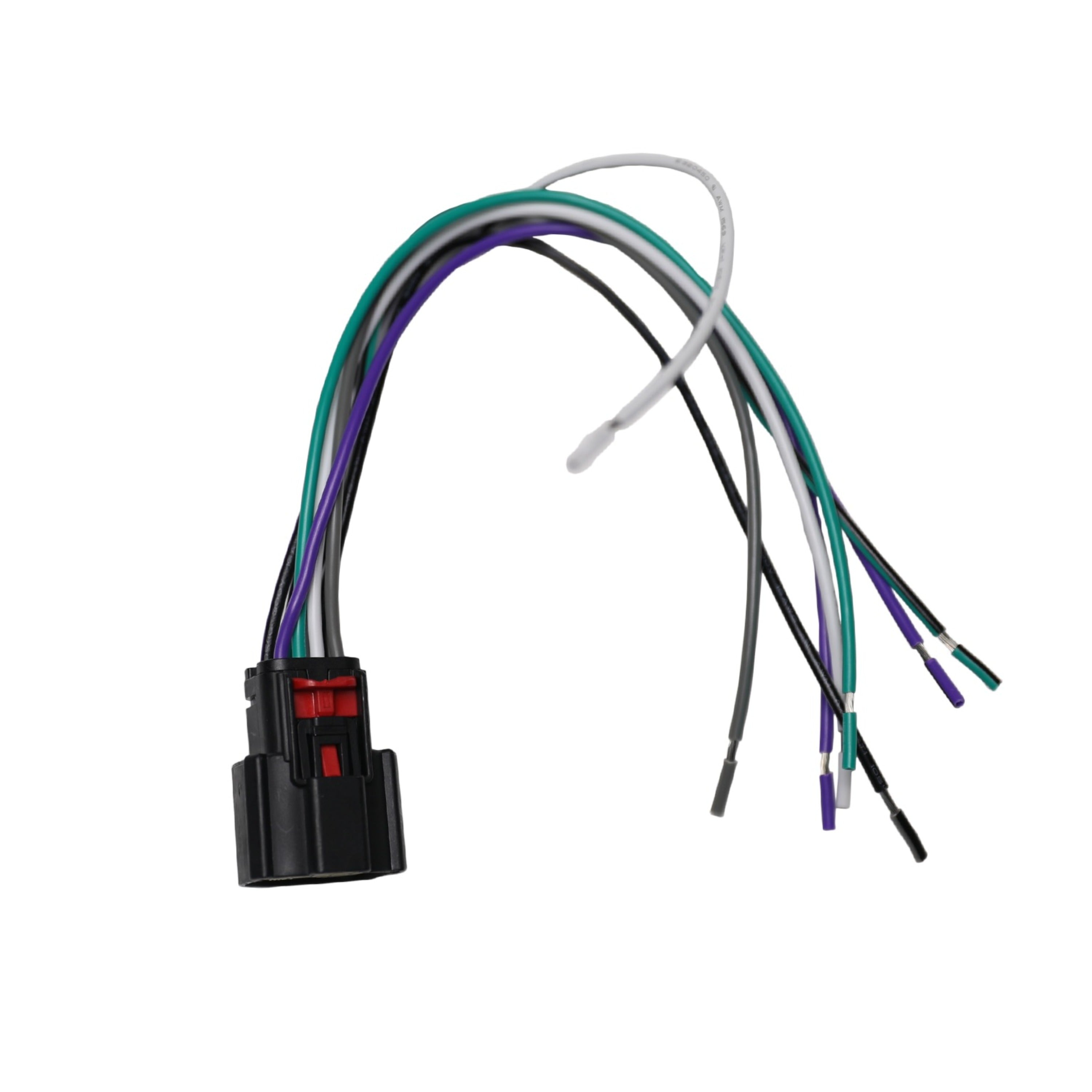

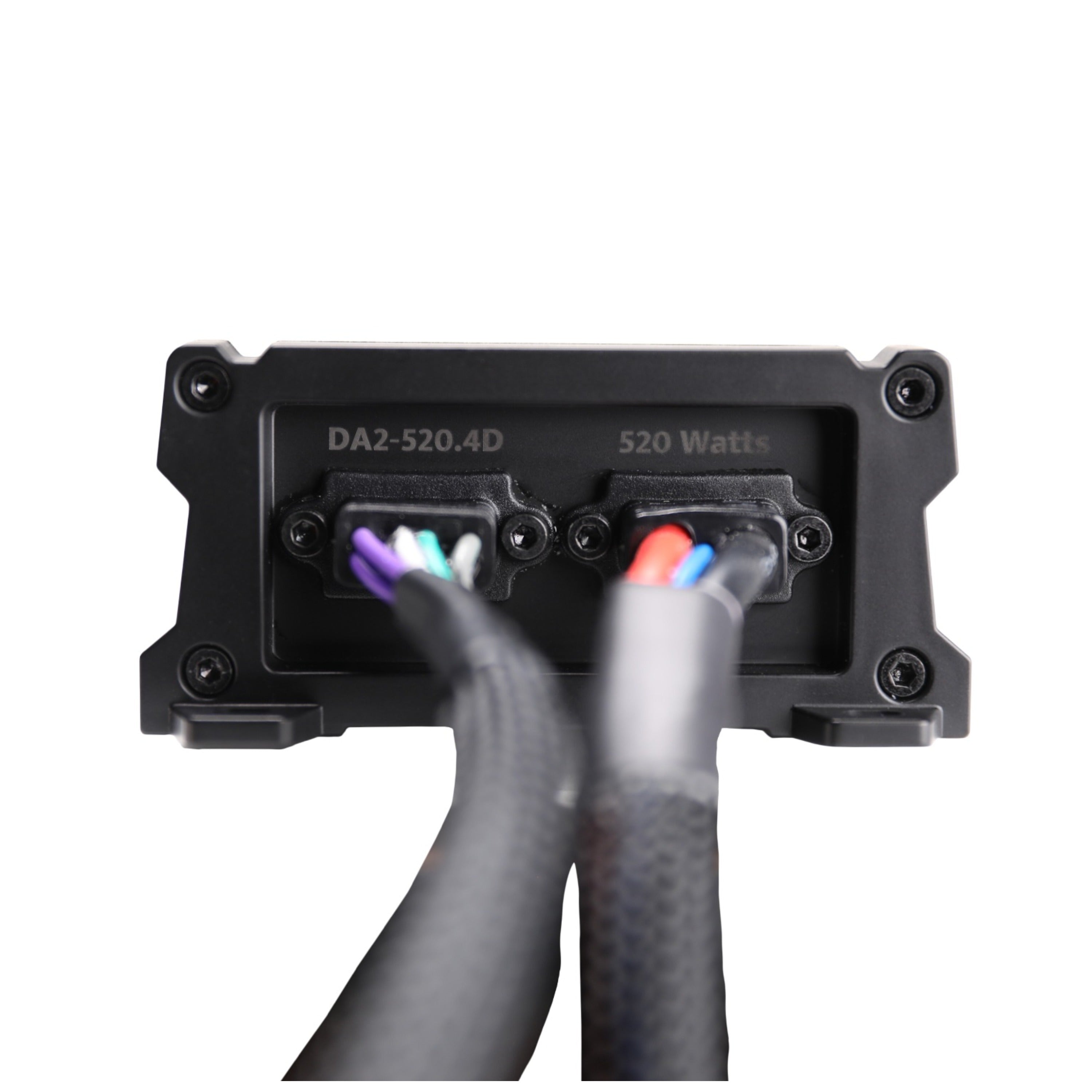

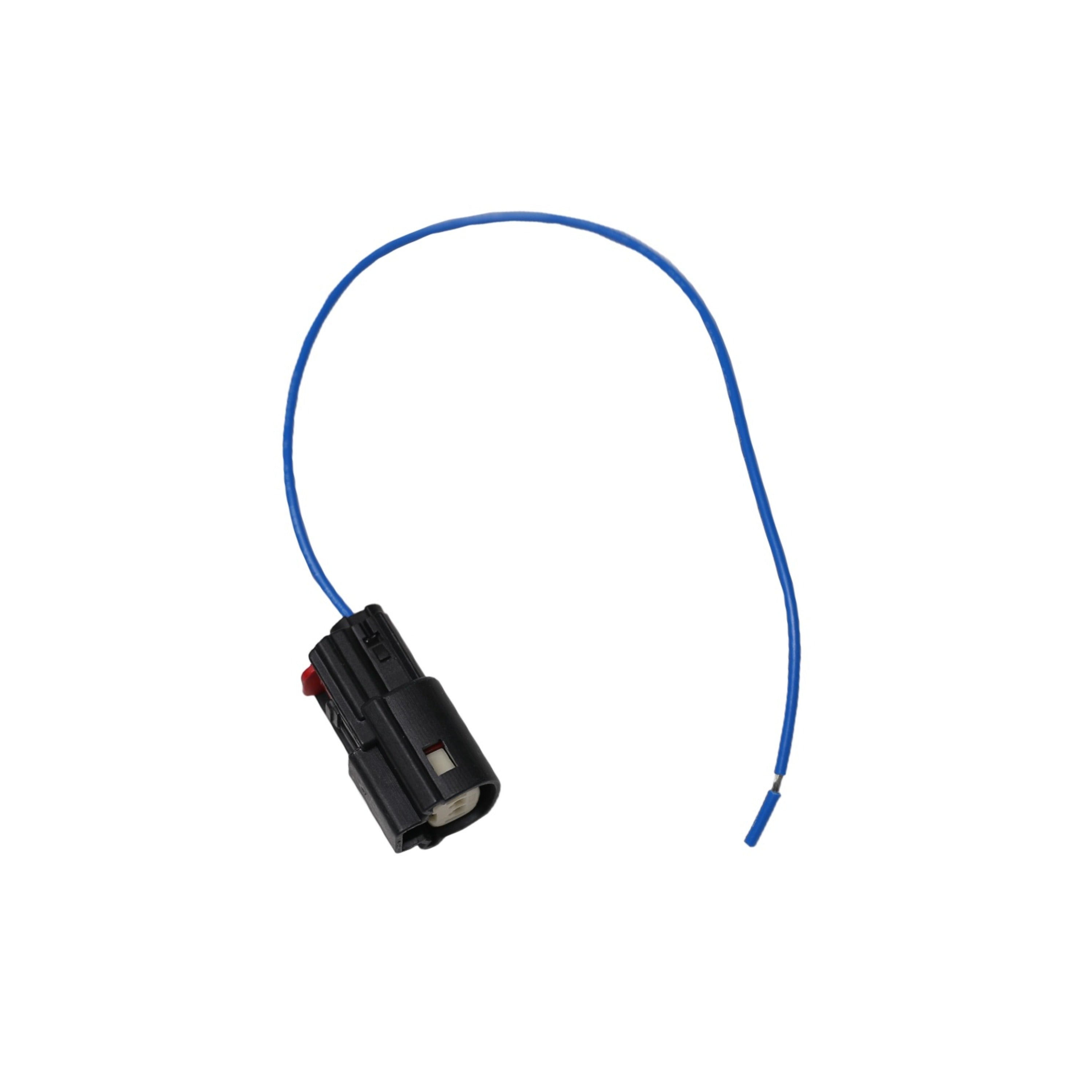

Waterproof connectors designed to provide a secure moisture-resistant connection, ensuring reliable signal transmission and preventing corrosion or damage in environments exposed to water or humidity. |
| Connection Type |
Waterproof connectors designed to provide a secure moisture-resistant connection, ensuring reliable signal transmission and preventing corrosion or damage in environments exposed to water or humidity. |
| LED System Protection Circuitry Diagnostics |
Monitor overload and speaker short protection with illuminated indicators on the amplifier top mounted control panel. |
| Additional Features |

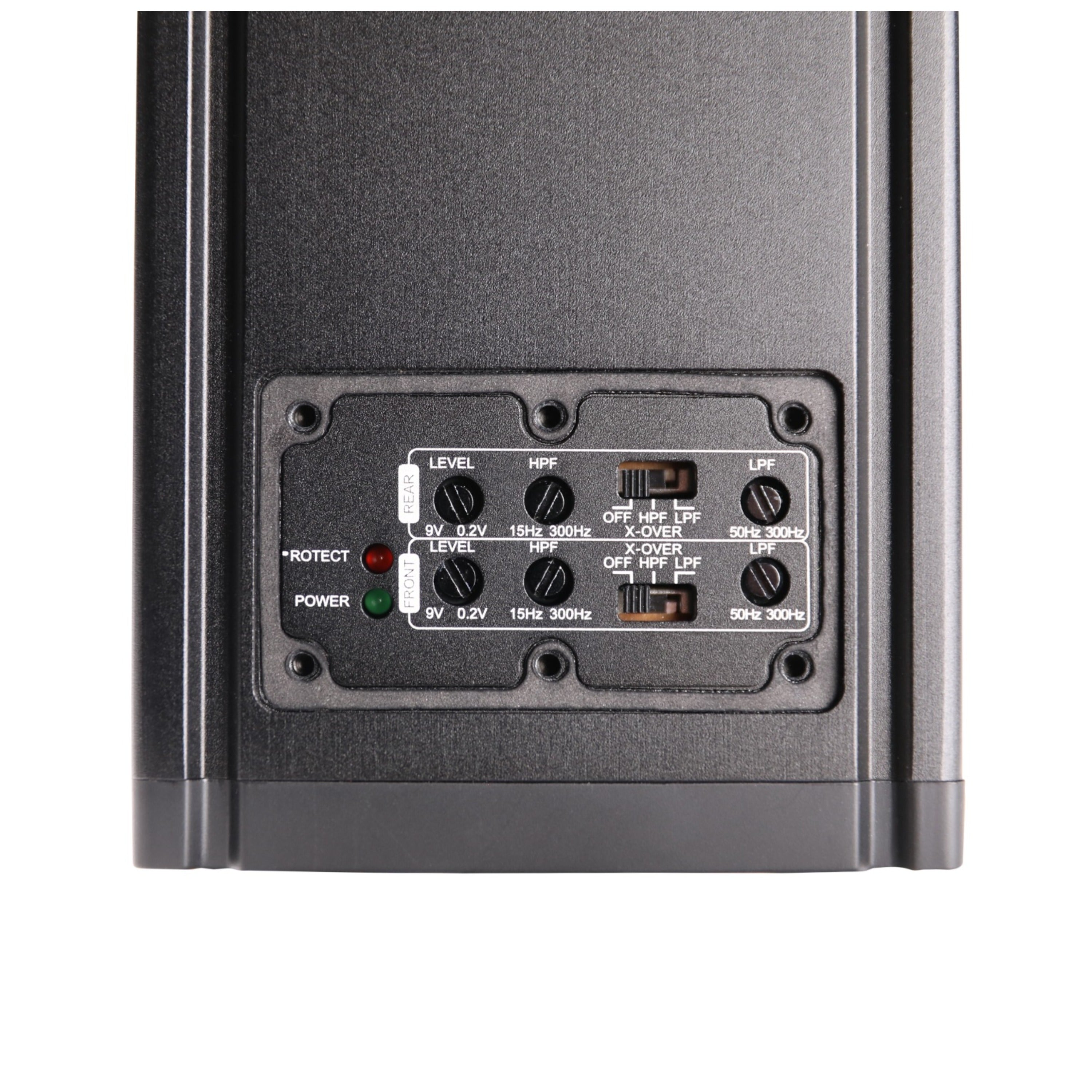

Top Mounted Controls: Sound contouring with on-board crossover, bass boost, and adjustable input sensitivity are all concealed behind a sealed, top mounted cover. |
Details & Specs
| Type |
Amplifier |
|---|---|
| Brand |
MB Quart |
| Series |
Discus |
| Category |
Marine, Mobile, Powersports |
| Condition |
New |
| Color |
Black |
| Warranty |
1 Year |
| IPX Rating |
IP67 |
| Compatible Vehicles |
Universal |
| Amp Class |
Class D |
| Amp Total Channels |
4 |
| Amp Max Power (watts) |
520 |
| Amp Power @ 2 Ohms (ch x watts) |
4 X 130 |
| Amp Power @ 4 Ohms (ch x watts) |
4 X 90 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) |
2 x 260 |
| Amp Crossover |
Electronic |
| Amp Variable High Pass Crossover 12dB per Octave |
Switched OFF/HPF/LPF 15Hz-300Hz |
| Amp Variable Low Pass Crossover 12dB per Octave |
Switched OFF/HPF/LPF 50Hz-300Hz |
| Amp Variable Voltage |
0.2V-9V |
| Amp Frequency Response |
15Hz-300Hz |
| Amp Power Terminal 12v/GND |
4 AWG |
| Amp Speaker Terminal Wire Gauge |
12 AWG |
| Amp Fusing |
90A External |
