Description

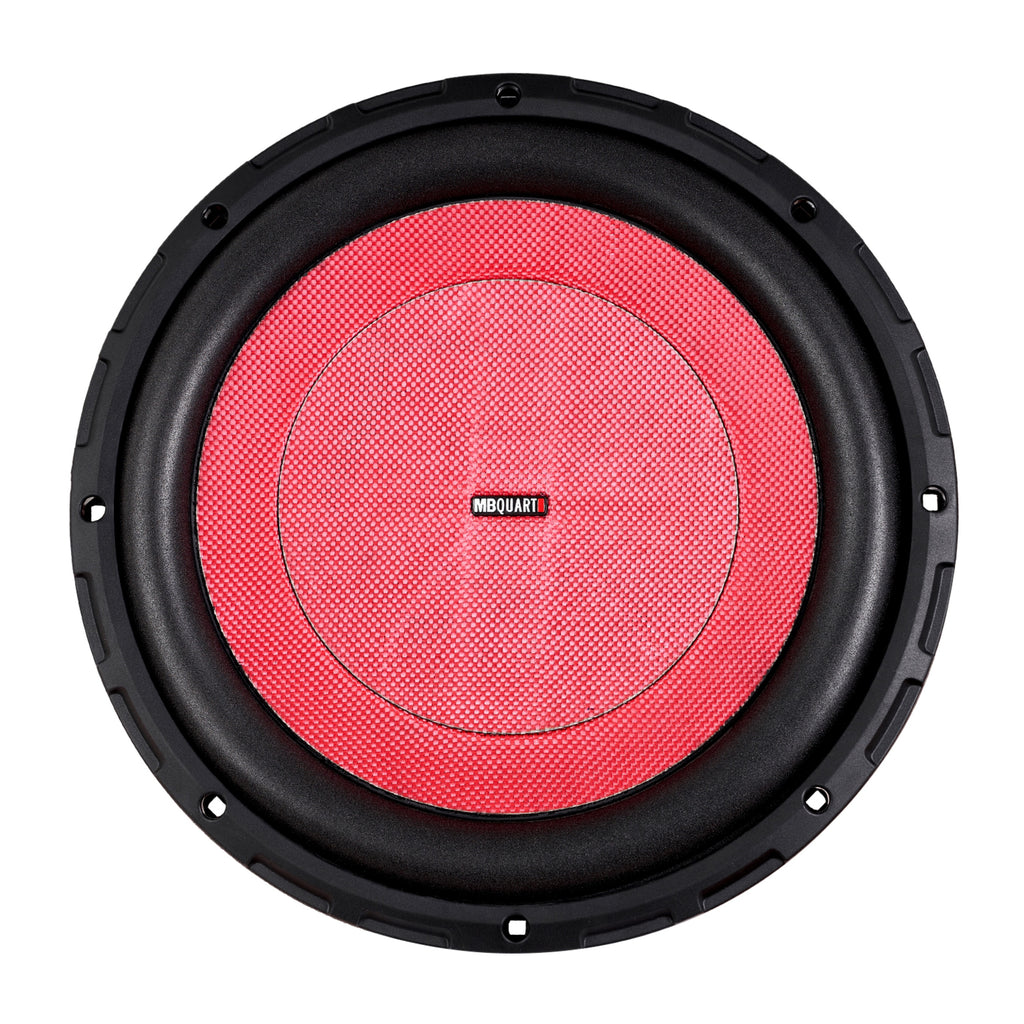

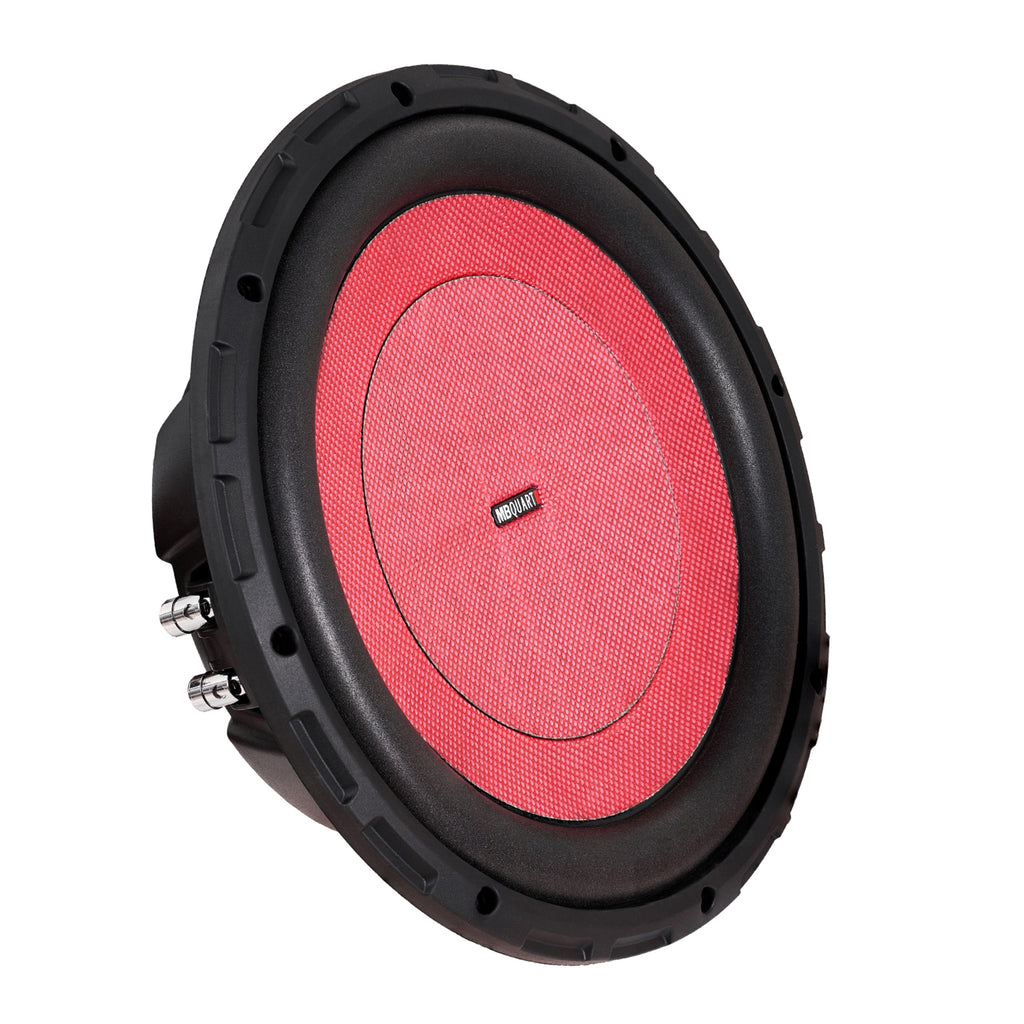

MB Quart DS2-304 Discus 600 Watt 12 inch shallow mount subwoofer with dual 4 ohm 3 inch voice coils, lightweight woven fiber cone, vented aluminum former and butyl surround. Less than 3.25 inches mounting depth.
| Terminal Type |

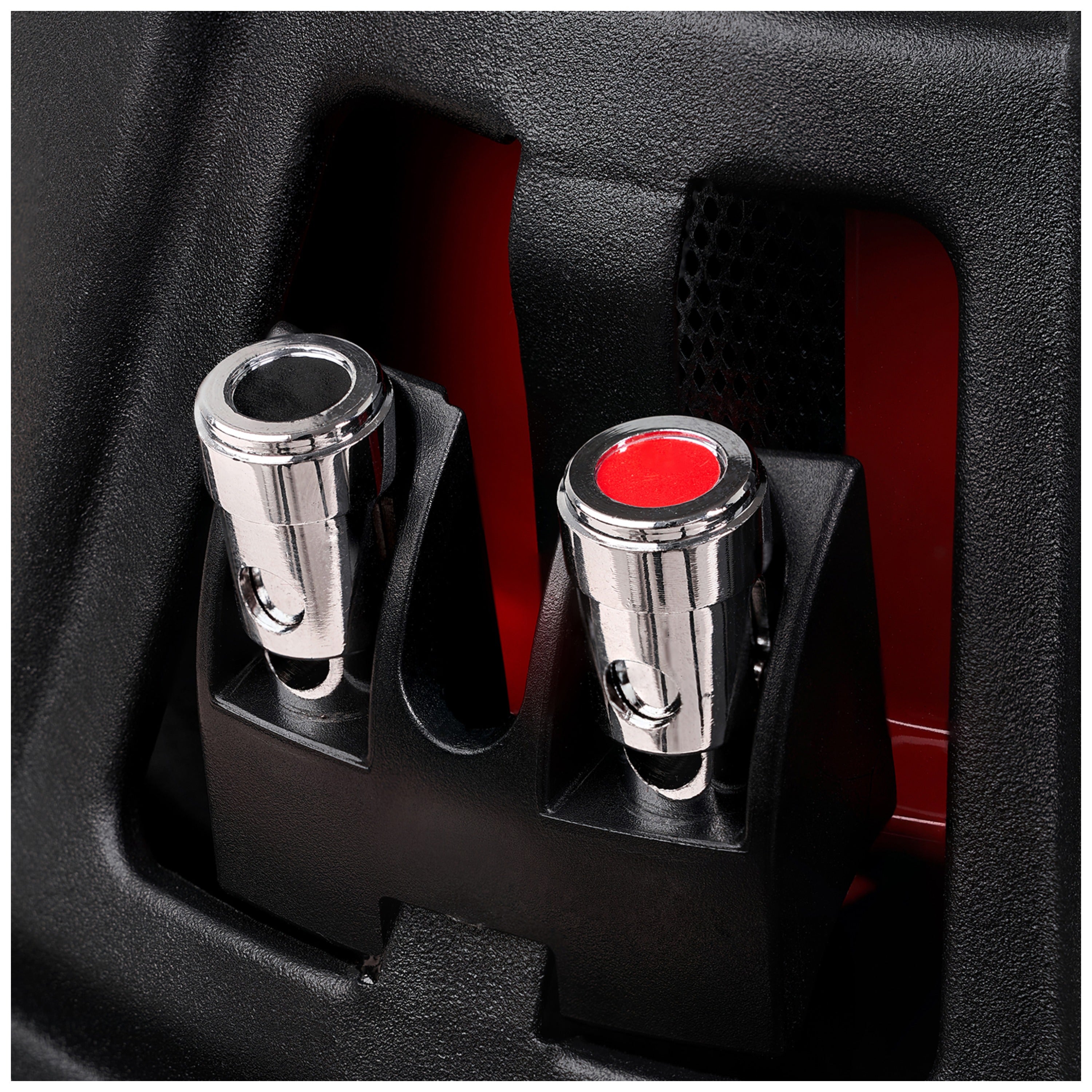

Stainless Push & Insert for a very secure electrical connection with a high end fit and finish. Nickel plated push & insert to resist corrosion and aide in easy of installation. |
|---|---|
| Configuration |
Round Shallow Mount |
| Surround / Cone Coupling |
UV treated, foam surround resists sun fading while remaining flexible. |
| Voice Coil / Former Assembly |

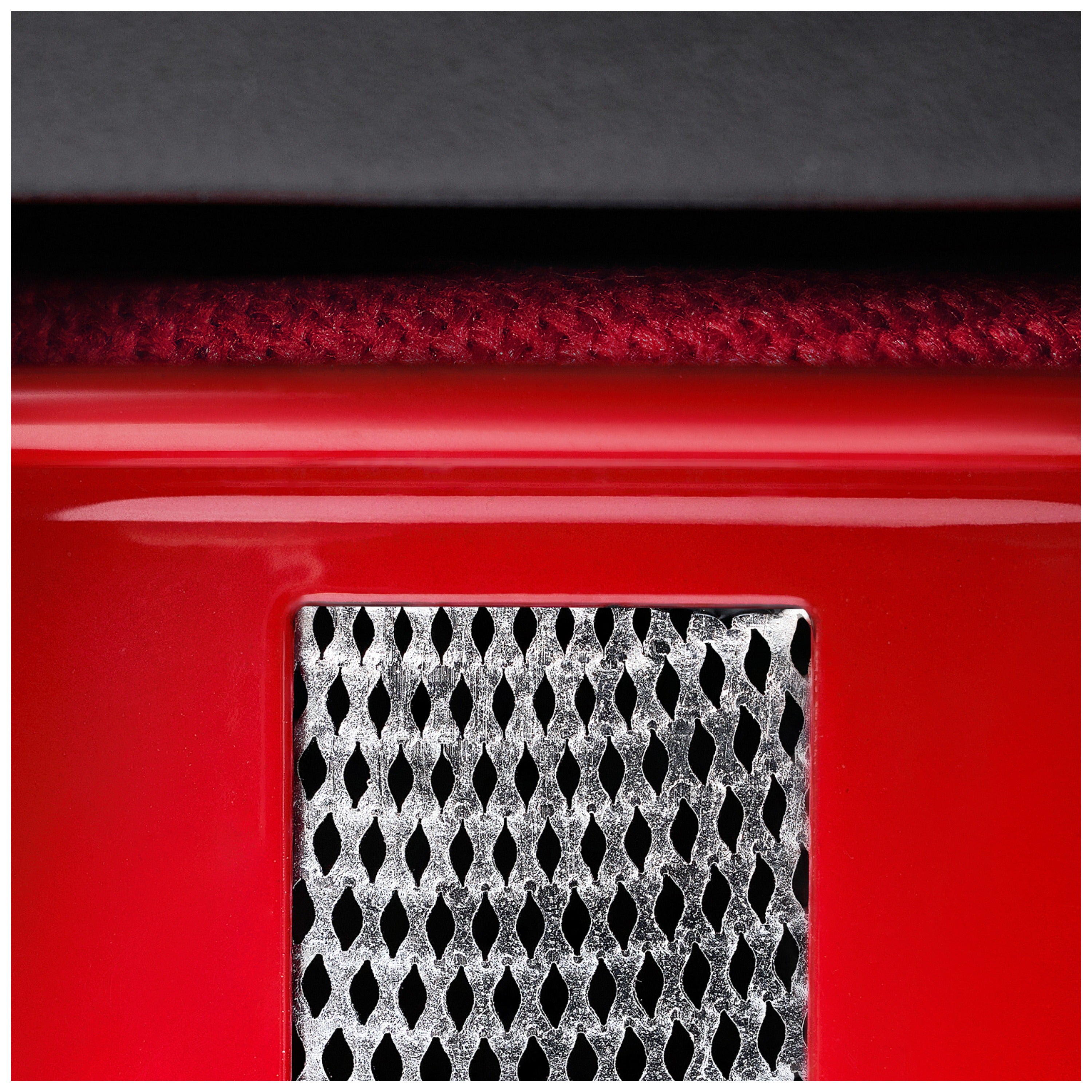

3 inch high temperature voice coil and former for high thermal stability in small enclosure volumes where the internal box temperatures can rob you of performance. Vented aluminum voice coil former allows more dissipation of heat. |
| Spider |
Specialized MB Quart poly cotton spider resists softening and sagging over time which allows the subwoofer to handle more power with minimum distortions. |
| Frame / Venting |

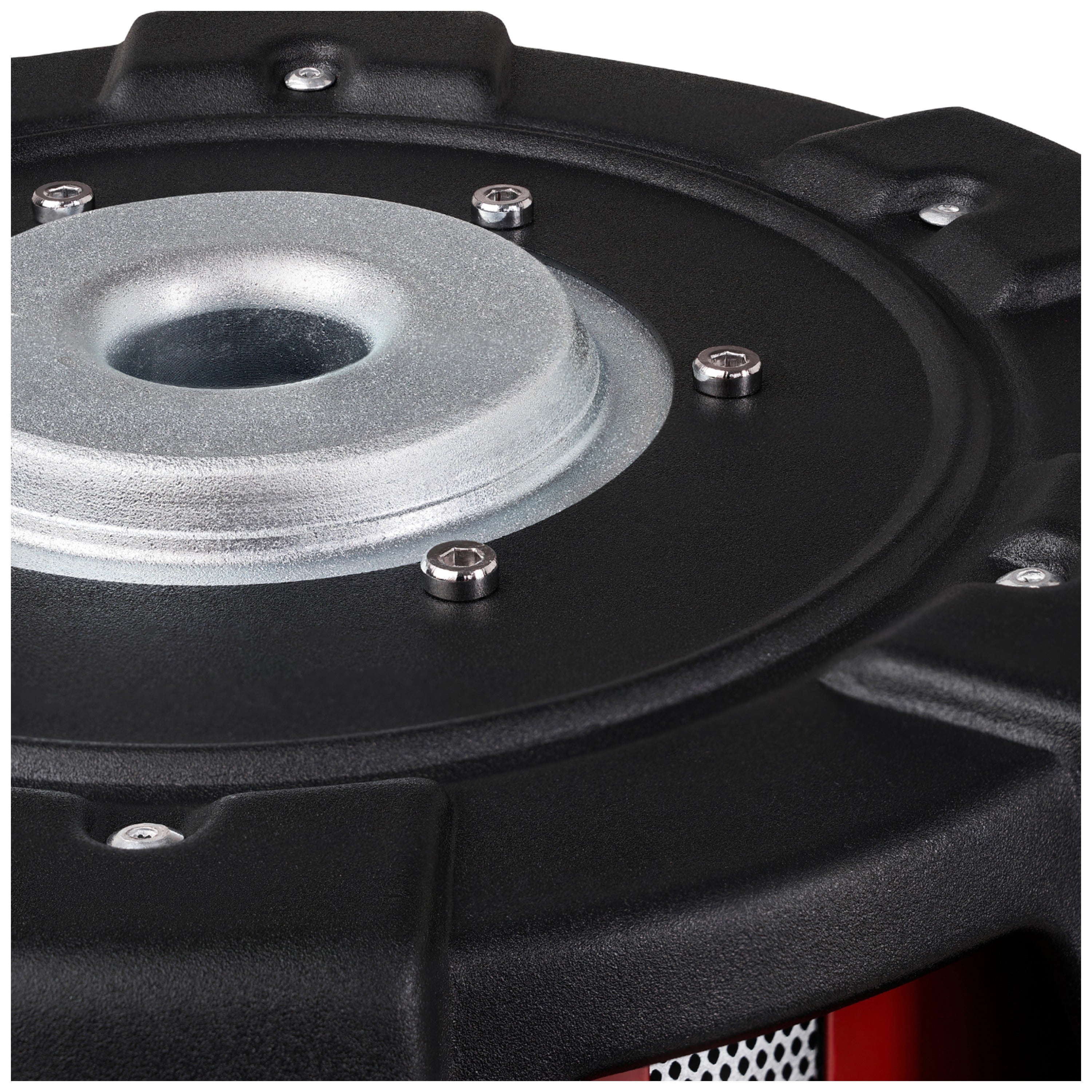

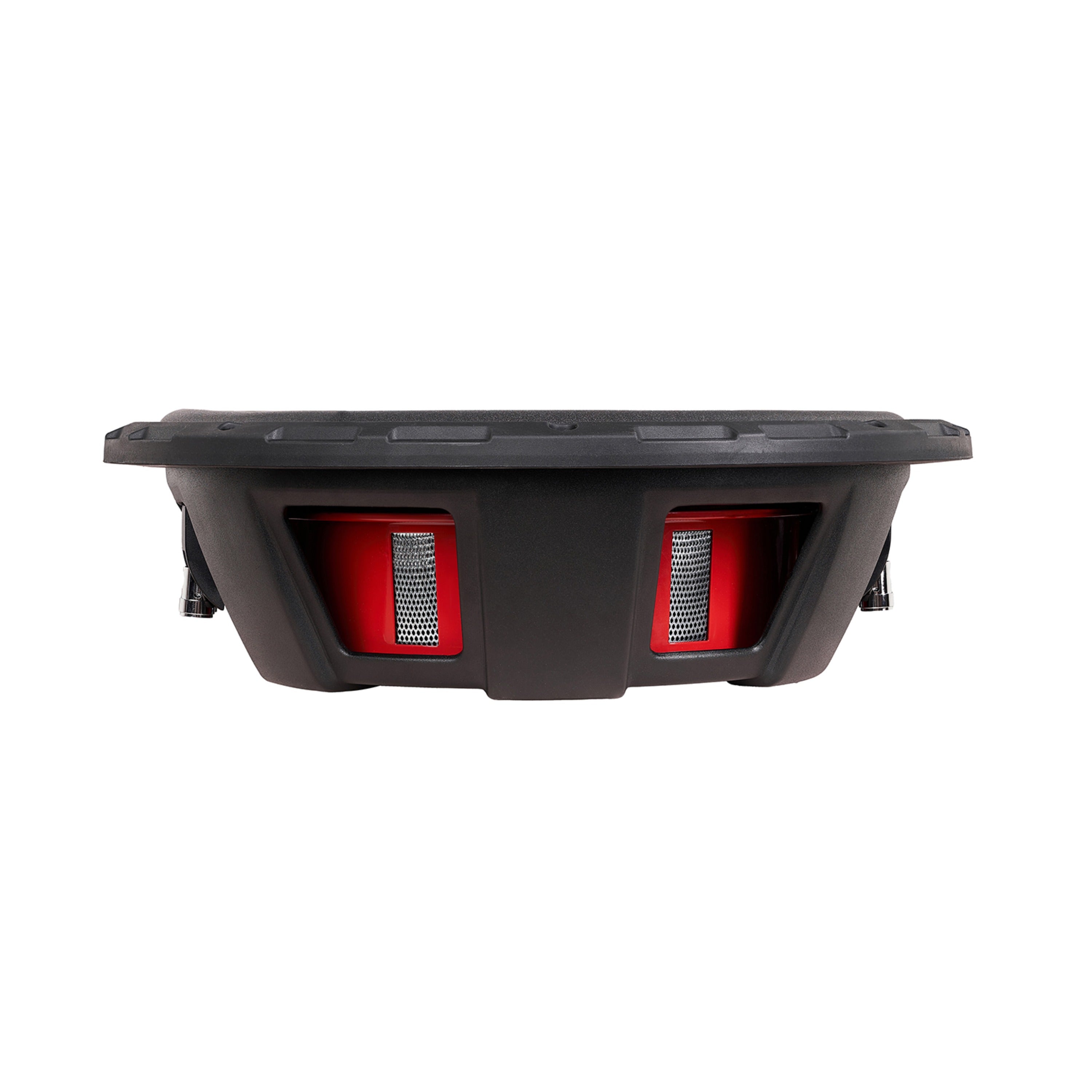

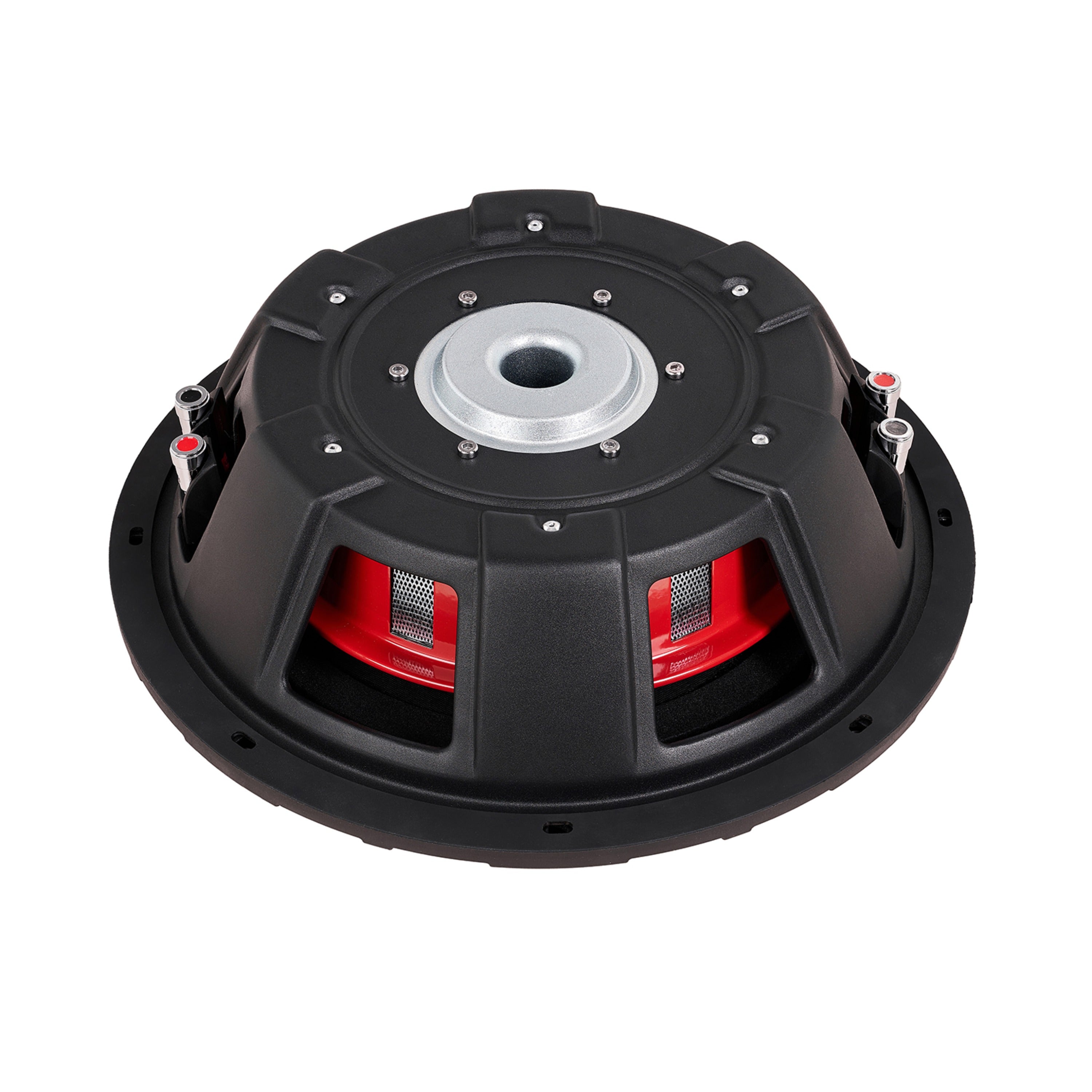

Powder coated stamped steel basket provides a solid base for the motor system and moving parts and delivers big bass in a small area that does not totally consume your cargo space. |
| Cone |

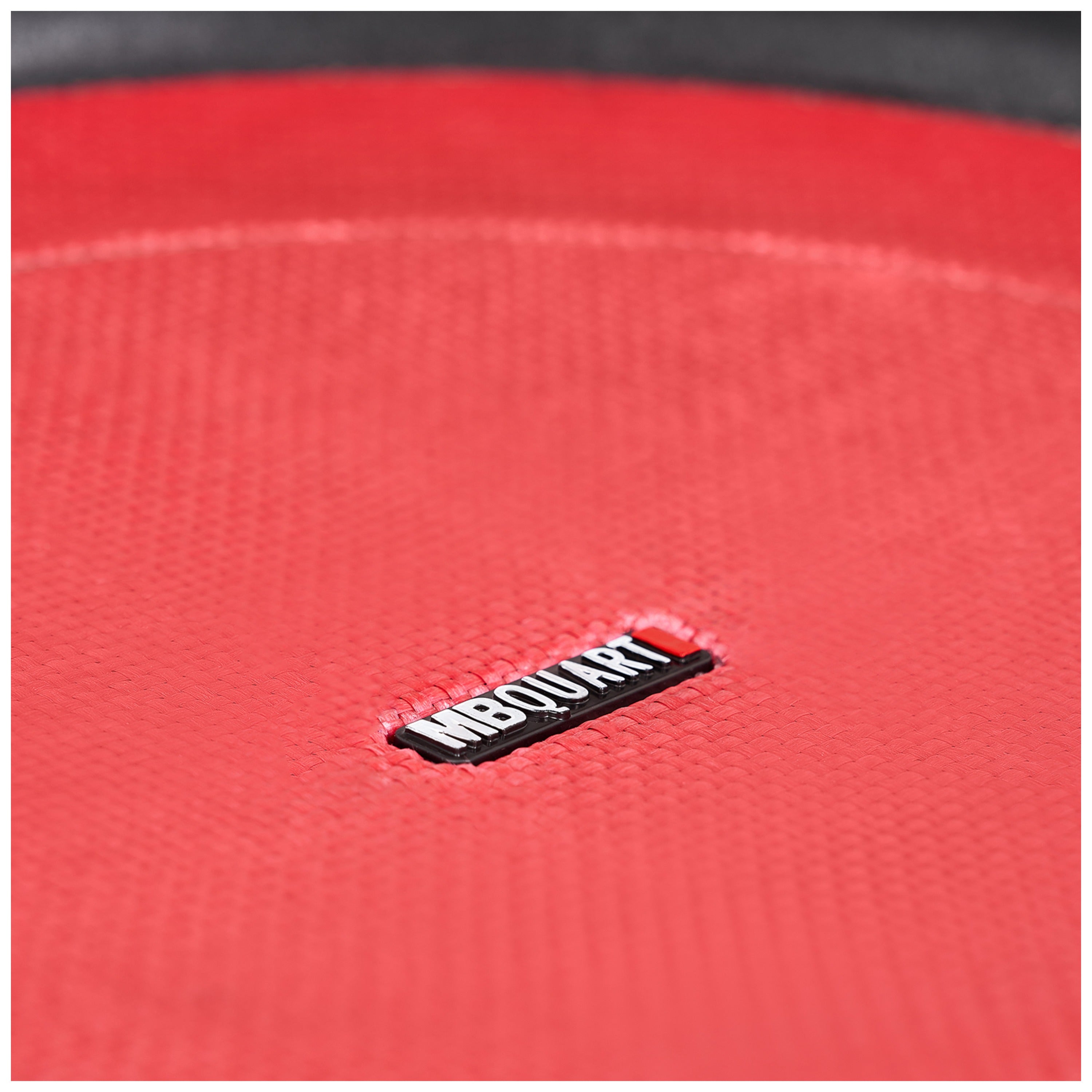

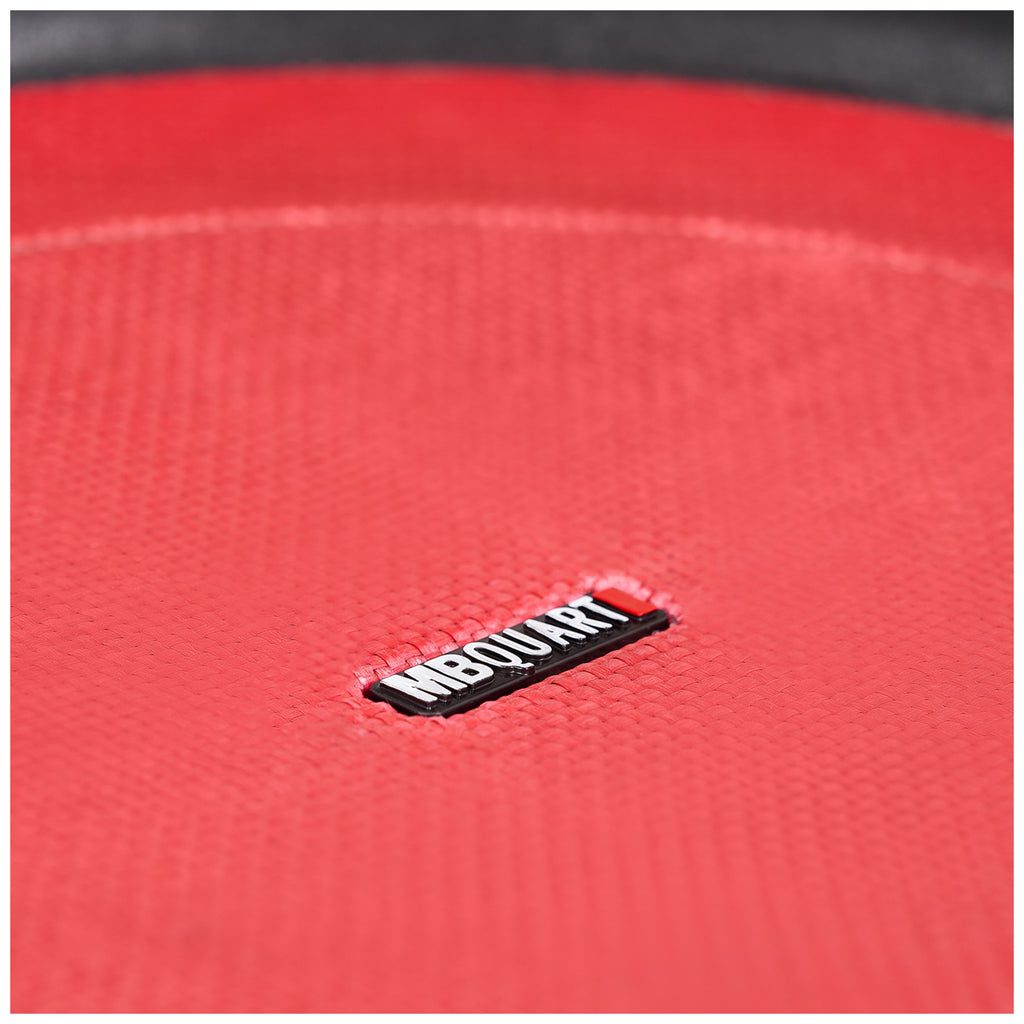

Lightweight woven fiber cone and dust cap enables faster response while providing overall strength. |
Details & Specs
| Type |
Subwoofer |
|---|---|
| Brand |
MB Quart |
| Series |
Discus |
| Category |
Mobile |
| Condition |
New |
| Color |
Red |
| Model Replaced |
DS1-304 |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Subwoofer Voice Coils |
2 |
| Subwoofer Impedance (ohms) |
4 |
| Subwoofer RMS Power Handling (watts) |
300 |
| Subwoofer Peak Power Handling (watts) |
600 |
| Subwoofer Cut-Out (in) |
10.85 |
| Subwoofer Mounting Depth (in) |
3.17 |
| Subwoofer Outside Diameter (in) |
12.2 |
| Subwoofer Sensitivity (1 watt/1 meter) |
85dB |
| Subwoofer Enclosure Recommendation |
See manual for recommendation, Sealed enclosure |
| Subwoofer Size (in) |
12 |
