Product Setup Information
Description

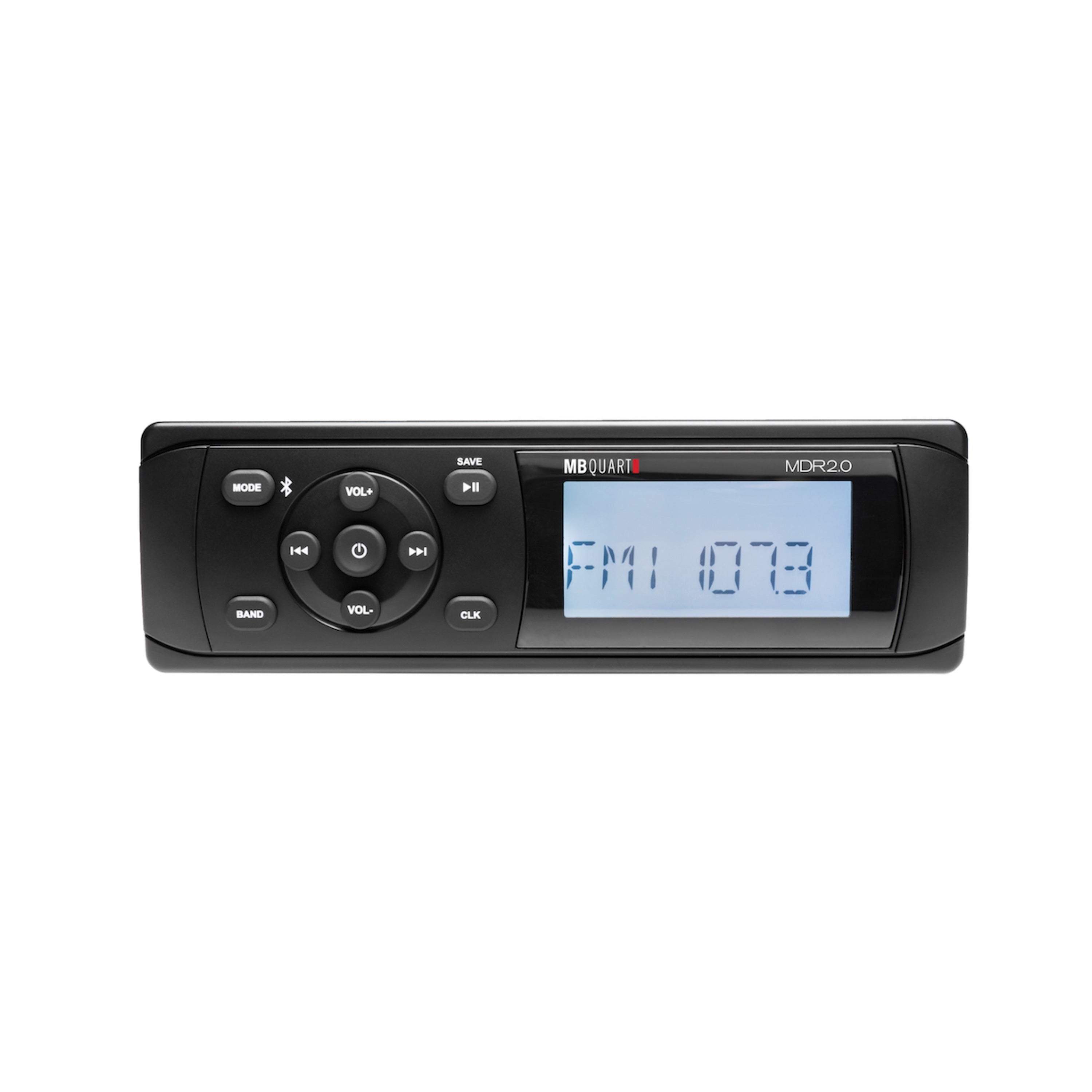

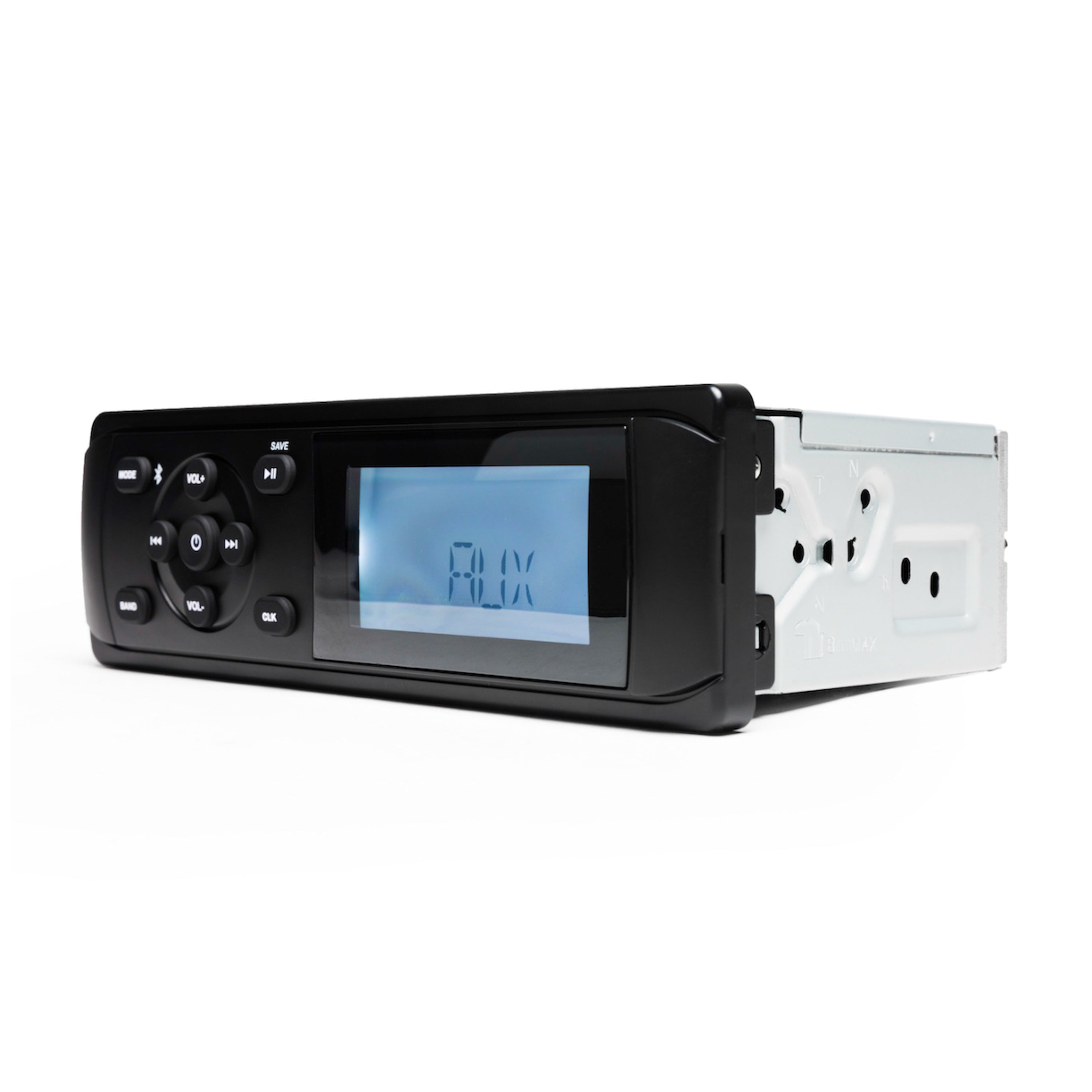

MB Quart MDR2.0 multimedia digital receiver with 160 watt internal amplifier featuring AM/FM, Bluetooth®, USB.
| Compatible Vehicle Fitment |
Universal |
|---|---|
| Marine Grade Protection / IPX Rating |
Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. |
| Apple® Control |
Quick control and access of music apps via iPhone, iPod and iPad. |
| Source Type |
AM/FM/Bluetooth® Radio allows all access to radio stations and content from Bluetooth enabled devices. |
| Input Types |
Bluetooth, RCA, USB: Nearly nothing the device can not play. |
| Control Buttons |
Front facing buttons to engage and adjust all features. |
| Bluetooth® Connect |
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. |
| Secure Simple Pairing™ |
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair™ |
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select ""MB Quart"" from your Bluetooth menu and you are connected, QUICKLY. |
| Built-In Power |
Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. |
| Control Method |

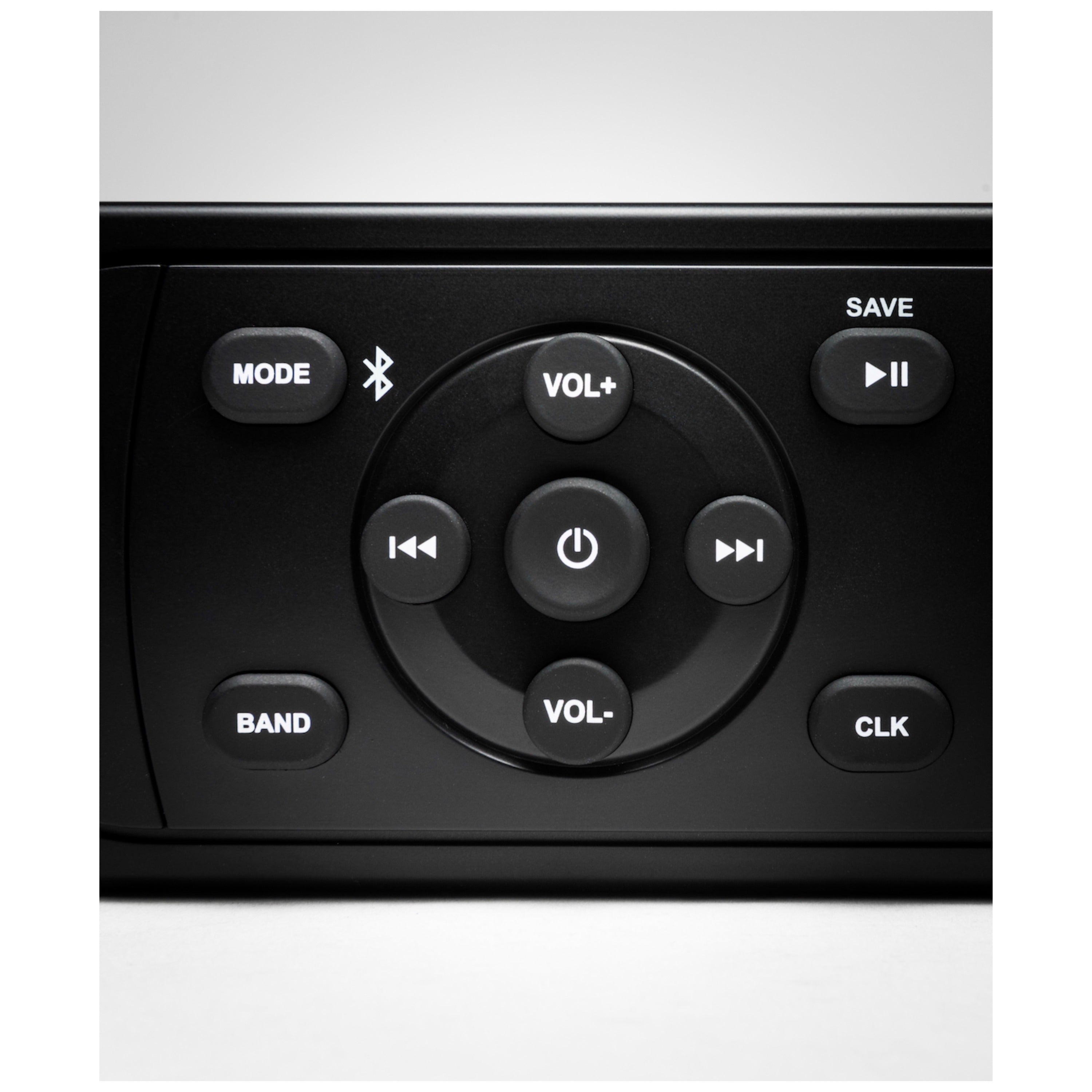

9 control buttons on faceplate. |
| Frequency Range |
FM: 87.5-108, AM: 530-1710 |

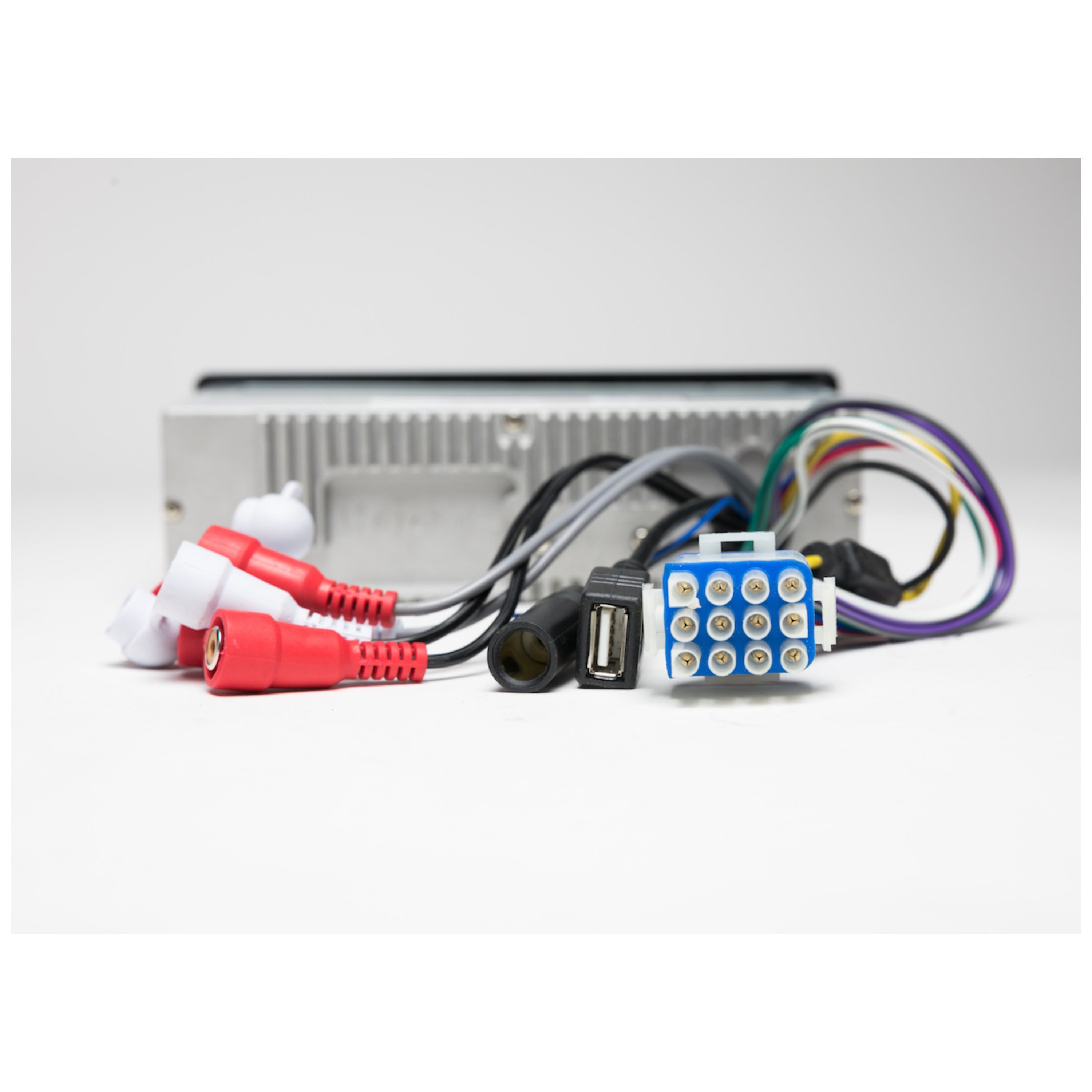

| Additional Inputs |
1 Pair (Aux), 1 USB |
| USB / Apple® / Charging Port |
1 USB |
| Bluetooth® Version |
Version 4.0 |
Details & Specs
| Type |
Source Unit |
|---|---|
| Brand |
MB Quart |
| Series |
MDR |
| Category |
Marine, RV |
| Condition |
New |
| Color |
Black |
| Crutchfield Available |
Yes |
| Crutchfield Link |
https://www.crutchfield.com/p_049MDR20/MB-Quart-MDR2-0.html |
| Warranty |
1 Year |
| IPX Rating |
IPX5 |
| Compatible Vehicles |
Universal |
| Source Unit Tuner Section FM Stereo Frequency Range |
87.5MHz-108MHz |
| Source Unit Tuner Section S/N Ratio |
86.4dBA |
| Source Unit Bluetooth Range (ft) |
32 |
| Source Unit RMS Power Output (watts) |
4 x 16 |
| Source Unit Peak Power Output (watts) |
4 x 40 |
| Source Unit S/N @1W |
90.6dBA |
| Source Unit Frequency Response (Aux In) |
20Hz-20kHz |
| Source Unit Pre-amp Outputs (Y/N #) |
1 Pair, Yes |
| Source Unit Pre-amp Voltage |
4.0V |
| Source Unit Minimum Impedance (ohms) |
4 |
| Source Unit Display Type |
LCD |

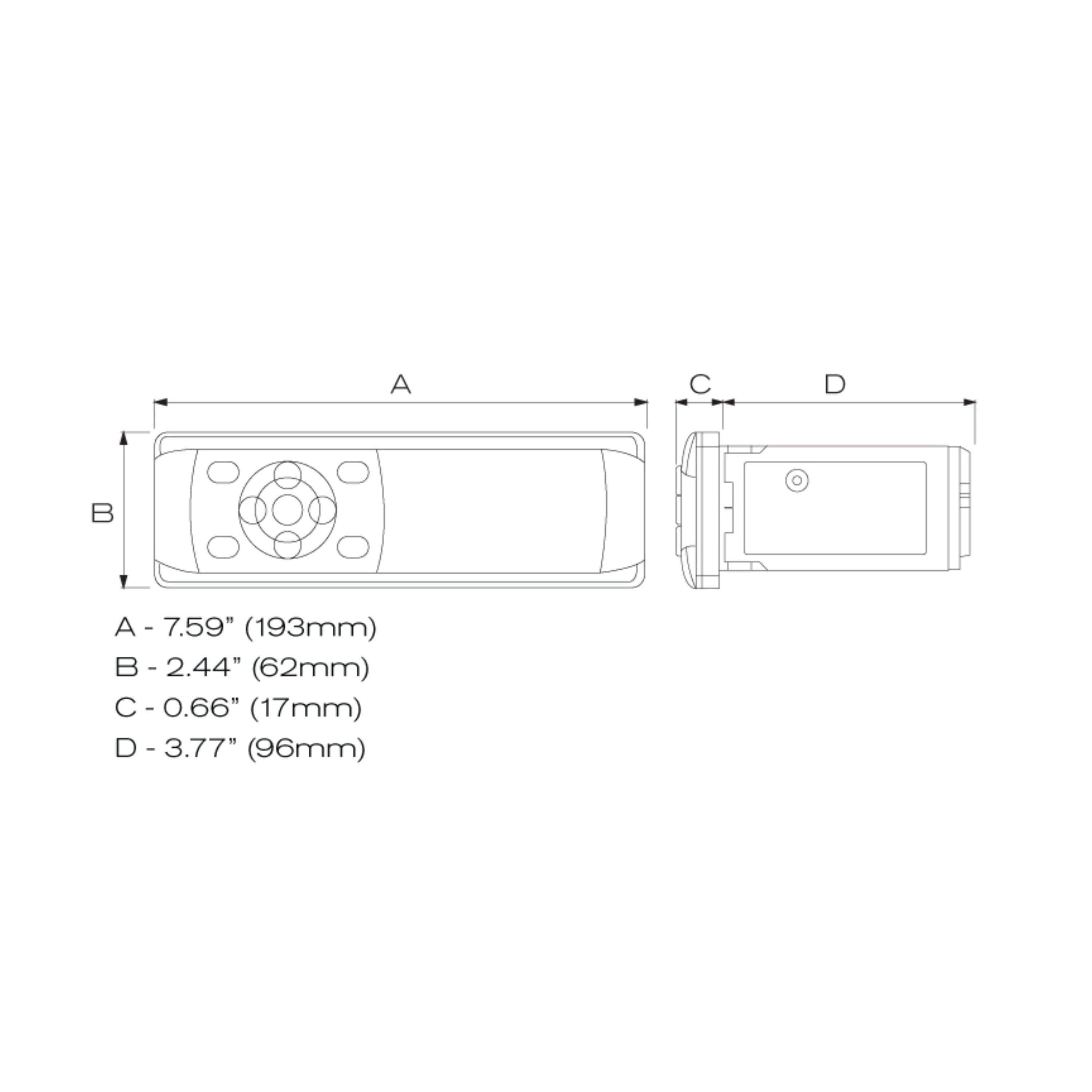

| Source Unit Dimensions Mounting Hole (in) |
7.0 x 2.0 |
| Source Unit Dimensions Total Mounting Depth (in) |
4.5 |
| Additional Details | MAXIMUM THD+N AT 4 OHMS: 15.8 watts, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 5.9 Volts, SIGNAL TO NOISE (CTA-2006B): -86.4dBA AUX / -84.7dBA Bluetooth, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -88.4dBA / Aux -90.6dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–19.5kHz AUX / 34Hz–15.6kHz Bluetooth, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–20.0kHz AUX / 27Hz–20.0kHz Bluetooth, STEREO SEPARATION (AUX INPUT): -65.1dB @ 5kHz, FM MONO USABLE SENSITIVITY: 12.7dBf, AM MONO USABLE SENSITIVITY: 12-14µV |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
