Product Setup Information
Description

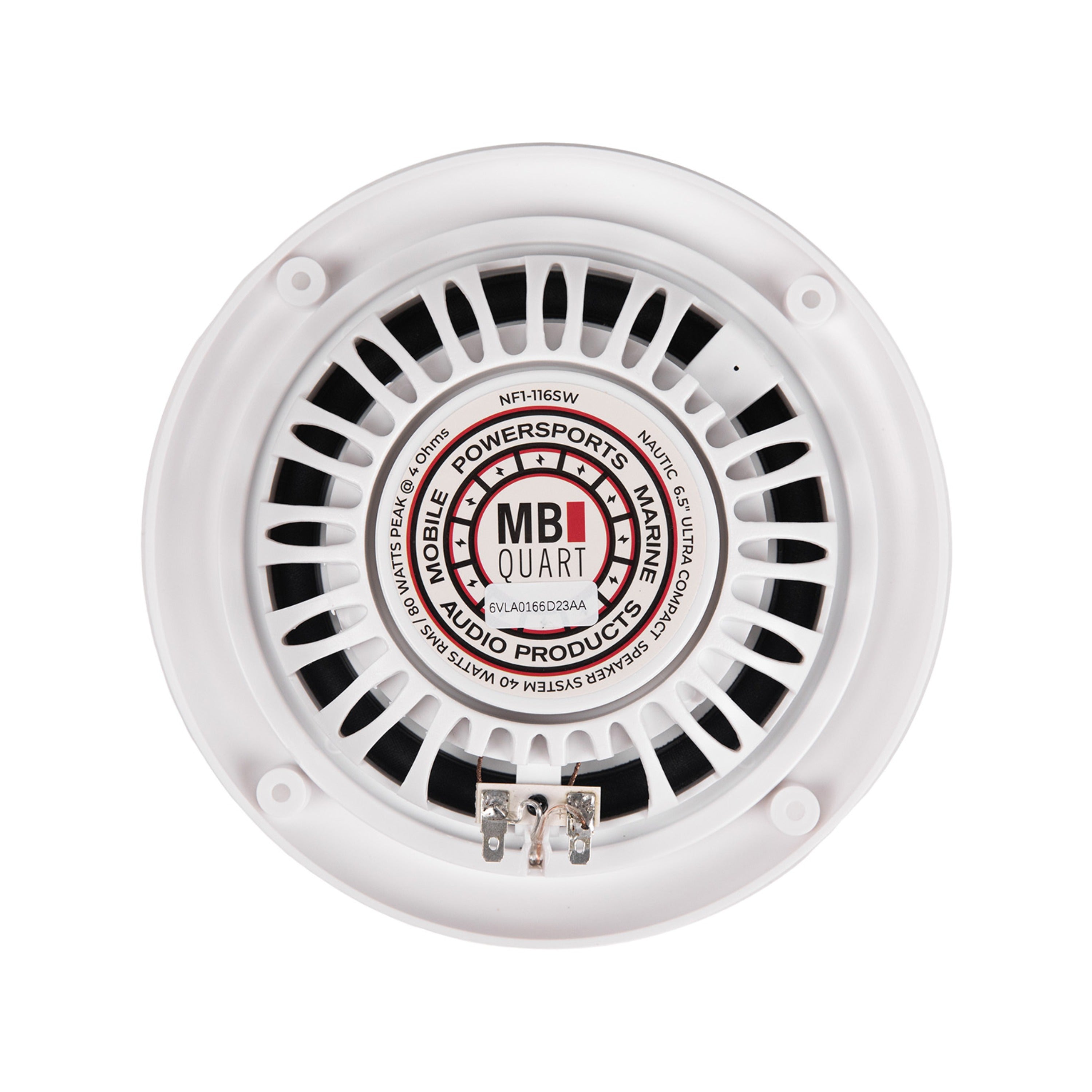

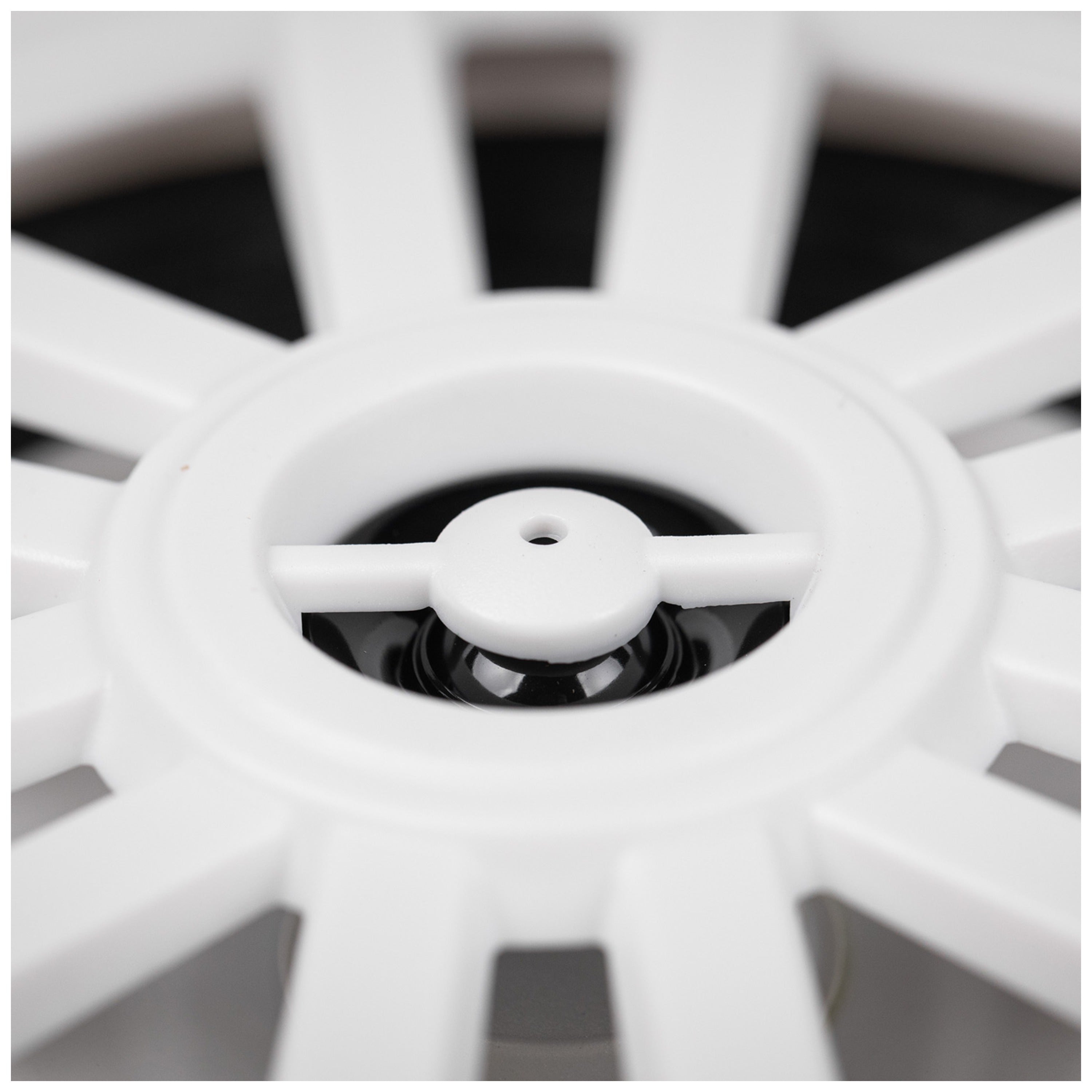

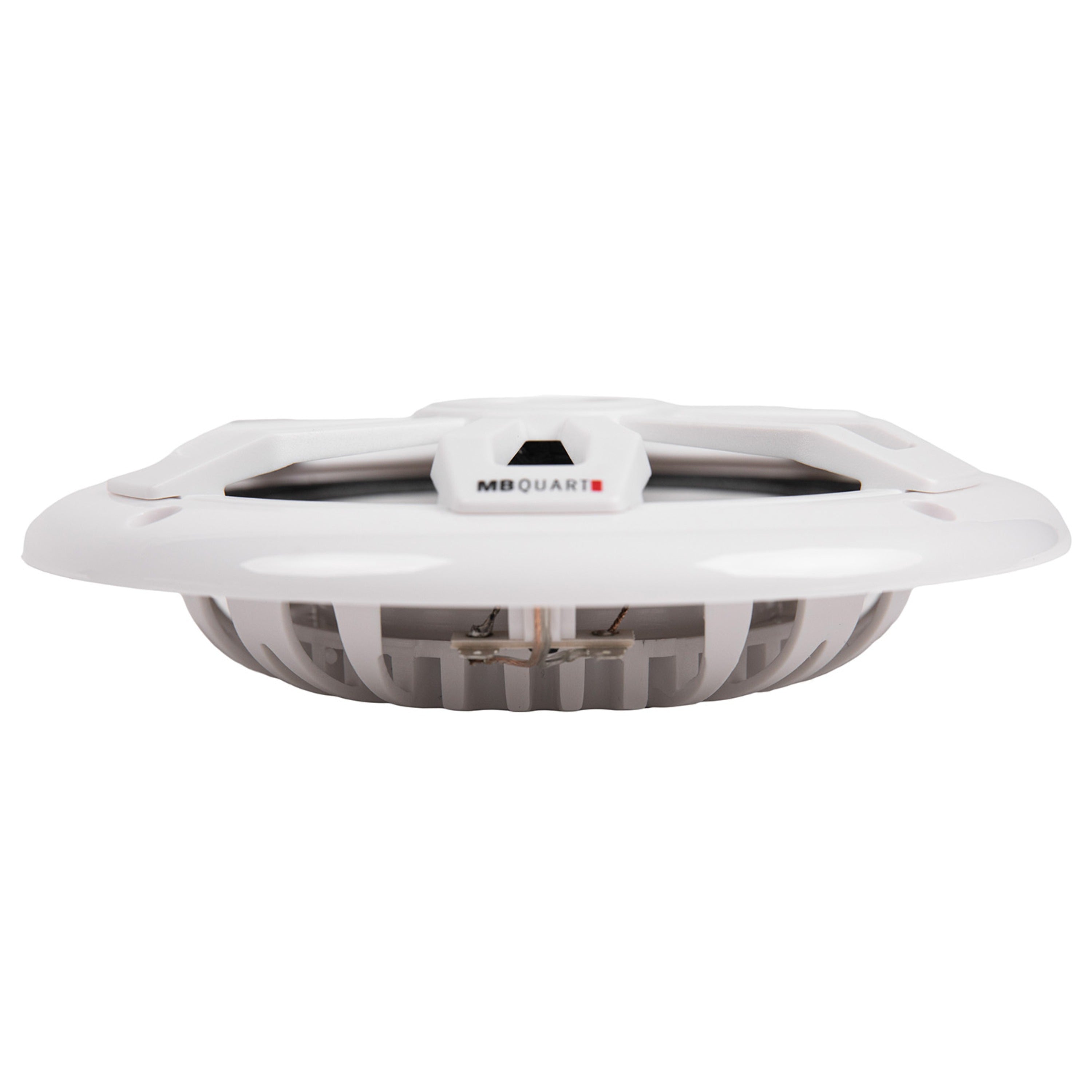

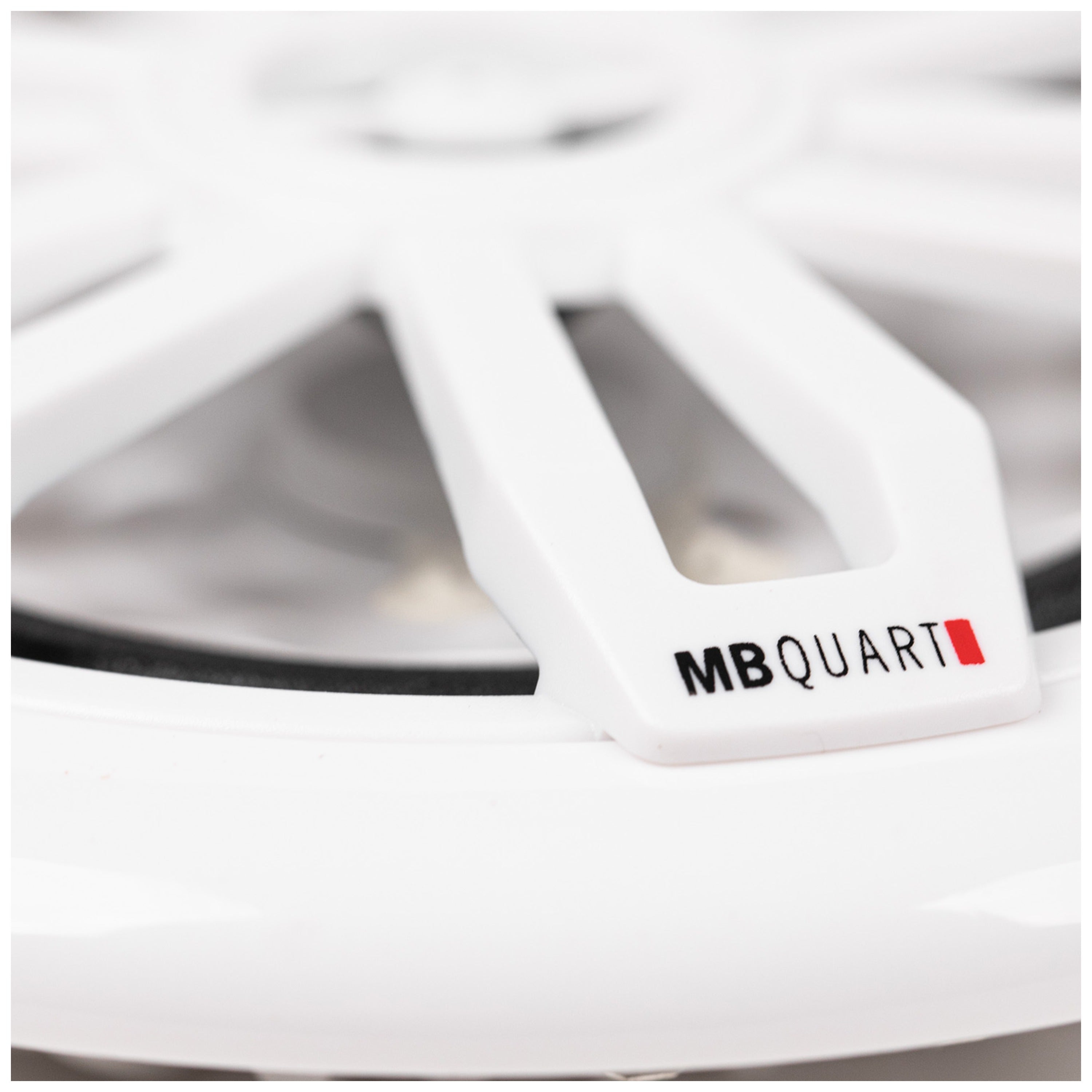

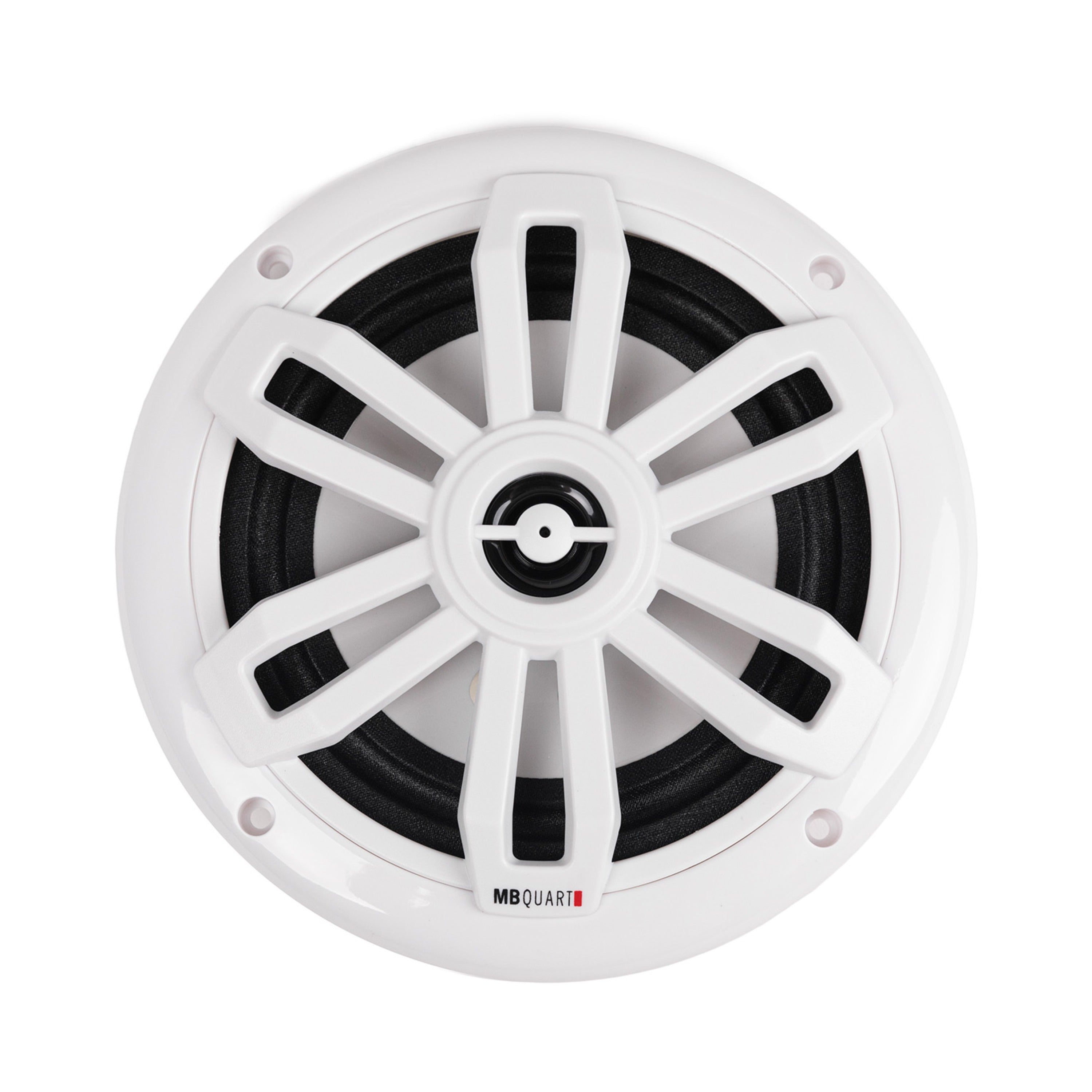

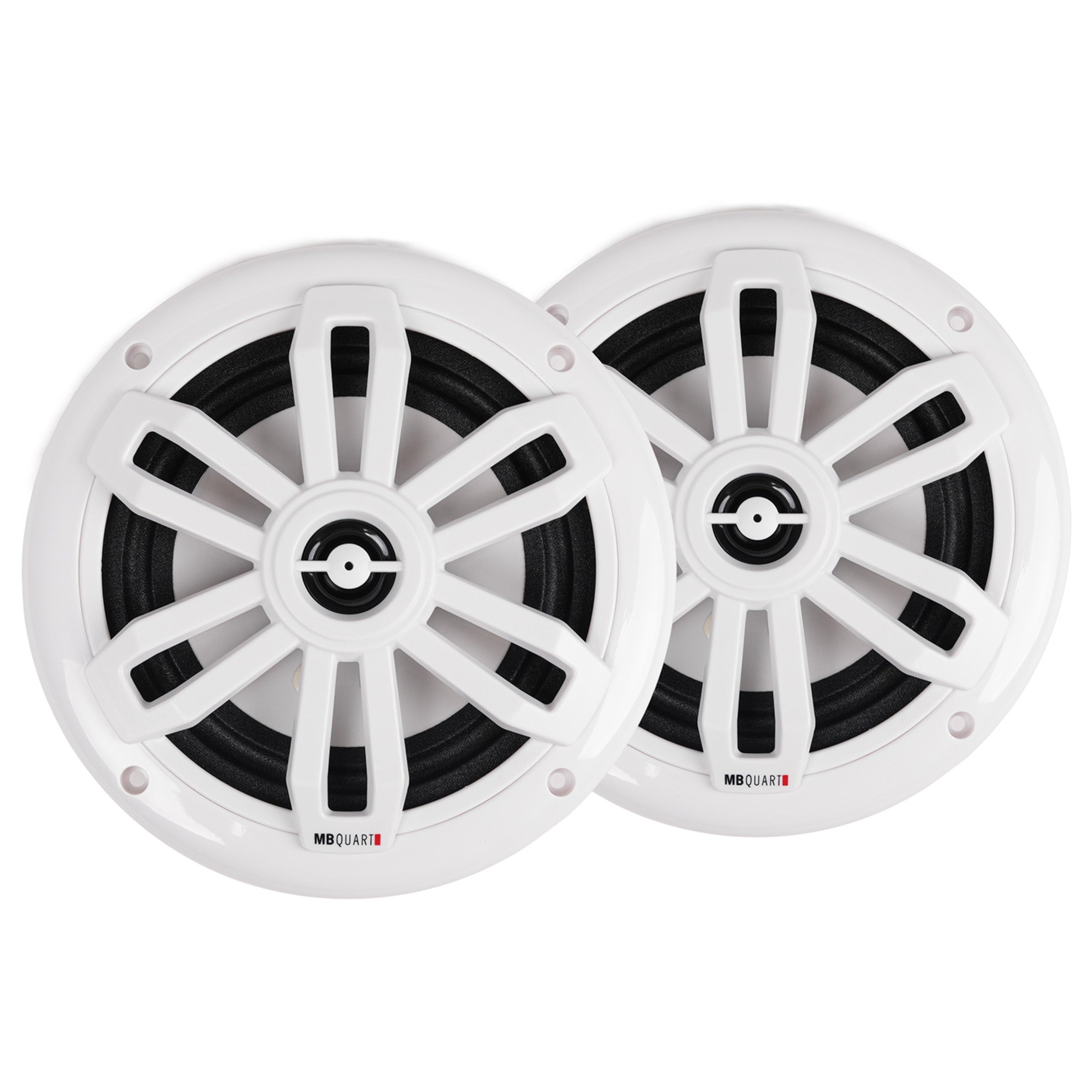

MB Quart NF1-116SW Nautic ultra compact waterproof marine certified, 6.5 inch coaxial speaker for boat, RV and off-road vehicle audio installations. These speakers feature water resistant midrange cones, crystal clear tweeters and rust resistant connectors. Sold in pairs with grills in white.
| Compatible Vehicle Fitment |
Universal |
|---|---|
| Marine Grade Protection / IPX Rating |
LIFE SHIELD: Tested to the highest marine and motorsports standards for protection against sun fade, fresh/salt water spray as well as dust and sand. |
| Tweeters |
.75 Inch Composite Dome: Very smooth musical response, high output with minimal required amplifier power. |
| Cone Material |
6.5 inch Composite Poly Midrange: Water resistant composite polypropylene cone with temperature stable UV Butyl rubber surround mounted on a lightweight composite frame. |
| Surround / Cone Coupling |
UV Butyl: Butyl Rubber remains musical in all weather. Does not stiffen in cold. |
| Voice Coil / Former Assembly |
High Temperature Voice Coil and Former: Voice coil is high temperature copper, wound on an aluminum former which allows the voice coil to handle more power while remaining light in weight. |
| Spider |
Woven fiber composite spider to stabilize the cone and voice coil in all musical situations. |
| Cooling System |
Venting allows air passage through the spider and back plate to exchange air over the voice coil. |
| Crossover |
6dB high-pass: Clean and simple crossover design allows the most possible signal to get to the speaker from your source unit or amp. |
| Frame |
Poly Composite Frame: Composites add strength to the frame without adding distortions or harmonics that can affect the tonal quality of the speaker and are weather resistant! |
| Motor |
High Energy Motor assembly: High energy iron ferrite magnet for higher output and smaller overall size. |
| Grills |
Composite Integrated: UV treated against sun fade and waterproof and are integrated into speaker frame for simple installation. |
Details & Specs
| Type |
Speaker |
|---|---|
| Brand |
MB Quart |
| Series |
Nautic |
| Category |
Marine, Powersports, RV |
| Condition |
New |
| Color |
White |
| Warranty |
1 Year |
| IPX Rating |
IP67 |
| Compatible Vehicles |
Universal |
| Speaker RMS Power Handling (watts) |
40 |
| Speaker Peak Power Handling (watts) |
80 |
| Speaker Impedance (ohms) |
4 |
| Speaker Frequency Response |
35Hz-21kHz |
| Speaker Sensitivity |
89dB |
| Speaker Mounting Diameter / Cut Out (in) |
5.25 |
| Speaker Outside Diameter (in) |
7.5 |
| Speaker Mounting Depth / Chassis Depth (in) |
1 |
| Speaker Size (in) |
6.5 |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| View/Download |
MB Quart Nautic Speakers (NF1-116S) Quick Start Guide (Rev1) |
|---|
"
