Description

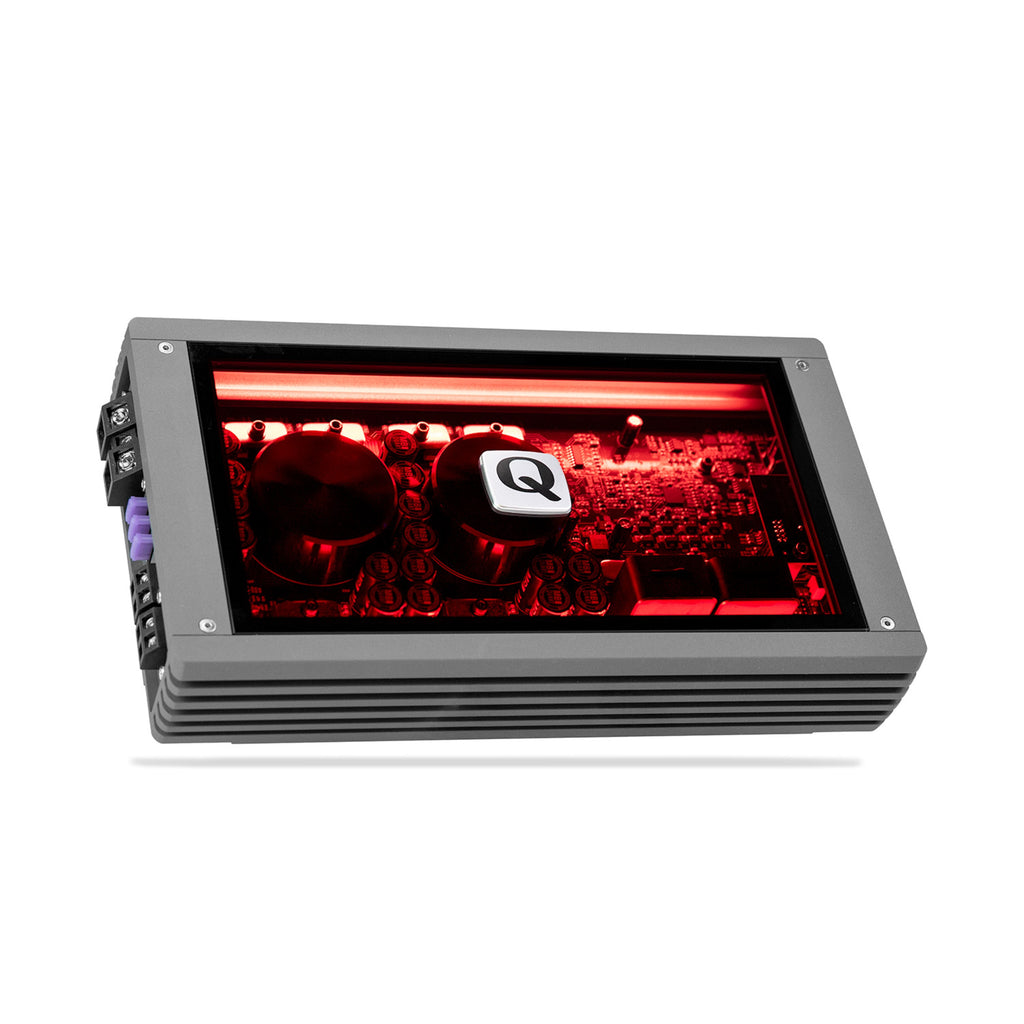

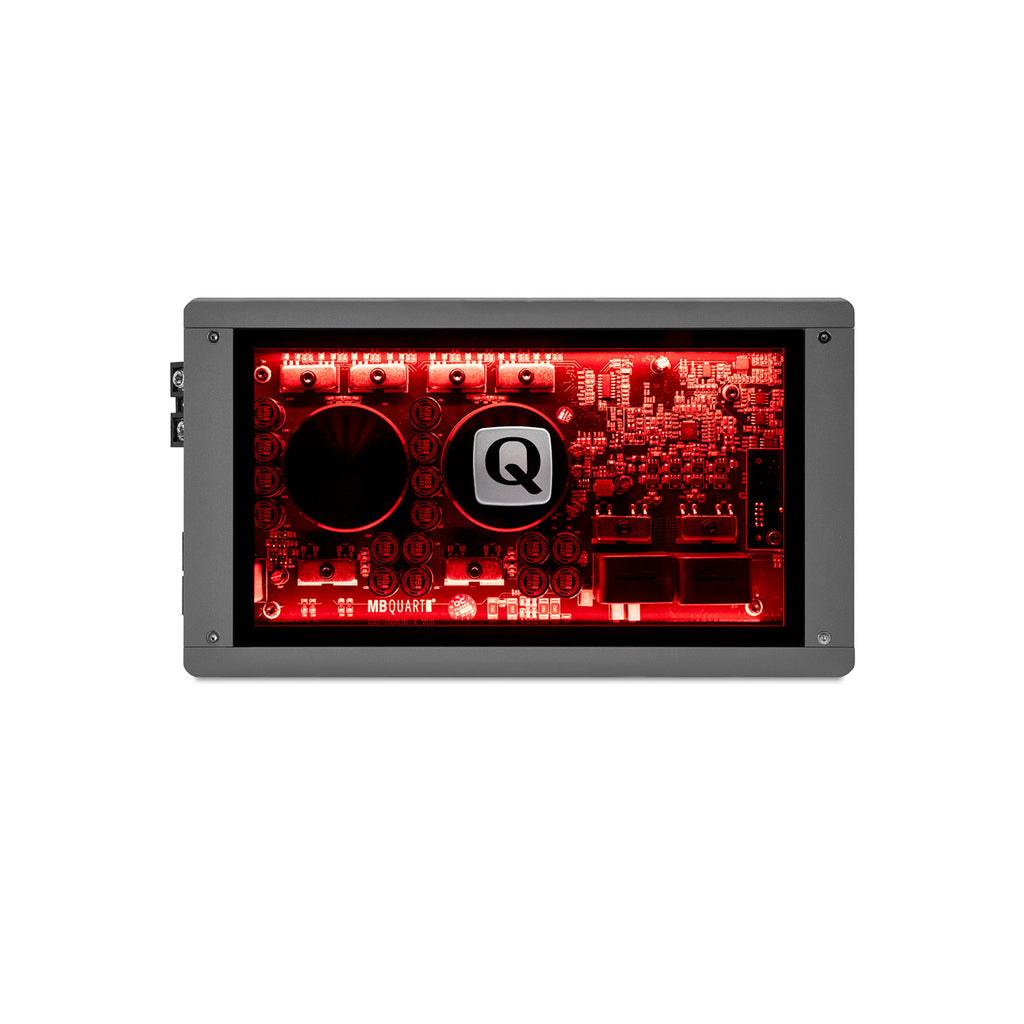

MB Quart QA1-1500.1D Q-Series 1500 watt mono-block subwoofer amplifier with a through-glass top design and red LED accent lighting. Bass remote included.
| Low Noise Preamplifier Circuit |
Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality. |
|---|---|

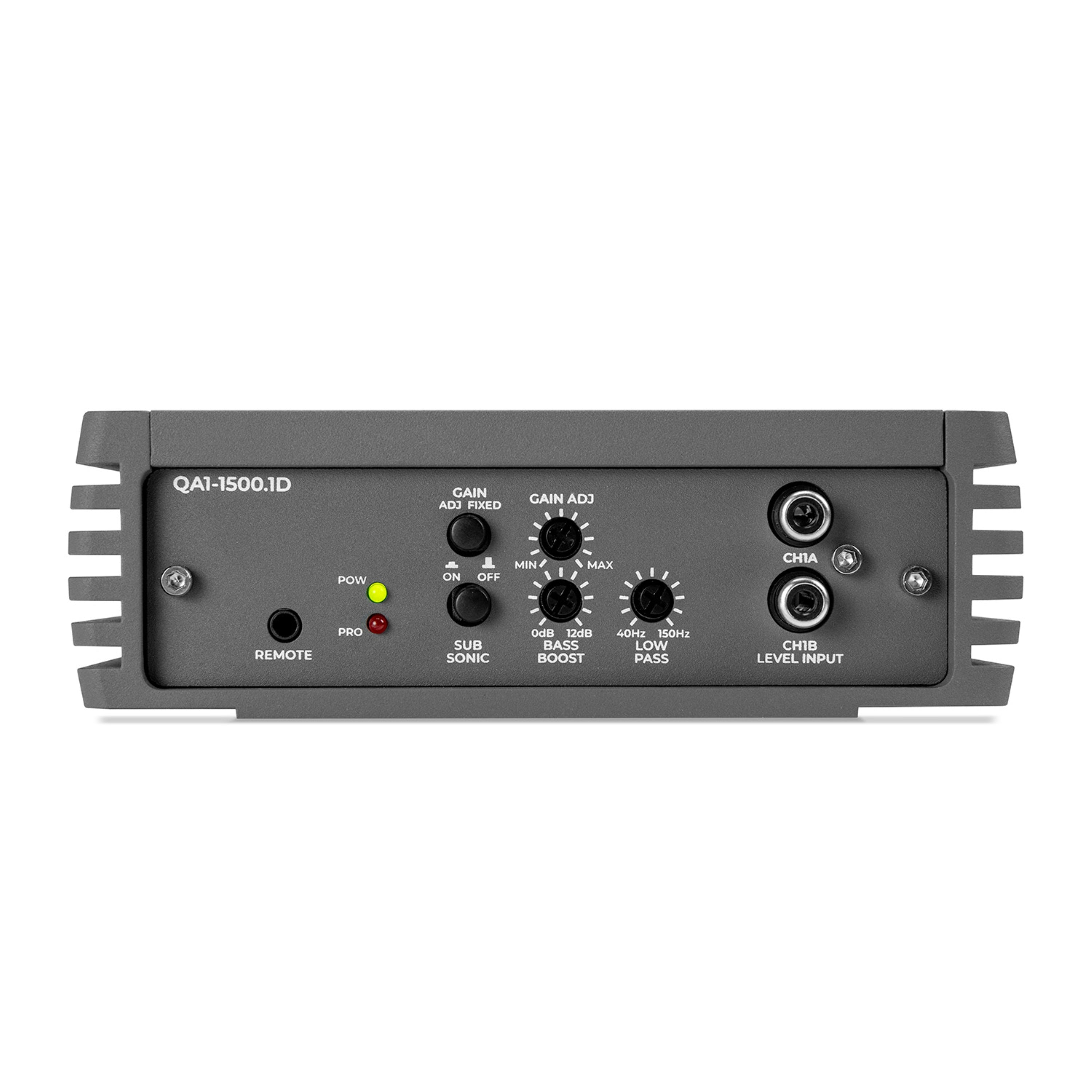

| RCA Inputs |
1 pair of nickel-plated RCAs that allow for secure connections and is corrosion resistant. |
| Operation Mode |
Mono operation: Designed to power 1 subwoofer or subwoofer system. Optimized input circuit to work with the QA1-900.6DSP for seamless integration. |
| Crossover Type |
LPF: Complete control of amplifier signal, essential when using two or more amplifiers. |
| Class / Topology |
Full Range Class D: Highly efficient circuit topology which helps the amplifer provide high performance output. |
| Output Device Technology |

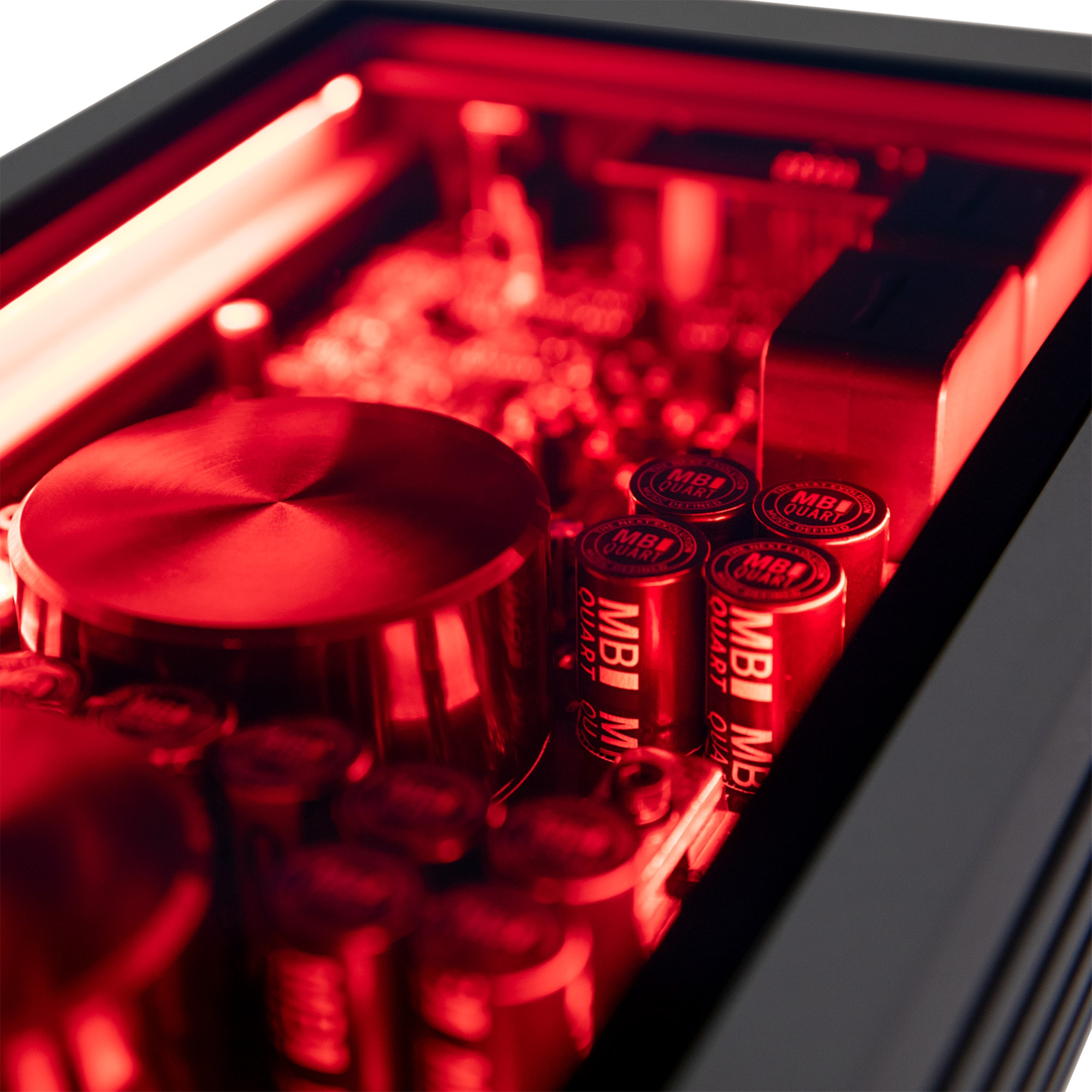

MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and provide high level of sound quality. |

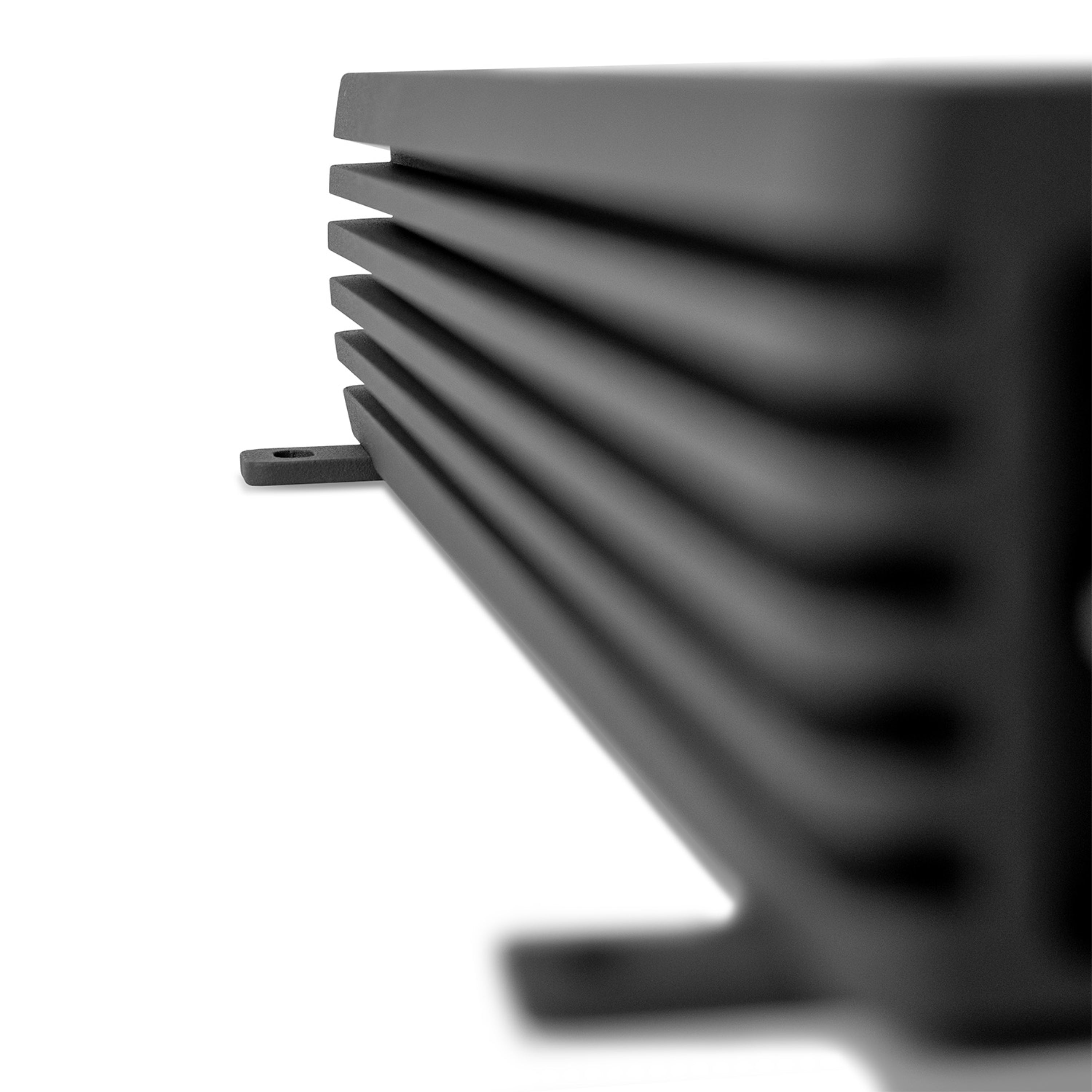

| Heat Sink |
Extruded aluminum heat sink that is machined to it final shape allows the amplifer to run lower impedance for longer duration. |
| Power Supply |
Q-series amplifiers use a MOSFET Pulse Width Modulation power supply that allows the amplifier to produce efficient power without taxing the electrical system. |

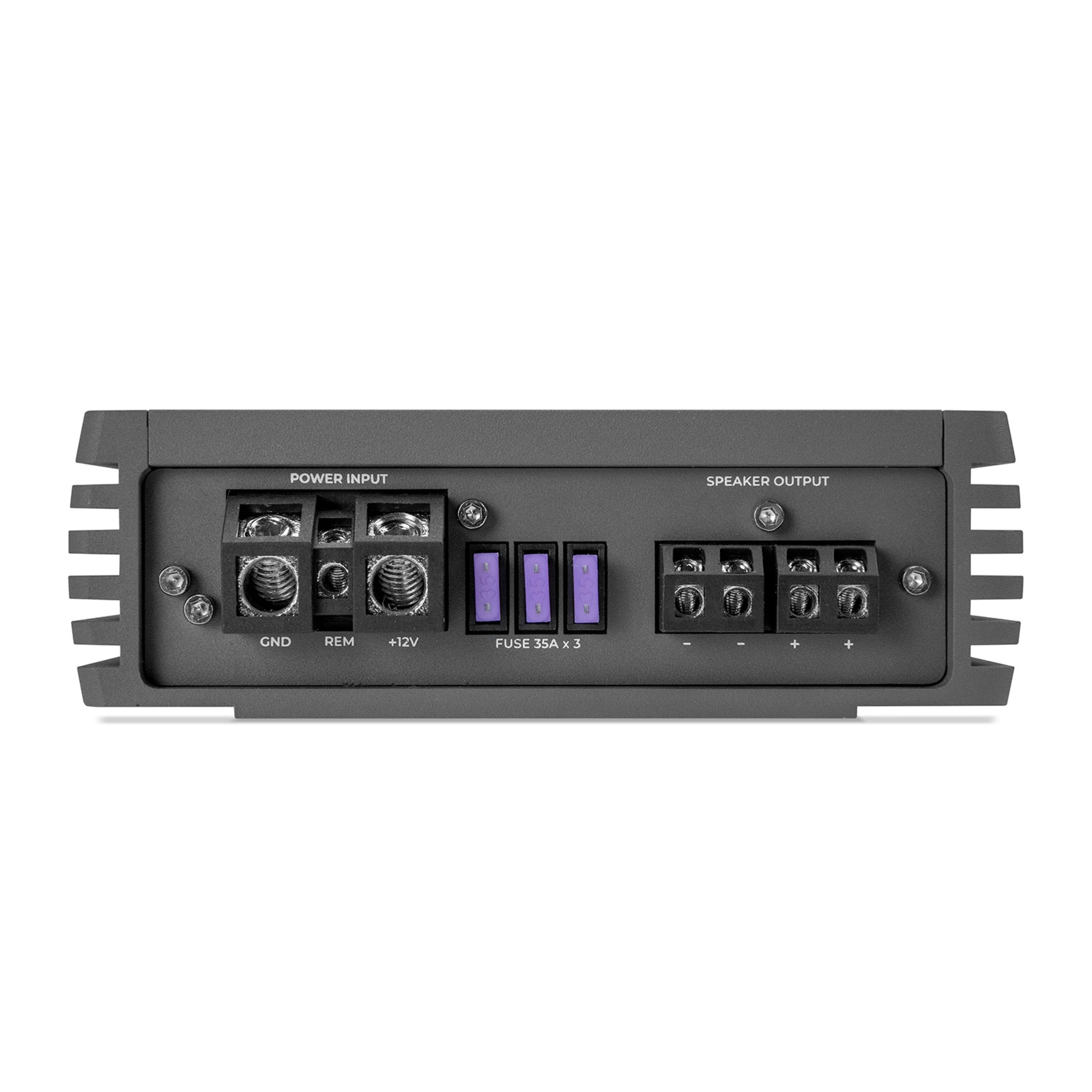

| Output Connections |
Heavy duty output terminals allows for secure connection so electrical signal can pass into wiring and resist corrosion. |
| Connection Type |
Nickel plated corrosion resistant connections. |
| LED System Protection Circuitry Diagnostics |
Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. |

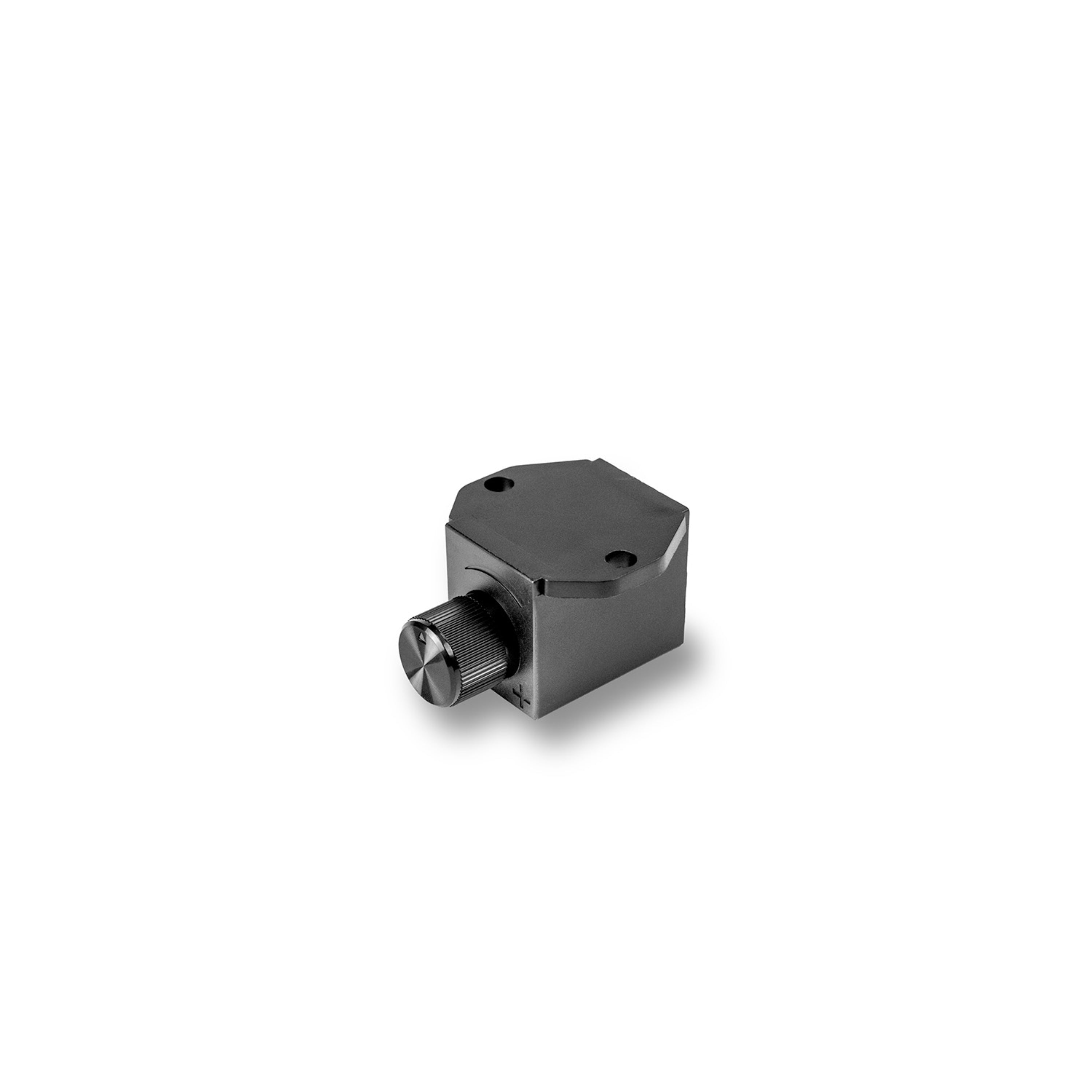

| Bass Remote Included |

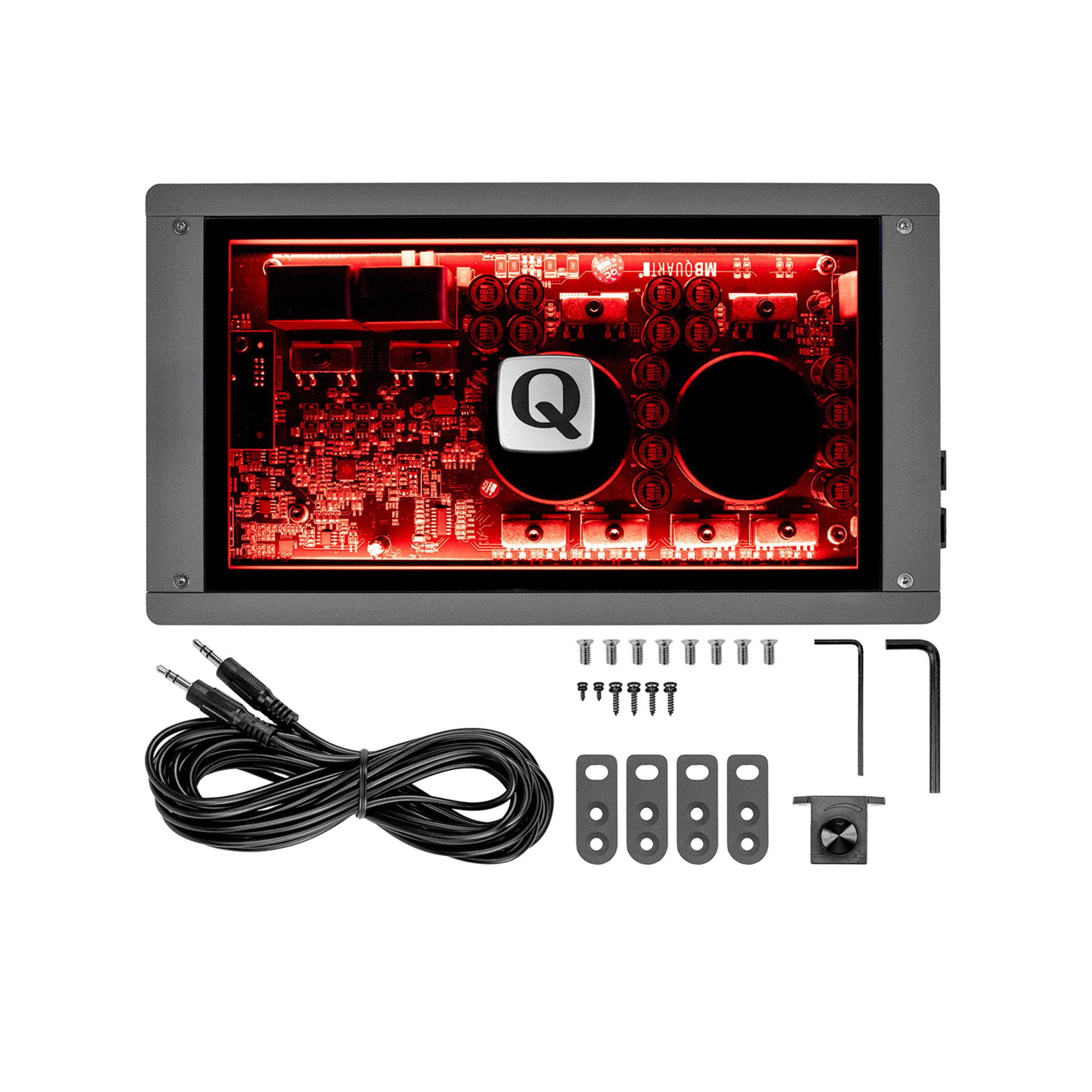

Included: Wired Bass Remote allows adjustments to gain level to be made from the control mounted anywhere in the vehicle. |
Details & Specs
| Type |
Amplifier |
|---|---|
| Brand |
MB Quart |
| Series |
Q-Series |
| Category |
Mobile |
| Condition |
New |
| Color |
Grey |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Amp Class |
Full Range Class D |
| Amp Total Channels |
Mono |
| Amp Max Power (watts) |
1500 |
| Amp Power @ 1 Ohm (ch x watts) |
1 x 1500 |
| Amp Power @ 2 Ohms (ch x watts) |
1 x 1100 |
| Amp Power @ 4 Ohms (ch x watts) |
1 x 750 |
| Amp Crossover |
Variable Electronic 12dB Per Octave, Dial Control LPF |
| Amp Variable Low Pass Crossover 12dB per Octave |
40Hz-150Hz |
| Amp Tone Control / Parametric EQ |
Built-in Bass Control |
| Amp Bass Boost |
0-12dB |
| Amp Subsonic Filter |
Switch On / Off @ 27Hz |
| Amp Variable Voltage |
0.3-6V |
| Amp Signal to Noise |
> 106dB |
| Amp Frequency Response |
10Hz-178Hz |
| Amp Total Harmonic Distortion (THD) |
1.0% |
| Amp Power Terminal 12v/GND |
4 AWG |
| Amp Speaker Terminal Wire Gauge |
12 AWG |
| Amp Fusing |
3 x 35A Mini ATC |
