Product Setup Information
Description

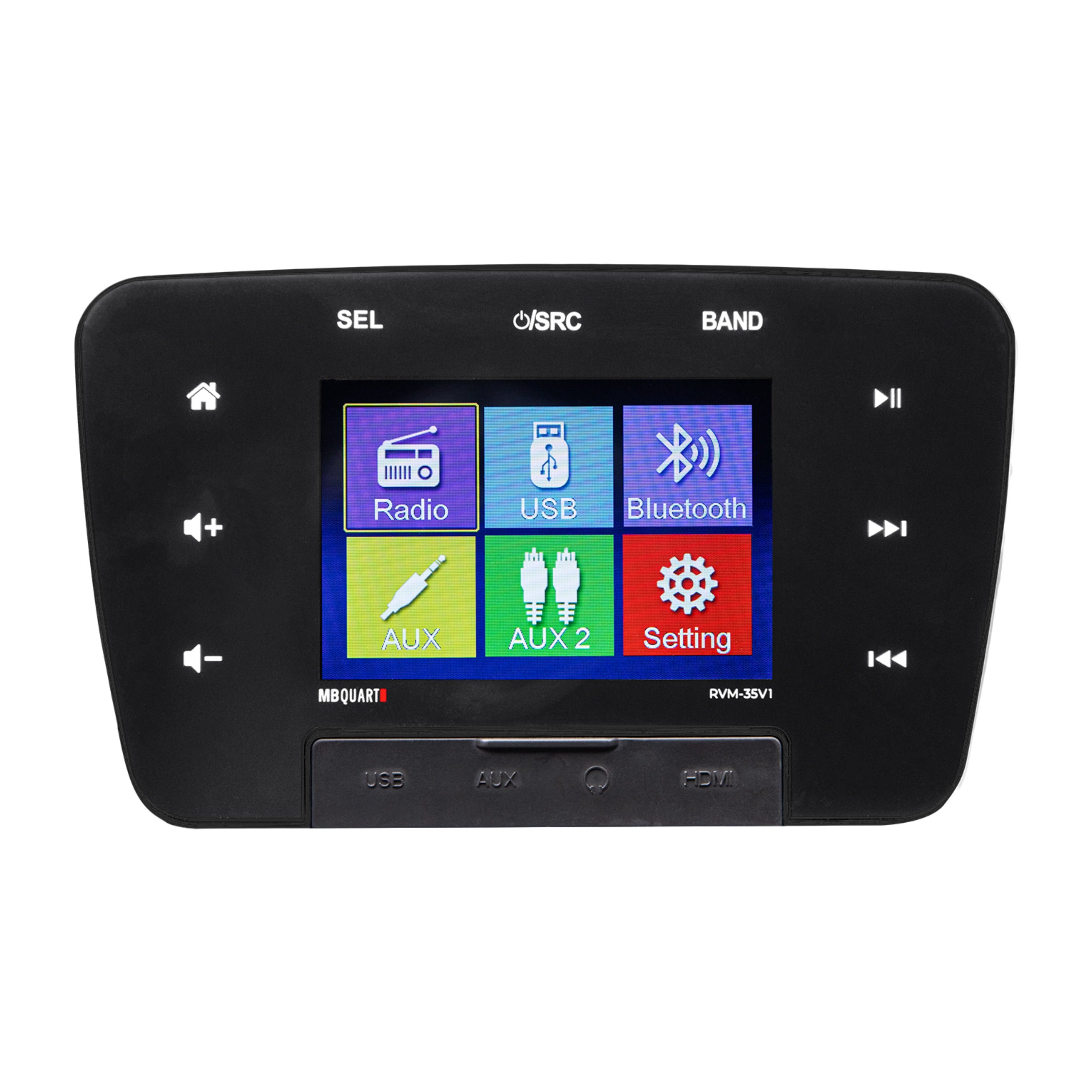

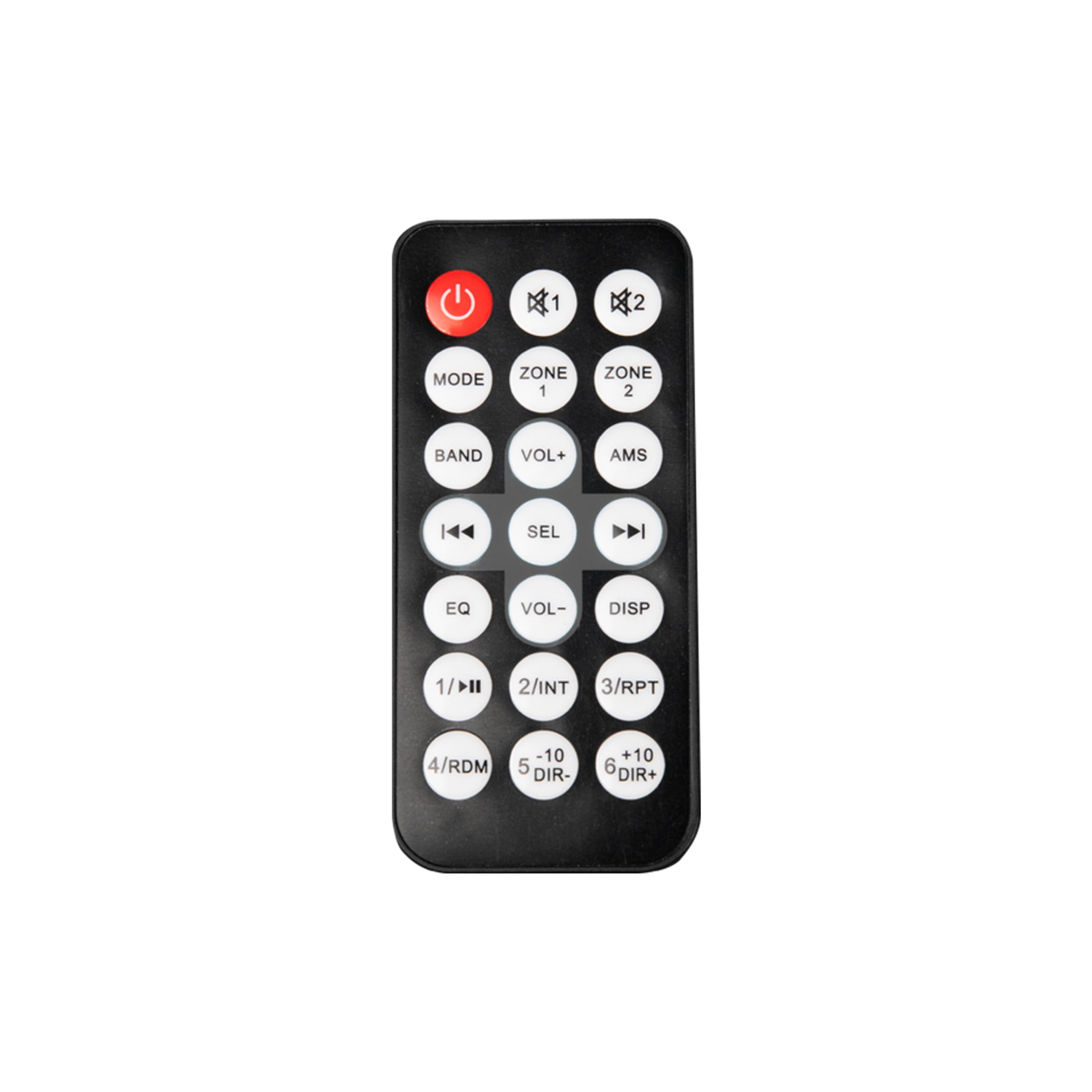

MB Quart RVM-35V1 digital multimedia, multi-zone, 160 watt 3.5 inch RV source unit with AM/FM, Bluetooth, and HDMI Pass Through. Full function remote included.
| Compatible Vehicle Fitment |
Universal |
|---|---|
| Apple® Control |
Quick control and access of music collection with iPhone, iPod and iPad. |
| Source Type |
AM/FM/Bluetooth |
| Input Types |
Bluetooth, RCA, USB, HDMI, 3.5mm. Audio: MP3/WMA/APE/FLAC/WAV |
| Control Buttons |
Source unit display bezel buttons and full touch screen LCD. |
| Bluetooth® Connect |
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. |
| Secure Simple Pairing™ |
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair™ |
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select ""RVM_35V1"" from your Bluetooth menu and you are connected, QUICKLY. |
| Built-In Power |
Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. |
| Control Method |
Source unit display bezel buttons and full touch screen LCD. |
| AM/FM Tuner Presets |
AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations. |
| Frequency Range |
FM: 87.5-107.9MHz, AM: 530-1710kHz |
| Video Input |
HDMI & RCA (In/Out) |
| Video Input Trigger |
When the camera trigger is connected to a high level (12V) it will switch to CAMERA source automatically. |
| Additional Inputs |
HDMI Throughput: Enjoy audio/digital devices that are pushed through the source unit to the tv monitor and speaker system. |
| USB / Apple® / Charging Port |
Yes |
| User Presets |
FM1, FM2, FM3, AM1, AM2 |
| Dual Audio Zone Capability |
Control volume in two different areas independently, such as passenger area and outdoor speakers. |
Details & Specs
| Type |
Source Unit |
|---|---|
| Brand |
MB Quart |
| Series |
RV |
| Category |
RV |
| Condition |
New |
| Color |
Black |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Source Unit Tuner Section FM Stereo Frequency Range |
87.5MHz – 107.9MHz |
| Source Unit Bluetooth Range (ft) |
40+ |
| Source Unit Peak Power Output (watts) |
4 x 40 |
| Source Unit Frequency Response (Aux In) |
20Hz-20kHz |
| Source Unit Pre-amp Outputs (Y/N #) |
AUDIO: Headphones – Front Panel, VIDEO: 1 Video RCA – Video Output, Yes, AUDIO: 2 RCA Pair – Zone 1/Zone 2/SUB |
| Source Unit Minimum Impedance (ohms) |
4 |
| Source Unit Display Type |
LCD |
| Source Unit Display Backlit |
Yes |
| Source Unit Dimensions Mounting Hole (in) |
3.98 x 2.54 |
| Source Unit Dimensions Total Mounting Depth (in) |
2.01 |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| View/Download |
MB Quart Source Unit (RVM-35V1) Quick Start Guide (Rev1) |
|---|---|
| View/Download |
MB Quart RVM-35V1 Firmware Update and Technical Service Bulletin |
"
