Product Setup Information
Description

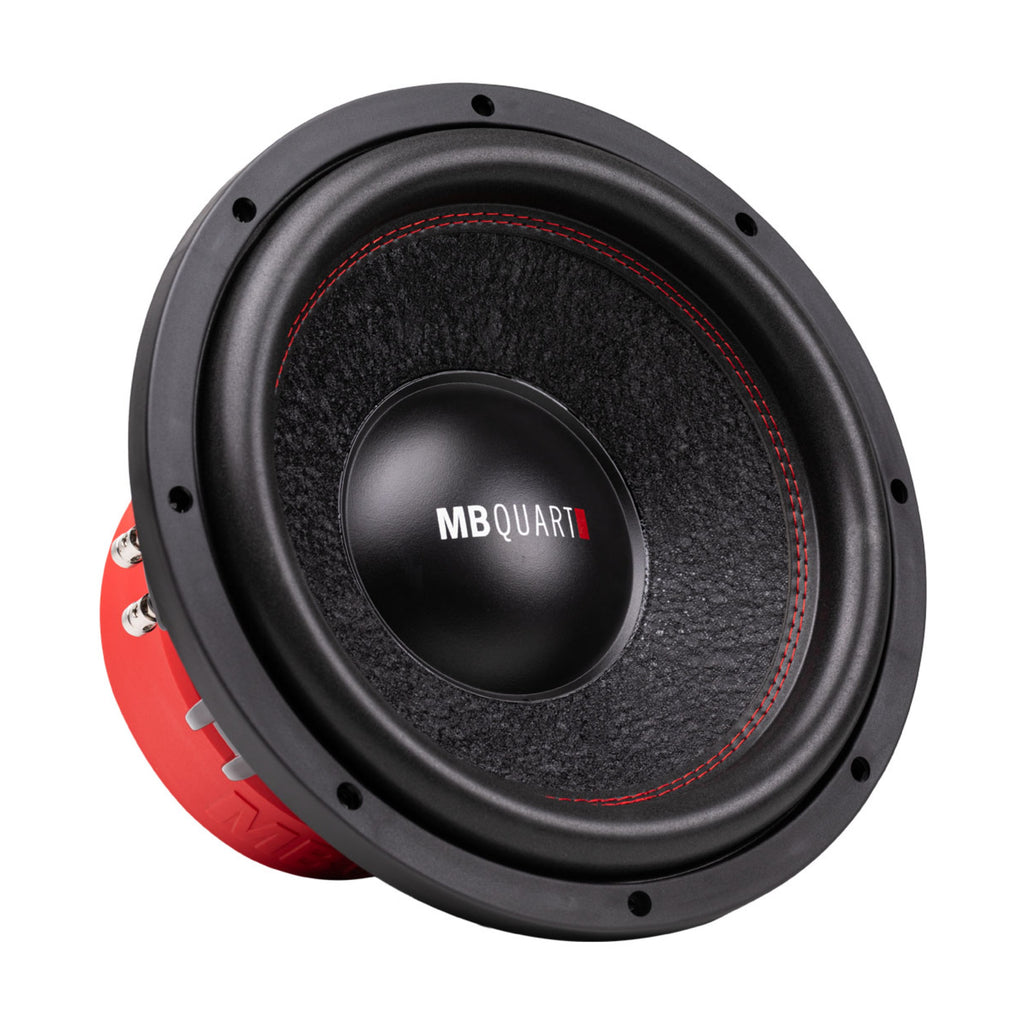

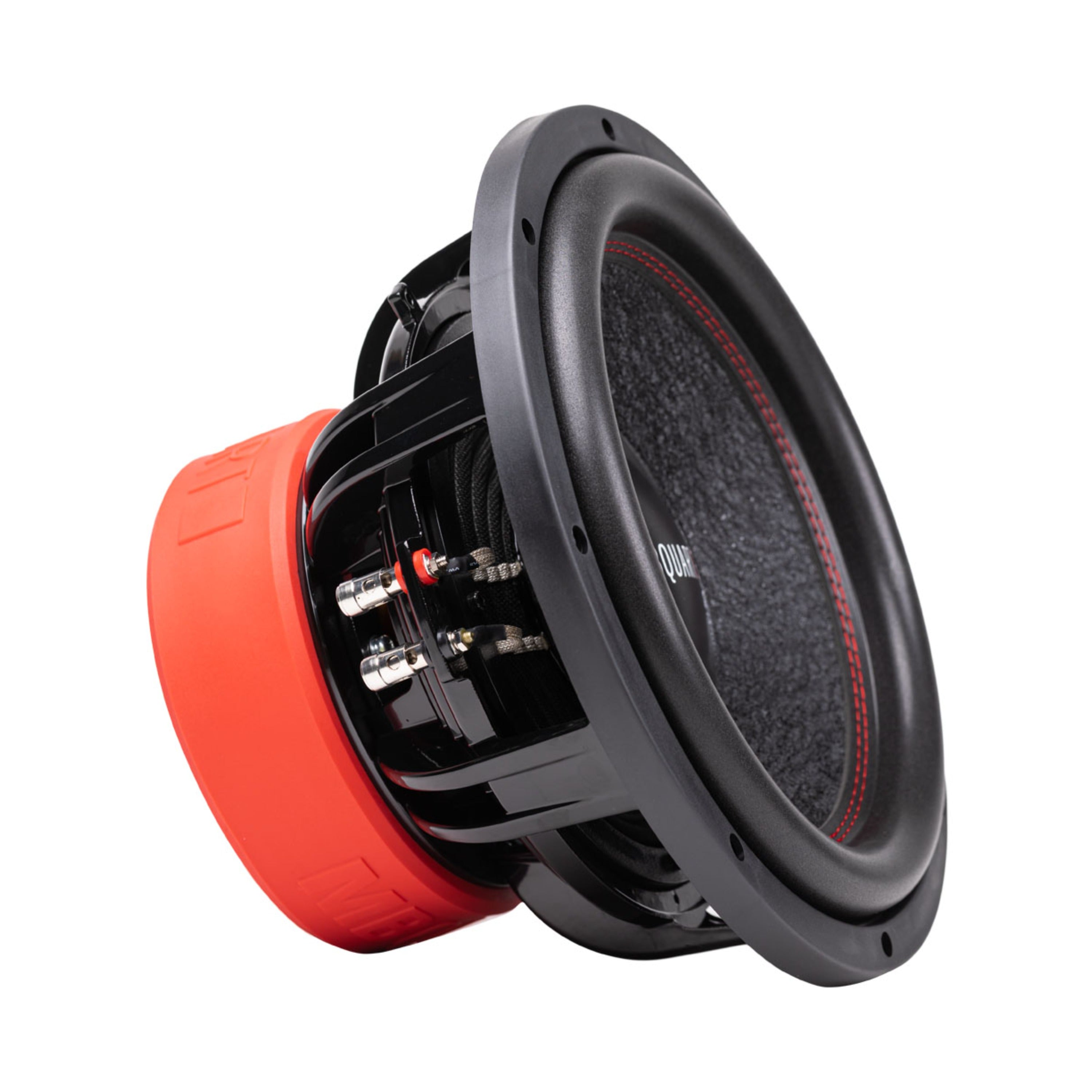

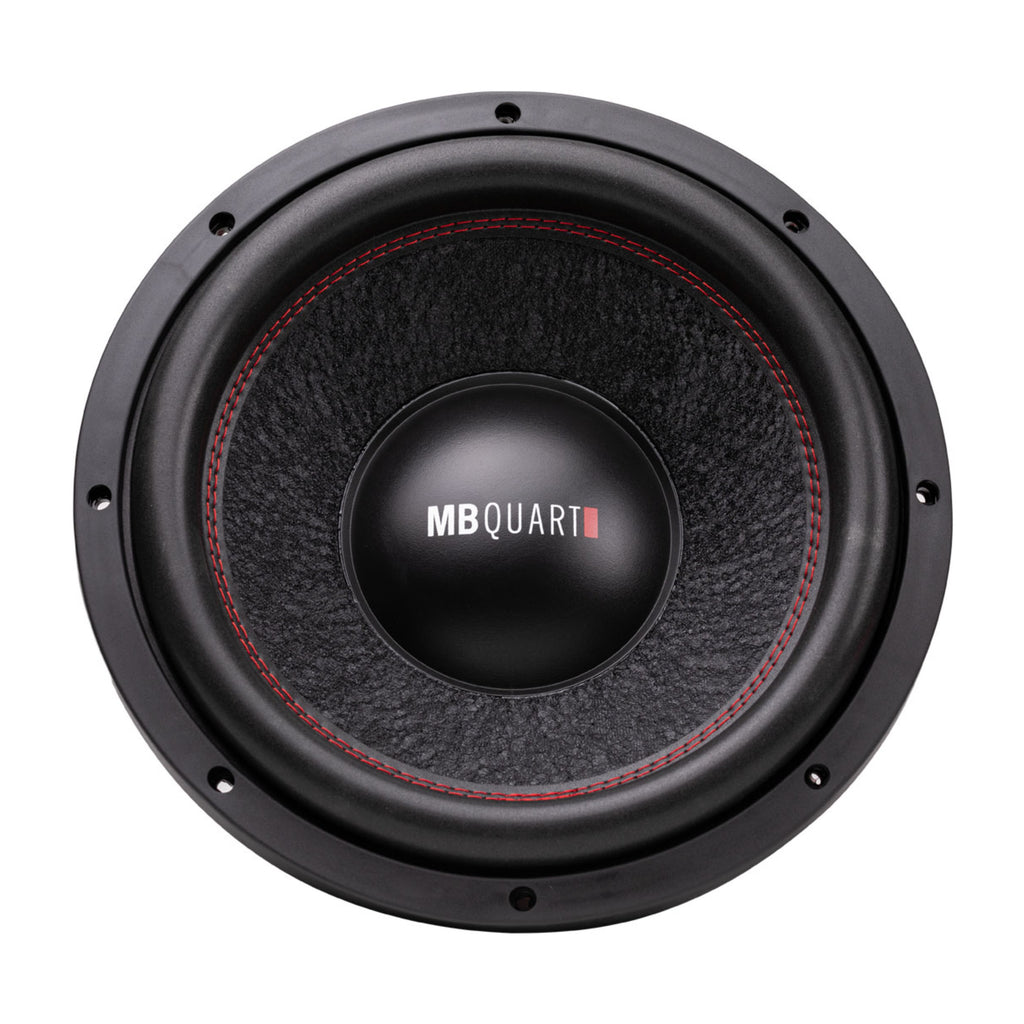

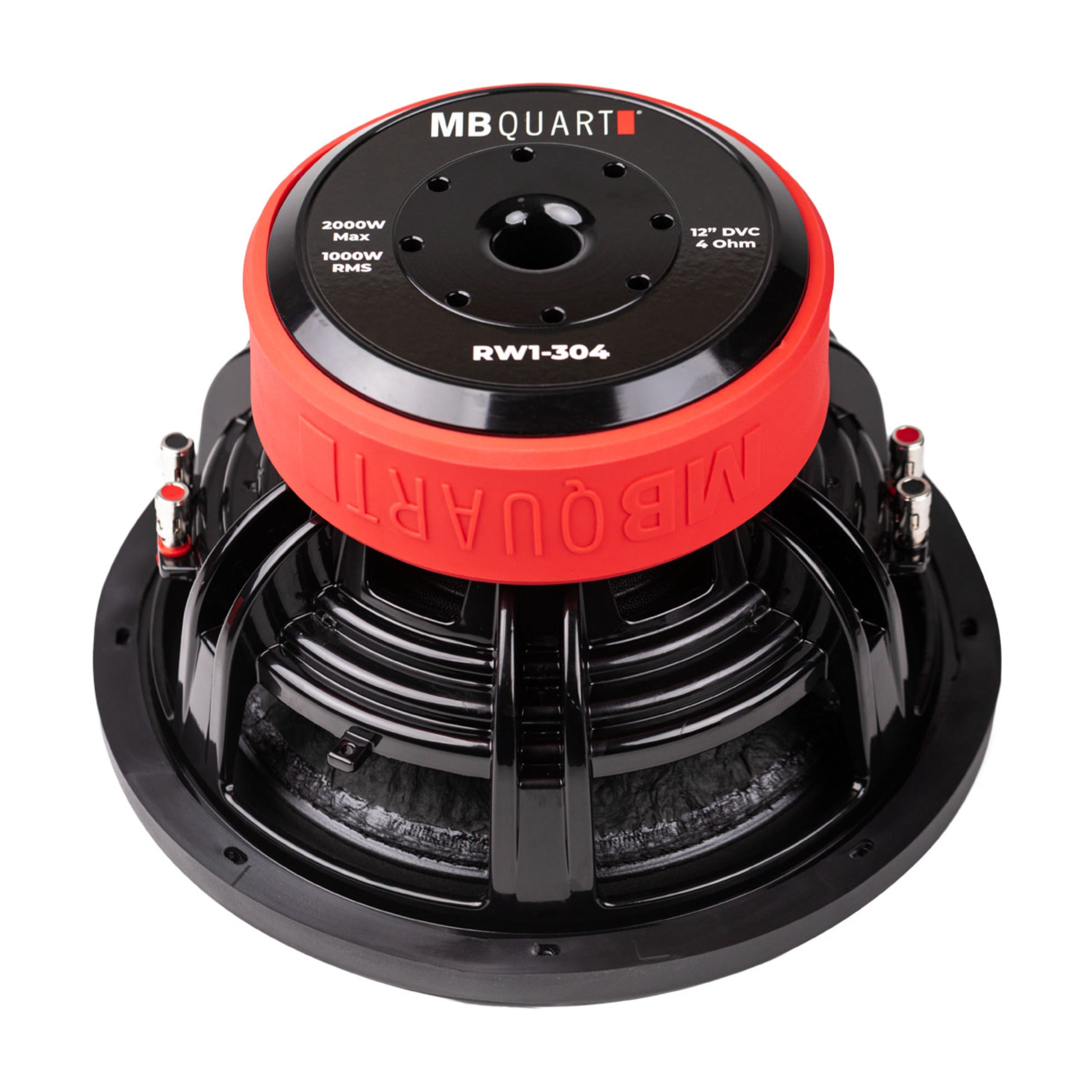

MB Quart Reference subwoofer with dual 4 Ohm design delivers 2000 watts and features heavy gauge, powder-coated, aluminum die-cast basket.
| Terminal Type |

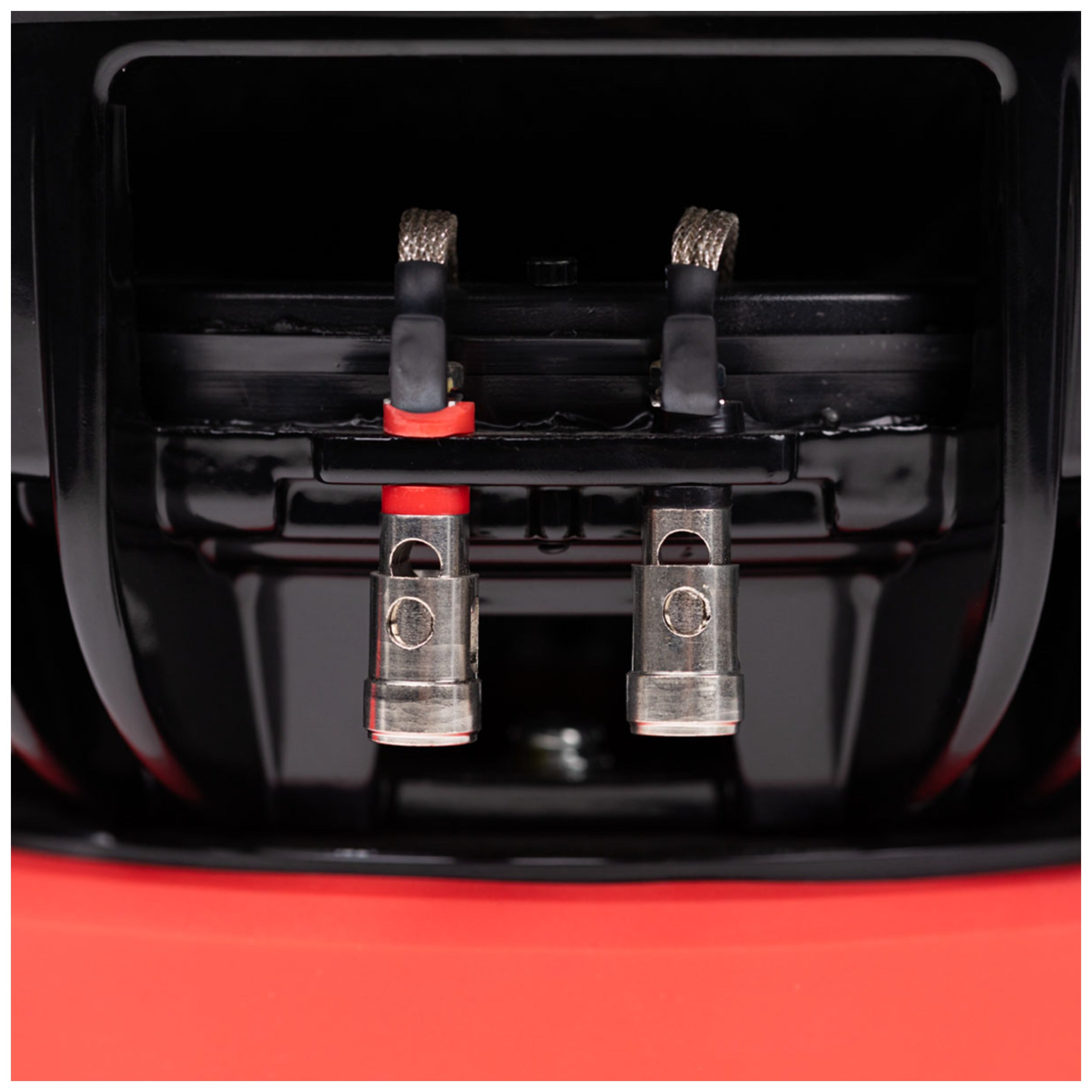

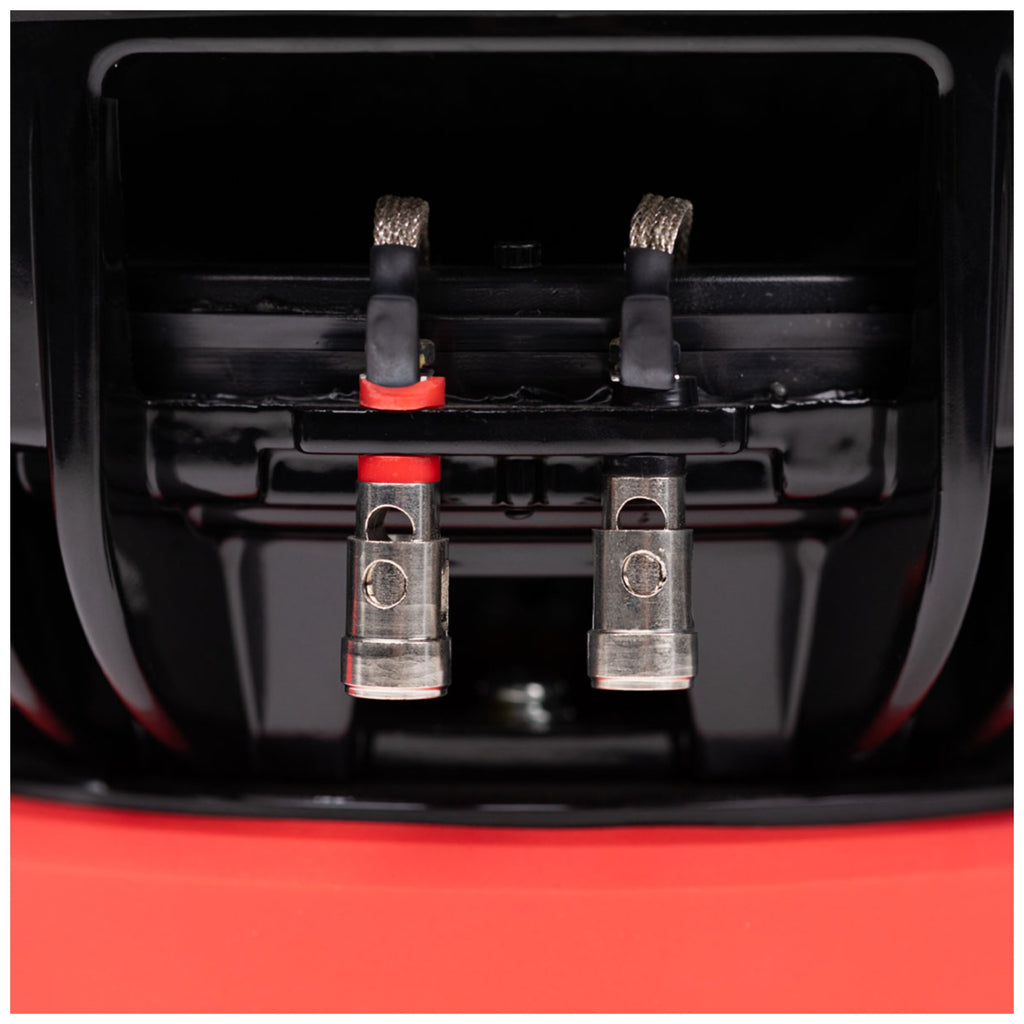

Push & insert style terminals for easy installation. |
|---|---|
| Configuration |
Round |
| Surround / Cone Coupling |
The pressure treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free. |
| Voice Coil / Former Assembly |

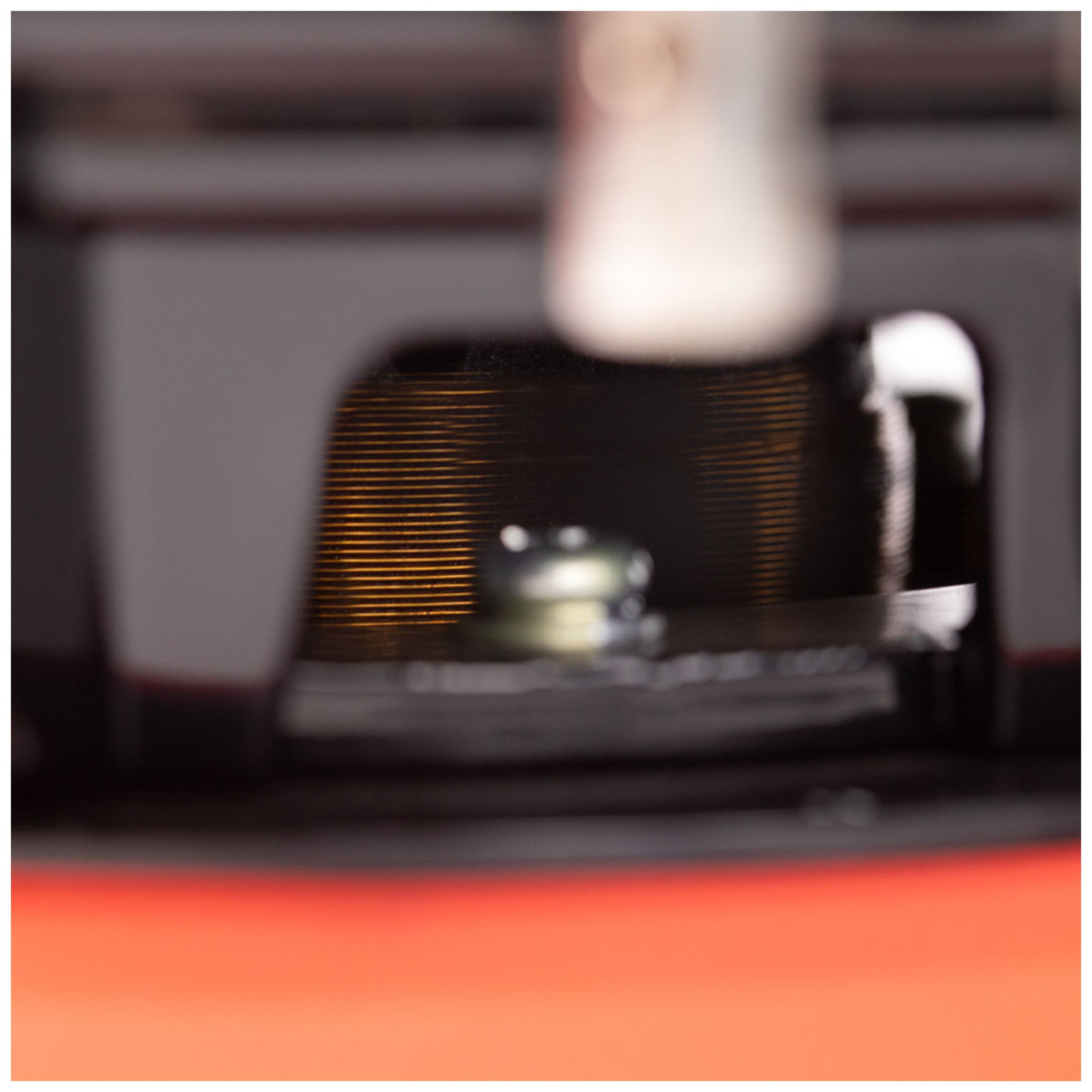

Vented aluminum former holds a 3"" voice coil while allowing the heat to be exchanged. (Less heat means less distortion) |
| Spider |

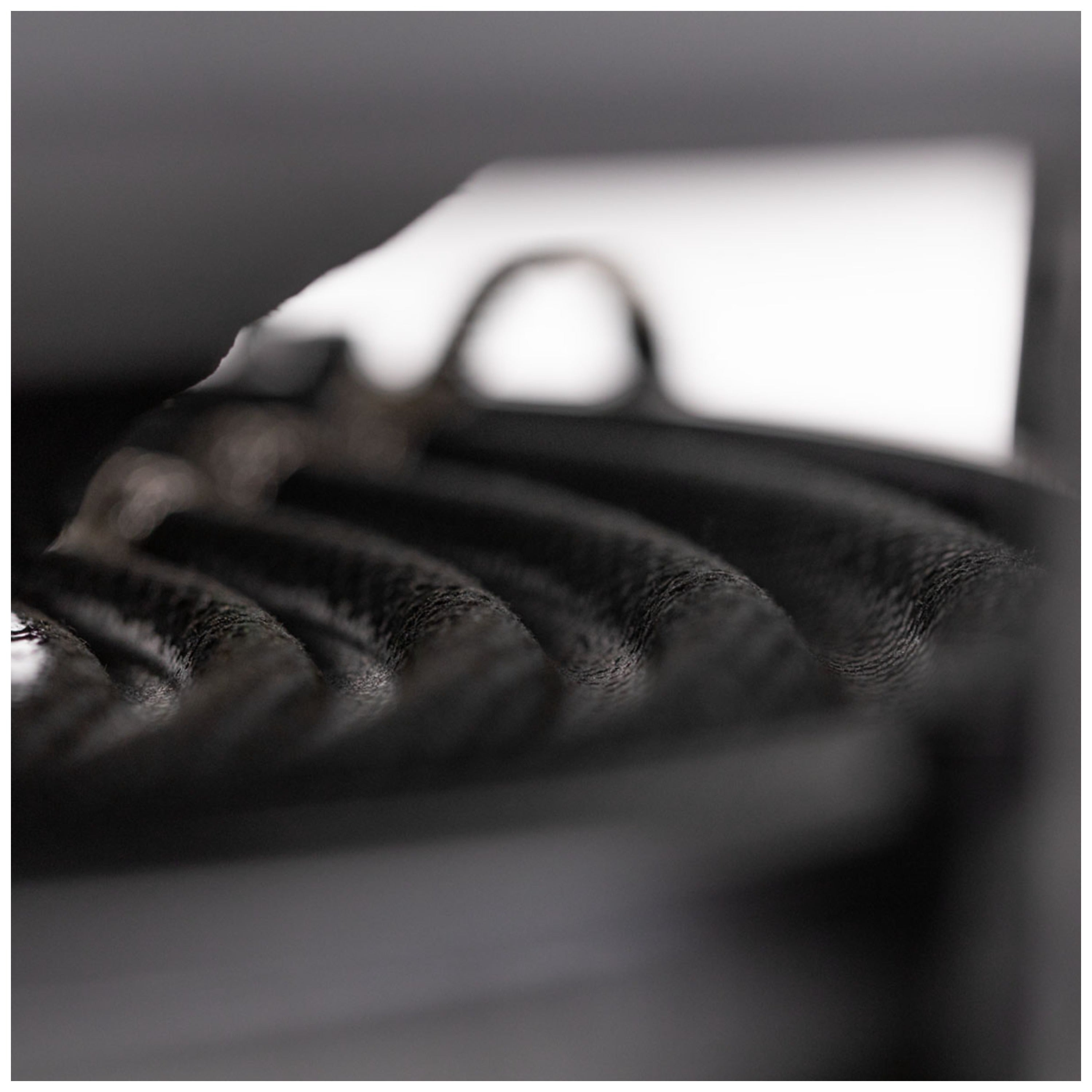

Specialized MB Quart dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions. |
| Frame / Venting |

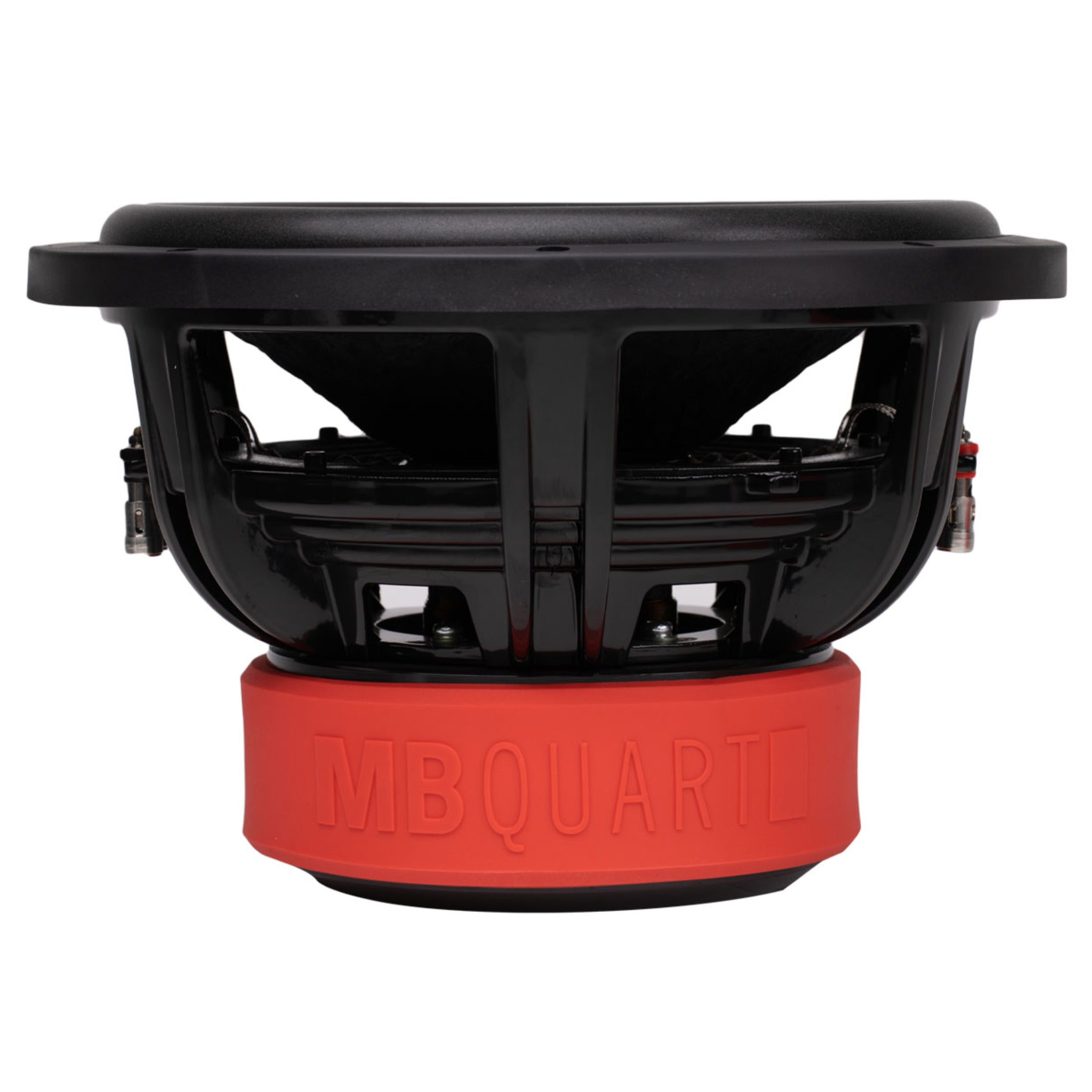

Heavy duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability. |
| Motor |
Vented high energy motor assembly with dual 70oz magnets increases power handling and increases SPL. |
| Cone |
Non-Pressed Paper Cone with Coating |
Details & Specs
| Type |
Subwoofer |
|---|---|
| Brand |
MB Quart |
| Series |
Reference |
| Category |
Mobile |
| Condition |
New |
| Color |
Black |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Subwoofer Configuration |
Round |
| Subwoofer Voice Coils |
2 |
| Subwoofer Impedance (ohms) |
4 |
| Subwoofer RMS Power Handling (watts) |
1000 |
| Subwoofer Peak Power Handling (watts) |
2000 |
| Subwoofer Cut-Out (in) |
11.10 |
| Subwoofer Mounting Depth (in) |
7.32 |
| Subwoofer Outside Diameter (in) |
12.83 |
| Subwoofer Sensitivity (1 watt/1 meter) |
85.3dB |
| Subwoofer Enclosure Recommendation |
Vented enclosure for spl or sound quality – See manual for recommendations |
| Subwoofer Size (in) |
12 |
