TOA M864DCU Multi Channel Digital Mixer

TOASKU: M864DCU

Retail Price:
Sale price$3,594.62

Product Setup Information

Sorry, no downloads available at this time.

Description

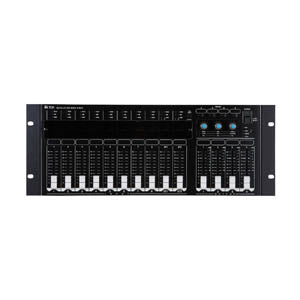

The M-864D is a 4U rack mountable Digital stereo mixer having 8 monaural Mic/Line input channels and 7 stereo input channels, 6 output channels including 4 bus assignable monaural output channels and 1 stereo recording output channel. It is equipped with digital signal processing functions such as Automatic Resonance Control function (ARC(*1)), Feedback Suppressor function (FBS), Automatic stereo input mute function (AUTO MUTE or Ducker), and Equalizer. Advanced acoustic compensation can be automatically performed without using an acoustic measuring instrument. Furnished with various function setting buttons and 14 analog volume faders, the M-864D can be operated without the need or use of a PC. However, it can also be operated by connecting the PC or optional remote control panel. It can be mounted in an EIA standard component rack (4U size).

  • Frequency Response: 20Hz – 20kHz
  • Sampling Frequency: 48kHz
  • Dynamic Range: 100dB or more (IHF-A weighted)
  • Distortion: 0.03% or less, 1kHz, +4dBinput / output, 20Hz – 20kHz BPF
  • Crosstalk: -80dB or less, 1kHz
  • Input:
    • 8 monaural input channels, removable terminal block (3-Pin), Phantom power (+24VDC, 10mA, ON / OFF switchable for each channel), Gain setting (settable for each channel)
    • 7 stereo input (L, R) channels (1-A, 1-B, 1-C, 2-A, 2-B, 2-C, front mounted input), RCA jack (stereo mini jack provided on the front panel): -10dB (max. +10dB), 10k Trim gain for each individual channel: - to 0dB (except front mounted input)
  • Output: 4 output channels, +4dB (max.+24dB), applicable load 600Ω or more, electronically-balanced, removable terminal block (3-Pin) 1 recording output (L, R) channel: -10dB* (max. +10dB*),applicable load 1k or more, RCA jack, Gain is adjustable
  • Contact Input: 8 channels, open voltage: 24VDC,short-circuit current: 5mA, removable terminal block (10-Pin)
  • Contact Output: 8 channels, no-voltage make contact, contact capacity: 24VDC / 100mA, removable terminal block (10-Pin)
  • Remote Control Panel:
    • 2 channels, Maximum number of units: 8 units per channel
    • 24VDC input x 2, termination ON/OFF switch x 1, removable terminal block (10-Pin)
    • Type of cable: Shielded CPEV cable (a pair of data cable and a pair of power supply cable) or shielded Cat-5 twisted pair cable for LAN (CAT5-STP)
  • Network:
    • Network I/F: 1 channel of 10BASE-TX (auto-negotiation), RJ-45 connector, connection via switching hub
    • Network protocol: TCP / IP
    • Connection cable: Shielded Cat. 5 or higher twisted pair cable for LAN (CAT5-STP or better)
    • Maximum cable length: 100m (between M-864D and switching hub)
    • Preset Memory: 16
  • Signal Processing:
    • Automatic Resonance Control (ARC) Function
    • Feedback Suppressor Function
    • Filter: 8 channels (each monaural input channel), high-pass filter: 20Hz – 20kHz
    • Tone Controller: BASS, MID, TREBLE
    • Parametric Equalizer: 20Hz – 20kHz, 15dB, 4 channels (each output channel)
    • Matrix: 12 x 4
    • Cross-point Gain: - to 0dB in 1dB steps
    • Auto Mute Function
  • Function:
    • Input PAD control
    • Low cut control
    • Analog output attenuator control
    • Front panel operation lock function
    • Stereo summing function
    • Function setting panel
  • Front Panel Section:
    • Input Level Indicator
    • Output Level Indicator
    • ARC Measuring Start Switch: ON / OFF switch
    • Feedback Suppressor (FBS) Function: ON / OFF switch
    • Low Cut: ON / OFF switch
    • Stereo Summing: ON / OFF switch
    • Tone Control: BASS / MID / TREBLE
    • Monaural Input
    • Analog Setting: Gain setting
    • PAD ON/OFF
    • Phantom power ON/OFF
    • Stereo Input
    • Analog Setting: Trim setting
    • REC OUT gain setting
    • Preset Memory switch
    • Front Panel Operation Lock switch
    • Operation Status Indication
    • Analog Volume Fader
