Description

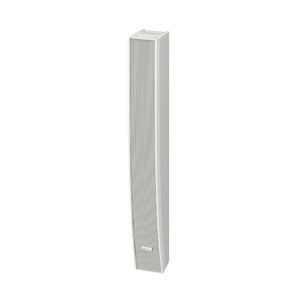

The SR-H2S Line array speaker forms a linear sound source by the internal speaker units arrayedvertically in close proximity. It can be used for high-impedance applications with the installation ofthe optional MT-S0301 Matching transformer.
| nclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous program: 180 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 90 dB (1 W, 1 m equivalent, measured at 4 m) |
| Frequency Response | 90 Hz - 17 kHz (when recommended parameters are applied by the optional DP-SP3) |
| Directivity Angle | Horizontal: 90゜, Vertical: 20゜ |
| Speaker Component | 7 cm (2.8") cone-type × 9 |
| Input Connector | Removable input connector |
| Finish | Enclosure: MDF, white, urethane paint Front grille: Punched steel plate, white, acrylic paint |
| Dimensions | 84 (W) × 663.4 (H) × 115 (D) mm (3.31" × 26.12" × 4.53") |
| Weight | 4.2 kg (9.26 lb) |
| Option | Matching transformer: MT-S0301 Extension plate: SR-EP3 Wall mounting bracket: SR-WB3 Wall tilt bracket: SR-TB3 Flying bracket: SR-FB3 Stand adapter: SR-SA3 (Applicable stand: ST-34B) Digital speaker processor: DP-SP3 |
